FJ40RV-KCJ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )EUR,GEN

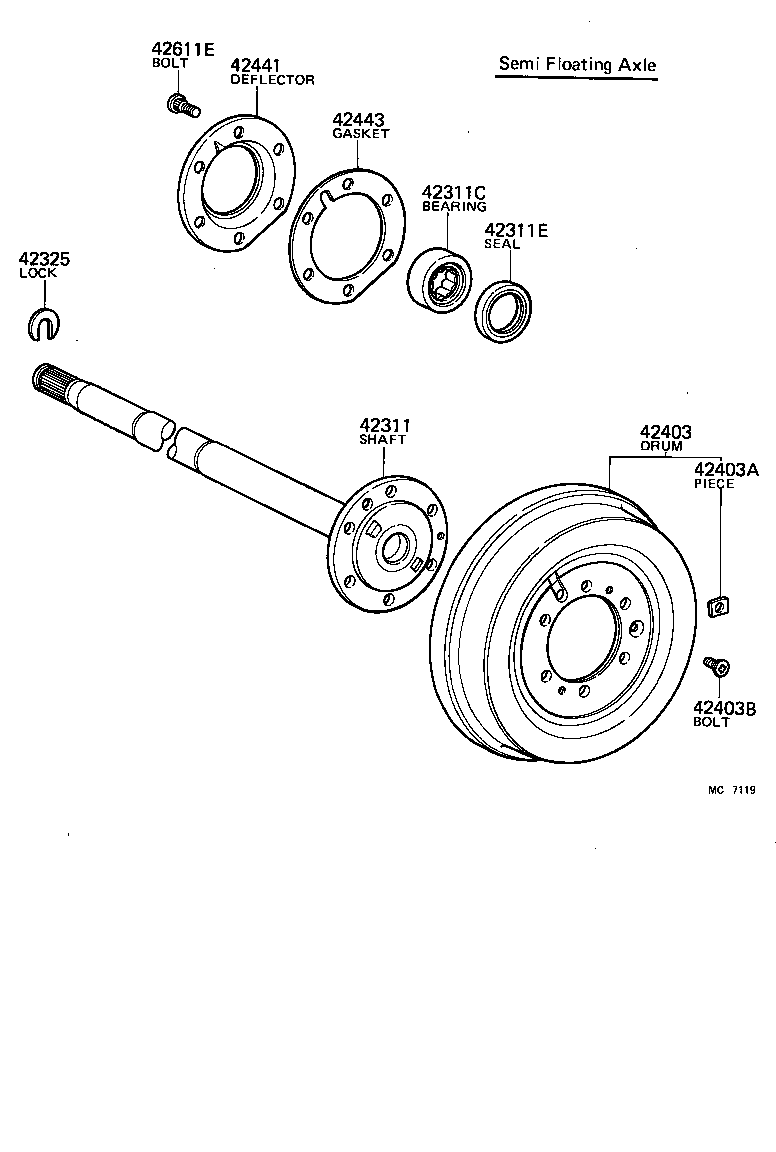

Click highlighted areas on diagram

diagram 42311 42311C 42311E 42325 42403 42403A 42403B 42441 42443 42611E
Part # Description Qty Price
42311 - SHAFT, REAR AXLE
42312-60042

BJ4#,FJ4#,HJ47

LH,FULL FLOATING AXLE

 1
42311-60052

BJ4#,FJ4#,HJ47

RH,FULL FLOATING AXLE

 1
42311-60060

BJ4#,FJ4#,HJ47..EUR,GEN

RH,SEMI FLOATING AXLE

 1
42312-60070

BJ4#,FJ4#,HJ47..EUR,GEN

LH,SEMI FLOATING AXLE

 1
42311C - BEARING (FOR REAR AXLE SHAFT)
90365-47013

BJ4#,FJ4#,HJ47..EUR,GEN

 2
42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER)
90310-35001

BJ4#,FJ4#,HJ47

FULL FLOATING AXLE

 2
90311-47001

BJ4#,FJ4#,HJ47..EUR,GEN

SEMI FLOATING AXLE

 2
42325 - LOCK, REAR AXLE SHAFT
42325-55010

BJ4#,FJ4#,HJ47..EUR,GEN

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-60020

BJ4#,FJ4#,HJ47

 2
42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM)
90937-01118

BJ4#,FJ4#,HJ47

20G,20G

 1
90937-01117

BJ4#,FJ4#,HJ47

10G,10G

 1
90937-01119

BJ4#,FJ4#,HJ47

30G,30G

 1
90937-01121

BJ4#,FJ4#,HJ47

50G,50G

 1
90937-01122

BJ4#,FJ4#,HJ47

60G,60G

 1
90937-01120

BJ4#,FJ4#,HJ47

40G,40G

 1
42403B - BOLT, SET (FOR REAR BRAKE DRUM SETTING)
90113-10003

BJ4#,FJ4#,HJ47

 2
42441 - DEFLECTOR, BRAKE DRUM OIL
42441-30010

BJ4#,FJ4#,HJ47..EUR,GEN

 2
42443 - GASKET, BRAKE DRUM OIL DEFLECTOR
42443-55020

BJ4#,FJ4#,HJ47..EUR,GEN

 2
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02034

BJ4#,FJ4#,HJ47

 12

(8008- )

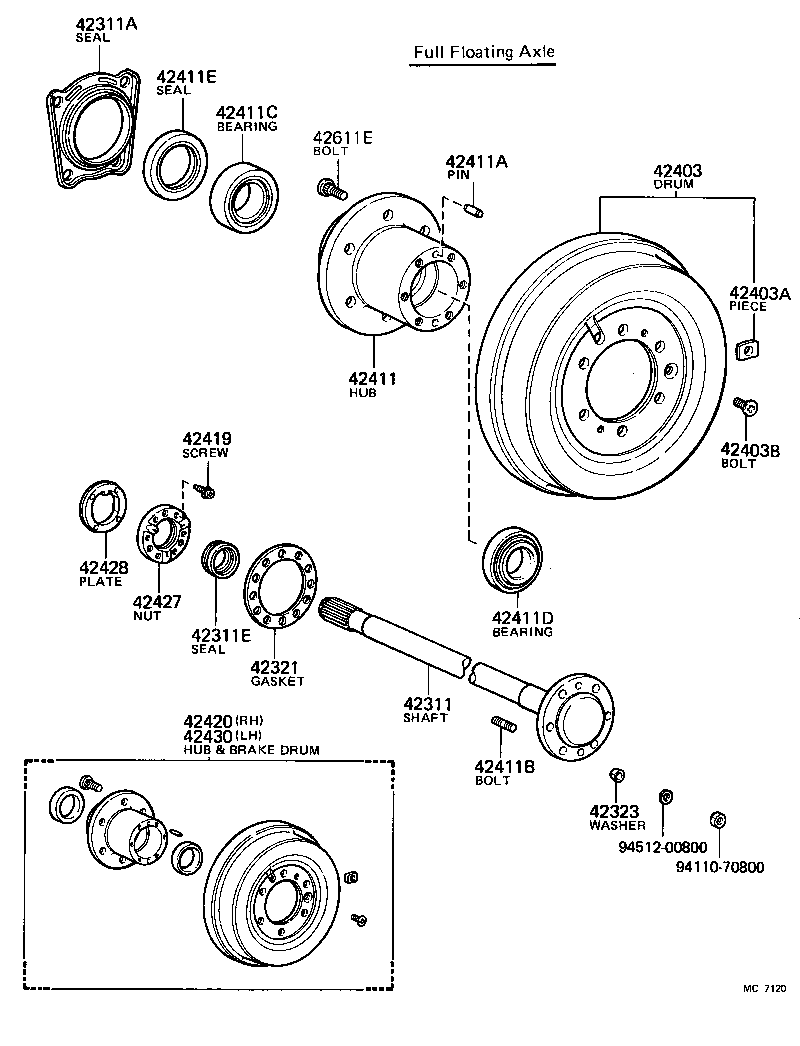

Click highlighted areas on diagram

diagram 42311 42311A 42311E 42321 42323 42403 42403A 42403B 42411 42411A 42411B 42411C 42411D 42411E 42419 42420 42427 42428 42430 42611E 9411070808 9451200800
Part # Description Qty Price
42311 - SHAFT, REAR AXLE
42312-60042

BJ4#,FJ4#,HJ47

LH,FULL FLOATING AXLE

 1
42311-60052

BJ4#,FJ4#,HJ47

RH,FULL FLOATING AXLE

 1
42311-60060

BJ4#,FJ4#,HJ47..EUR,GEN

RH,SEMI FLOATING AXLE

 1
42312-60070

BJ4#,FJ4#,HJ47..EUR,GEN

LH,SEMI FLOATING AXLE

 1
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90313-93001

BJ4#,FJ4#,HJ47

 2
42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER)
90310-35001

BJ4#,FJ4#,HJ47

FULL FLOATING AXLE

 2
90311-47001

BJ4#,FJ4#,HJ47..EUR,GEN

SEMI FLOATING AXLE

 2
42321 - GASKET, REAR AXLE SHAFT
43422-60010

BJ4#,FJ4#,HJ47

 2
42323 - WASHER, CONE (FOR REAR AXLE SHAFT)
42323-60010

BJ4#,FJ4#,HJ47

 12
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-60020

BJ4#,FJ4#,HJ47

 2
42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM)
90937-01118

BJ4#,FJ4#,HJ47

20G,20G

 1
90937-01117

BJ4#,FJ4#,HJ47

10G,10G

 1
90937-01119

BJ4#,FJ4#,HJ47

30G,30G

 1
90937-01121

BJ4#,FJ4#,HJ47

50G,50G

 1
90937-01122

BJ4#,FJ4#,HJ47

60G,60G

 1
90937-01120

BJ4#,FJ4#,HJ47

40G,40G

 1
42403B - BOLT, SET (FOR REAR BRAKE DRUM SETTING)
90113-10003

BJ4#,FJ4#,HJ47

 2
42411 - HUB, REAR AXLE
42411-60011

BJ4#,FJ4#,HJ47

 2
42411A - PIN, STRAIGHT (FOR REAR AXLE HUB)
90250-07057

BJ4#,FJ4#,HJ47

 4
42411B - BOLT, STUD (FOR REAR AXLE HUB)
90116-08325

BJ4#,FJ4#,HJ47

 12
42411C - BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING)
90368-49084

BJ4#,FJ4#,HJ47

 2
42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING)
90368-45087

BJ4#,FJ4#,HJ47

 2
42411E - SEAL, OIL (FOR REAR AXLE HUB)
90311-62001

BJ4#,FJ4#,HJ47

 2
42419 - SCREW, REAR AXLE BEARING LOCK NUT
42419-60011

BJ4#,FJ4#,HJ47

 4
42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH
42420-60070

BJ4#,FJ4#,HJ47

 1
42427 - NUT, REAR AXLE BEARING LOCK
42427-60020

BJ4#,FJ4#,HJ47

 2
42428 - PLATE, REAR AXLE LOCK NUT
42428-60011

BJ4#,FJ4#,HJ47

 2
42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH
42420-60070

BJ4#,FJ4#,HJ47

 1
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02034

BJ4#,FJ4#,HJ47

 12
Common parts
94110-70808
94512-00800
