FJ40RV-KCJ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )2F

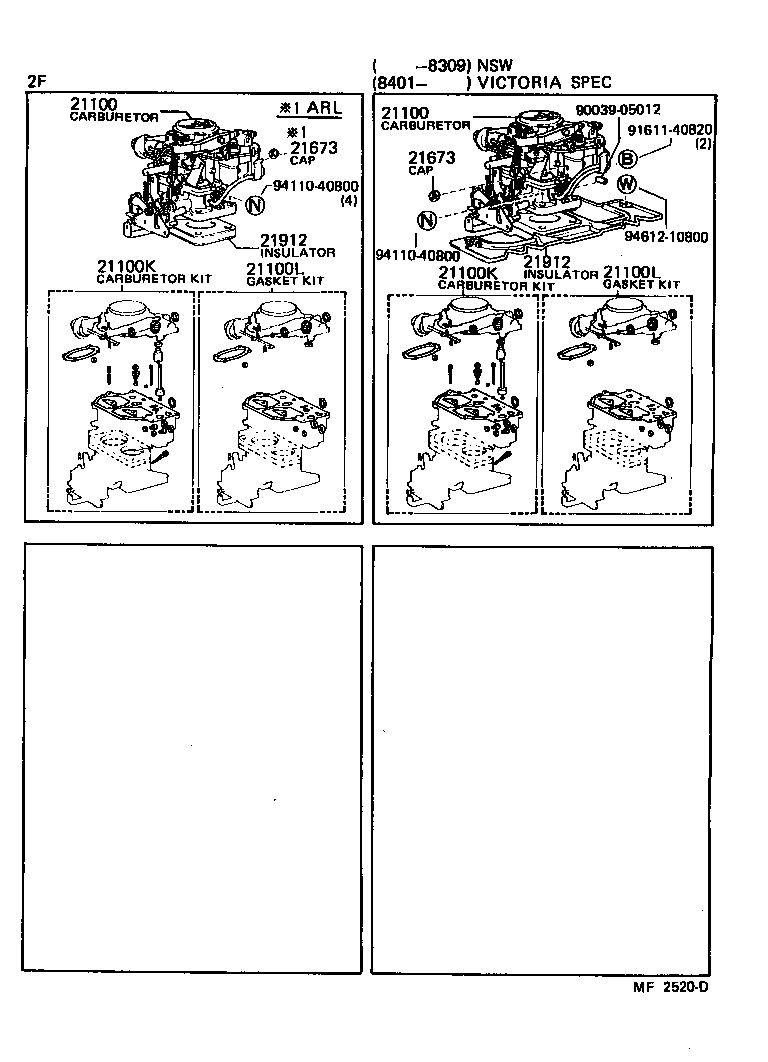

Click highlighted areas on diagram

diagram 21100 21100 21100K 21100K 21100L 21100L 21673 21673 21912 21912 9003905012 9161140820 9411040800 9411040800 9461210800
Part # Description Qty Price
21100 - CARBURETOR ASSY
21100-61012

2F..FJ4#..GEN

 1
21100 - CARBURETOR ASSY
21100-61012

2F..FJ4#..GEN

 1
21100K - CARBURETOR KIT
04211-61110

2F..FJ4#..GEN

 1
21100K - CARBURETOR KIT
04211-61110

2F..FJ4#..GEN

 1
21100L - GASKET KIT, CARBURETOR
04212-61030

2F..FJ4#

 1
21100L - GASKET KIT, CARBURETOR
04212-61030

2F..FJ4#

 1
21912 - INSULATOR, CARBURETOR HEAT
21912-61020

2F..FJ4#

 1
21912 - INSULATOR, CARBURETOR HEAT
21912-61020

2F..FJ4#

 1
Common parts
90039-05012
91611-40820
94110-40800
94612-10800
