FJ40RV-KCJ (1980)
Toyota Land Cruiser
Production
Aug 1980
-
Oct 1982
Engine
2F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8008-8209)2F

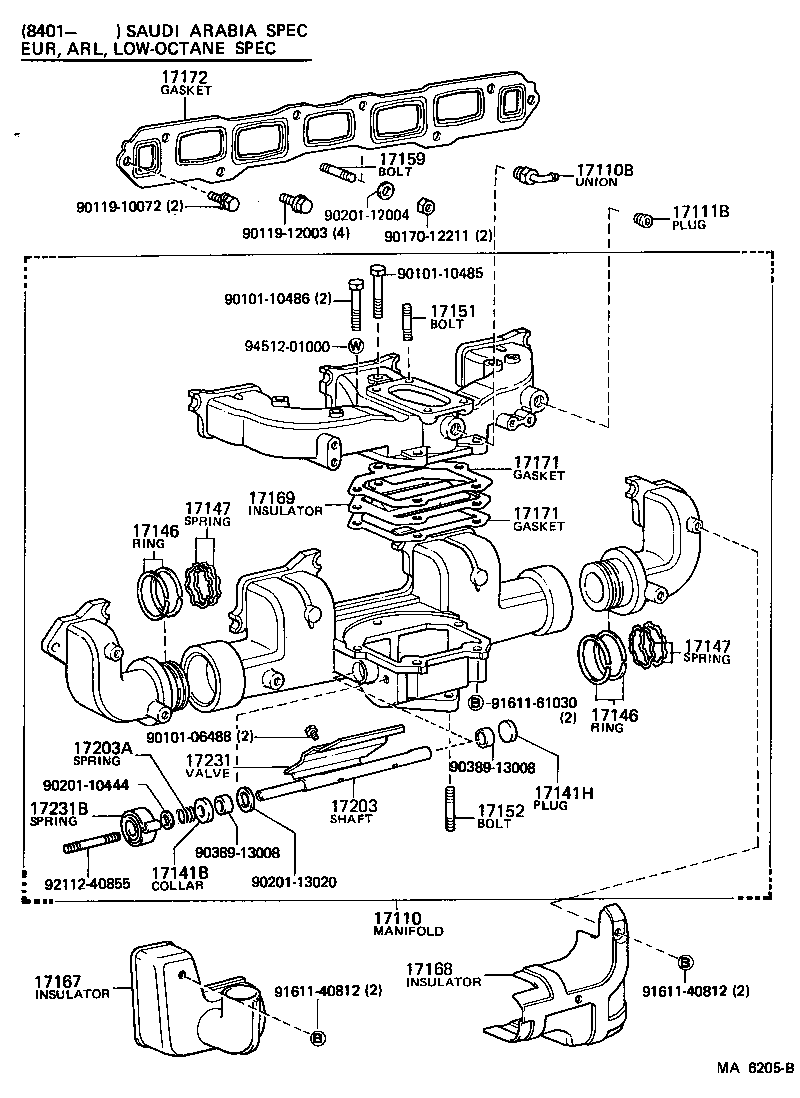

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17110 - MANIFOLD ASSY | ||||
| 17100-61011 |
2F..FJ4#..GEN |
1 | ||
| 17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD) | ||||
| 90404-53035 |
2F..FJ4# |
1 | ||
| 17111B - PLUG, NO.2 | ||||
| 90344-53011 |
2F..FJ4# |
1 | ||
| 17146 - RING, EXHAUST MANIFOLD | ||||
| 17151-61010 |
2F..FJ4# |
4 | ||
| 17146 - RING, EXHAUST MANIFOLD | ||||
| 17151-61010 |
2F..FJ4# |
4 | ||
| 17147 - SPRING, EXHAUST MANIFOLD | ||||
| 17152-61010 |
2F..FJ4# |
4 | ||
| 17147 - SPRING, EXHAUST MANIFOLD | ||||
| 17152-61010 |
2F..FJ4# |
4 | ||
| 17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR) | ||||
| 90116-08042 |
2F..FJ4# |
4 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10299 |
2F..FJ4# |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-12321 |
2F..FJ4# |
2 | ||
| 17169 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3 | ||||
| 17169-61020 |
2F..FJ4#..GEN |
1 | ||
| 17171 - GASKET, INTAKE TO EXHAUST MANIFOLD | ||||
| 17171-61010 |
2F..FJ4# |
2 | ||
| 17171 - GASKET, INTAKE TO EXHAUST MANIFOLD | ||||
| 17171-61010 |
2F..FJ4# |
2 | ||
| 17172 - GASKET, MANIFOLD TO CYLINDER HEAD | ||||
| 17172-61030 |
2F..FJ4# |
1 | ||
| Common parts | ||||
| 90101-06488 | ||||
| 90101-10485 | ||||
| 90101-10486 | ||||
| 90119-12003 | ||||
| 90170-12211 | ||||
| 90201-12004 | ||||
| 90389-13039 | ||||
| 91611-40812 | ||||
| 91611-61028 | ||||
| 91611-61030 | ||||
| 92112-40655 | ||||
| 94512-01000 | ||||
(8008- )2F..GEN

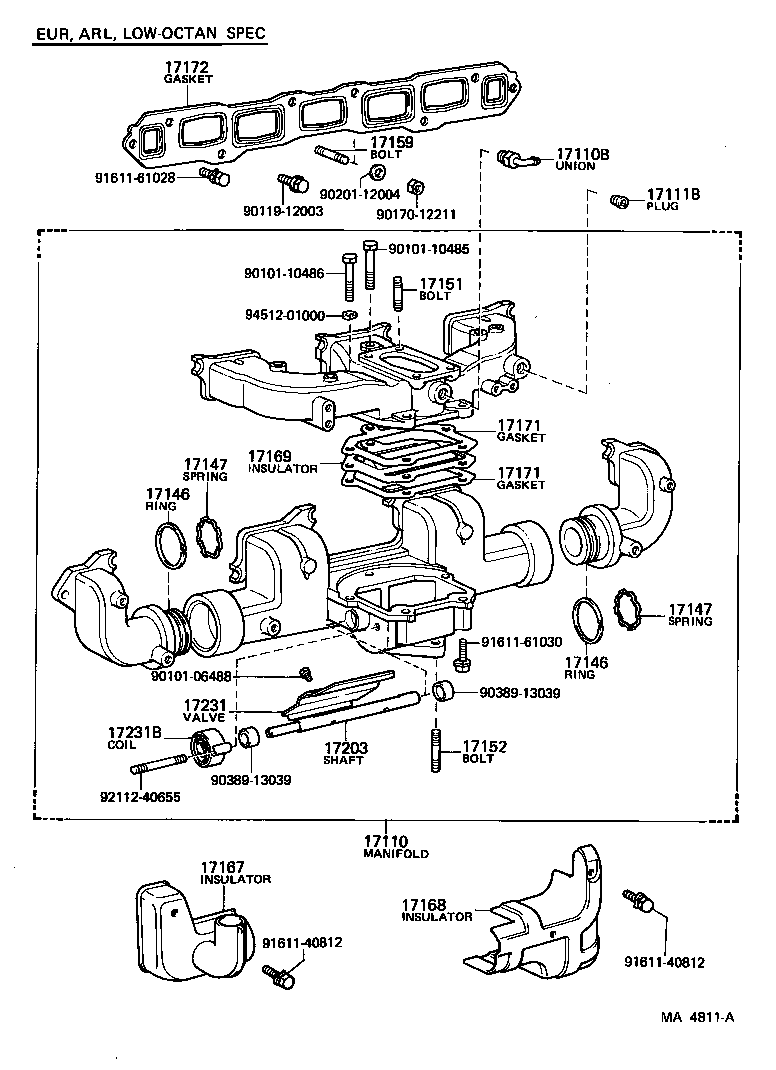

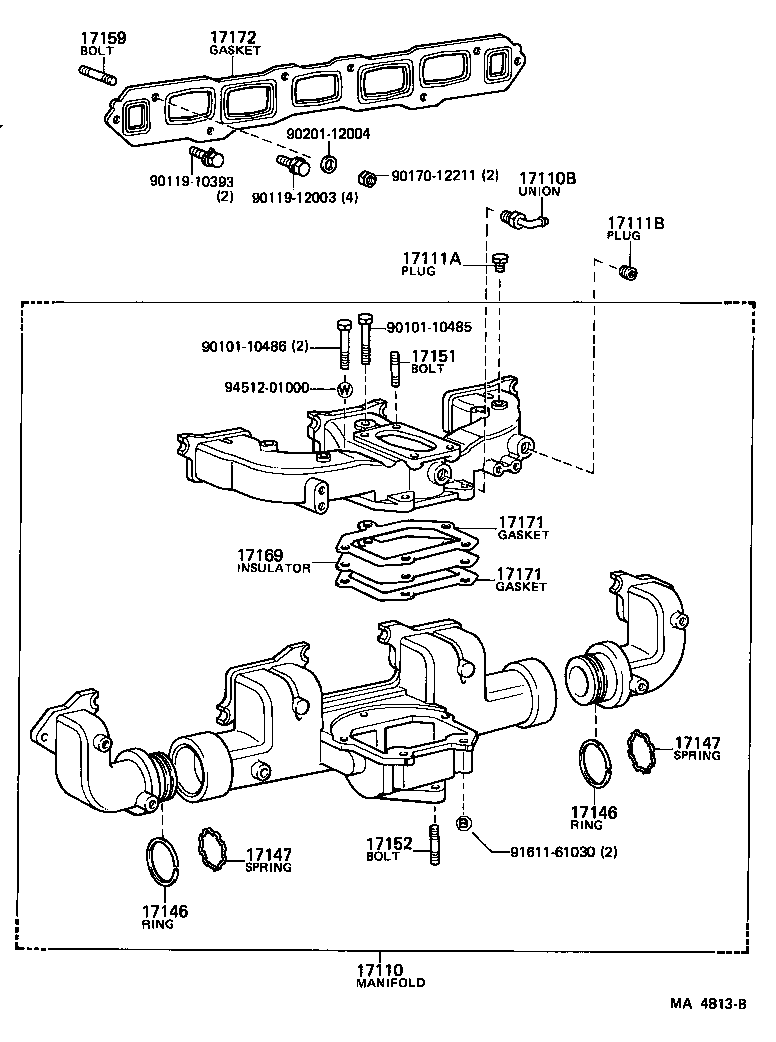

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17110 - MANIFOLD ASSY | ||||
| 17100-61011 |
2F..FJ4#..GEN |
1 | ||
| 17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD) | ||||
| 90404-53035 |
2F..FJ4# |
1 | ||
| 17111A - PLUG, NO.1 | ||||
| 90345-51025 |
2F..FJ4#..GEN |
1 | ||
| 17111B - PLUG, NO.2 | ||||
| 90344-53011 |
2F..FJ4# |
1 | ||
| 17146 - RING, EXHAUST MANIFOLD | ||||
| 17151-61010 |
2F..FJ4# |
4 | ||
| 17146 - RING, EXHAUST MANIFOLD | ||||
| 17151-61010 |
2F..FJ4# |
4 | ||
| 17147 - SPRING, EXHAUST MANIFOLD | ||||
| 17152-61010 |
2F..FJ4# |
4 | ||
| 17147 - SPRING, EXHAUST MANIFOLD | ||||
| 17152-61010 |
2F..FJ4# |
4 | ||
| 17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR) | ||||
| 90116-08042 |
2F..FJ4# |
4 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10299 |
2F..FJ4# |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-12321 |
2F..FJ4# |
2 | ||
| 17169 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3 | ||||
| 17169-61020 |
2F..FJ4#..GEN |
1 | ||
| 17171 - GASKET, INTAKE TO EXHAUST MANIFOLD | ||||
| 17171-61010 |
2F..FJ4# |
2 | ||
| 17171 - GASKET, INTAKE TO EXHAUST MANIFOLD | ||||
| 17171-61010 |
2F..FJ4# |
2 | ||
| 17172 - GASKET, MANIFOLD TO CYLINDER HEAD | ||||
| 17172-61030 |
2F..FJ4# |
1 | ||
| Common parts | ||||
| 90101-10485 | ||||
| 90101-10486 | ||||
| 90119-10393 | ||||
| 90119-12003 | ||||
| 90170-12211 | ||||
| 90201-12004 | ||||
| 91611-61030 | ||||
| 94512-01000 | ||||
(8008-8410)B,3B

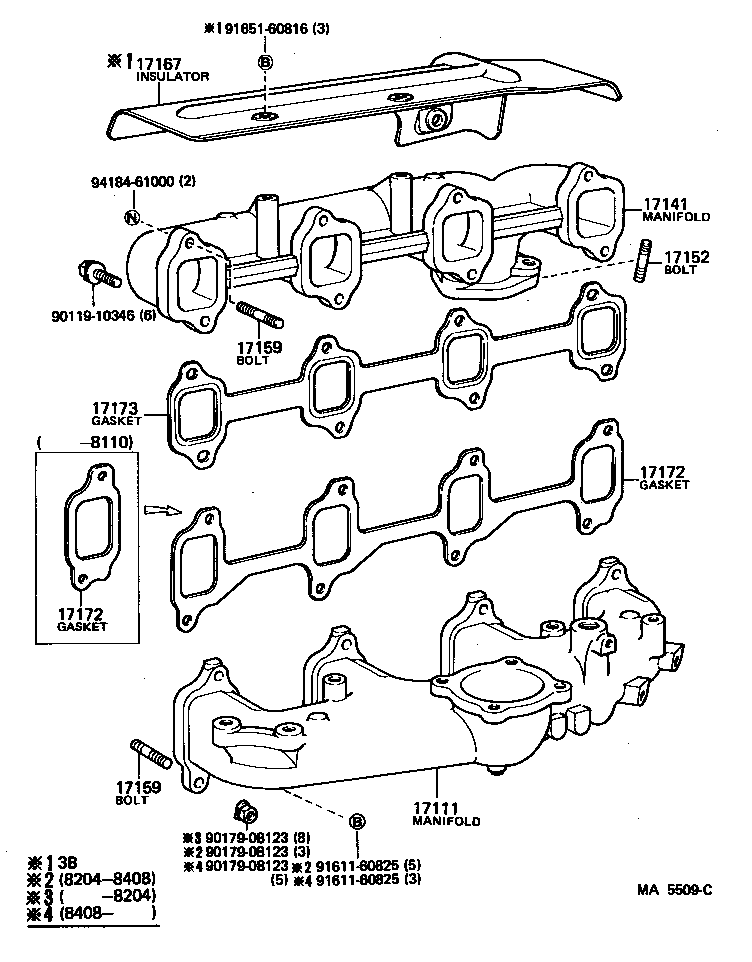

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10299 |
2F..FJ4# |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-12321 |
2F..FJ4# |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-12321 |
2F..FJ4# |
2 | ||
| 17172 - GASKET, MANIFOLD TO CYLINDER HEAD | ||||
| 17172-61030 |
2F..FJ4# |
1 | ||
| 17172 - GASKET, MANIFOLD TO CYLINDER HEAD | ||||
| 17172-61030 |
2F..FJ4# |
1 | ||
| Common parts | ||||
| 90119-10346 | ||||
| 90179-08123 | ||||
| 91611-60825 | ||||
| 91651-60816 | ||||
| 94184-61000 | ||||
(8209- )2F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17110 - MANIFOLD ASSY | ||||
| 17100-61011 |
2F..FJ4#..GEN |
1 | ||
| 17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD) | ||||
| 90404-53035 |
2F..FJ4# |
1 | ||
| 17111B - PLUG, NO.2 | ||||
| 90344-53011 |
2F..FJ4# |
1 | ||
| 17146 - RING, EXHAUST MANIFOLD | ||||
| 17151-61010 |
2F..FJ4# |
4 | ||
| 17146 - RING, EXHAUST MANIFOLD | ||||
| 17151-61010 |
2F..FJ4# |
4 | ||
| 17147 - SPRING, EXHAUST MANIFOLD | ||||
| 17152-61010 |
2F..FJ4# |
4 | ||
| 17147 - SPRING, EXHAUST MANIFOLD | ||||
| 17152-61010 |
2F..FJ4# |
4 | ||
| 17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR) | ||||
| 90116-08042 |
2F..FJ4# |
4 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10299 |
2F..FJ4# |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-12321 |
2F..FJ4# |
2 | ||
| 17169 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3 | ||||
| 17169-61020 |
2F..FJ4#..GEN |
1 | ||
| 17171 - GASKET, INTAKE TO EXHAUST MANIFOLD | ||||
| 17171-61010 |
2F..FJ4# |
2 | ||
| 17171 - GASKET, INTAKE TO EXHAUST MANIFOLD | ||||
| 17171-61010 |
2F..FJ4# |
2 | ||
| 17172 - GASKET, MANIFOLD TO CYLINDER HEAD | ||||
| 17172-61030 |
2F..FJ4# |
1 | ||
| Common parts | ||||
| 90101-06488 | ||||
| 90101-10485 | ||||
| 90101-10486 | ||||
| 90119-10072 | ||||
| 90119-12003 | ||||
| 90170-12211 | ||||
| 90201-10444 | ||||
| 90201-12004 | ||||
| 90201-13020 | ||||
| 90389-13008 | ||||
| 91611-40812 | ||||
| 91611-61030 | ||||
| 92112-40855 | ||||
| 94512-01000 | ||||
