FJ40R-UCJ (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-8007)BJ4#,FJ4#..TP,V ; (7904-8007)HJ45..VKC

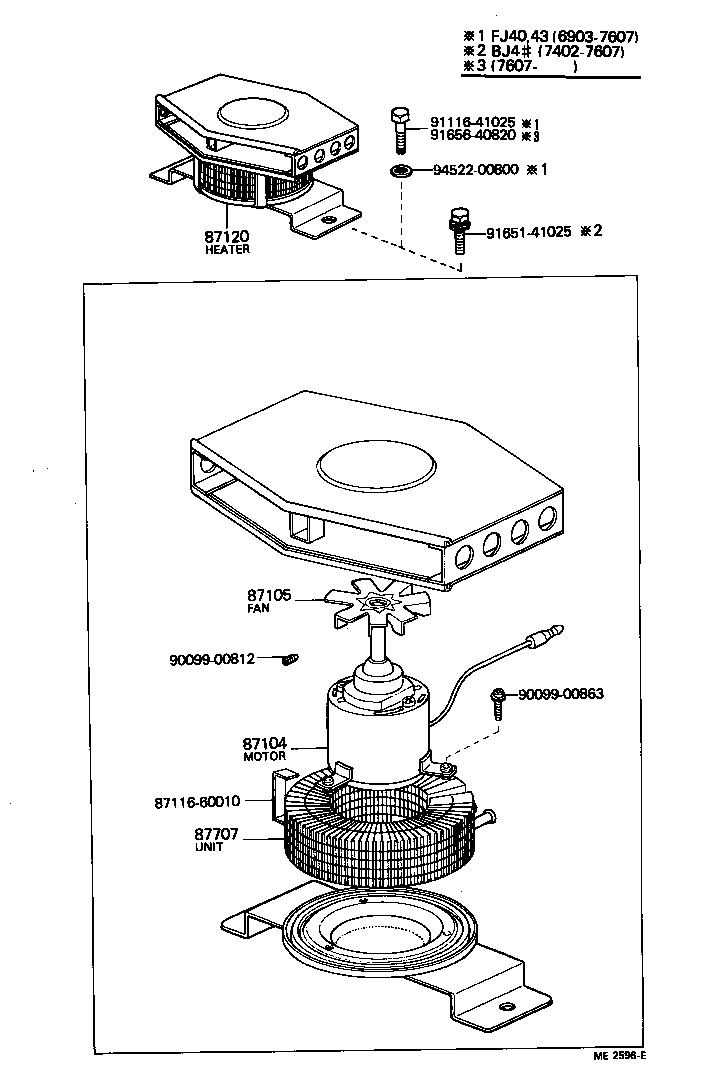

Click highlighted areas on diagram

diagram 87104 87105 8711660010 87120 87707 9009900812 9009900863 9111641025 9165141025 9165640820 9452200800
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-60061

FJ40,43,45..RHD

 1
87104-60041

BJ4#,FJ4#..TP,V

FOR 12V,REAR

 1
87104-60093

BJ4#,FJ4#,HJ45..RHD

FOR 12V

 1
87104-60043

BJ4#,FJ4#,55..TPC,TPS,VKC,VLS,VTG

FOR 12V,REAR

 1
87104-60094

BJ4#,FJ4#,HJ45

FOR 12V

 1
87104-60042

BJ4#,FJ4#,55..TPC,TPS,VKC,VLS,VTG

FOR 12V,REAR

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-22010

FJ55..LHD;FJ40,43,45,HJ45..RHD..CBU

 1
87120 - HEATER ASSY, REAR
87110-60054

BJ4#,FJ4#..TP,V

FOR 12V

 1
87110-60052

BJ4#,FJ4#..TP,V

FOR 12V

 1
87110-60053

BJ4#,FJ4#..TP,V

FOR 12V

 1
Common parts
87116-60010
90099-00812
90099-00863
91116-41025
91651-41025
91656-40820
94522-00800
