Toyota Land cruiser FJ40 FUEL PUMP & PIPE

FJ40R-UCJ (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980

Engine 2F

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

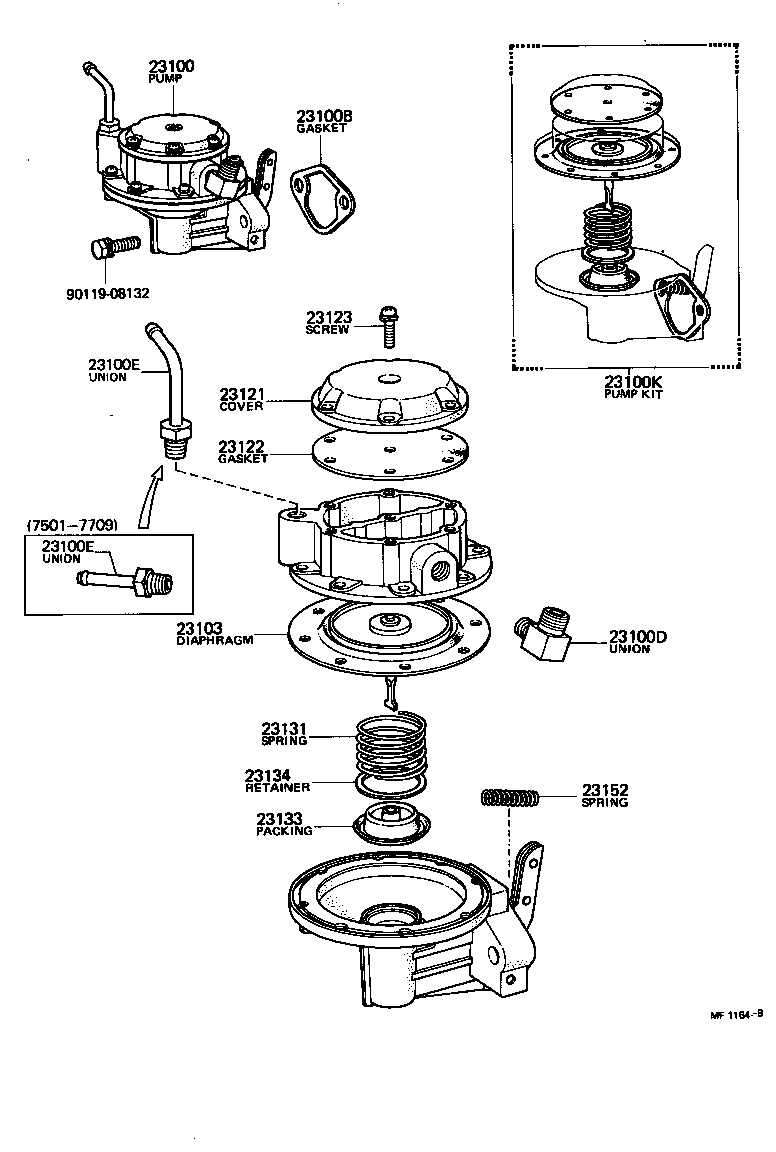

Click highlighted areas on diagram

Part #	Description	Period	Qty
23100 - PUMP ASSY, FUEL
23100-60050	F..FJ4#,55	03/1969 - 04/1970	1
23100-61011	2F..FJ4#,55	07/1976 - 09/1977	1
23100-61010	2F..FJ4#,55	01/1975 - 07/1976	1
23100-61030	2F..FJ4#,55	09/1977 - 09/1979	1
23100-61050	2F..FJ4#,55..ARL,GEN	09/1979 - 07/1980	1
23100B - GASKET, FUEL PUMP
90923-05005	2F..FJ4#,55	07/1979 - 09/1979	1
90923-05003	F..FJ4#	03/1969 - 03/1972	1
90923-05005	2F..FJ4#,55	09/1979 - 07/1980	2
23100D - UNION, NIPPLE(FOR FUEL OUTLET)
23116-60030	F,2F..FJ4#,55	03/1969 - 09/1979	1
23100E - UNION, NIPPLE(FOR FUEL INLET)
23116-61030	2F..FJ4#,55	09/1977 - 09/1979	1
90404-13105	F..FJ4#,55	03/1969 - 09/1972	1
23100E - UNION, NIPPLE(FOR FUEL INLET)
23116-61030	2F..FJ4#,55	09/1977 - 09/1979	1
90404-13105	F..FJ4#,55	03/1969 - 09/1972	1
23100K - PUMP KIT, FUEL
04231-60070	F..FJ4#,55	03/1969 - 12/1972	1
04231-61010	2F..FJ4#,55	01/1975 - 09/1979	1
23103 - DIAPHRAGM SUB-ASSY
23103-60021	F..FJ4#,55	03/1969 - 12/1972	1
23121 - COVER, FUEL PUMP
23121-60020	F..FJ4#,55	03/1969 - 12/1972	1
23122 - GASKET, FUEL PUMP COVER
23122-61010	2F..FJ4#,55	01/1975 - 09/1979	1
23122-60010	F..FJ4#,55	03/1969 - 01/1975	1
23123 - SCREW, COVER SET, NO.1
23123-60021	F..FJ4#,55	03/1969 - 07/1969	15
23131 - SPRING, DIAPHRAGM(FOR FUEL PUMP)
23131-60010	F,2F..FJ4#,55	03/1969 - 09/1979	1
23133 - PACKING, OIL SEAL(FOR FUEL PUMP)
23133-60050	F,2F..FJ4#,55	03/1969 - 09/1979	1
23134 - RETAINER, OIL SEAL PACKING(FOR FUEL PUMP)
23134-40011	F,2F..FJ4#,55	03/1969 - 09/1979	1
23152 - SPRING, ROCKER ARM
23152-60020	F,2F..FJ4#,55	03/1969 - 09/1979	1
Common parts
90119-08132

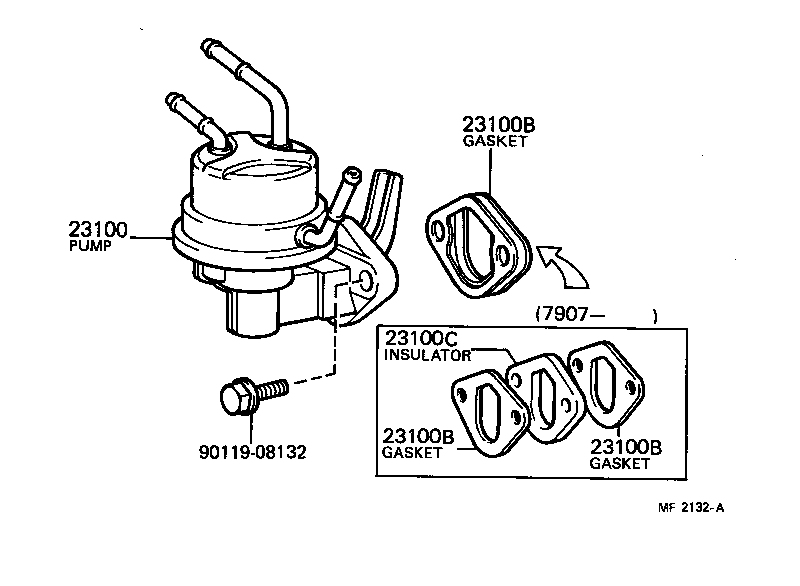

Click highlighted areas on diagram

Part #	Description	Period	Qty
23100 - PUMP ASSY, FUEL
23100-60050	F..FJ4#,55	03/1969 - 04/1970	1
23100-61011	2F..FJ4#,55	07/1976 - 09/1977	1
23100-61010	2F..FJ4#,55	01/1975 - 07/1976	1
23100-61030	2F..FJ4#,55	09/1977 - 09/1979	1
23100-61050	2F..FJ4#,55..ARL,GEN	09/1979 - 07/1980	1
23100B - GASKET, FUEL PUMP
90923-05005	2F..FJ4#,55	07/1979 - 09/1979	1
90923-05003	F..FJ4#	03/1969 - 03/1972	1
90923-05005	2F..FJ4#,55	09/1979 - 07/1980	2
23100B - GASKET, FUEL PUMP
90923-05005	2F..FJ4#,55	07/1979 - 09/1979	1
90923-05003	F..FJ4#	03/1969 - 03/1972	1
90923-05005	2F..FJ4#,55	09/1979 - 07/1980	2
23100B - GASKET, FUEL PUMP
90923-05005	2F..FJ4#,55	07/1979 - 09/1979	1
90923-05003	F..FJ4#	03/1969 - 03/1972	1
90923-05005	2F..FJ4#,55	09/1979 - 07/1980	2
23100C - INSULATOR, FUEL PUMP
90923-06001	2F..FJ4#,55..ARL,GEN	09/1979 - 07/1980	1
Common parts
90119-08132
