FJ40R-UC (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8210)3F

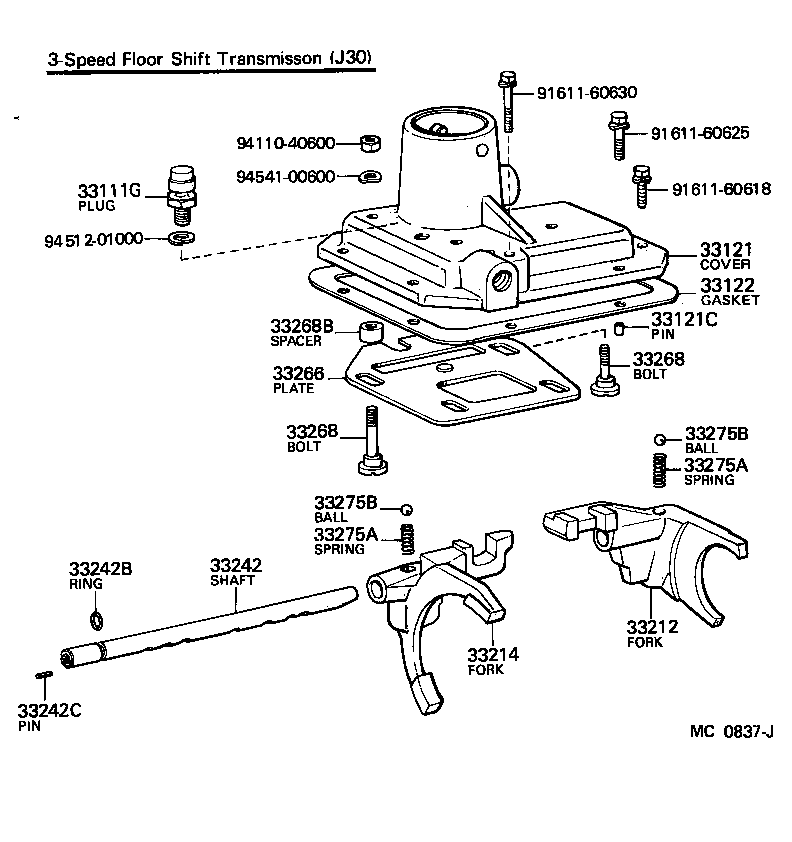

Click highlighted areas on diagram

diagram 33111G 33121 33121C 33122 33212 33214 33242 33242B 33242C 33266 33268 33268 33268B 33275A 33275A 33275B 33275B 9161160618 9161160625 9161160630 9411040600 9451201000 9454100600
Part # Description Qty Price
Common parts
91611-60618
91611-60625
91611-60630
94110-40600
94512-01000
94541-00600

(6903-8007)FJ4#,55

Click highlighted areas on diagram

diagram 33111G 33121C 33121G 33122A 33212 33214 33242 33242B 33242C 33266 33268 33268 33268B 33275A 33275A 33275B 33275B 9161160618 9161160625 9161160630 9411040600 9451201000 9454100600
Part # Description Qty Price
33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION)
90930-03019

FJ4#,55..3F

 1
90930-03019

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
33121G - COVER, MANUAL TRANSMISSION CASE
33102-60040

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
33102-60040

FJ4#,55..3F

 1
33122A - GASKET, MANUAL TRANSMISSION CASE COVER
33122-61010

FJ4#,55..3F

 1
33122-61010

FJ4#,55

FOR 3-SPEED TRANSMISSION

 1
33212 - FORK, 1ST & REVERSE SHIFT
33212-60010

FJ4#,55

 1
33212-60010

FJ4#,55..3F

 1
33214 - FORK, 2ND & 3RD SHIFT
33214-60010

FJ4#,55

 1
33214-60010

FJ4#,55..3F

 1
33242 - SHAFT, GEAR SHIFT FORK, NO.1
33241-60020

FJ4#,55..3F

 1
33241-60020

FJ4#,55

 1
33242B - RING, O (FOR SHIFT FORK SHAFT)
90301-08029

FJ4#,55

 1
90301-08029

FJ4#,55..3F

 1
33242C - PIN, STRAIGHT (FOR SHIFT FORK SHAFT)
90250-03032

FJ4#,55

 1
90250-03032

FJ4#,55..3F

 1
33266 - PLATE, SHIFT INTER LOCK
33206-60010

FJ4#,55..3F

 1
33206-60010

FJ4#,55

 1
33268 - BOLT, SHIFT INTER LOCK PLATE SET, NO.2
33268-60010

FJ4#,55..3F

6-1PX35.5-10

 3
33267-60010

FJ4#,55..3F

6-1PX29-10

 1
33268-60010

FJ4#,55

6-1PX35.5-10

 3
33267-60010

FJ4#,55

6-1PX29-10

 1
33268 - BOLT, SHIFT INTER LOCK PLATE SET, NO.2
33268-60010

FJ4#,55..3F

6-1PX35.5-10

 3
33267-60010

FJ4#,55..3F

6-1PX29-10

 1
33268-60010

FJ4#,55

6-1PX35.5-10

 3
33267-60010

FJ4#,55

6-1PX29-10

 1
33268B - SPACER (FOR SHIFT INTER LOCK BOLT)
90560-06083

FJ4#,55..3F

 4
90560-06083

FJ4#,55

 4
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-12033

FJ4#,55..3F

 2
90501-12033

FJ4#,55

FOR 3-SPEED TRANSMISSION

 2
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-12033

FJ4#,55..3F

 2
90501-12033

FJ4#,55

FOR 3-SPEED TRANSMISSION

 2
33275B - BALL, SHAFT DETENT
90360-10003

BJ4#,FJ4#,55,HJ45

 3
33275B - BALL, SHAFT DETENT
90360-10003

BJ4#,FJ4#,55,HJ45

 3
Common parts
91611-60618
91611-60625
91611-60630
94110-40600
94512-01000
94541-00600
