FJ40R-UC (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

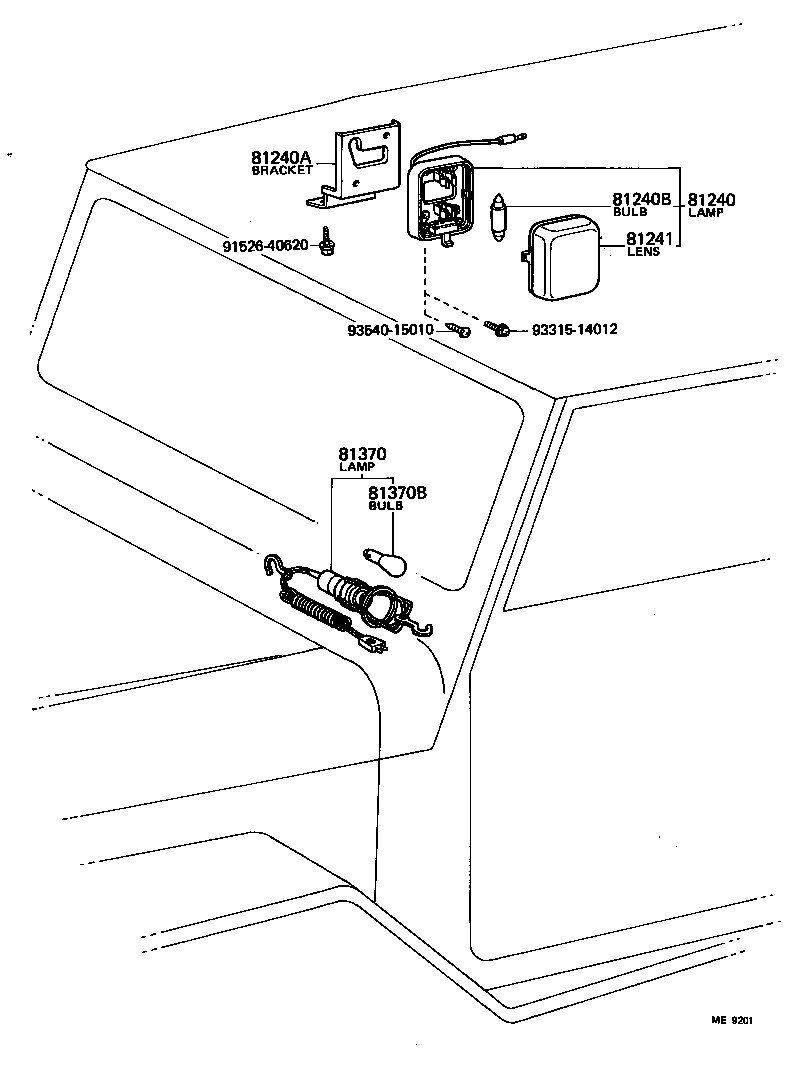

Click highlighted areas on diagram

diagram 81240 81240A 81240B 81241 81370 81370B 9152640620 9331514012 9354015010
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-90300

FJ40,45..3F,4F;BJ40,42,43,46,FJ43,HJ47..ARL,GEN

12V

 1
81240B - BULB, ROOM LAMP, NO.1
90981-11004

FJ40,45..3F,4F;BJ40,42,43,46,FJ43,HJ47..ARL,GEN

12V 10W,12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-90300

BJ4#,FJ4#,HJ47..3F,4F

 1
81370 - LAMP ASSY, INSPECTION
81370-60010

FJ40,45;BJ4#,FJ43,HJ47..ARL,GEN

12V

 1
81370B - BULB, INSPECTION LAMP
99132-11230

FJ40,45;BJ4#,FJ43,HJ47..ARL,GEN

12V 23W,12V 23W

 1
Common parts
91526-40620
93315-14012
93540-15010
