FJ40R-KJQ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )FJ4#,HJ47

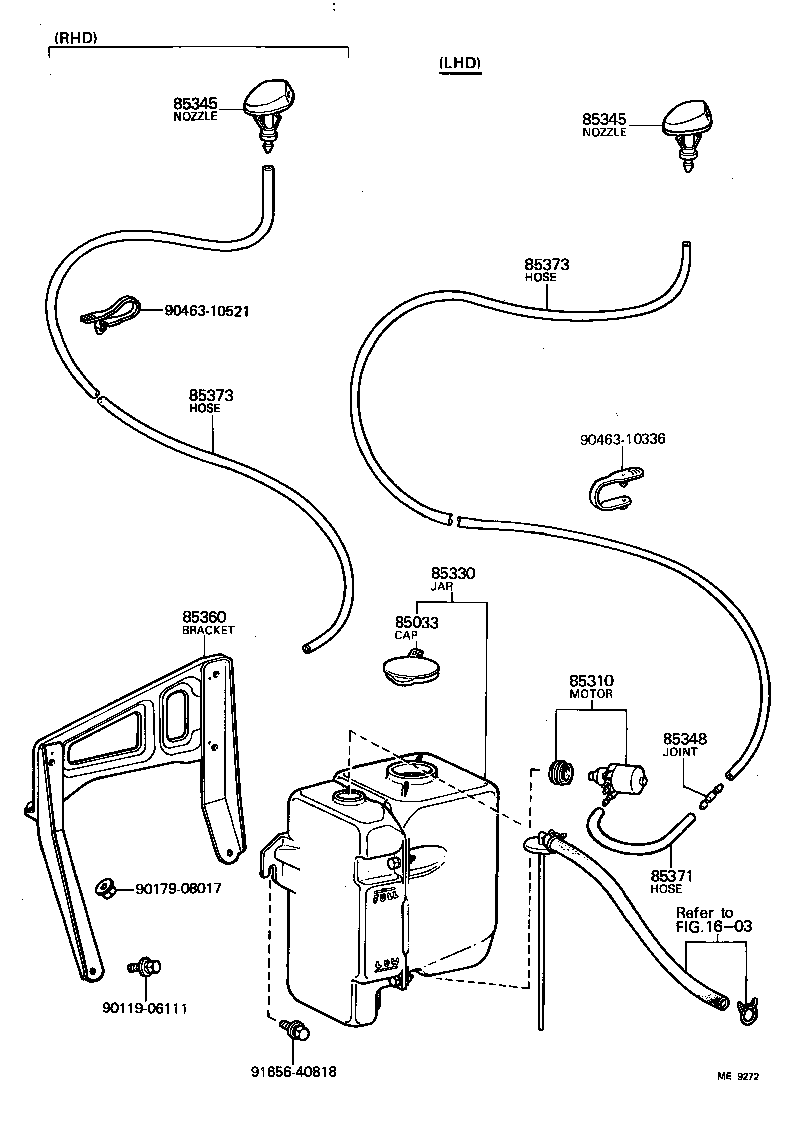

Click highlighted areas on diagram

diagram 1603 85033 85310 85330 85345 85345 85348 85360 85371 85373 85373 9011906111 9017908017 9046310336 9046310521 9165640818
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85332-60010

BJ4#,FJ4#,HJ47

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-60010

FJ40,45;BJ4#,FJ43,HJ47..ARL,GEN

12V

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-60011

FJ4#,HJ47

 1
85345 - NOZZLE, WINDSHIELD WASHER
85035-60050

BJ4#,FJ4#,HJ47

 1
85345 - NOZZLE, WINDSHIELD WASHER
85035-60050

BJ4#,FJ4#,HJ47

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-10060

BJ4#,FJ4#,HJ47

 1
85360 - BRACKET ASSY, WINDSHIELD WASHER
85360-60010

FJ4#,HJ47

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-06013

BJ4#,FJ4#,HJ47

*H,L=100

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06292

FJ40..TPC..5F;FJ4#,HJ47..RHD

*H,L=2400

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06292

FJ40..TPC..5F;FJ4#,HJ47..RHD

*H,L=2400

 1
Common parts
90119-06111
90179-08017
90463-10336
90463-10521
91656-40818
Linked diagrams
1603
