FJ40R-KJQ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )4F

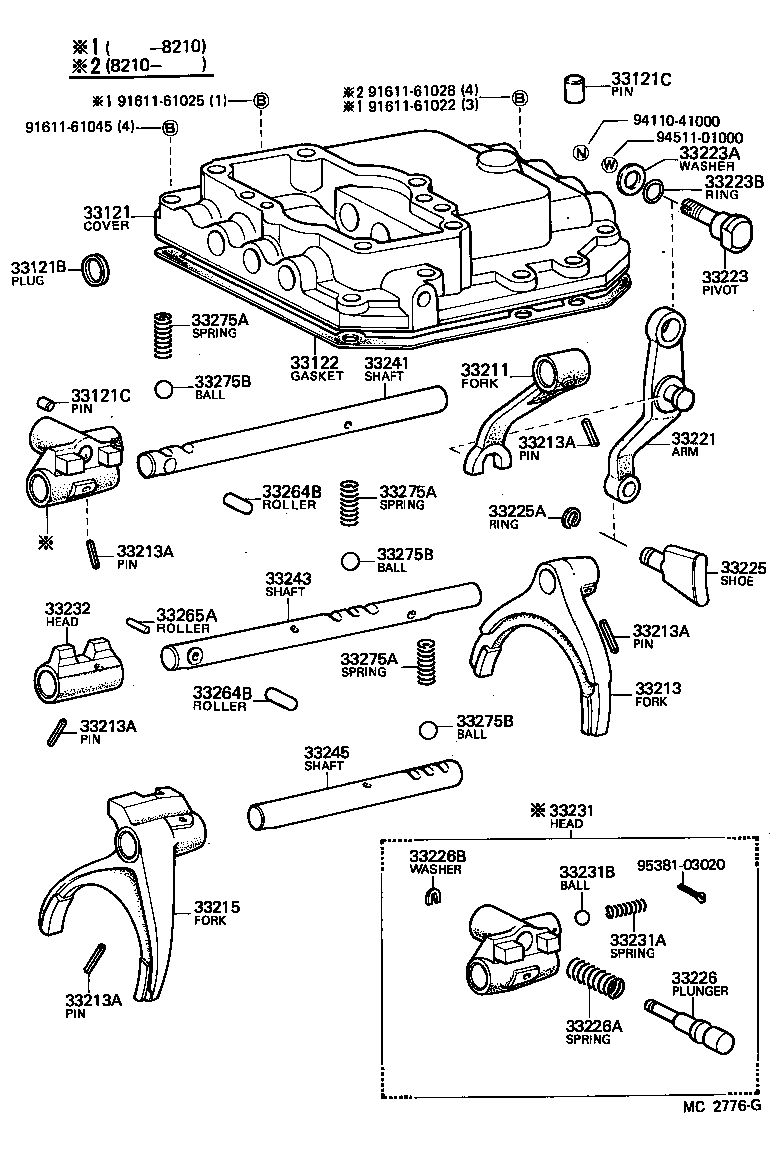

Click highlighted areas on diagram

diagram 33121 33121B 33121C 33121C 33122 33211 33213 33213A 33213A 33213A 33213A 33213A 33215 33221 33223 33223A 33223B 33225 33225A 33226 33226A 33226B 33231 33231A 33231B 33232 33241 33243 33245 33264B 33264B 33265A 33275A 33275A 33275A 33275B 33275B 33275B 9161161022 9161161025 9161161028 9161161045 9411041000 9451101000 9538103020
Part # Description Qty Price
33121 - COVER, MANUAL TRANSMISSION CASE
33121-60090

FJ4#..4F..(ARL,GEN)

 1
33121-60100

FJ40..ARL

NEW SOUTH WALES SPEC

 1
33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER)
90331-16050

BJ4#,FJ4#,HJ47..4F,5F

OD=16

 7
33121C - PIN(FOR TRANSMISSION CASE COVER)
90250-10215

BJ4#,FJ4#,HJ47..4F,5F

L=9,OD=9,L=8,OD=9.67

 1
90250-10214

BJ4#,FJ4#,HJ47

L=14,OD=10,L=14,OD=10

 2
33121C - PIN(FOR TRANSMISSION CASE COVER)
90250-10215

BJ4#,FJ4#,HJ47..4F,5F

L=9,OD=9,L=8,OD=9.67

 1
90250-10214

BJ4#,FJ4#,HJ47

L=14,OD=10,L=14,OD=10

 2
33122 - GASKET, MANUAL TRANSMISSION CASE COVER
33122-36011

BJ46;BJ40,42,43,45,FJ4#,HJ47..4F

 1
33211 - FORK, REVERSE SHIFT
33211-36011

BJ4#,FJ4#,HJ47..4F,5F

 1
33213 - FORK, 1ST & 2ND SHIFT
33212-60020

BJ46;BJ40,42,43,45,FJ4#,HJ47..4F

 1
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05016

BJ4#,FJ4#,HJ47..4F,5F

 5
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05016

BJ4#,FJ4#,HJ47..4F,5F

 5
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05016

BJ4#,FJ4#,HJ47..4F,5F

 5
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05016

BJ4#,FJ4#,HJ47..4F,5F

 5
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05016

BJ4#,FJ4#,HJ47..4F,5F

 5
33215 - FORK, 3RD & 4TH SHIFT
33213-60030

BJ46;BJ40,42,43,45,FJ4#,HJ47..4F

 1
33221 - ARM, REVERSE SHIFT
33201-36030

BJ4#,FJ4#,HJ47..4F,5F

 1
33223 - PIVOT, SHIFT ARM
33223-36010

BJ4#,FJ4#,HJ47..4F

 1
33225 - SHOE, SHIFT ARM
33225-36030

BJ4#,FJ4#,HJ47..4F,5F

 1
33225A - RING, SHAFT SNAP(FOR SHIFT ARM SHOE)
90520-08098

BJ4#,FJ4#,HJ47..4F,5F

 1
33226 - PLUNGER, REVERSE SHIFT RETURN
33226-36011

BJ46;BJ40,42,43,45,FJ4#,HJ47..4F

 1
33226A - SPRING, COMPRESSION(FOR REVERSE SHIFT RETURN PLUNGER)
90501-16750

BJ46;BJ40,42,43,45,FJ4#,HJ47..4F

 1
33226B - WASHER, TYPE C(FOR REVERSE SHIFT RETURN PLUNGER)
90213-06001

BJ46;BJ40,42,43,45,FJ4#,HJ47..4F

 1
33231 - HEAD, REVERSE SHIFT
33202-36011

BJ46;BJ40,42,43,45,FJ4#,HJ47..4F

 1
33231A - SPRING, REVERSE SHIFT RESTRICT
90501-14035

BJ46;BJ40,42,43,45,FJ4#,HJ47..4F

 1
33231B - BALL, REVERSE SHIFT RESTRICT
90360-06004

BJ46;BJ40,42,43,45,FJ4#,HJ47..4F

 1
33232 - HEAD, 1ST & 2ND SHIFT
33232-60010

BJ46;BJ40,42,43,45,FJ4#,HJ47..4F

 1
33241 - SHAFT, REVERSE SHIFT FORK
33241-60040

BJ46;BJ40,42,43,45,FJ4#,HJ47..4F

 1
33243 - SHAFT, 1ST & 2ND SHIFT FORK
33242-60010

BJ46;BJ40,42,43,45,FJ4#,HJ47..4F

 1
33245 - SHAFT, 3RD & 4TH SHIFT FORK
33243-60040

FJ40..ARL

NEW SOUTH WALES SPEC

 1
33243-60031

FJ4#..4F..(ARL,GEN)

 1
33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK )
90361-10037

BJ4#,FJ4#,HJ47..4F,5F

L=17.9

 2
33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK )
90361-10037

BJ4#,FJ4#,HJ47..4F,5F

L=17.9

 2
33265A - ROLLER, NO.2 (FOR INTER LOCK)
90250-05034

BJ4#,FJ4#,HJ47..4F

 1
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-14772

BJ46;BJ40,42,43,45,FJ4#,HJ47..4F

 3
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-14772

BJ46;BJ40,42,43,45,FJ4#,HJ47..4F

 3
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-14772

BJ46;BJ40,42,43,45,FJ4#,HJ47..4F

 3
33275B - BALL, SHAFT DETENT
90360-10003

BJ4#,FJ4#,HJ47

 4
33275B - BALL, SHAFT DETENT
90360-10003

BJ4#,FJ4#,HJ47

 4
33275B - BALL, SHAFT DETENT
90360-10003

BJ4#,FJ4#,HJ47

 4
Common parts
91611-61022
91611-61025
91611-61028
91611-61045
94110-41000
94511-01000
95381-03020
