FJ40R-KCJW (1975)

Toyota Land Cruiser

Production Jan 1975 - Sep 1977
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8410)B,3B

Click highlighted areas on diagram

diagram 17700 17700A 17700A 17700B 17705 17709 17709 17801 17841 17841 17845 17861 17881 17881A 17881A 17882 17882A 17882A 17882B 17882C 17883A 17883A 9165140616 9165140616 9165140818
Part # Description Qty Price
Common parts
91651-40616
91651-40818

(8008-8410)B,3B

Click highlighted areas on diagram

diagram 17700 17700A 17700A 17700B 17705 17709 17709 17801 17841 17841 17845 17861 17881 17881A 17881A 17882 17882A 17882A 17882B 17882C 17883A 17883A 9165140616 9165140616 9165140818
Part # Description Qty Price
Common parts
91651-40616
91651-40818

(8008-8410)B,3B..EUR,GEN

Click highlighted areas on diagram

diagram 17700 17700A 17700A 17700B 17701 17703 17703A 17709 17709 17801 17841 17841 17845 17861 17881 17881A 17881A 17882 17882A 17882A 17882B 17882C 17883A 17883A 9165140616 9165140616 9165140818
Part # Description Qty Price
Common parts
91651-40616
91651-40818

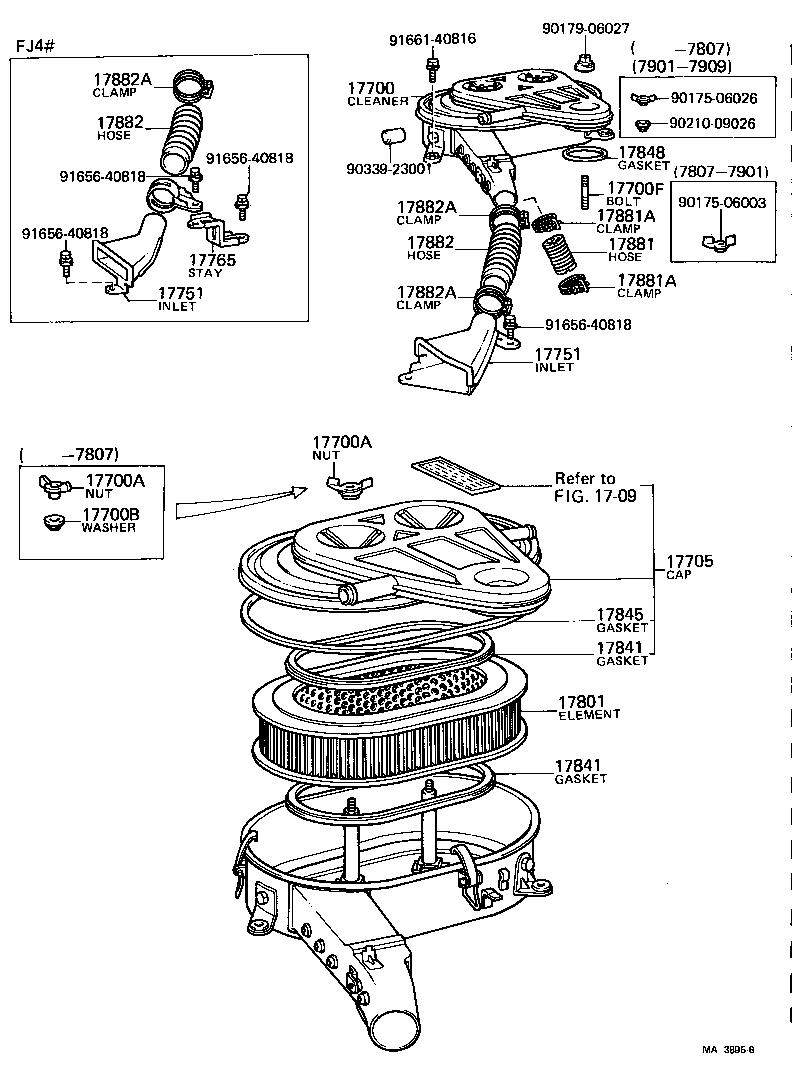

(7501-7502)2F..FJ45..ARL ; (7501-7502)2F..FJ40,43,55..ARL,EUR ; (7501-7502)2F..FJ45

Click highlighted areas on diagram

diagram 1709 17700 17700A 17700A 17700B 17700F 17705 17751 17751 17765 17801 17841 17841 17845 17848 17881 17881A 17881A 17882 17882 17882A 17882A 17882A 9017506003 9017506026 9017906027 9021009026 9033923001 9165640818 9165640818 9165640818 9165640818 9166140816
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-60310

F..FJ4#,55

OIL BATH

 1
17700-61050

2F..FJ4#,55..EUR,GEN

OIL BATH

 1
17700-60290

F..FJ4#,55

PAPER ELEMENT

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06026

2F..FJ4#,55..ARL,EUR

FOR EXHAUST EMISSION

 2
94270-00800

F..FJ4#,55

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06026

2F..FJ4#,55..ARL,EUR

FOR EXHAUST EMISSION

 2
94270-00800

F..FJ4#,55

 1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-08003

F..FJ4#,55

 1
90210-09026

2F..FJ4#,55..ARL,EUR

FOR EXHAUST EMISSION

 2
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06143

2F..FJ4#,55..ARL,EUR

L=62,S=12&25

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-60140

F..FJ4#,55

PAPER ELEMENT

 1
17705-60170

F..FJ4#,55

OIL BATH

 1
17705-61050

2F..FJ4#,55..EUR,GEN

OIL BATH

 1
17751 - INLET, AIR CLEANER, NO.1
17751-61020

2F..FJ4#..ARL,EUR

 1
17751 - INLET, AIR CLEANER, NO.1
17751-61020

2F..FJ4#..ARL,EUR

 1
17765 - STAY, AIR CLEANER, NO.1
17754-61010

2F..FJ4#..ARL,EUR

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-60050

F..FJ4#,55

OIL BATH

 1
17801-60040

F..FJ4#,55

PAPER ELEMENT

 1
17801-60050

2F..FJ4#,55..EUR,GEN

OIL BATH

 1
17801-61010

2F..FJ4#,55..ARL,EUR

FOR EXHAUST EMISSION

 1
17841 - GASKET, FILTER ELEMENT
17841-60020

F..FJ4#,55

OIL BATH,UPP

 1
17841-60011

F..FJ4#,55

PAPER ELEMENT

 2
17841-61010

2F..FJ4#,55..ARL,EUR

FOR EXHAUST EMISSION

 2
17841-60020

2F..FJ4#,55..EUR,GEN

OIL BATH,UPP

 1
90430-10164

F..FJ4#,55

OIL BATH,LWR

 1
90430-10164

2F..FJ4#,55..EUR,GEN

OIL BATH,LWR

 1
17841 - GASKET, FILTER ELEMENT
17841-60020

F..FJ4#,55

OIL BATH,UPP

 1
17841-60011

F..FJ4#,55

PAPER ELEMENT

 2
17841-61010

2F..FJ4#,55..ARL,EUR

FOR EXHAUST EMISSION

 2
17841-60020

2F..FJ4#,55..EUR,GEN

OIL BATH,UPP

 1
90430-10164

F..FJ4#,55

OIL BATH,LWR

 1
90430-10164

2F..FJ4#,55..EUR,GEN

OIL BATH,LWR

 1
17845 - GASKET, AIR CLEANER CAP
17845-60040

F..FJ4#,55

 1
17845-61010

2F..FJ4#,55..ARL,EUR

FOR EXHAUST EMISSION

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-60030

F..FJ4#,55

 1
17848-61010

2F..FJ4#,55

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-61010

2F..FJ4#,55..ARL,EUR

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10650

2F..FJ4#,55..ARL,EUR

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10650

2F..FJ4#,55..ARL,EUR

 2
17882 - HOSE, AIR CLEANER, NO.2
17882-61010

2F..FJ4#,55..ARL,EUR

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-61010

2F..FJ4#,55..ARL,EUR

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10800

2F..FJ4#,55..ARL,EUR

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10800

2F..FJ4#,55..ARL,EUR

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10800

2F..FJ4#,55..ARL,EUR

 2
Common parts
90175-06003
90175-06026
90179-06027
90210-09026
90339-23001
91656-40818
91661-40816
Linked diagrams
1709
