FJ40R-KCJ (1980)
Toyota Land Cruiser
Production
Aug 1980
-
Oct 1982
Engine
2F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8008- )RB

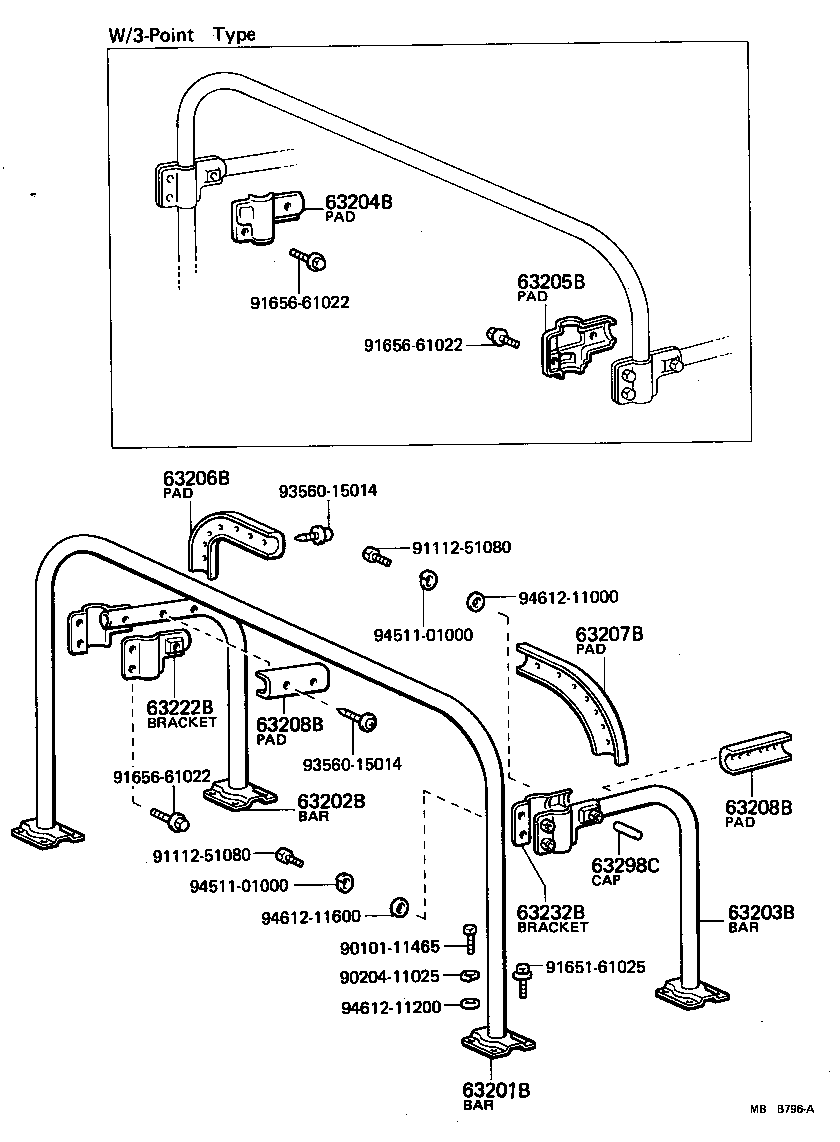

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201B - BAR, ROLL, FRONT | ||||
| 63201-90303 |
BJ40,42,43,46,FJ40,43..RB..GEN |
1 | ||
| 63201-90304 |
BJ40,42,43,46,FJ4#..RB W/*ELR |
1 | ||
| 63202B - BAR, ROLL SIDE, RH | ||||
| 63202-90305 |
BJ40,42,FJ40..RB..GEN |
1 | ||
| 63202-90307 |
BJ40,42,FJ40,45..RB W/*ELR |
1 | ||
| 63203B - BAR, ROLL SIDE, LH | ||||
| 63203-90307 |
BJ40,42,FJ40,45..RB W/*ELR |
1 | ||
| 63203-90305 |
BJ40,42,FJ40..RB..GEN |
1 | ||
| 63204B - PAD, ROLL BAR BRACKET, RH | ||||
| 63204-90300 |
BJ40,42,43,46,FJ40,43..RB W/*ELR |
1 | ||
| 63205B - PAD, ROLL BAR BRACKET, LH | ||||
| 63205-90300 |
BJ40,42,43,46,FJ40,43..RB W/*ELR |
1 | ||
| 63206B - PAD, ROLL BAR, FRONT RH | ||||
| 63206-90300 |
BJ40,42,43,46,FJ4#..RB |
1 | ||
| 63207B - PAD, ROLL BAR, FRONT LH | ||||
| 63207-90300 |
BJ40,42,43,46,FJ4#..RB |
1 | ||
| 63208B - PAD, ROLL BAR, SIDE | ||||
| 63208-90300 |
BJ40,42,43,46,FJ4#..RB |
2 | ||
| 63208B - PAD, ROLL BAR, SIDE | ||||
| 63208-90300 |
BJ40,42,43,46,FJ4#..RB |
2 | ||
| 63222B - BRACKET, ROLL BAR, INNER RH | ||||
| 63222-90302 |
BJ40,42,43,46,FJ40,43..RB..GEN |
1 | ||
| 63222-90303 |
BJ40,42,43,46,FJ4#..RB W/*ELR |
1 | ||
| 63232B - BRACKET, ROLL BAR, INNER LH | ||||
| 63232-90303 |
BJ40,42,43,46,FJ4#..RB W/*ELR |
1 | ||
| 63232-90302 |
BJ40,42,43,46,FJ40,43..RB..GEN |
1 | ||
| 63298C - CAP(FOR ROLL BAR) | ||||
| 55298-30010 |
BJ40,42,43,46,FJ40,43..RB..GEN |
2 | ||
| 55298-30010 |
BJ40,42,43,46,FJ4#..RB W/*ELR |
4 | ||
| Common parts | ||||
| 90101-11465 | ||||
| 90204-11025 | ||||
| 91112-51080 | ||||
| 91651-61025 | ||||
| 91656-61022 | ||||
| 93560-15014 | ||||
| 94511-01000 | ||||
| 94612-11000 | ||||
| 94612-11200 | ||||
| 94612-11600 | ||||
