FJ40R-KC (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1984
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )RHD

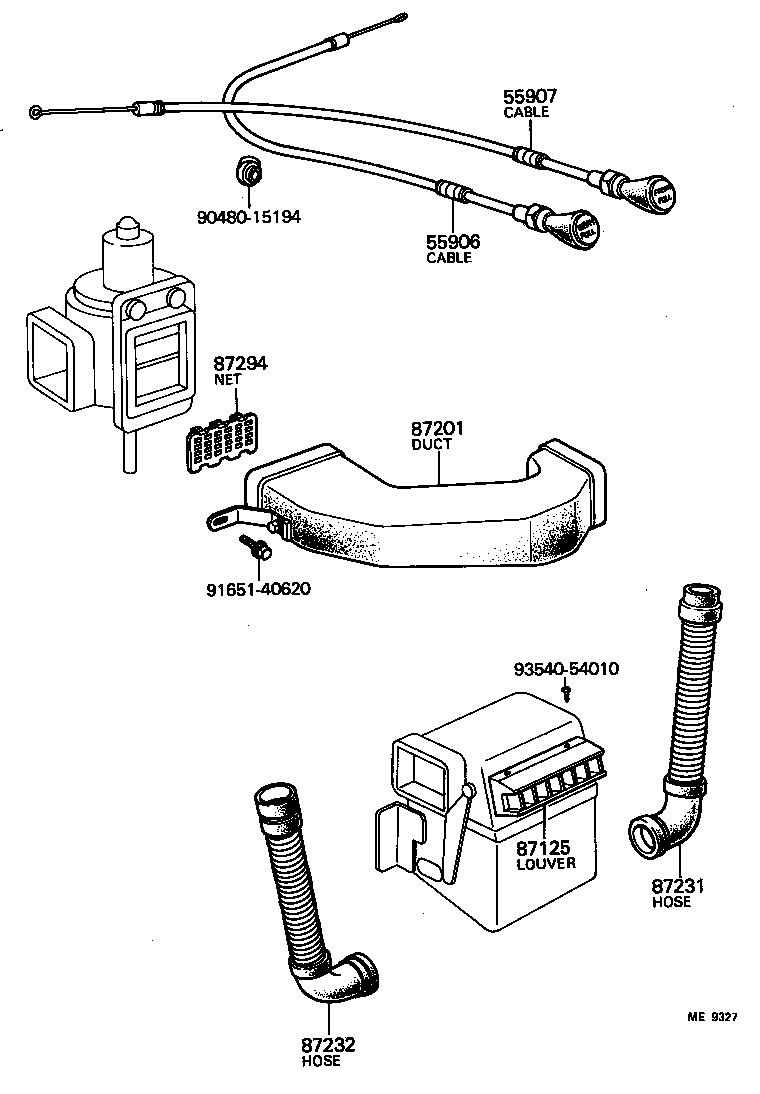

Click highlighted areas on diagram

diagram 55906 55907 87125 87201 87231 87232 87294 9048015194 9165140620 9354054010
Part # Description Qty Price
55906 - CABLE SUB-ASSY, HEATER CONTROL
87286-60101

FJ4#

 1
55907 - CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY
87296-60033

BJ4#,FJ4#,HJ47

 1
87125 - LOUVER, VENTILATION
88960-60051

FJ40..TPC..5F;BJ4#,FJ4#,HJ47..RHD

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87211-60062

BJ4#,FJ4#,HJ47..RHD

W/O COOLER

 1
87211-60062

BJ4#,FJ4#,HJ47..RHD

 1
87231 - HOSE, HEATER DEFROSTER, RH
87231-60150

BJ4#,FJ4#,HJ47..RHD

 1
87232 - HOSE, HEATER DEFROSTER, LH
87231-60140

BJ4#,FJ4#,HJ47..RHD

 1
87231-60131

BJ4#,FJ4#,HJ47..RHD

W/O COOLER

 1
87294 - NET, AIR DUCT
87294-60031

BJ4#,FJ4#,HJ47

 1
Common parts
90480-15194
91651-40620
93540-54010
