FJ40LV-UJ (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7901-8007)BJ40,FJ4#

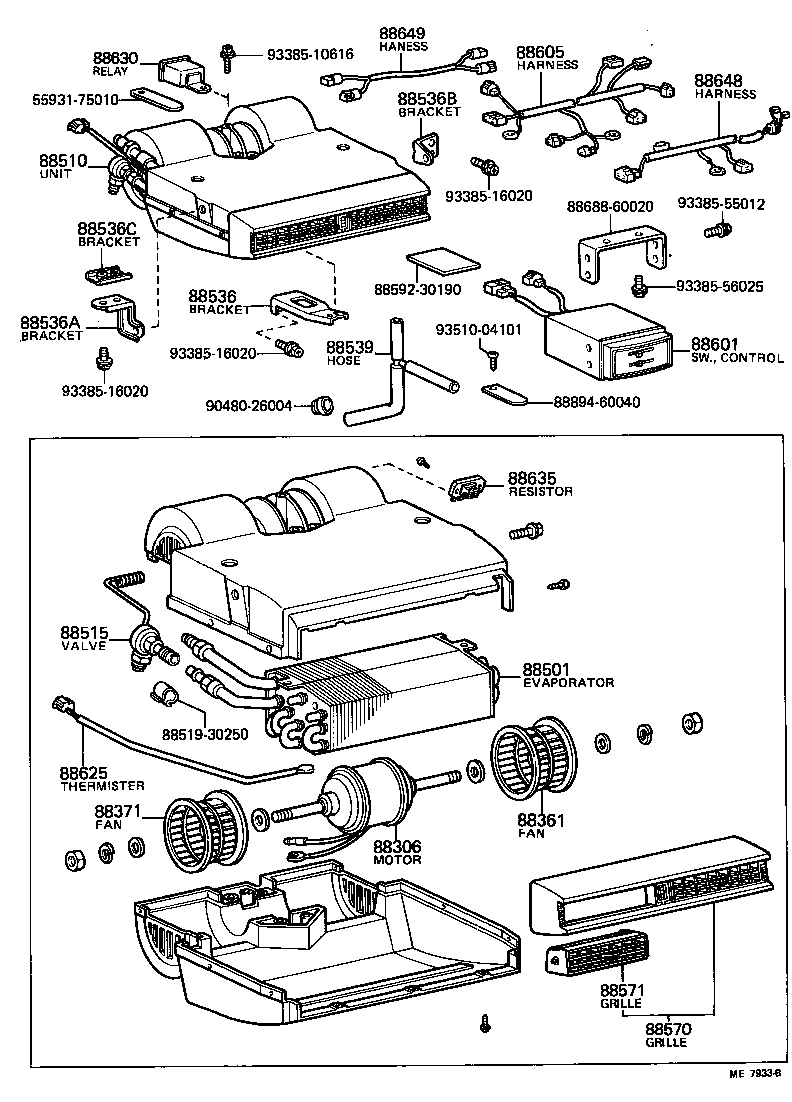

Click highlighted areas on diagram

diagram 5593175010 88306 88361 88371 88501 88510 88515 8851930250 88536 88536A 88536B 88536C 88539 88570 88571 8859230190 88601 88605 88625 88630 88635 88648 88649 8868860020 8889460040 9048026004 9338510616 9338516020 9338516020 9338516020 9338555012 9338556025 9351004101
Part # Description Qty Price
88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1
88550-60030

FJ45..EUR..IV;FJ4#..LHD..GEN

 1
88361 - FAN, COOLER BLOWER, NO.1
88541-10010

FJ4#..LHD..GEN

 1
88371 - FAN, COOLER BLOWER, NO.2
88541-10020

FJ4#..LHD..GEN

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-30531

FJ4#..LHD..GEN

 1
88510 - UNIT ASSY, COOLER
88510-60060

FJ4#..LHD..GEN

 1
88515 - VALVE, COOLER EXPANSION
88515-12051

FJ4#..LHD..GEN

 1
88536 - BRACKET, COOLING UNIT, NO.1
88536-60060

FJ4#..LHD..GEN

 1
88536A - BRACKET, COOLING UNIT, NO.2
88536-60080

FJ4#..LHD..GEN

 1
88536B - BRACKET, COOLING UNIT, NO.3
88536-60050

FJ4#..LHD..GEN

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-60030

FJ4#..LHD..GEN

 1
88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET
88570-30600

FJ4#..LHD..GEN

 1
88570-55020

FJ40,45..V

 1
88571 - GRILLE, AIR OUTLET
88571-12040

FJ4#..LHD..GEN

 2
88601 - SWITCH SUB-ASSY, COOLER CONTROL
88610-60050

FJ4#..LHD..GEN

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-60120

FJ4#..LHD..GEN

 1
88625 - THERMISTOR, COOLER, NO.1
88625-60020

FJ4#..LHD..GEN

 1
88635 - RESISTOR, COOLER UNIT BLOWER
88635-30370

FJ4#..LHD..GEN

FOR 12V

 1
88648 - WIRING, COOLER, NO.1
88605-60130

FJ4#..LHD..GEN

 1
Common parts
55931-75010
88519-30250
88592-30190
88688-60020
88894-60040
90480-26004
93385-10616
93385-16020
93385-55012
93385-56025
93510-04101
