FJ40LV-UC (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

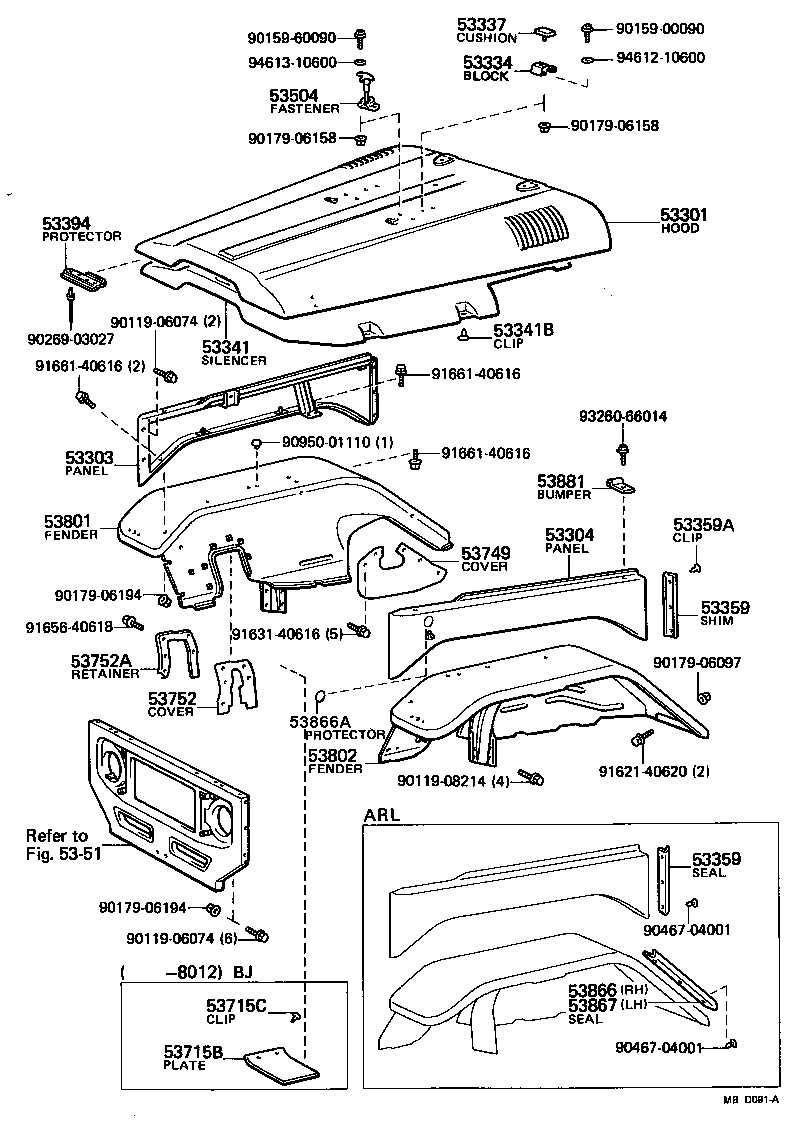

Click highlighted areas on diagram

diagram 53301 53303 53304 53334 53337 53341 53341B 53359 53359 53359A 53394 53504 5351 53715B 53715C 53749 53752 53752A 53801 53802 53866 53866A 53867 53881 9011906074 9011906074 9011908214 9015900090 9015960090 9017906097 9017906158 9017906158 9017906194 9017906194 9026903027 9046704001 9046704001 9095001110 9162140620 9163140616 9165640618 9166140616 9166140616 9166140616 9326066014 9461210600 9461310600
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-90311

BJ4#,FJ4#..(3F,4F)..(ARL,GEN)

 1
53301-90801

BJ4#,FJ4#..(3F,4F)..(EUR,GEN)

 1
53301-90801

BJ4#,FJ4#..3F,4F

 1
53303 - PANEL SUB-ASSY, HOOD SIDE, RH
53303-90801

FJ4#,HJ47..3F,4F

 1
53304 - PANEL SUB-ASSY, HOOD SIDE, LH
53304-90806

FJ4#,HJ47..(3F,4F)..(ARL,GEN)

 1
53304-90801

FJ4#,HJ47..(3F,4F)..(ARL,GEN)

 1
53334 - BLOCK, WINDSHIELD REST
53334-90304

BJ4#,FJ4#,HJ47..GEN

CHROME PLATED

 2
53334-90303

BJ4#,FJ4#,HJ47..3F,4F

 2
53337 - CUSHION, WINDSHIELD REST BLOCK
53337-90301

BJ4#,FJ4#,HJ47..3F,4F

 2
53359 - SHIM, HOOD SIDE PANEL CUSHION
53359-90301

BJ4#,FJ4#,HJ47..3F,4F

 2
53359 - SHIM, HOOD SIDE PANEL CUSHION
53359-90301

BJ4#,FJ4#,HJ47..3F,4F

 2
53359A - CLAMP OR CLIP, HOOD SIDE PANEL CUSHION SHIM
90467-04100

BJ4#,FJ4#,HJ47..3F,4F

 6
53504 - FASTENER SUB-ASSY, HOOD
53504-90300

BJ4#,FJ4#,HJ47..3F,4F

 2
53504-90301

BJ4#,FJ4#,HJ47..GEN

CHROME PLATED

 2
53801 - FENDER SUB-ASSY, FRONT RH
53810-90080

FJ4#..LHD..GEN

*GIS

 1
53810-90340

FJ4#..LHD..GEN

 1
53802 - FENDER SUB-ASSY, FRONT LH
53820-90281

FJ4#..LHD..GEN

W/ELECTRIC WINCH

 1
53820-90079

FJ4#..LHD..GEN

 1
53820-90289

FJ4#..LHD..GEN

*GIS,W/ELECTRIC WINCH

 1
53820-90083

FJ4#..LHD..GEN

*GIS

 1
53881 - BUMPER, FENDER TO HOOD
53349-90300

BJ4#,FJ4#,HJ47

 1
Common parts
90119-06074
90119-08214
90159-00090
90159-60090
90179-06097
90179-06158
90179-06194
90269-03027
90467-04001
90950-01110
91621-40620
91631-40616
91656-40618
91661-40616
93260-66014
94612-10600
94613-10600
Linked diagrams
5351
