FJ40LV-UC (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8410)B,3B

Click highlighted areas on diagram

diagram 11251 11253 11401 11401 11415 11415A 11416 11416A 11431A 11431B 11431C 11431D 11431E 11432A 11432B 11432C 11432F 11434A 11434C 11434D 11452 11459 11462 11475 12101 12101A 12101B 12151 1301 1302 13613C 15301 15605 15708 9004301041 9011608194 9011608194 9011908512 9017908123 9017908123 9017908123 9020114099 9161160816 9161160816 9212260814 9411040800
Part # Description Qty Price
11251 - COVER, VALVE PUSH ROD
11203-61011

2F..FJ4#

 1
11253 - GASKET, VALVE PUSH ROD COVER
11253-60010

2F..FJ4#

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-69055

2F..FJ4#..ARL,GEN

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-69055

2F..FJ4#..ARL,GEN

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
96431-03833

2F..FJ4#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96431-23814

2F..FJ4#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02054

2F..FJ4#

FR,*14-2.0PX67-29

 6
90910-02057

2F..FJ4#

RR,*12-1.75PX68-26

 4
11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET)
90253-17007

2F..FJ4#

NO.1.2.3

 6
90253-16014

2F..FJ4#

NO.4

 2
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-45000

2F..FJ4#

OD=50

 5
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
90330-24013

2F..FJ4#

 2
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-42500

2F..FJ4#

OD=25

 4
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90253-17003

2F..FJ4#

L=7,OD=16.5

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-60013

2F..FJ4#

 1
12101 - PAN SUB-ASSY, OIL
12101-61010

2F..FJ4#..3F,4F

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-25054

2F..FJ4#..3F,4F

OD=25

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-25013

2F..FJ4#..3F,4F

ID=25

 1
12151 - GASKET, OIL PAN
12151-60021

2F..FJ4#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-60031

2F..FJ4#

 1
Common parts
90043-01041
90116-08194
90119-08512
90179-08123
90201-14099
91611-60816
92122-60814
94110-40800
Linked diagrams
1301
1302

(8008- )2F

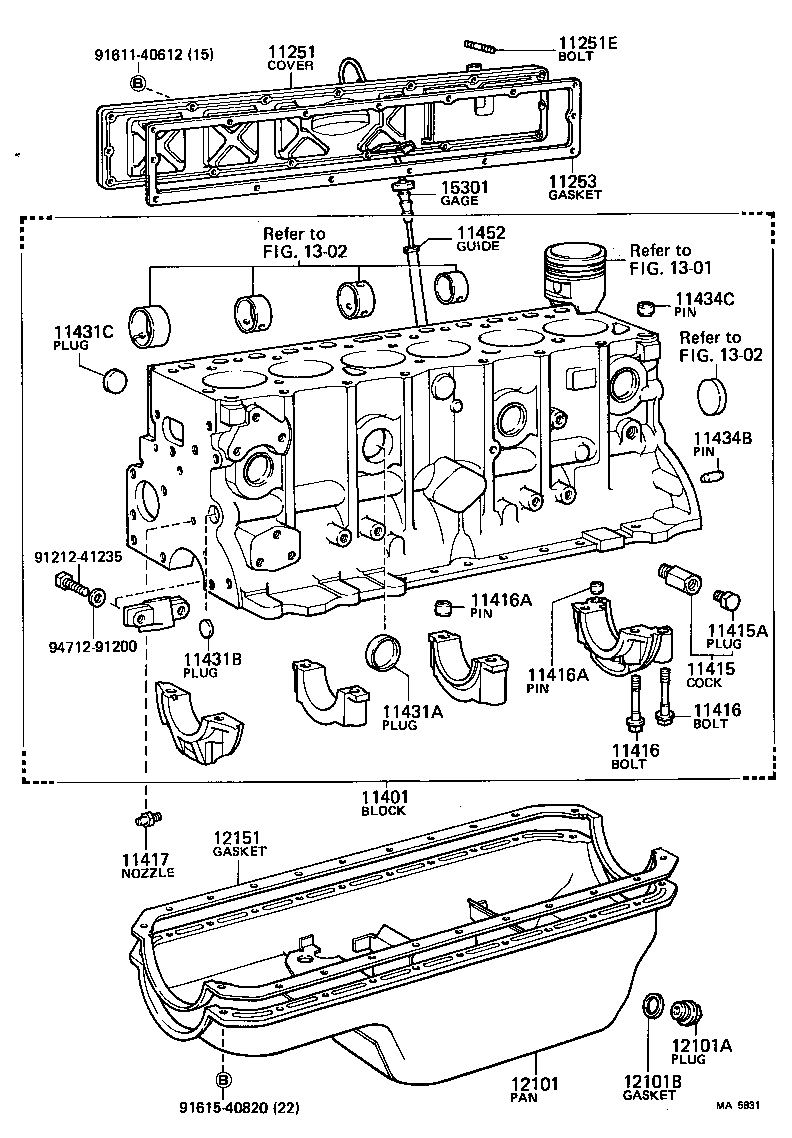

Click highlighted areas on diagram

diagram 11251 11251E 11253 11401 11415 11415A 11416 11416 11416A 11416A 11417 11431A 11431B 11431C 11434B 11434C 11452 12101 12101A 12101B 12151 1301 1302 1302 15301 9121241235 9161140612 9161540820 9471291200
Part # Description Qty Price
11251 - COVER, VALVE PUSH ROD
11203-61011

2F..FJ4#

 1
11251E - BOLT, STUD(FOR VALVE PUSH ROD COVER)
90116-06306

2F..FJ4#

W/HEATER

 2
11253 - GASKET, VALVE PUSH ROD COVER
11253-60010

2F..FJ4#

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-69055

2F..FJ4#..ARL,GEN

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
96431-03833

2F..FJ4#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96431-23814

2F..FJ4#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02054

2F..FJ4#

FR,*14-2.0PX67-29

 6
90910-02057

2F..FJ4#

RR,*12-1.75PX68-26

 4
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02054

2F..FJ4#

FR,*14-2.0PX67-29

 6
90910-02057

2F..FJ4#

RR,*12-1.75PX68-26

 4
11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET)
90253-17007

2F..FJ4#

NO.1.2.3

 6
90253-16014

2F..FJ4#

NO.4

 2
11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET)
90253-17007

2F..FJ4#

NO.1.2.3

 6
90253-16014

2F..FJ4#

NO.4

 2
11417 - NOZZLE, OIL
90915-01014

2F..FJ4#

 1
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-45000

2F..FJ4#

OD=50

 5
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
90330-24013

2F..FJ4#

 2
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-42500

2F..FJ4#

OD=25

 4
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10192

2F..FJ4#

L=22,OD=10

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90253-17003

2F..FJ4#

L=7,OD=16.5

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-60013

2F..FJ4#

 1
12101 - PAN SUB-ASSY, OIL
12101-61010

2F..FJ4#..3F,4F

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-25054

2F..FJ4#..3F,4F

OD=25

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-25013

2F..FJ4#..3F,4F

ID=25

 1
12151 - GASKET, OIL PAN
12151-60021

2F..FJ4#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-60031

2F..FJ4#

 1
Common parts
91212-41235
91611-40612
91615-40820
94712-91200
Linked diagrams
1301
1302
