FJ40LV-MC (1980)
Toyota Land Cruiser

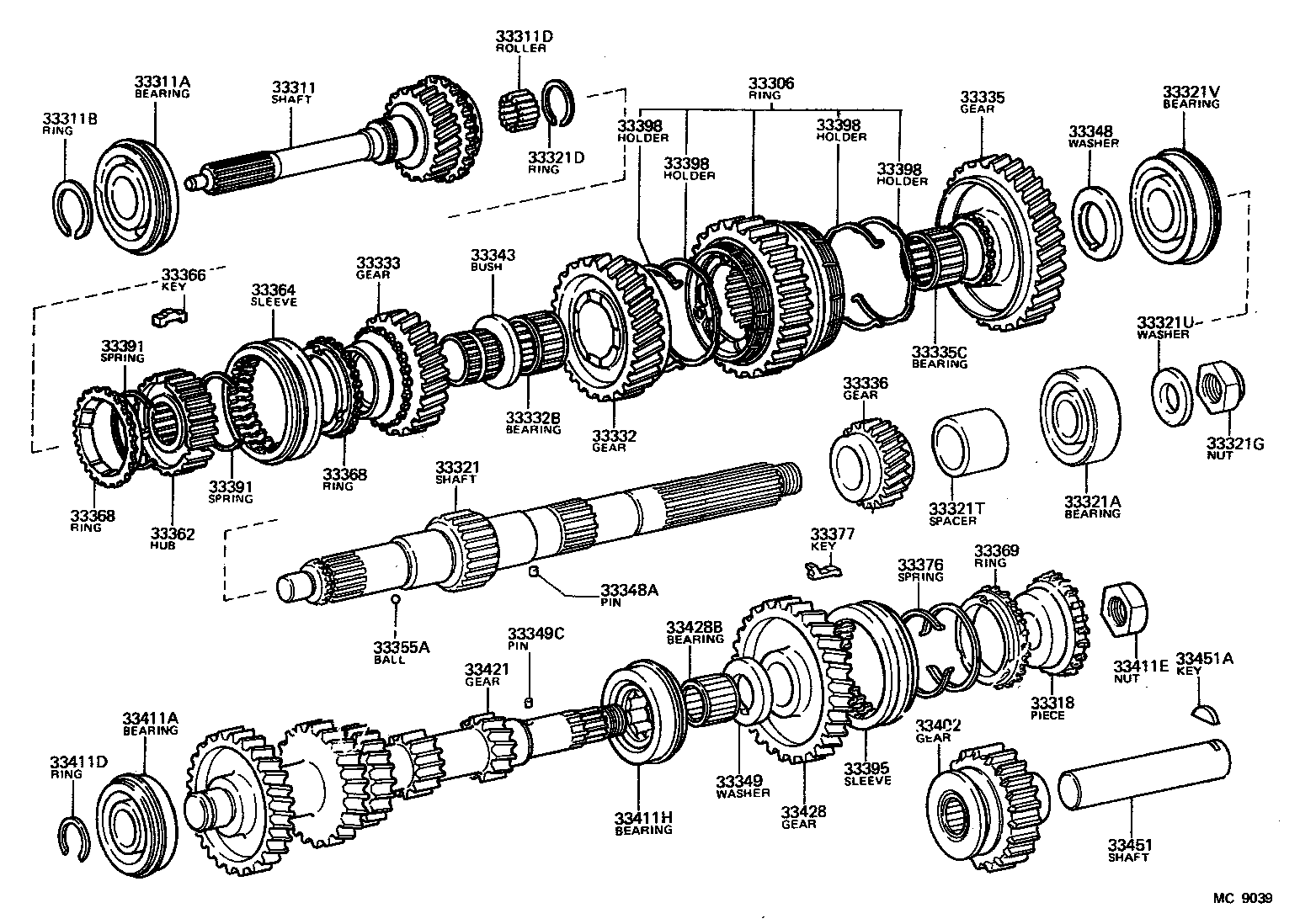

(8210-8410)5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90365-40002 |
BJ42,46,FJ40,43..5F |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-36016 |
BJ4#,FJ4#,HJ47..4F,5F T=3.20-3.31,T=3.20-3.31 |
1 | ||
| 90520-36015 |
BJ4#,FJ4#,HJ47..4F,5F T=3.31-3.42,T=3.31-3.42 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-06049 |
BJ4#,FJ4#,HJ47..4F,5F |
17 | ||
| 33318 - PIECE, GEAR SPLINE, NO.5 | ||||
| 33318-36012 |
BJ42,46,FJ40,43..5F |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-60070 |
BJ42,46,FJ40,43..5F |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90363-35017 |
BJ42,46,FJ40,43..5F |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-36251 |
BJ4#,FJ4#,HJ47..4F,5F T=2.45-2.50,T=2.45-2.50 |
1 | ||
| 90520-36252 |
BJ4#,FJ4#,HJ47..4F,5F T=2.50-2.55,T=2.50-2.55 |
1 | ||
| 90520-36253 |
BJ4#,FJ4#,HJ47..4F,5F T=2.55-2.60,T=2.55-2.60 |
1 | ||
| 90520-33132 |
FJ4# T=2.35-2.40,MARK 12,T=2.35-2.40 |
1 | ||
| 90520-36254 |
BJ4#,FJ4#,HJ47..4F,5F T=2.60-2.65,T=2.60-2.65 |
1 | ||
| 90520-36255 |
BJ4#,FJ4#,HJ47..4F,5F T=2.65-2.70,T=2.65-2.70 |
1 | ||
| 90520-36250 |
BJ4#,FJ4#,HJ47..4F,5F T=2.40-2.45,T=2.40-2.45 |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90179-26002 |
BJ4#,FJ4#,HJ47..4F,5F |
1 | ||
| 33321T - SPACER (FOR OUTPUT SHAFT) | ||||
| 90560-36001 |
BJ42,46,FJ40,43..5F |
1 | ||
| 33321U - WASHER (FOR MANUAL TRANSMISSION OUTPUT SHAFT SET) | ||||
| 90201-26003 |
BJ4#,FJ4#,HJ47..4F,5F |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 90363-40018 |
BJ42,46,FJ40,43..5F |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33332-60020 |
BJ4#,FJ4#,HJ47..4F,5F |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-44065 |
BJ4#,FJ4#,HJ47..4F,5F |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33333-60030 |
BJ4#,FJ4#,HJ47..4F,5F |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33335-60020 |
BJ4#,FJ4#,HJ47..4F,5F |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-44065 |
BJ4#,FJ4#,HJ47..4F,5F |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33336-60010 |
BJ42,46,FJ40,43..5F |
1 | ||
| 33343 - BUSH, 3RD & 2ND GEAR | ||||
| 33343-36020 |
BJ4#,FJ4#,HJ47..4F,5F |
1 | ||
| 33348 - WASHER, 1ST GEAR THRUST | ||||
| 33348-36012 |
BJ4#,FJ4#,HJ47..4F,5F |
1 | ||
| 33348A - PIN OR BALL (FOR 1ST GEAR THRUST WASHER) | ||||
| 90250-05202 |
BJ4#,FJ4#,HJ47..4F,5F |
1 | ||
| 33349 - WASHER, 5TH GEAR THRUST | ||||
| 33346-36010 |
BJ42,46,FJ40,43..5F |
1 | ||
| 33349C - PIN (FOR 5TH GEAR THRUST WASHER) | ||||
| 90250-06009 |
BJ42,46,FJ40,43..5F |
1 | ||
| 33355A - KEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK | ||||
| 90360-06004 |
BJ4#,FJ4#,HJ47..4F,5F |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-36021 |
BJ4#,FJ4#,HJ47..4F,5F |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-36051 |
BJ4#,FJ4#,HJ47..4F,5F |
1 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-36020 |
BJ4#,FJ4#,HJ47..4F,5F |
3 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
BJ4#,FJ4#,HJ47..4F,5F |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
BJ4#,FJ4#,HJ47..4F,5F |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33368-20012 |
BJ42,46,FJ40,43..5F |
1 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33391-36010 |
BJ42,46,FJ40,43..5F |
2 | ||
| 33377 - KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB) | ||||
| 33394-36011 |
BJ42,46,FJ40,43..5F |
3 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-20010 |
BJ4#,FJ4#,HJ47..4F,5F |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-20010 |
BJ4#,FJ4#,HJ47..4F,5F |
2 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-36010 |
BJ42,46,FJ40,43..5F |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-32002 |
BJ42,46,FJ40,43..5F |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-30218 |
BJ4#,FJ4#,HJ47..4F,5F T=2.25,MARK 4,T=2.75-2.30 |
1 | ||
| 90520-30214 |
BJ4#,FJ4#,HJ47..4F,5F T=2.05,MARK 0,T=2.05-2.10 |
1 | ||
| 90520-30216 |
BJ4#,FJ4#,HJ47..4F,5F T=2.15,MARK 2,T=2.15-2.20 |
1 | ||
| 33411E - NUT(FOR COUNTER GEAR SHAFT) | ||||
| 90179-26002 |
BJ42,46,FJ40,43..5F |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 90365-40001 |
BJ42,46,FJ40,43..5F |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-36040 |
BJ42,46,FJ40,43..5F |
1 | ||
| 33428 - GEAR, COUNTERSHAFT 5TH | ||||
| 33046-60010 |
BJ42,46,FJ40,43..5F |
1 | ||
| 33428B - BEARING (FOR COUNTER 5TH GEAR) | ||||
| 90364-32007 |
BJ42,46,FJ40,43..5F |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-36022 |
BJ4#,FJ4#,HJ47..4F,5F |
1 | ||
