Toyota Land cruiser FJ40 CYLINDER HEAD

FJ40LV-KCJ (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980

Engine 2F

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8008-8410)B,3B

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Linked diagrams
1302
1701
1709

(7709-8007)B

Click highlighted areas on diagram

Part #	Description	Period	Qty
11101 - HEAD SUB-ASSY, CYLINDER
11101-61011	2F..FJ4#,55..ARL,GEN	08/1976 - 11/1978	1
11101-60071	F..FJ4#,55	03/1969 - 09/1969	1
11101-61031	2F..FJ4#,55..GEN FOR LOW-OCTANE	08/1976 - 01/1979	1
11101-61010	2F..FJ4#,55	01/1975 - 08/1976	1
11101-61030	2F..FJ4#,55..GEN FOR LOW-OCTANE	01/1975 - 08/1976	1
11101-61011	2F..FJ4#,55..GEN	11/1978 - 07/1980	1
11101-61031	2F..FJ4#,55..LHD..GEN FOR LOW-OCTANE	01/1979 - 07/1980	1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02026	F..FJ4#,55 13-1.75PX122-27	03/1969 - 09/1972	15
90910-02050	2F..FJ4#,55 13-1.75PX122-27	01/1975 - 07/1980	15
11115 - GASKET, CYLINDER HEAD
11115-60031	F..FJ4#,55	03/1969 - 12/1972	1
11115-61010	2F..FJ4#,55	01/1975 - 07/1980	1
11116A - PLUG, TIGHT, NO.1
90331-50015	F..FJ4#,55 OD=50	03/1969 - 01/1974	1
11116B - PLUG, TIGHT, NO.2
90331-25011	F..FJ4#,55 OD=25	03/1969 - 01/1974	6
96411-42500	2F..FJ4#,55 OD=25	09/1977 - 07/1980	6
11116C - PLUG, TIGHT, NO.3
90341-14003	2F..FJ4#,55 FOR LOW-OCTANE	03/1975 - 04/1978	6
96431-23814	2F..FJ4#,55 FOR LOW-OCTANE	01/1975 - 03/1975	6
11116C - PLUG, TIGHT, NO.3
90341-14003	2F..FJ4#,55 FOR LOW-OCTANE	03/1975 - 04/1978	6
96431-23814	2F..FJ4#,55 FOR LOW-OCTANE	01/1975 - 03/1975	6
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-54021	F,2F..FJ4#,55	03/1969 - 02/1978	2
90345-54004	2F..FJ4#,55	02/1979 - 07/1980	2
90345-54002	2F..FJ4#,55	02/1978 - 02/1979	2
11118A - PLUG, STRAIGHT, NO.1
90334-07020	2F..FJ4#,55 L=5.5,OD=6.7	09/1976 - 09/1977	1
90334-07004	2F..FJ4#,55 L=5.5,OD=7.3	09/1977 - 07/1980	1
11122 - BUSH, INTAKE VALVE GUIDE
11122-61010	2F..FJ4#,55 STD	01/1975 - 08/1976	6
11123-61011	2F..FJ4#,55 O/S 0.05,O/S 0.05	08/1976 - 07/1980	6
11122-61011	2F..FJ4#,55 STD,STD	08/1976 - 07/1980	6
11123-61010	2F..FJ4#,55 O/S 0.05	01/1975 - 08/1976	6
11122-60020	F..FJ4#,55	03/1969 - 01/1975	6
11126 - BUSH, EXHAUST VALVE GUIDE
11126-60021	F..FJ4#,55	03/1969 - 01/1975	6
11126-61010	2F..FJ4#,55 STD	01/1975 - 08/1976	6
11127-61010	2F..FJ4#,55 O/S 0.05	01/1975 - 08/1976	6
11126-61011	2F..FJ4#,55 STD,STD	08/1976 - 07/1980	6
11127-61011	2F..FJ4#,55 O/S 0.05,O/S 0.05	08/1976 - 07/1980	6
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-60220	F..FJ4#,55	03/1969 - 09/1969	1
11201-61011	2F..FJ4#,55	01/1979 - 07/1980	1
11201-61010	2F..FJ4#,55	01/1975 - 01/1979	1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08023	2F..FJ4#,55	01/1975 - 07/1980	4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-13028	2F..FJ4#,55	01/1975 - 07/1980	4
90210-08010	F..FJ4#,55	03/1969 - 01/1975	4
11213 - GASKET, CYLINDER HEAD COVER
11213-61010	2F..FJ4#,55	01/1975 - 07/1980	1
11213-60010	F..FJ4#,55	03/1969 - 01/1975	1
12108 - CAP SUB-ASSY, OIL FILLER
12181-31020	2F..FJ4#,55	01/1975 - 01/1979	1
12108-60020	F..FJ4#,55	03/1969 - 09/1971	1
12180-13010	2F..FJ4#,55	08/1979 - 07/1980	1
12181-12904	2F..FJ4#,55	01/1979 - 08/1979	1
12108 - CAP SUB-ASSY, OIL FILLER
12181-31020	2F..FJ4#,55	01/1975 - 01/1979	1
12108-60020	F..FJ4#,55	03/1969 - 09/1971	1
12180-13010	2F..FJ4#,55	08/1979 - 07/1980	1
12181-12904	2F..FJ4#,55	01/1979 - 08/1979	1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140	2F..FJ4#,55	01/1979 - 07/1980	1
90430-37078	F..FJ4#	03/1969 - 09/1971	1
Common parts
94611-11300
Linked diagrams
1302
1701
1709

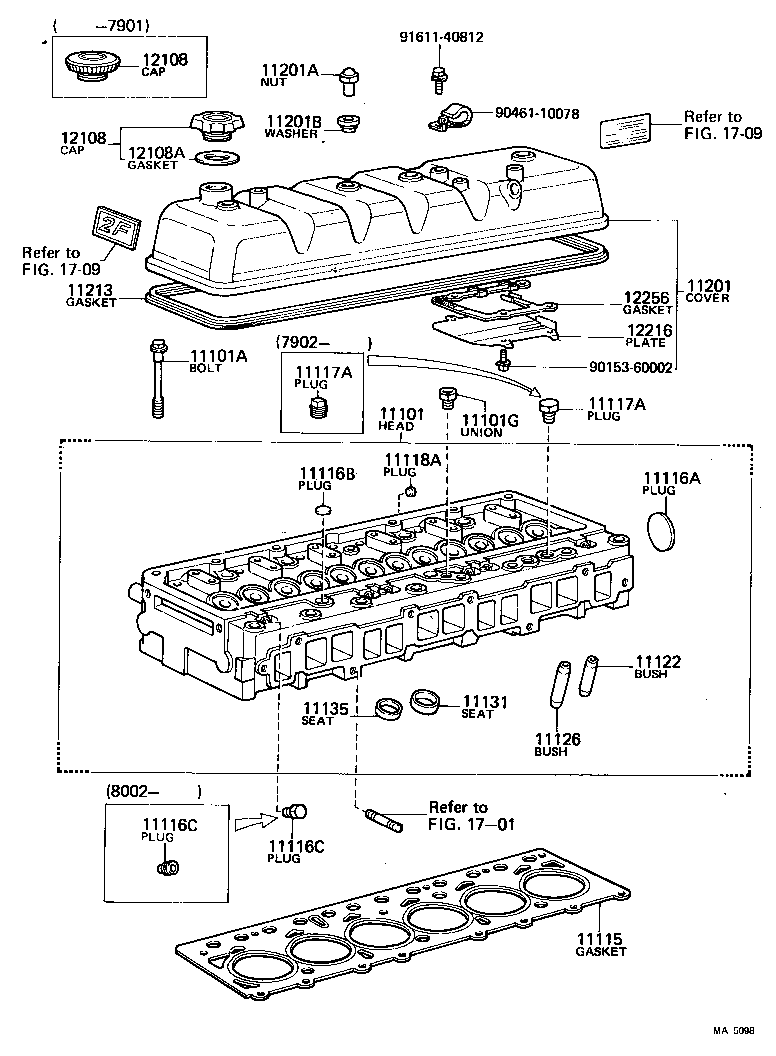

(7501-8007)2F

Click highlighted areas on diagram

Part #	Description	Period	Qty
11101 - HEAD SUB-ASSY, CYLINDER
11101-61011	2F..FJ4#,55..ARL,GEN	08/1976 - 11/1978	1
11101-60071	F..FJ4#,55	03/1969 - 09/1969	1
11101-61031	2F..FJ4#,55..GEN FOR LOW-OCTANE	08/1976 - 01/1979	1
11101-61010	2F..FJ4#,55	01/1975 - 08/1976	1
11101-61030	2F..FJ4#,55..GEN FOR LOW-OCTANE	01/1975 - 08/1976	1
11101-61011	2F..FJ4#,55..GEN	11/1978 - 07/1980	1
11101-61031	2F..FJ4#,55..LHD..GEN FOR LOW-OCTANE	01/1979 - 07/1980	1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02026	F..FJ4#,55 13-1.75PX122-27	03/1969 - 09/1972	15
90910-02050	2F..FJ4#,55 13-1.75PX122-27	01/1975 - 07/1980	15
11101G - UNION(FOR CYLINDER HEAD)
90404-16127	F..FJ4#	03/1969 - 03/1972	1
90404-16160	2F..FJ4#,55 L=27	01/1975 - 07/1980	1
11115 - GASKET, CYLINDER HEAD
11115-60031	F..FJ4#,55	03/1969 - 12/1972	1
11115-61010	2F..FJ4#,55	01/1975 - 07/1980	1
11116A - PLUG, TIGHT, NO.1
90331-50015	F..FJ4#,55 OD=50	03/1969 - 01/1974	1
11116B - PLUG, TIGHT, NO.2
90331-25011	F..FJ4#,55 OD=25	03/1969 - 01/1974	6
96411-42500	2F..FJ4#,55 OD=25	09/1977 - 07/1980	6
11116C - PLUG, TIGHT, NO.3
90341-14003	2F..FJ4#,55 FOR LOW-OCTANE	03/1975 - 04/1978	6
96431-23814	2F..FJ4#,55 FOR LOW-OCTANE	01/1975 - 03/1975	6
11116C - PLUG, TIGHT, NO.3
90341-14003	2F..FJ4#,55 FOR LOW-OCTANE	03/1975 - 04/1978	6
96431-23814	2F..FJ4#,55 FOR LOW-OCTANE	01/1975 - 03/1975	6
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-54021	F,2F..FJ4#,55	03/1969 - 02/1978	2
90345-54004	2F..FJ4#,55	02/1979 - 07/1980	2
90345-54002	2F..FJ4#,55	02/1978 - 02/1979	2
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-54021	F,2F..FJ4#,55	03/1969 - 02/1978	2
90345-54004	2F..FJ4#,55	02/1979 - 07/1980	2
90345-54002	2F..FJ4#,55	02/1978 - 02/1979	2
11118A - PLUG, STRAIGHT, NO.1
90334-07020	2F..FJ4#,55 L=5.5,OD=6.7	09/1976 - 09/1977	1
90334-07004	2F..FJ4#,55 L=5.5,OD=7.3	09/1977 - 07/1980	1
11122 - BUSH, INTAKE VALVE GUIDE
11122-61010	2F..FJ4#,55 STD	01/1975 - 08/1976	6
11123-61011	2F..FJ4#,55 O/S 0.05,O/S 0.05	08/1976 - 07/1980	6
11122-61011	2F..FJ4#,55 STD,STD	08/1976 - 07/1980	6
11123-61010	2F..FJ4#,55 O/S 0.05	01/1975 - 08/1976	6
11122-60020	F..FJ4#,55	03/1969 - 01/1975	6
11126 - BUSH, EXHAUST VALVE GUIDE
11126-60021	F..FJ4#,55	03/1969 - 01/1975	6
11126-61010	2F..FJ4#,55 STD	01/1975 - 08/1976	6
11127-61010	2F..FJ4#,55 O/S 0.05	01/1975 - 08/1976	6
11126-61011	2F..FJ4#,55 STD,STD	08/1976 - 07/1980	6
11127-61011	2F..FJ4#,55 O/S 0.05,O/S 0.05	08/1976 - 07/1980	6
11131 - SEAT, INTAKE VALVE
11132-60030	2F..FJ4#,55 O/S 0.03 FOR LOW-OCTANE	01/1975 - 07/1980	6
11131-60010	2F..FJ4#,55 STD FOR LOW-OCTANE	01/1975 - 07/1980	6
11135 - SEAT, EXHAUST VALVE
11135-60010	2F..FJ4#,55 STD,STD FOR LOW-OCTANE	01/1975 - 07/1980	6
11136-60030	2F..FJ4#,55 O/S 0.03,O/S 0.03 FOR LOW-OCTANE	01/1975 - 07/1980	6
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-60220	F..FJ4#,55	03/1969 - 09/1969	1
11201-61011	2F..FJ4#,55	01/1979 - 07/1980	1
11201-61010	2F..FJ4#,55	01/1975 - 01/1979	1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08023	2F..FJ4#,55	01/1975 - 07/1980	4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-13028	2F..FJ4#,55	01/1975 - 07/1980	4
90210-08010	F..FJ4#,55	03/1969 - 01/1975	4
11213 - GASKET, CYLINDER HEAD COVER
11213-61010	2F..FJ4#,55	01/1975 - 07/1980	1
11213-60010	F..FJ4#,55	03/1969 - 01/1975	1
12108 - CAP SUB-ASSY, OIL FILLER
12181-31020	2F..FJ4#,55	01/1975 - 01/1979	1
12108-60020	F..FJ4#,55	03/1969 - 09/1971	1
12180-13010	2F..FJ4#,55	08/1979 - 07/1980	1
12181-12904	2F..FJ4#,55	01/1979 - 08/1979	1
12108 - CAP SUB-ASSY, OIL FILLER
12181-31020	2F..FJ4#,55	01/1975 - 01/1979	1
12108-60020	F..FJ4#,55	03/1969 - 09/1971	1
12180-13010	2F..FJ4#,55	08/1979 - 07/1980	1
12181-12904	2F..FJ4#,55	01/1979 - 08/1979	1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140	2F..FJ4#,55	01/1979 - 07/1980	1
90430-37078	F..FJ4#	03/1969 - 09/1971	1
12216 - PLATE, VENTILATION BAFFLE
12238-61011	2F..FJ4#,55	01/1979 - 07/1980	1
12238-61010	2F..FJ4#,55	01/1975 - 01/1979	1
12256 - GASKET, VENTILATION BAFFLE
12256-61010	2F..FJ4#,55	01/1975 - 01/1979	1
12256-61011	2F..FJ4#,55	01/1979 - 07/1980	1
Common parts
90153-60002
90461-10078
91611-40812
Linked diagrams
1701
1709

FJ40LV-KCJ (1975)

(8008-8410)B,3B

(7709-8007)B

(7501-8007)2F
