FJ40LV-KCJ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )BJ40,42,43,46,FJ40,43

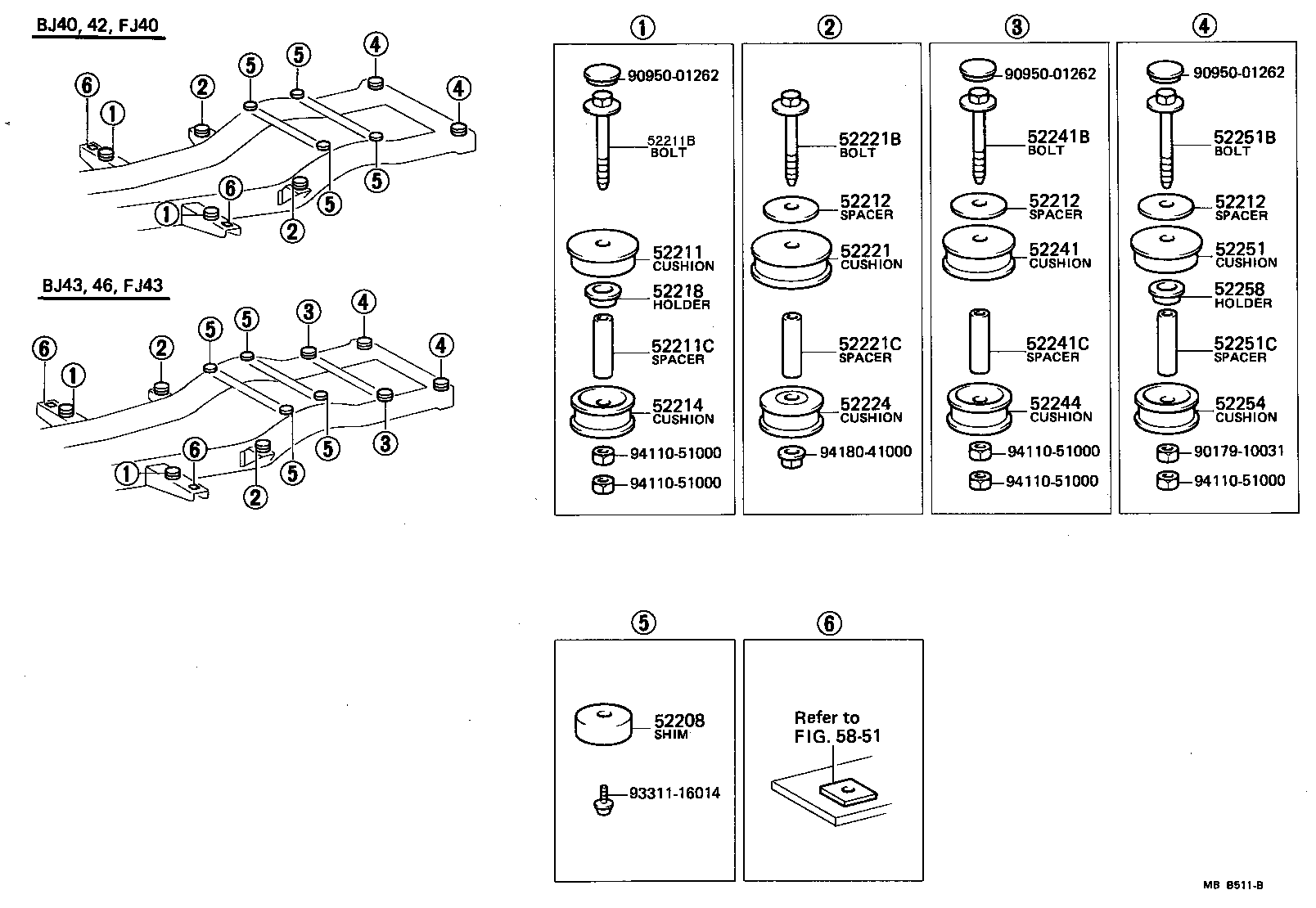

Click highlighted areas on diagram

diagram 52208 52211 52211B 52211C 52212 52212 52212 52214 52218 52221 52221B 52221C 52224 52241 52241B 52241C 52244 52251 52251B 52251C 52254 52258 5851 9017910031 9095001262 9095001262 9095001262 9331116014 9411051000 9411051000 9411051000 9411051000 9411051000 9418041000
Part # Description Qty Price
52208 - SHIM SUB-ASSY, BODY MOUNTING
52208-90300

BJ4#,FJ4#,HJ47..TP,V

 6
52211 - CUSHION, BODY MOUNTING, NO.1 UPPER
52201-90300

BJ4#,FJ4#,HJ47

H=26.7

 2
52201-90301

BJ4#,FJ4#,HJ47

W/ADJUSTER,H=21.7

 2
52211B - BOLT(FOR BODY MOUNTING NO.1 CUSHION)
90119-10123

BJ4#,FJ4#,HJ47

 2
52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION)
90560-12009

BJ4#,FJ4#,HJ47

L=48.1

 2
90560-12017

BJ4#,FJ4#,HJ47

W/ADJUSTER,L=43.1

 2
52212 - SPACER, BODY MOUNTING
52231-90300

BJ4#,FJ4#,HJ47

W/ADJUSTER,T=5.0

 1
52212 - SPACER, BODY MOUNTING
52231-90300

BJ4#,FJ4#,HJ47

W/ADJUSTER,T=5.0

 1
52212 - SPACER, BODY MOUNTING
52231-90300

BJ4#,FJ4#,HJ47

W/ADJUSTER,T=5.0

 1
52214 - CUSHION, BODY MOUNT, NO.1 LOWER
52202-90300

BJ4#,FJ4#,HJ47

 2
52218 - HOLDER, BODY MOUNT BOLT SPACER, NO.1
52228-22010

BJ4#,FJ4#,HJ47

 2
52221 - CUSHION, BODY MOUNT, NO.2 UPPER
52203-90300

BJ4#,FJ4#,HJ47

 2
52221B - BOLT(FOR BODY MOUNT NO.2 CUSHION)
90109-10039

BJ4#,FJ4#,HJ47

 2
52221C - SPACER(FOR BODY MOUNT NO.2 CUSHION)
90560-12009

BJ4#,FJ4#,HJ47

 2
52224 - CUSHION, BODY MOUNT, NO.2 LOWER
52204-90300

BJ4#,FJ4#,HJ47

 2
52251 - CUSHION, BODY MOUNT, NO.5 UPPER
52201-90300

BJ4#,FJ4#,HJ47..TP,V

 2
52251B - BOLT(FOR BODY MOUNT NO.5 CUSHION)
90119-10123

BJ4#,FJ4#,HJ47..(TP,V)..(ARL,GEN)

 2
52251C - SPACER(FOR BODY MOUNT NO.5 CUSHION)
90560-12009

BJ4#,FJ4#,HJ47..TP,V

 2
52254 - CUSHION, BODY MOUNT, NO.5 LOWER
52202-90300

BJ4#,FJ4#,HJ47..TP,V

 2
52258 - HOLDER, BODY MOUNT BOLT SPACER, NO.5
52228-22010

BJ4#,FJ4#,HJ47..TP,V

 2
Common parts
90179-10031
90950-01262
93311-16014
94110-51000
94180-41000
Linked diagrams
5851
