FJ40LV-KCJ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )2F

Click highlighted areas on diagram

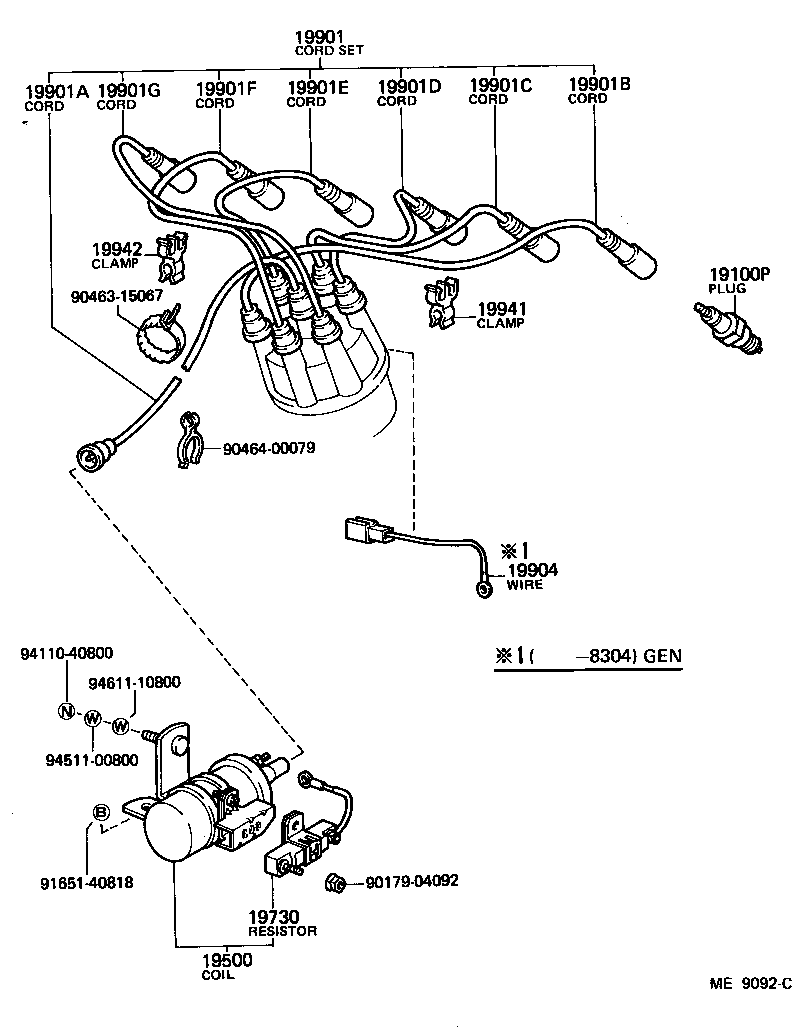

diagram 19100P 19500 19730 19901 19901A 19901B 19901C 19901D 19901E 19901F 19901G 19904 19941 19942 9017904092 9046315067 9046400079 9165140818 9411040800 9451100800 9461110800
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01056

2F..FJ4#..ARL,GEN

W14EX-U,W14EX-U

 6
19500 - COIL ASSY, IGNITION
90919-02124

2F..FJ4#..GEN

 1
19730 - RESISTOR, IGNITION COIL
90919-04032

2F..FJ4#..3F,4F

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21322

2F..FJ4#

 1
19901A - CORD, COIL RESISTIVE
90919-13062

2F..FJ4#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12169

2F..FJ4#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12168

2F..FJ4#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12167

2F..FJ4#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12167

2F..FJ4#

 1
19901F - CORD, SPARK PLUG RESISTIVE, NO.5
90919-12168

2F..FJ4#

 1
19901G - CORD, SPARK PLUG RESISTIVE, NO.6
90919-12169

2F..FJ4#

 1
19904 - WIRE SUB-ASSY, DISTRIBUTOR PRIMARY
19904-61010

2F..FJ4#..GEN

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90464-00093

2F..FJ4#

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00105

2F..FJ4#

 1
Common parts
90179-04092
90463-15067
90464-00079
91651-40818
94110-40800
94511-00800
94611-10800

(8008-8410)B,3B

Click highlighted areas on diagram

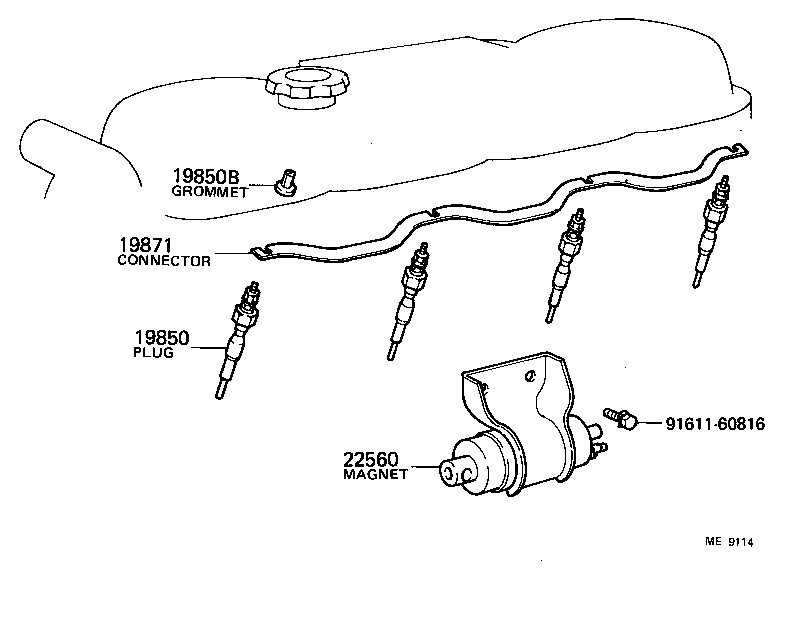

diagram 19850 19850B 19871 22560 9161160816
Part # Description Qty Price
Common parts
91611-60816
