FJ40LV-KC (1980)
Toyota Land Cruiser
Production
Aug 1980
-
Oct 1984
Engine
2F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8008- )FJ4#,HJ47

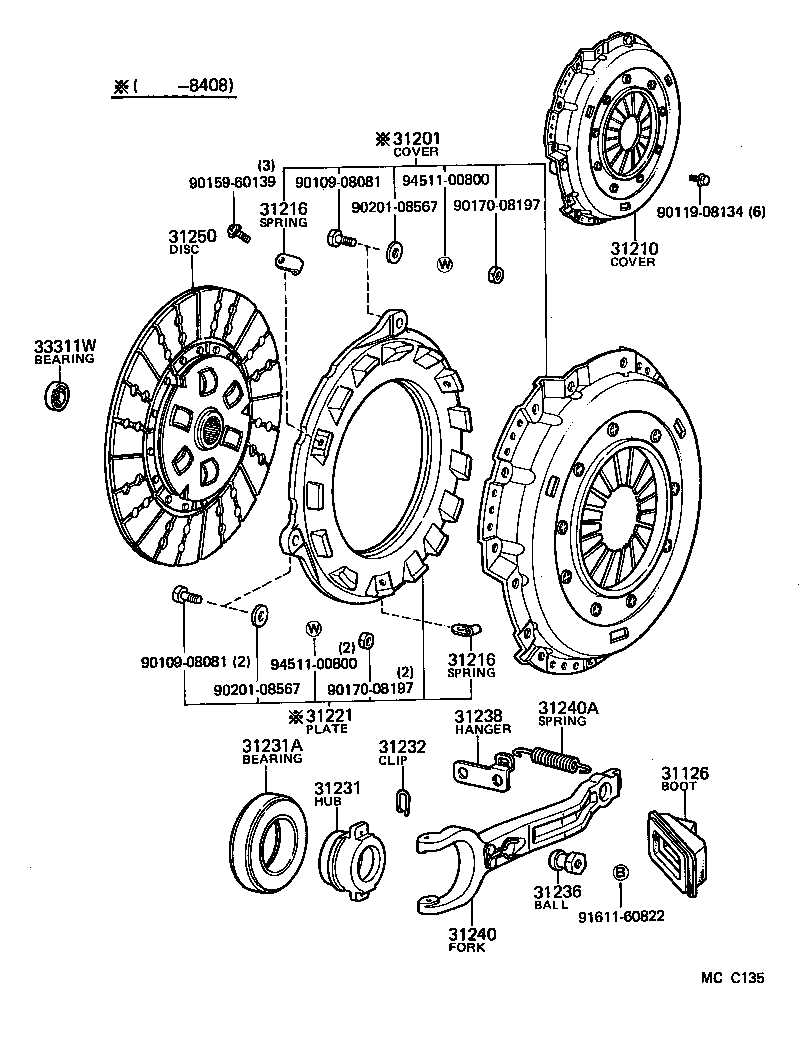

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-60021 |
FJ4#,HJ47 |
1 | ||
| 31201 - COVER SUB-ASSY, CLUTCH | ||||
| 31201-69027 |
HJ47;FJ4#..EUR,GEN |
1 | ||
| 31201-69026 |
HJ47;FJ4#..(3F,4F)..(EUR,GEN) |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-60041 |
HJ47;FJ4#..(3F,4F)..(EUR,GEN) |
1 | ||
| 31210-60042 |
HJ47;FJ4#..EUR,GEN |
1 | ||
| 31216 - SPRING, CLUTCH RETRACTING | ||||
| 31216-60010 |
FJ4#,HJ47 |
3 | ||
| 31216 - SPRING, CLUTCH RETRACTING | ||||
| 31216-60010 |
FJ4#,HJ47 |
3 | ||
| 31221 - PLATE, CLUTCH PRESSURE | ||||
| 31221-69025 |
HJ47;FJ4#..EUR,GEN |
1 | ||
| 31231 - HUB, CLUTCH RELEASE BEARING | ||||
| 31231-60040 |
FJ4# |
1 | ||
| 31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB) | ||||
| 90363-52086 |
FJ4#,HJ47..3F,4F |
1 | ||
| 31232 - CLIP OR SPRING, RELEASE BEARING HUB | ||||
| 31232-60020 |
BJ4#,FJ4#,HJ47 |
2 | ||
| 31236 - BALL, RELEASE FORK | ||||
| 31236-60020 |
FJ4# |
1 | ||
| 31238 - HANGER, RELEASE FORK RETRACTING SPRING | ||||
| 31238-60041 |
FJ4# |
1 | ||
| 31240 - FORK ASSY, CLUTCH RELEASE | ||||
| 31204-60030 |
FJ4# |
1 | ||
| 31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN) | ||||
| 90506-16475 |
FJ4#,HJ47 |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-60020 |
FJ4# |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 90363-15004 |
FJ4#,HJ47 |
1 | ||
| Common parts | ||||
| 90109-08081 | ||||
| 90119-08134 | ||||
| 90159-60139 | ||||
| 90170-08197 | ||||
| 90201-08567 | ||||
| 91611-60822 | ||||
| 94511-00800 | ||||
