FJ40LV-C (1972)
Toyota Land Cruiser

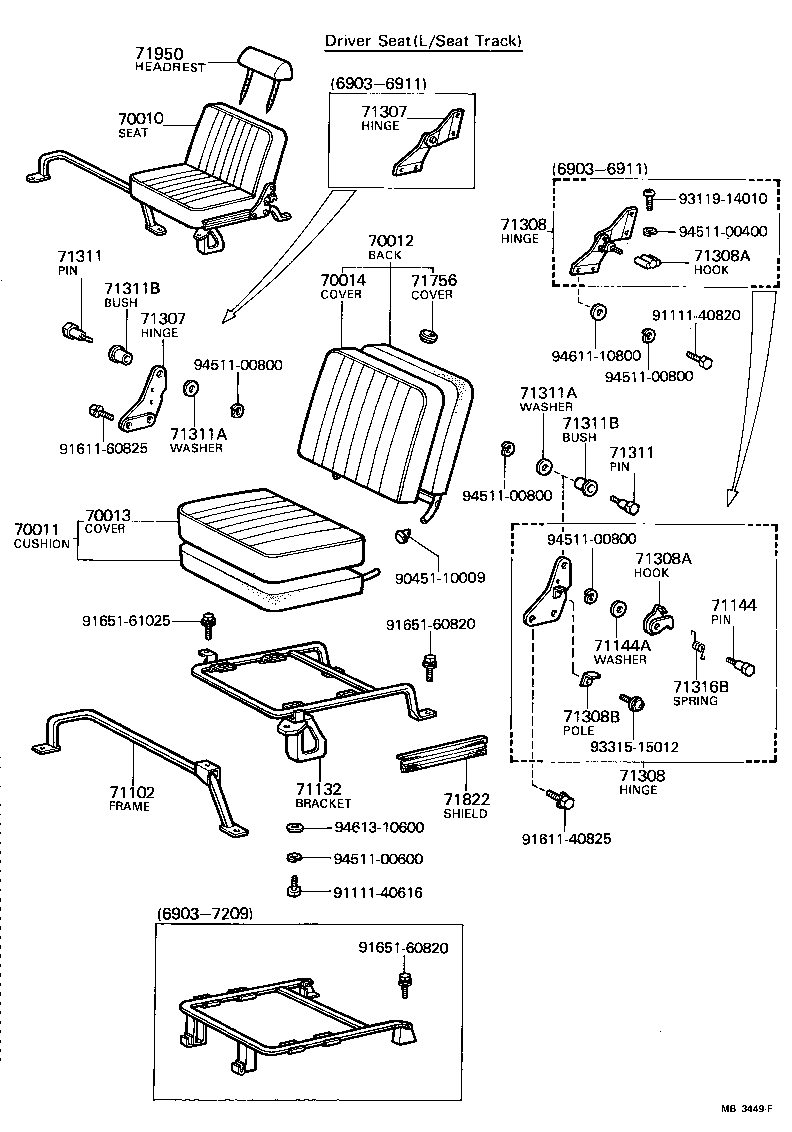

(6903-7309)FJ40,42,43..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 70010 - SEAT ASSY, NO.1 | ||||
| 71200-6003202 |
FJ40,42,43..LHD ASSISTANT SIDE,RED/MAROON |
1 | ||
| 71100-6005102 |
FJ40,43..LHD DRIVER SIDE,W/SEAT TRACK,RED/MAROON |
1 | ||
| 71100-6003102 |
FJ40,42,43..LHD DRIVER SIDE,RED/MAROON |
1 | ||
| 71100-90071 |
FJ40,43..LHD DRIVER SIDE,W/SEAT TRACK |
1 | ||
| 71200-90339 |
FJ40,43..LHD ASSISTANT SIDE,L/HEAD REST |
1 | ||
| 71200-90338 |
FJ40,43..LHD ASSISTANT SIDE,W/HEAD REST |
1 | ||
| 71100-90339 |
FJ40,43..LHD DRIVER SIDE |
1 | ||
| 70011 - CUSHION ASSY, NO.1 SEAT | ||||
| 71420-60020 |
FJ40,43..LHD ASSISTANT SIDE |
1 | ||
| 71410-60010 |
FJ40,43..LHD DRIVER SIDE |
1 | ||
| 71410-90339 |
FJ40,43..LHD DRIVER SIDE |
1 | ||
| 71450-90338 |
FJ40,43..LHD ASSISTANT SIDE |
1 | ||
| 71410-90340 |
FJ4#,HJ45..LHD DRIVER SIDE,W/SEAT TRACK |
1 | ||
| 71410-90338 |
FJ40,43..LHD DRIVER SIDE,W/SEAT TRACK |
1 | ||
| 71410-90346 |
BJ4#,FJ40,43..LHD DRIVER SIDE |
1 | ||
| 71410-90341 |
BJ4#,FJ40,43 DRIVER SIDE |
1 | ||
| 71410-90344 |
BJ4#,FJ4#,HJ45..LHD DRIVER SIDE,W/SEAT TRACK |
1 | ||
| 71450-90340 |
BJ4#,FJ40,43..LHD ASSISTANT SIDE |
1 | ||
| 70012 - BACK ASSY, NO.1 SEAT | ||||
| 71430-90338 |
FJ40,43..LHD DRIVER SIDE |
1 | ||
| 71440-60010 |
FJ40,43 ASSISTANT SIDE |
1 | ||
| 71430-90343 |
BJ4#,FJ40,43..LHD DRIVER SIDE |
1 | ||
| 71470-90338 |
FJ40,43..LHD ASSISTANT SIDE |
1 | ||
| 71430-90300 |
FJ40,43 DRIVER SIDE |
1 | ||
| 71470-90340 |
BJ4#,FJ40,43..LHD ASSISTANT SIDE |
1 | ||
| 70013 - COVER ASSY, NO.1 SEAT CUSHION | ||||
| 71072-6002002 |
FJ40,42,43..LHD ASSISTANT SIDE,RED/MAROON |
1 | ||
| 71071-6002002 |
FJ40,42,43..LHD DRIVER SIDE,RED/MAROON |
1 | ||
| 71071-90324 |
BJ4#,FJ40,43..LHD DRIVER SIDE |
1 | ||
| 71071-90323 |
BJ4#,FJ4#,HJ45..LHD DRIVER SIDE,W/SEAT TRACK |
1 | ||
| 71072-90310 |
BJ4#,FJ40,43..LHD ASSISTANT SIDE |
1 | ||
| 71071-90326 |
BJ4#,FJ40,43..LHD DRIVER SIDE |
1 | ||
| 70014 - COVER ASSY, NO.1 SEAT BACK | ||||
| 71073-6001002 |
FJ45..LHD;FJ40,42,43 DRIVER SIDE,RED/MAROON |
1 | ||
| 71074-6001002 |
FJ4# ASSISTANT SIDE,RED/MAROON |
1 | ||
| 71073-90324 |
BJ4#,FJ40,43 DRIVER SIDE |
1 | ||
| 71102 - FRAME SUB-ASSY, FRONT SEAT SET INNER | ||||
| 71103-90338 |
BJ4#,FJ40,43..LHD FOR BENCH SEAT,W/SEAT TRACK |
1 | ||
| 71103-90339 |
BJ4#,FJ40,43..LHD FOR BENCH SEAT |
1 | ||
| 71103-90343 |
BJ4#,FJ40,43..LHD |
1 | ||
| 71132 - BRACKET, FRONT SEAT SET, OUTER LH | ||||
| 71105-90339 |
BJ4#,FJ40,43..LHD FOR BENCH SEAT |
1 | ||
| 71105-90341 |
BJ4#,FJ40,43..LHD FOR BENCH SEAT,W/SEAT TRACK |
1 | ||
| 71105-90343 |
BJ4#,FJ40,43..LHD FOR BENCH SEAT |
1 | ||
| 71307 - HINGE SUB-ASSY, DRIVER SEAT, RH | ||||
| 71306-90333 |
FJ4#..LHD |
1 | ||
| 71307 - HINGE SUB-ASSY, DRIVER SEAT, RH | ||||
| 71306-90333 |
FJ4#..LHD |
1 | ||
| 71308 - HINGE SUB-ASSY, DRIVER SEAT, LH | ||||
| 71170-90310 |
FJ4#..LHD |
1 | ||
| 71308 - HINGE SUB-ASSY, DRIVER SEAT, LH | ||||
| 71170-90310 |
FJ4#..LHD |
1 | ||
| 71308A - HOOK, DRIVER SEAT HINGE, LH | ||||
| 71316-90310 |
FJ4#..LHD |
1 | ||
| 71308A - HOOK, DRIVER SEAT HINGE, LH | ||||
| 71316-90310 |
FJ4#..LHD |
1 | ||
| 71822 - SHIELD, FRONT SEAT SIDE, LH | ||||
| 71822-60010 |
FJ40,42,43 |
1 | ||
| Common parts | ||||
| 90451-10009 | ||||
| 91111-40616 | ||||
| 91111-40820 | ||||
| 91611-40825 | ||||
| 91611-60825 | ||||
| 91651-60820 | ||||
| 91651-61025 | ||||
| 93119-14010 | ||||
| 93315-15012 | ||||
| 94511-00400 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
| 94611-10800 | ||||
| 94613-10600 | ||||

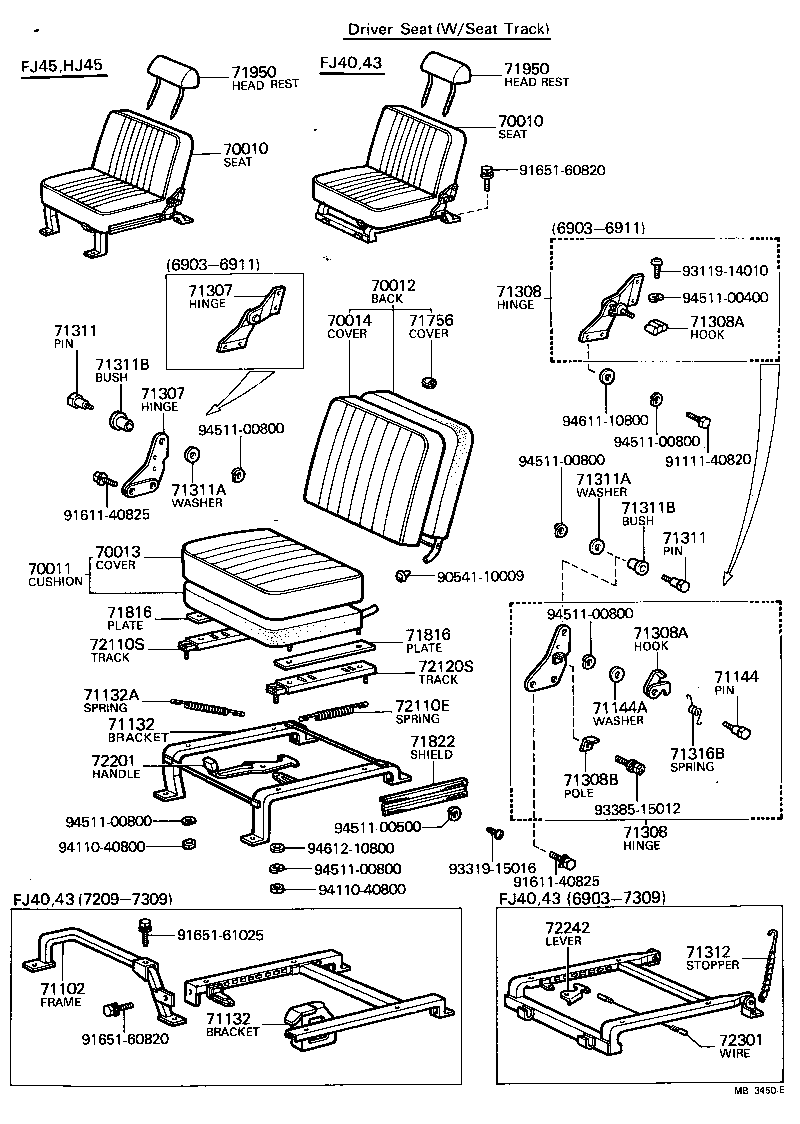

(6903-7309)FJ4#,HJ45..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 70010 - SEAT ASSY, NO.1 | ||||
| 71200-6003202 |
FJ40,42,43..LHD ASSISTANT SIDE,RED/MAROON |
1 | ||
| 71100-6005102 |
FJ40,43..LHD DRIVER SIDE,W/SEAT TRACK,RED/MAROON |
1 | ||
| 71100-6003102 |
FJ40,42,43..LHD DRIVER SIDE,RED/MAROON |
1 | ||
| 71100-90071 |
FJ40,43..LHD DRIVER SIDE,W/SEAT TRACK |
1 | ||
| 71200-90339 |
FJ40,43..LHD ASSISTANT SIDE,L/HEAD REST |
1 | ||
| 71200-90338 |
FJ40,43..LHD ASSISTANT SIDE,W/HEAD REST |
1 | ||
| 71100-90339 |
FJ40,43..LHD DRIVER SIDE |
1 | ||
| 70010 - SEAT ASSY, NO.1 | ||||
| 71200-6003202 |
FJ40,42,43..LHD ASSISTANT SIDE,RED/MAROON |
1 | ||
| 71100-6005102 |
FJ40,43..LHD DRIVER SIDE,W/SEAT TRACK,RED/MAROON |
1 | ||
| 71100-6003102 |
FJ40,42,43..LHD DRIVER SIDE,RED/MAROON |
1 | ||
| 71100-90071 |
FJ40,43..LHD DRIVER SIDE,W/SEAT TRACK |
1 | ||
| 71200-90339 |
FJ40,43..LHD ASSISTANT SIDE,L/HEAD REST |
1 | ||
| 71200-90338 |
FJ40,43..LHD ASSISTANT SIDE,W/HEAD REST |
1 | ||
| 71100-90339 |
FJ40,43..LHD DRIVER SIDE |
1 | ||
| 70011 - CUSHION ASSY, NO.1 SEAT | ||||
| 71420-60020 |
FJ40,43..LHD ASSISTANT SIDE |
1 | ||
| 71410-60010 |
FJ40,43..LHD DRIVER SIDE |
1 | ||
| 71410-90339 |
FJ40,43..LHD DRIVER SIDE |
1 | ||
| 71450-90338 |
FJ40,43..LHD ASSISTANT SIDE |
1 | ||
| 71410-90340 |
FJ4#,HJ45..LHD DRIVER SIDE,W/SEAT TRACK |
1 | ||
| 71410-90338 |
FJ40,43..LHD DRIVER SIDE,W/SEAT TRACK |
1 | ||
| 71410-90346 |
BJ4#,FJ40,43..LHD DRIVER SIDE |
1 | ||
| 71410-90341 |
BJ4#,FJ40,43 DRIVER SIDE |
1 | ||
| 71410-90344 |
BJ4#,FJ4#,HJ45..LHD DRIVER SIDE,W/SEAT TRACK |
1 | ||
| 71450-90340 |
BJ4#,FJ40,43..LHD ASSISTANT SIDE |
1 | ||
| 70012 - BACK ASSY, NO.1 SEAT | ||||
| 71430-90338 |
FJ40,43..LHD DRIVER SIDE |
1 | ||
| 71440-60010 |
FJ40,43 ASSISTANT SIDE |
1 | ||
| 71430-90343 |
BJ4#,FJ40,43..LHD DRIVER SIDE |
1 | ||
| 71470-90338 |
FJ40,43..LHD ASSISTANT SIDE |
1 | ||
| 71430-90300 |
FJ40,43 DRIVER SIDE |
1 | ||
| 71470-90340 |
BJ4#,FJ40,43..LHD ASSISTANT SIDE |
1 | ||
| 70013 - COVER ASSY, NO.1 SEAT CUSHION | ||||
| 71072-6002002 |
FJ40,42,43..LHD ASSISTANT SIDE,RED/MAROON |
1 | ||
| 71071-6002002 |
FJ40,42,43..LHD DRIVER SIDE,RED/MAROON |
1 | ||
| 71071-90324 |
BJ4#,FJ40,43..LHD DRIVER SIDE |
1 | ||
| 71071-90323 |
BJ4#,FJ4#,HJ45..LHD DRIVER SIDE,W/SEAT TRACK |
1 | ||
| 71072-90310 |
BJ4#,FJ40,43..LHD ASSISTANT SIDE |
1 | ||
| 71071-90326 |
BJ4#,FJ40,43..LHD DRIVER SIDE |
1 | ||
| 70014 - COVER ASSY, NO.1 SEAT BACK | ||||
| 71073-6001002 |
FJ45..LHD;FJ40,42,43 DRIVER SIDE,RED/MAROON |
1 | ||
| 71074-6001002 |
FJ4# ASSISTANT SIDE,RED/MAROON |
1 | ||
| 71073-90324 |
BJ4#,FJ40,43 DRIVER SIDE |
1 | ||
| 71102 - FRAME SUB-ASSY, FRONT SEAT SET INNER | ||||
| 71103-90338 |
BJ4#,FJ40,43..LHD FOR BENCH SEAT,W/SEAT TRACK |
1 | ||
| 71103-90339 |
BJ4#,FJ40,43..LHD FOR BENCH SEAT |
1 | ||
| 71103-90343 |
BJ4#,FJ40,43..LHD |
1 | ||
| 71132 - BRACKET, FRONT SEAT SET, OUTER LH | ||||
| 71105-90339 |
BJ4#,FJ40,43..LHD FOR BENCH SEAT |
1 | ||
| 71105-90341 |
BJ4#,FJ40,43..LHD FOR BENCH SEAT,W/SEAT TRACK |
1 | ||
| 71105-90343 |
BJ4#,FJ40,43..LHD FOR BENCH SEAT |
1 | ||
| 71132 - BRACKET, FRONT SEAT SET, OUTER LH | ||||
| 71105-90339 |
BJ4#,FJ40,43..LHD FOR BENCH SEAT |
1 | ||
| 71105-90341 |
BJ4#,FJ40,43..LHD FOR BENCH SEAT,W/SEAT TRACK |
1 | ||
| 71105-90343 |
BJ4#,FJ40,43..LHD FOR BENCH SEAT |
1 | ||
| 71132A - SPRING, TENSION (FOR SEAT TRACK) | ||||
| 90506-18010 |
FJ45;FJ40,43..LHD |
1 | ||
| 71307 - HINGE SUB-ASSY, DRIVER SEAT, RH | ||||
| 71306-90333 |
FJ4#..LHD |
1 | ||
| 71307 - HINGE SUB-ASSY, DRIVER SEAT, RH | ||||
| 71306-90333 |
FJ4#..LHD |
1 | ||
| 71308 - HINGE SUB-ASSY, DRIVER SEAT, LH | ||||
| 71170-90310 |
FJ4#..LHD |
1 | ||
| 71308 - HINGE SUB-ASSY, DRIVER SEAT, LH | ||||
| 71170-90310 |
FJ4#..LHD |
1 | ||
| 71308A - HOOK, DRIVER SEAT HINGE, LH | ||||
| 71316-90310 |
FJ4#..LHD |
1 | ||
| 71308A - HOOK, DRIVER SEAT HINGE, LH | ||||
| 71316-90310 |
FJ4#..LHD |
1 | ||
| 71816 - PLATE, DRIVER SEAT LEATHER SET | ||||
| 71823-60010 |
FJ4#,HJ45 |
2 | ||
| 71816 - PLATE, DRIVER SEAT LEATHER SET | ||||
| 71823-60010 |
FJ4#,HJ45 |
2 | ||
| 71822 - SHIELD, FRONT SEAT SIDE, LH | ||||
| 71822-60010 |
FJ40,42,43 |
1 | ||
| 72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK) | ||||
| 90506-12009 |
FJ45;FJ40,43..LHD |
1 | ||
| 72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72110-60010 |
FJ45;FJ40,43..LHD BENCH SEAT |
1 | ||
| 72110-90321 |
FJ40,43..LHD SEPARATE SEAT |
1 | ||
| 72140-90330 |
BJ4#,FJ4#,HJ45..LHD BENCH SEAT |
1 | ||
| 72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT) | ||||
| 72110-60010 |
FJ45;FJ40,43..LHD BENCH SEAT |
1 | ||
| 72120-90321 |
FJ40,43..LHD SEPARATE SEAT |
1 | ||
| 72201 - HANDLE SUB-ASSY, SEAT TRACK | ||||
| 72201-90341 |
FJ40,43..LHD |
1 | ||
| 72201-60020 |
FJ45;FJ40,43..LHD |
1 | ||
| 72242 - LEVER, SEAT TRACK LOCK OPEN | ||||
| 72213-60020 |
FJ40,43..LHD |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-60010 |
FJ40,43..LHD BENCH SEAT |
1 | ||
| Common parts | ||||
| 90541-10009 | ||||
| 91111-40820 | ||||
| 91611-40825 | ||||
| 91651-60820 | ||||
| 91651-61025 | ||||
| 93119-14010 | ||||
| 93319-15016 | ||||
| 93385-15012 | ||||
| 94110-40800 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||
| 94511-00800 | ||||
| 94611-10800 | ||||
| 94612-10800 | ||||
(6903-7309)FJ4#,HJ45..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 70010 - SEAT ASSY, NO.1 | ||||
| 71200-6003202 |
FJ40,42,43..LHD ASSISTANT SIDE,RED/MAROON |
1 | ||
| 71100-6005102 |
FJ40,43..LHD DRIVER SIDE,W/SEAT TRACK,RED/MAROON |
1 | ||
| 71100-6003102 |
FJ40,42,43..LHD DRIVER SIDE,RED/MAROON |
1 | ||
| 71100-90071 |
FJ40,43..LHD DRIVER SIDE,W/SEAT TRACK |
1 | ||
| 71200-90339 |
FJ40,43..LHD ASSISTANT SIDE,L/HEAD REST |
1 | ||
| 71200-90338 |
FJ40,43..LHD ASSISTANT SIDE,W/HEAD REST |
1 | ||
| 71100-90339 |
FJ40,43..LHD DRIVER SIDE |
1 | ||
| 70011 - CUSHION ASSY, NO.1 SEAT | ||||
| 71420-60020 |
FJ40,43..LHD ASSISTANT SIDE |
1 | ||
| 71410-60010 |
FJ40,43..LHD DRIVER SIDE |
1 | ||
| 71410-90339 |
FJ40,43..LHD DRIVER SIDE |
1 | ||
| 71450-90338 |
FJ40,43..LHD ASSISTANT SIDE |
1 | ||
| 71410-90340 |
FJ4#,HJ45..LHD DRIVER SIDE,W/SEAT TRACK |
1 | ||
| 71410-90338 |
FJ40,43..LHD DRIVER SIDE,W/SEAT TRACK |
1 | ||
| 71410-90346 |
BJ4#,FJ40,43..LHD DRIVER SIDE |
1 | ||
| 71410-90341 |
BJ4#,FJ40,43 DRIVER SIDE |
1 | ||
| 71410-90344 |
BJ4#,FJ4#,HJ45..LHD DRIVER SIDE,W/SEAT TRACK |
1 | ||
| 71450-90340 |
BJ4#,FJ40,43..LHD ASSISTANT SIDE |
1 | ||
| 70012 - BACK ASSY, NO.1 SEAT | ||||
| 71430-90338 |
FJ40,43..LHD DRIVER SIDE |
1 | ||
| 71440-60010 |
FJ40,43 ASSISTANT SIDE |
1 | ||
| 71430-90343 |
BJ4#,FJ40,43..LHD DRIVER SIDE |
1 | ||
| 71470-90338 |
FJ40,43..LHD ASSISTANT SIDE |
1 | ||
| 71430-90300 |
FJ40,43 DRIVER SIDE |
1 | ||
| 71470-90340 |
BJ4#,FJ40,43..LHD ASSISTANT SIDE |
1 | ||
| 70013 - COVER ASSY, NO.1 SEAT CUSHION | ||||
| 71072-6002002 |
FJ40,42,43..LHD ASSISTANT SIDE,RED/MAROON |
1 | ||
| 71071-6002002 |
FJ40,42,43..LHD DRIVER SIDE,RED/MAROON |
1 | ||
| 71071-90324 |
BJ4#,FJ40,43..LHD DRIVER SIDE |
1 | ||
| 71071-90323 |
BJ4#,FJ4#,HJ45..LHD DRIVER SIDE,W/SEAT TRACK |
1 | ||
| 71072-90310 |
BJ4#,FJ40,43..LHD ASSISTANT SIDE |
1 | ||
| 71071-90326 |
BJ4#,FJ40,43..LHD DRIVER SIDE |
1 | ||
| 70014 - COVER ASSY, NO.1 SEAT BACK | ||||
| 71073-6001002 |
FJ45..LHD;FJ40,42,43 DRIVER SIDE,RED/MAROON |
1 | ||
| 71074-6001002 |
FJ4# ASSISTANT SIDE,RED/MAROON |
1 | ||
| 71073-90324 |
BJ4#,FJ40,43 DRIVER SIDE |
1 | ||
| 71242 - HINGE, PASSENGER SEAT BACK, RH | ||||
| 71180-90310 |
FJ4#..LHD |
1 | ||
| 71242 - HINGE, PASSENGER SEAT BACK, RH | ||||
| 71180-90310 |
FJ4#..LHD |
1 | ||
| 71242A - HOOK, PASSENGER SEAT HINGE, RH | ||||
| 71316-90310 |
FJ4#..LHD |
1 | ||
| 71242A - HOOK, PASSENGER SEAT HINGE, RH | ||||
| 71316-90310 |
FJ4#..LHD |
1 | ||
| 71243 - HINGE, PASSENGER SEAT BACK, LH | ||||
| 71309-90333 |
FJ4#..LHD |
1 | ||
| 71243 - HINGE, PASSENGER SEAT BACK, LH | ||||
| 71309-90333 |
FJ4#..LHD |
1 | ||
| 71821 - SHIELD, FRONT SEAT SIDE, RH | ||||
| 71821-60010 |
FJ40,42,43 |
1 | ||
| Common parts | ||||
| 90541-10009 | ||||
| 91111-40820 | ||||
| 91611-40825 | ||||
| 91611-60825 | ||||
| 91651-60820 | ||||
| 93119-14010 | ||||
| 93315-15012 | ||||
| 94511-00400 | ||||
| 94511-00800 | ||||
| 94611-10800 | ||||

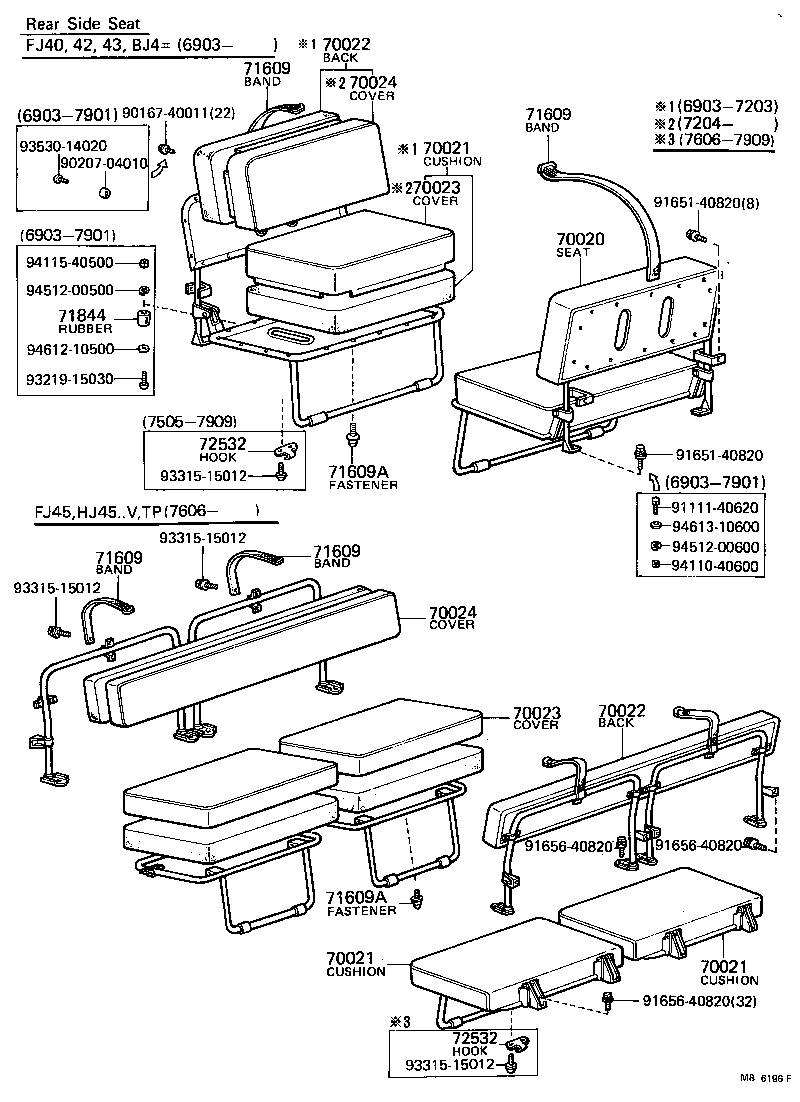

(6903-8007)BJ4#,FJ4#,HJ45
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 70020 - SEAT ASSY, NO.2 | ||||
| 71700-6001002 |
FJ40,42 RH.,RED/MAROON |
1 | ||
| 71800-6001002 |
FJ40,42 LH.,RED/MAROON |
1 | ||
| 71700-90340 |
BJ40,FJ40 FOR W/SAFETY BAR |
2 | ||
| 71700-90326 |
FJ40 |
2 | ||
| 71700-90346 |
BJ40,FJ40 RH. |
1 | ||
| 71800-90346 |
BJ40,FJ40 LH. |
1 | ||
| 71300-60012 |
FJ40,43 CENTER |
1 | ||
| 70021 - CUSHION ASSY, NO.2 SEAT | ||||
| 71530-6001002 |
FJ40,42 RED/MAROON |
2 | ||
| 70021 - CUSHION ASSY, NO.2 SEAT | ||||
| 71530-6001002 |
FJ40,42 RED/MAROON |
2 | ||
| 70021 - CUSHION ASSY, NO.2 SEAT | ||||
| 71530-6001002 |
FJ40,42 RED/MAROON |
2 | ||
| 70022 - BACK ASSY, NO.2 SEAT | ||||
| 71550-6001002 |
FJ40,42 RED/MAROON |
2 | ||
| 71470-90341 |
FJ40,43 CENTER |
1 | ||
| 71440-60010 |
FJ40,43 CENTER |
1 | ||
| 71470-90346 |
FJ40,43 CENTER |
1 | ||
| 70022 - BACK ASSY, NO.2 SEAT | ||||
| 71550-6001002 |
FJ40,42 RED/MAROON |
2 | ||
| 71470-90341 |
FJ40,43 CENTER |
1 | ||
| 71440-60010 |
FJ40,43 CENTER |
1 | ||
| 71470-90346 |
FJ40,43 CENTER |
1 | ||
| 70023 - COVER ASSY, NO.2 SEAT CUSHION | ||||
| 71076-90300 |
FJ40 LH. |
1 | ||
| 71075-90300 |
FJ40 RH. |
1 | ||
| 71072-90306 |
FJ40,43 CENTER |
1 | ||
| 71072-90307 |
FJ40,43 CENTER |
1 | ||
| 71072-90304 |
FJ40,43 CENTER |
1 | ||
| 70023 - COVER ASSY, NO.2 SEAT CUSHION | ||||
| 71076-90300 |
FJ40 LH. |
1 | ||
| 71075-90300 |
FJ40 RH. |
1 | ||
| 71072-90306 |
FJ40,43 CENTER |
1 | ||
| 71072-90307 |
FJ40,43 CENTER |
1 | ||
| 71072-90304 |
FJ40,43 CENTER |
1 | ||
| 70024 - COVER ASSY, NO.2 SEAT BACK | ||||
| 71078-90300 |
FJ40 RH. |
1 | ||
| 71077-90300 |
FJ40 |
2 | ||
| 71074-9030002 |
FJ40,43 CENTER,RED/MAROON |
1 | ||
| 71077-90300 |
FJ40 LH. |
1 | ||
| 71074-90312 |
FJ40,43 CENTER |
1 | ||
| 70024 - COVER ASSY, NO.2 SEAT BACK | ||||
| 71078-90300 |
FJ40 RH. |
1 | ||
| 71077-90300 |
FJ40 |
2 | ||
| 71074-9030002 |
FJ40,43 CENTER,RED/MAROON |
1 | ||
| 71077-90300 |
FJ40 LH. |
1 | ||
| 71074-90312 |
FJ40,43 CENTER |
1 | ||
| 71609 - BAND SUB-ASSY, REAR SIDE SEAT | ||||
| 71609-60010 |
FJ40,42,43,55 |
2 | ||
| 71609 - BAND SUB-ASSY, REAR SIDE SEAT | ||||
| 71609-60010 |
FJ40,42,43,55 |
2 | ||
| 71609 - BAND SUB-ASSY, REAR SIDE SEAT | ||||
| 71609-60010 |
FJ40,42,43,55 |
2 | ||
| 71609 - BAND SUB-ASSY, REAR SIDE SEAT | ||||
| 71609-60010 |
FJ40,42,43,55 |
2 | ||
| 71609A - FASTENER, REAR SIDE SEAT BAND | ||||
| 65921-60010 |
BJ4#,FJ4#,55..TPB,TPC,TPS,VKC,VLS,VTG |
4 | ||
| 71609A - FASTENER, REAR SIDE SEAT BAND | ||||
| 65921-60010 |
BJ4#,FJ4#,55..TPB,TPC,TPS,VKC,VLS,VTG |
4 | ||
| 71844 - RUBBER, REAR SEAT CUSHION BASE | ||||
| 71882-60010 |
BJ4#,FJ40,42,43 REAR SEAT |
6 | ||
| Common parts | ||||
| 90167-40011 | ||||
| 90207-04010 | ||||
| 91111-40620 | ||||
| 91651-40820 | ||||
| 91656-40820 | ||||
| 93219-15030 | ||||
| 93315-15012 | ||||
| 93530-14020 | ||||
| 94110-40600 | ||||
| 94115-40500 | ||||
| 94512-00500 | ||||
| 94512-00600 | ||||
| 94612-10500 | ||||
| 94613-10600 | ||||

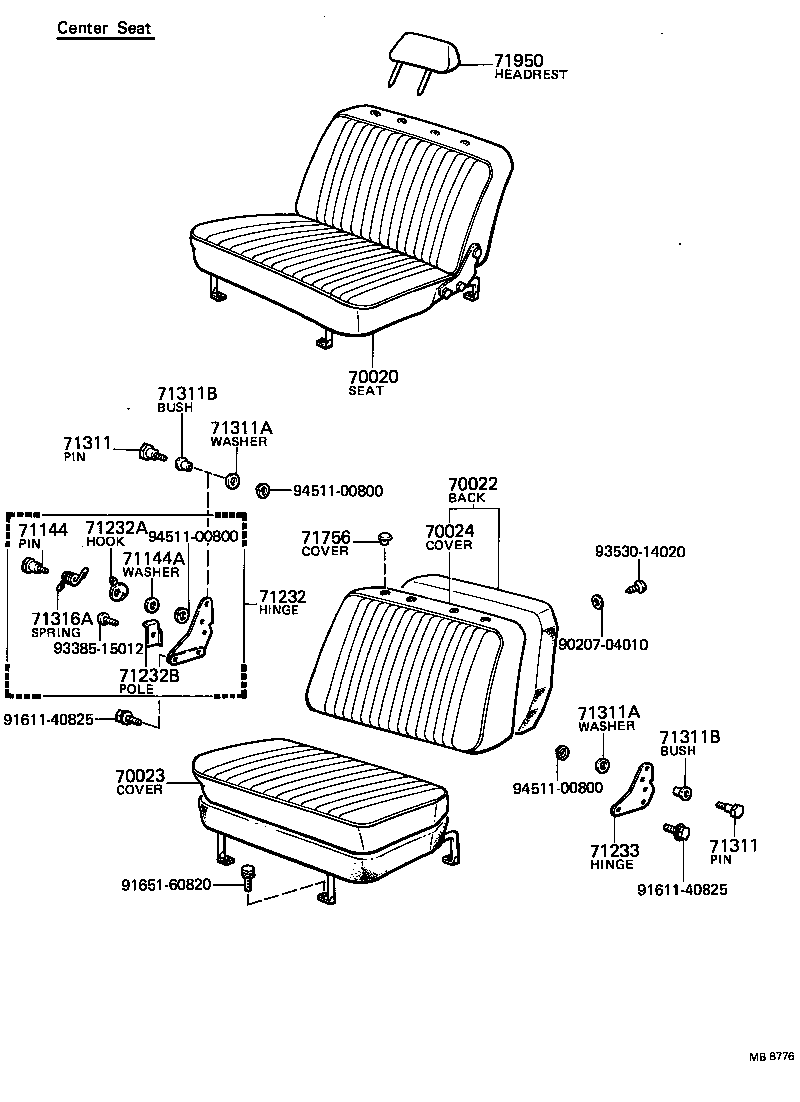

(7204-7501)FJ40,43
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 70020 - SEAT ASSY, NO.2 | ||||
| 71700-6001002 |
FJ40,42 RH.,RED/MAROON |
1 | ||
| 71800-6001002 |
FJ40,42 LH.,RED/MAROON |
1 | ||
| 71700-90340 |
BJ40,FJ40 FOR W/SAFETY BAR |
2 | ||
| 71700-90326 |
FJ40 |
2 | ||
| 71700-90346 |
BJ40,FJ40 RH. |
1 | ||
| 71800-90346 |
BJ40,FJ40 LH. |
1 | ||
| 71300-60012 |
FJ40,43 CENTER |
1 | ||
| 70022 - BACK ASSY, NO.2 SEAT | ||||
| 71550-6001002 |
FJ40,42 RED/MAROON |
2 | ||
| 71470-90341 |
FJ40,43 CENTER |
1 | ||
| 71440-60010 |
FJ40,43 CENTER |
1 | ||
| 71470-90346 |
FJ40,43 CENTER |
1 | ||
| 70023 - COVER ASSY, NO.2 SEAT CUSHION | ||||
| 71076-90300 |
FJ40 LH. |
1 | ||
| 71075-90300 |
FJ40 RH. |
1 | ||
| 71072-90306 |
FJ40,43 CENTER |
1 | ||
| 71072-90307 |
FJ40,43 CENTER |
1 | ||
| 71072-90304 |
FJ40,43 CENTER |
1 | ||
| 70024 - COVER ASSY, NO.2 SEAT BACK | ||||
| 71078-90300 |
FJ40 RH. |
1 | ||
| 71077-90300 |
FJ40 |
2 | ||
| 71074-9030002 |
FJ40,43 CENTER,RED/MAROON |
1 | ||
| 71077-90300 |
FJ40 LH. |
1 | ||
| 71074-90312 |
FJ40,43 CENTER |
1 | ||
| 71232 - HINGE, REAR SEAT BACK FRAME, RH | ||||
| 71190-90311 |
FJ40,43 |
1 | ||
| 71160-90312 |
FJ40,43 |
1 | ||
| 71232A - HOOK SUB-ASSY, REAR SEAT HINGE, RH | ||||
| 71305-90300 |
FJ40,43 |
1 | ||
| 71143-90304 |
FJ40,43 |
1 | ||
| 71232B - POLE, REAR SEAT HINGE HOOK, RH | ||||
| 71148-90301 |
FJ40,43 |
1 | ||
| 71233 - HINGE, REAR SEAT BACK FRAME, LH | ||||
| 71308-90301 |
FJ40,43 |
1 | ||
| 71308-90302 |
FJ40,43 |
1 | ||
| Common parts | ||||
| 90207-04010 | ||||
| 91611-40825 | ||||
| 91651-60820 | ||||
| 93385-15012 | ||||
| 93530-14020 | ||||
| 94511-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
