FJ40LV- (1969)
Toyota Land Cruiser
Production
Mar 1969
-
Jan 1975
Engine
F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(6903-7309)FJ4#,HJ45

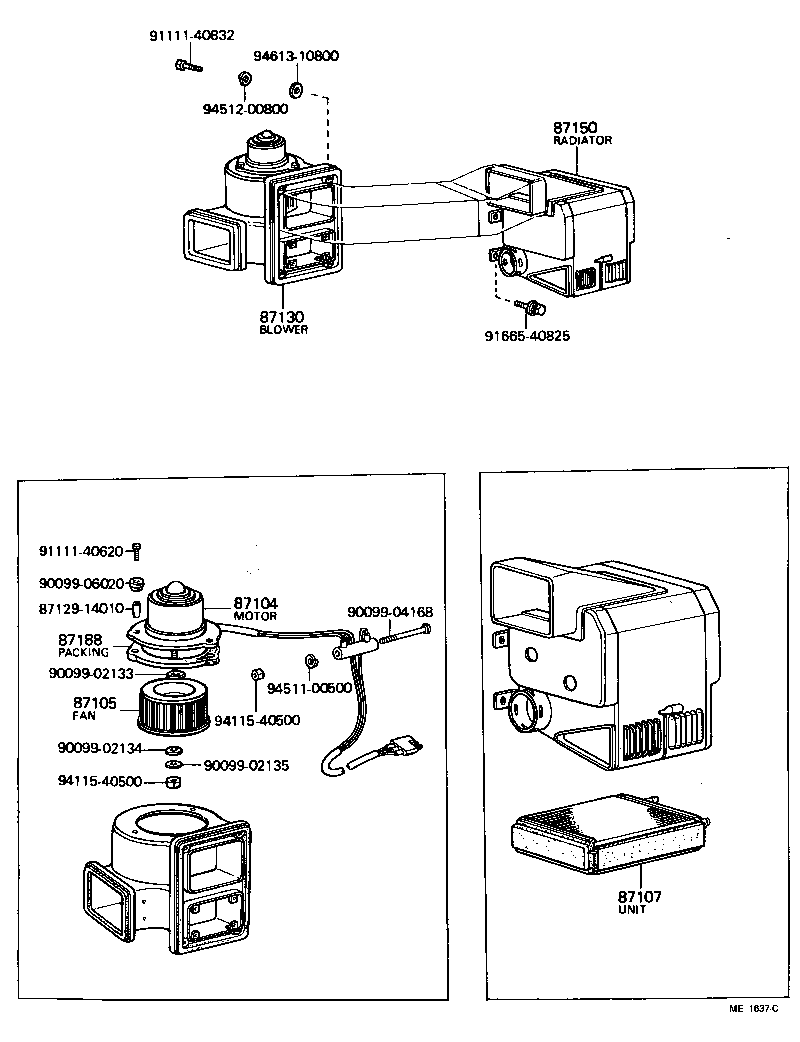

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-60031 |
FJ4#..LHD |
1 | ||
| 87104-60102 |
FJ55..RHD;FJ4#,HJ45..LHD..CBU |
1 | ||
| 87104-60101 |
FJ55..RHD;FJ40,43,45,HJ45..LHD..CBU |
1 | ||
| 87104-60040 |
FJ40..V FOR REAR |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-60040 |
FJ40,55..VKC,VLS,VTG FOR REAR |
1 | ||
| 87105-20054 |
FJ55..RHD;FJ4#..LHD..CBU |
1 | ||
| 87105-22020 |
FJ55..RHD..VTG;FJ55..LHD..VKC;FJ4#,HJ45..LHD..CBU |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-60091 |
FJ4#,55 |
1 | ||
| 87107-60091 |
FJ4#,55,HJ45 |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-60032 |
FJ4#,HJ45..LHD |
1 | ||
| 87130-60031 |
FJ4#..LHD |
1 | ||
| 87130-60031 |
FJ4#,HJ45..LHD |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-60032 |
FJ4#..LHD |
1 | ||
| 87150-60033 |
FJ4#..LHD |
1 | ||
| 87150-60034 |
FJ4#,HJ45..LHD |
1 | ||
| 87188 - PACKING, HEATER BLOWER MOTOR | ||||
| 87145-60031 |
FJ4#,55,HJ45 |
1 | ||
| Common parts | ||||
| 87129-14010 | ||||
| 90099-02133 | ||||
| 90099-02134 | ||||
| 90099-02135 | ||||
| 90099-04168 | ||||
| 90099-06020 | ||||
| 91111-40620 | ||||
| 91111-40832 | ||||
| 91665-40825 | ||||
| 94115-40500 | ||||
| 94511-00500 | ||||
| 94512-00800 | ||||
| 94613-10800 | ||||
(6903-8007)BJ4#,FJ4#..TP,V ; (7904-8007)HJ45..VKC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-60031 |
FJ4#..LHD |
1 | ||
| 87104-60102 |
FJ55..RHD;FJ4#,HJ45..LHD..CBU |
1 | ||
| 87104-60101 |
FJ55..RHD;FJ40,43,45,HJ45..LHD..CBU |
1 | ||
| 87104-60040 |
FJ40..V FOR REAR |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-60040 |
FJ40,55..VKC,VLS,VTG FOR REAR |
1 | ||
| 87105-20054 |
FJ55..RHD;FJ4#..LHD..CBU |
1 | ||
| 87105-22020 |
FJ55..RHD..VTG;FJ55..LHD..VKC;FJ4#,HJ45..LHD..CBU |
1 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-60050 |
FJ40..V |
1 | ||
| 87110-60051 |
FJ40..V |
1 | ||
| 87707 - UNIT SUB-ASSY, REAR HEATER RADIATOR | ||||
| 87107-60040 |
FJ40,55..VKC,VLS,VTG |
1 | ||
| Common parts | ||||
| 87116-60010 | ||||
| 90099-00812 | ||||
| 90099-00863 | ||||
| 91116-41025 | ||||
| 91651-41025 | ||||
| 91656-40820 | ||||
| 94522-00800 | ||||
