Toyota Land cruiser FJ40 CYLINDER HEAD

FJ40LV- (1969)

Toyota Land Cruiser

Production Mar 1969 - Jan 1975

Engine F

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8008-8410)B,3B

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Linked diagrams
1302
1701
1709

(7204-7306)H

Click highlighted areas on diagram

Part #	Description	Period	Qty
11101 - HEAD SUB-ASSY, CYLINDER
11101-60905	F..FJ4#,55	09/1971 - 09/1973	1
11101-60072	F..FJ4#,55	09/1969 - 09/1971	1
11101-60071	F..FJ4#,55	03/1969 - 09/1969	1
11101-60075	F..FJ4#,55	09/1973 - 01/1975	1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02056	F..FJ4#,55 13-1.75PX145-27	09/1973 - 01/1975	15
90910-02026	F..FJ4#,55 13-1.75PX122-27	03/1969 - 09/1972	15
90910-02050	F..FJ4#,55 13-1.75PX122-27	09/1972 - 09/1973	15
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02056	F..FJ4#,55 13-1.75PX145-27	09/1973 - 01/1975	15
90910-02026	F..FJ4#,55 13-1.75PX122-27	03/1969 - 09/1972	15
90910-02050	F..FJ4#,55 13-1.75PX122-27	09/1972 - 09/1973	15
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-13175	F..FJ4#,55	03/1969 - 09/1972	15
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-13175	F..FJ4#,55	03/1969 - 09/1972	15
11115 - GASKET, CYLINDER HEAD
11115-60032	F..FJ4#,55	12/1972 - 09/1973	1
11115-60031	F..FJ4#,55	03/1969 - 12/1972	1
11115-60033	F..FJ4#,55	09/1973 - 01/1975	1
11116A - PLUG, TIGHT, NO.1
90331-50015	F..FJ4#,55 OD=50	03/1969 - 01/1974	1
11116B - PLUG, TIGHT, NO.2
90331-25011	F..FJ4#,55 OD=25	03/1969 - 01/1974	6
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-54021	F,2F..FJ4#,55	03/1969 - 02/1978	2
11122 - BUSH, INTAKE VALVE GUIDE
11122-60020	F..FJ4#,55	03/1969 - 01/1975	6
11126 - BUSH, EXHAUST VALVE GUIDE
11126-60021	F..FJ4#,55	03/1969 - 01/1975	6
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-60021	F..FJ4#,55	09/1969 - 01/1971	1
11201-60220	F..FJ4#,55	03/1969 - 09/1969	1
11201-60280	F..FJ4#,55 W/PCV	03/1970 - 09/1971	1
11201-60916	F..FJ4#,55	09/1972 - 01/1975	1
11201-60915	F..FJ4#,55	09/1971 - 09/1972	1
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-08010	F..FJ4#,55	03/1969 - 01/1975	4
11213 - GASKET, CYLINDER HEAD COVER
11213-60010	F..FJ4#,55	03/1969 - 01/1975	1
12108 - CAP SUB-ASSY, OIL FILLER
12108-60020	F..FJ4#,55	03/1969 - 09/1971	1
12181-12903	F..FJ4#,55	09/1971 - 01/1975	1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140	F..FJ4#,55	09/1971 - 01/1975	1
90430-37078	F..FJ4#	03/1969 - 09/1971	1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140	F..FJ4#,55	09/1971 - 01/1975	1
90430-37078	F..FJ4#	03/1969 - 09/1971	1
Common parts
91611-60816
94110-40800
94612-10800
Linked diagrams
1302
1701
1709

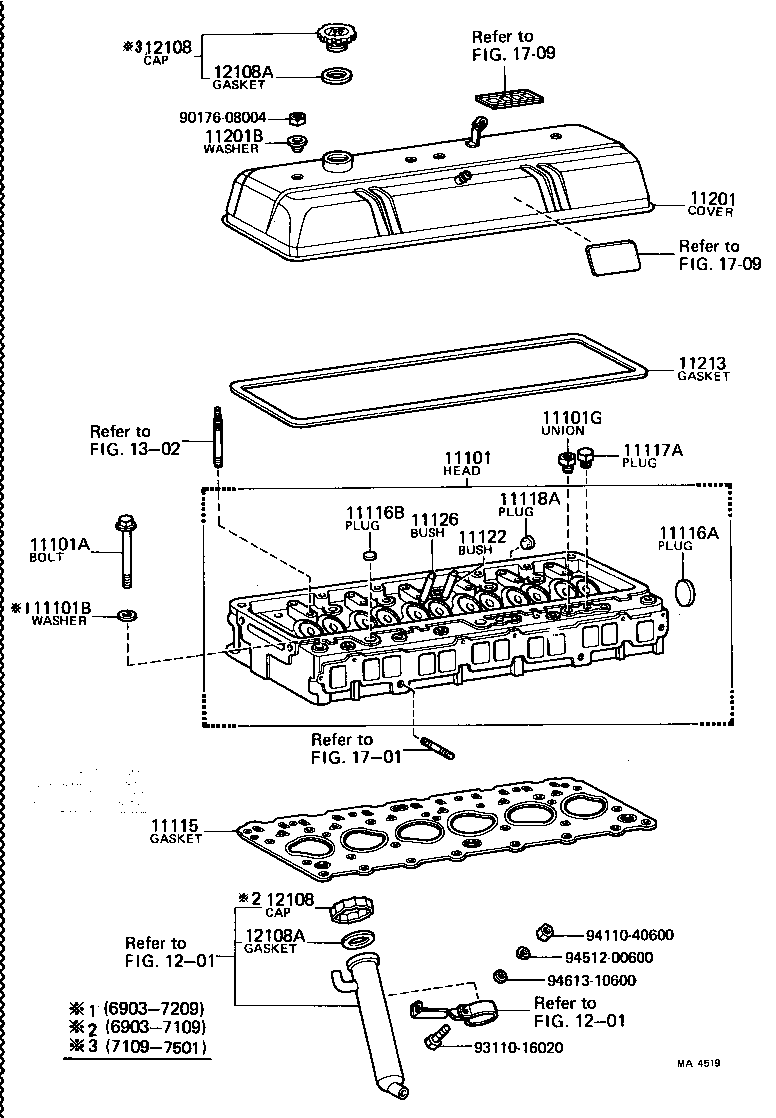

(6903-7501)F

Click highlighted areas on diagram

Part #	Description	Period	Qty
11101 - HEAD SUB-ASSY, CYLINDER
11101-60905	F..FJ4#,55	09/1971 - 09/1973	1
11101-60072	F..FJ4#,55	09/1969 - 09/1971	1
11101-60071	F..FJ4#,55	03/1969 - 09/1969	1
11101-60075	F..FJ4#,55	09/1973 - 01/1975	1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02056	F..FJ4#,55 13-1.75PX145-27	09/1973 - 01/1975	15
90910-02026	F..FJ4#,55 13-1.75PX122-27	03/1969 - 09/1972	15
90910-02050	F..FJ4#,55 13-1.75PX122-27	09/1972 - 09/1973	15
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-13175	F..FJ4#,55	03/1969 - 09/1972	15
11101G - UNION(FOR CYLINDER HEAD)
90404-16127	F..FJ4#	03/1969 - 03/1972	1
90404-16164	F..FJ4#	04/1972 - 09/1972	1
90404-16163	F..FJ4#,55	09/1972 - 01/1975	1
11115 - GASKET, CYLINDER HEAD
11115-60032	F..FJ4#,55	12/1972 - 09/1973	1
11115-60031	F..FJ4#,55	03/1969 - 12/1972	1
11115-60033	F..FJ4#,55	09/1973 - 01/1975	1
11116A - PLUG, TIGHT, NO.1
90331-50015	F..FJ4#,55 OD=50	03/1969 - 01/1974	1
11116B - PLUG, TIGHT, NO.2
90331-25011	F..FJ4#,55 OD=25	03/1969 - 01/1974	6
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-54021	F,2F..FJ4#,55	03/1969 - 02/1978	2
11122 - BUSH, INTAKE VALVE GUIDE
11122-60020	F..FJ4#,55	03/1969 - 01/1975	6
11126 - BUSH, EXHAUST VALVE GUIDE
11126-60021	F..FJ4#,55	03/1969 - 01/1975	6
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-60021	F..FJ4#,55	09/1969 - 01/1971	1
11201-60220	F..FJ4#,55	03/1969 - 09/1969	1
11201-60280	F..FJ4#,55 W/PCV	03/1970 - 09/1971	1
11201-60916	F..FJ4#,55	09/1972 - 01/1975	1
11201-60915	F..FJ4#,55	09/1971 - 09/1972	1
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-08010	F..FJ4#,55	03/1969 - 01/1975	4
11213 - GASKET, CYLINDER HEAD COVER
11213-60010	F..FJ4#,55	03/1969 - 01/1975	1
12108 - CAP SUB-ASSY, OIL FILLER
12108-60020	F..FJ4#,55	03/1969 - 09/1971	1
12181-12903	F..FJ4#,55	09/1971 - 01/1975	1
12108 - CAP SUB-ASSY, OIL FILLER
12108-60020	F..FJ4#,55	03/1969 - 09/1971	1
12181-12903	F..FJ4#,55	09/1971 - 01/1975	1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140	F..FJ4#,55	09/1971 - 01/1975	1
90430-37078	F..FJ4#	03/1969 - 09/1971	1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140	F..FJ4#,55	09/1971 - 01/1975	1
90430-37078	F..FJ4#	03/1969 - 09/1971	1
Common parts
90176-08004
93110-16020
94110-40600
94512-00600
94613-10600
Linked diagrams
1201
1302
1701
1709

FJ40LV- (1969)

(8008-8410)B,3B

(7204-7306)H

(6903-7501)F
