FJ40L-UCJ (1975)
Toyota Land Cruiser
(8008-8410)B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| Linked diagrams | ||||
| 3101 | ||||

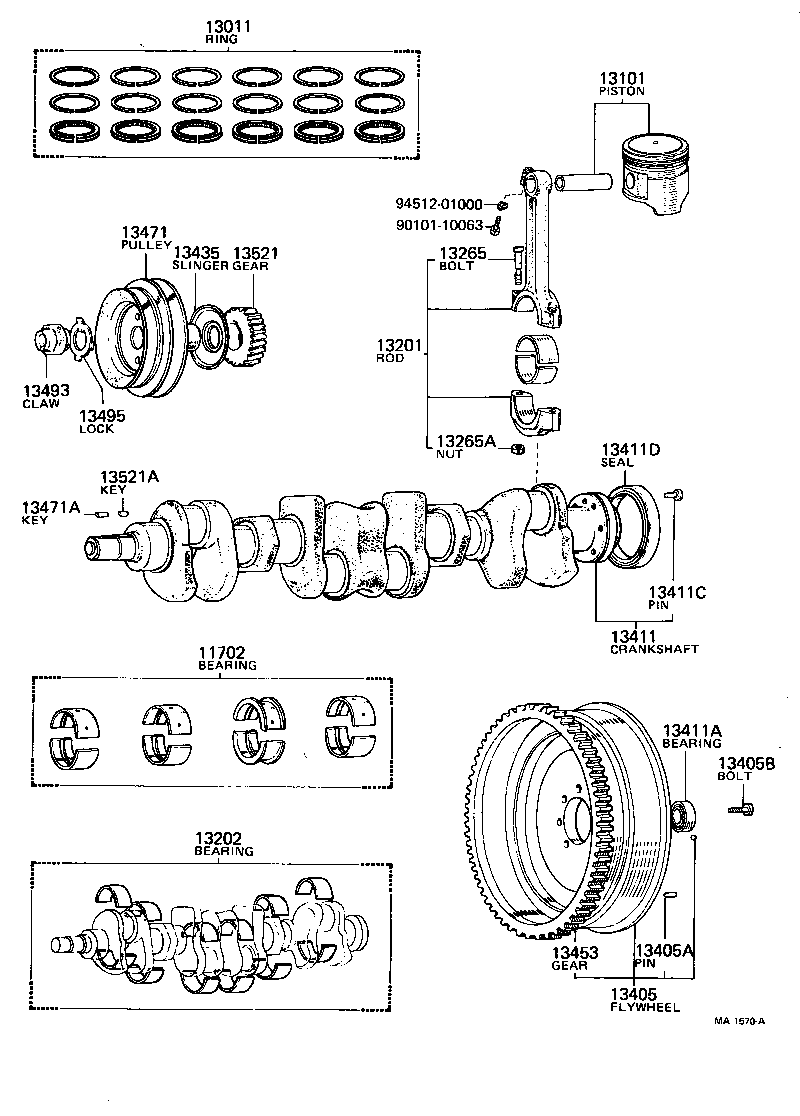

(7501-8007)2F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-60012 |
F..FJ4#,55 U/S 0.25 |
1 | ||
| 11702-60012 |
F..FJ4#,55 STD |
1 | ||
| 11706-60012 |
F..FJ4#,55 U/S 0.75 |
1 | ||
| 11705-60012 |
F..FJ4#,55 U/S 0.50 |
1 | ||
| 11703-60012 |
F..FJ4#,55 U/S 0.05 |
1 | ||
| 11707-60012 |
F..FJ4#,55 U/S 1.00 |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13015-69021 |
F..FJ4#,55 O/S 0.50 3PCS. |
1 | ||
| 13013-60011 |
F..FJ4#,55 O/S 0.25 |
1 | ||
| 13011-69021 |
F..FJ4#,55 STD 3PCS. |
1 | ||
| 13013-69021 |
F..FJ4#,55 O/S 0.25 3PCS. |
1 | ||
| 13017-69021 |
F..FJ4#,55 O/S 1.00 3PCS. |
1 | ||
| 13017-60011 |
F..FJ4#,55 O/S 1.00 |
1 | ||
| 13016-60011 |
F..FJ4#,55 O/S 0.75 |
1 | ||
| 13015-60011 |
F..FJ4#,55 O/S 0.50 |
1 | ||
| 13011-60011 |
F..FJ4#,55 STD |
1 | ||
| 13016-69021 |
F..FJ4#,55 O/S 0.75 3PCS. |
1 | ||
| 13018-60011 |
F..FJ4#,55 O/S 1.25 |
1 | ||
| 13019-60011 |
F..FJ4#,55 O/S 1.50 |
1 | ||
| 13013-61010 |
2F..FJ4#,55 O/S 0.50,O/S 0.50 |
1 | ||
| 13011-61010 |
2F..FJ4#,55 STD,STD |
1 | ||
| 13017-61010 |
2F..FJ4#,55 O/S 1.50,O/S 1.50 |
1 | ||
| 13015-61010 |
2F..FJ4#,55 O/S 1.00,O/S 1.00 |
1 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-60011 |
F..FJ4#,55 STD |
6 | ||
| 13104-60011 |
F..FJ4#,55 O/S 0.50 |
6 | ||
| 13106-60011 |
F..FJ4#,55 O/S 0.75 |
6 | ||
| 13107-60011 |
F..FJ4#,55 O/S 1.00 |
6 | ||
| 13108-60011 |
F..FJ4#,55 O/S 1.25 |
6 | ||
| 13109-60011 |
F..FJ4#,55 O/S 1.50 |
6 | ||
| 13102-60011 |
F..FJ4#,55 O/S 0.25 |
6 | ||
| 13105-61010 |
2F..FJ4#,55 O/S 1.00 |
6 | ||
| 13101-61010 |
2F..FJ4#,55 STD |
6 | ||
| 13103-61010 |
2F..FJ4#,55 O/S 0.50 |
6 | ||
| 13103-61010 |
2F..FJ4#,55..ARL,GEN O/S 0.50 |
6 | ||
| 13101-61010 |
2F..FJ4#,55..ARL,GEN STD |
6 | ||
| 13107-61010 |
2F..FJ4#,55..ARL,GEN O/S 1.50 |
6 | ||
| 13107-61010 |
2F..FJ4#,55 O/S 1.50 |
6 | ||
| 13105-61010 |
2F..FJ4#,55..ARL,GEN O/S 1.00 |
6 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-60010 |
F..FJ4#,55 |
6 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13202-60011 |
F,2F..FJ4#,55 STD,STD |
1 | ||
| 13203-60011 |
F,2F..FJ4#,55 U/S 0.05,U/S 0.05 |
1 | ||
| 13205-60011 |
F,2F..FJ4#,55 U/S 0.50,U/S 0.50 |
1 | ||
| 13207-60011 |
F..FJ4#,55 U/S 1.00 |
1 | ||
| 13204-60011 |
F,2F..FJ4#,55 U/S 0.25,U/S 0.25 |
1 | ||
| 13206-60011 |
F..FJ4#,55 U/S 0.75 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-60010 |
F..FJ4#,55 |
12 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90171-10009 |
F..FJ4#,55 |
12 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-60011 |
F..FJ4#,55 N=136 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-10192 |
2F..FJ4#,55 L=22,OD=10,L=22,OD=10 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90913-01003 |
F,2F..FJ4#,55 |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-60012 |
F..FJ4#,55 |
1 | ||
| 13411A - BEARING(FOR INPUT SHAFT FRONT) | ||||
| 97110-06202 |
F..FJ4#,55 6202ZC3 |
1 | ||
| 97120-06202 |
2F..FJ4#,55 6202ZZ |
1 | ||
| 97120-06202 |
2F..FJ4#,55 6202ZZ |
1 | ||
| 90363-15004 |
2F..FJ4#,55 |
1 | ||
| 13411C - PIN, STRAIGHT(FOR CRANKSHAFT) | ||||
| 90241-10017 |
F,2F..FJ4#,55 L=20,OD=10&14 |
1 | ||
| 13411D - SEAL, OIL(FOR CRANKSHAFT) | ||||
| 90311-99065 |
F,2F..FJ4#,55 TCX3100 120 11 |
1 | ||
| 90311-99065 |
2F..FJ4#,55..EUR,GEN TCX3100 120 11 |
1 | ||
| 13435 - SLINGER, CRANKSHAFT OIL | ||||
| 13435-60011 |
F,2F..FJ4#,55 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-60010 |
F,2F..FJ4#,55 N=136 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-60120 |
2F..FJ4#,55 FOR POWER STEERING |
1 | ||
| 13470-61010 |
2F..FJ4#,55..ARL,GEN W/PS & COOLER |
1 | ||
| 13470-60030 |
F..FJ4#,55 |
1 | ||
| 13470-61020 |
2F..FJ4#,55..ARL,GEN W/COOLER |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-07012 |
F..FJ4#,55 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-60010 |
F,2F..FJ4#,55 N=27 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05010 |
F,2F..FJ4#,55 |
1 | ||
| Common parts | ||||
| 90101-10063 | ||||
| 94512-01000 | ||||

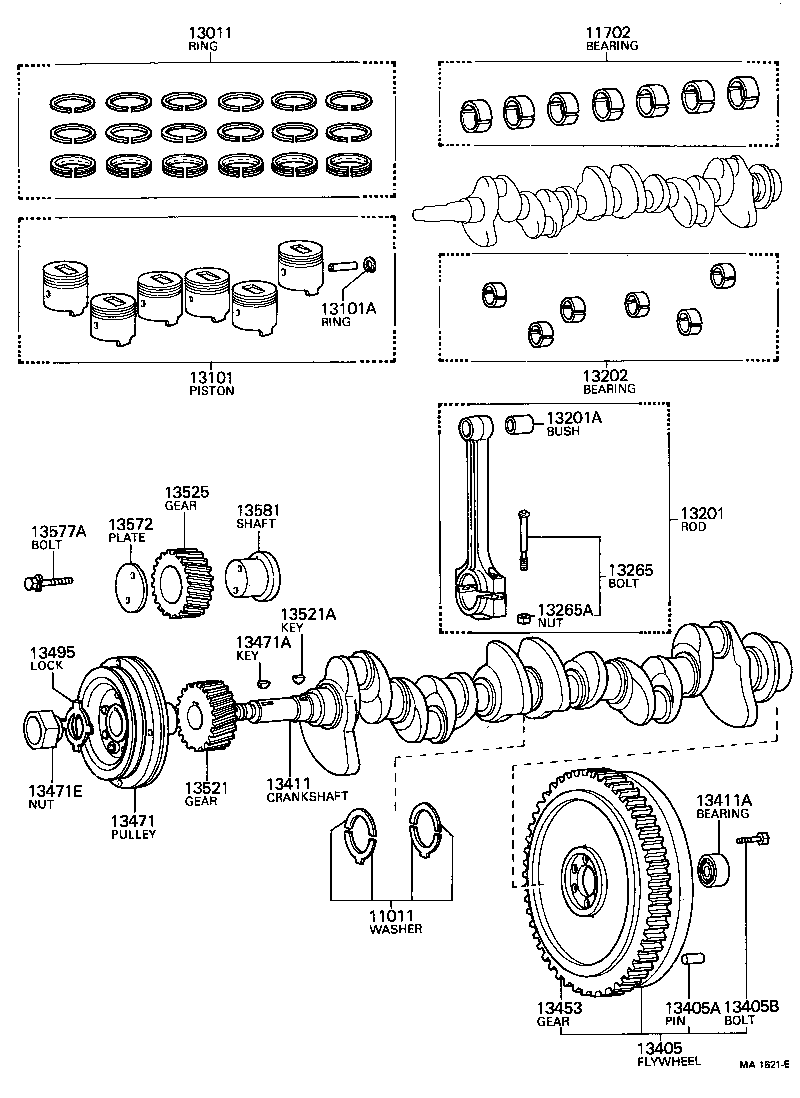

(7501-8007)H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-60012 |
F..FJ4#,55 U/S 0.25 |
1 | ||
| 11702-60012 |
F..FJ4#,55 STD |
1 | ||
| 11706-60012 |
F..FJ4#,55 U/S 0.75 |
1 | ||
| 11705-60012 |
F..FJ4#,55 U/S 0.50 |
1 | ||
| 11703-60012 |
F..FJ4#,55 U/S 0.05 |
1 | ||
| 11707-60012 |
F..FJ4#,55 U/S 1.00 |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13015-69021 |
F..FJ4#,55 O/S 0.50 3PCS. |
1 | ||
| 13013-60011 |
F..FJ4#,55 O/S 0.25 |
1 | ||
| 13011-69021 |
F..FJ4#,55 STD 3PCS. |
1 | ||
| 13013-69021 |
F..FJ4#,55 O/S 0.25 3PCS. |
1 | ||
| 13017-69021 |
F..FJ4#,55 O/S 1.00 3PCS. |
1 | ||
| 13017-60011 |
F..FJ4#,55 O/S 1.00 |
1 | ||
| 13016-60011 |
F..FJ4#,55 O/S 0.75 |
1 | ||
| 13015-60011 |
F..FJ4#,55 O/S 0.50 |
1 | ||
| 13011-60011 |
F..FJ4#,55 STD |
1 | ||
| 13016-69021 |
F..FJ4#,55 O/S 0.75 3PCS. |
1 | ||
| 13018-60011 |
F..FJ4#,55 O/S 1.25 |
1 | ||
| 13019-60011 |
F..FJ4#,55 O/S 1.50 |
1 | ||
| 13013-61010 |
2F..FJ4#,55 O/S 0.50,O/S 0.50 |
1 | ||
| 13011-61010 |
2F..FJ4#,55 STD,STD |
1 | ||
| 13017-61010 |
2F..FJ4#,55 O/S 1.50,O/S 1.50 |
1 | ||
| 13015-61010 |
2F..FJ4#,55 O/S 1.00,O/S 1.00 |
1 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-60011 |
F..FJ4#,55 STD |
6 | ||
| 13104-60011 |
F..FJ4#,55 O/S 0.50 |
6 | ||
| 13106-60011 |
F..FJ4#,55 O/S 0.75 |
6 | ||
| 13107-60011 |
F..FJ4#,55 O/S 1.00 |
6 | ||
| 13108-60011 |
F..FJ4#,55 O/S 1.25 |
6 | ||
| 13109-60011 |
F..FJ4#,55 O/S 1.50 |
6 | ||
| 13102-60011 |
F..FJ4#,55 O/S 0.25 |
6 | ||
| 13105-61010 |
2F..FJ4#,55 O/S 1.00 |
6 | ||
| 13101-61010 |
2F..FJ4#,55 STD |
6 | ||
| 13103-61010 |
2F..FJ4#,55 O/S 0.50 |
6 | ||
| 13103-61010 |
2F..FJ4#,55..ARL,GEN O/S 0.50 |
6 | ||
| 13101-61010 |
2F..FJ4#,55..ARL,GEN STD |
6 | ||
| 13107-61010 |
2F..FJ4#,55..ARL,GEN O/S 1.50 |
6 | ||
| 13107-61010 |
2F..FJ4#,55 O/S 1.50 |
6 | ||
| 13105-61010 |
2F..FJ4#,55..ARL,GEN O/S 1.00 |
6 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-60010 |
F..FJ4#,55 |
6 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13202-60011 |
F,2F..FJ4#,55 STD,STD |
1 | ||
| 13203-60011 |
F,2F..FJ4#,55 U/S 0.05,U/S 0.05 |
1 | ||
| 13205-60011 |
F,2F..FJ4#,55 U/S 0.50,U/S 0.50 |
1 | ||
| 13207-60011 |
F..FJ4#,55 U/S 1.00 |
1 | ||
| 13204-60011 |
F,2F..FJ4#,55 U/S 0.25,U/S 0.25 |
1 | ||
| 13206-60011 |
F..FJ4#,55 U/S 0.75 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-60010 |
F..FJ4#,55 |
12 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90171-10009 |
F..FJ4#,55 |
12 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-60011 |
F..FJ4#,55 N=136 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-10192 |
2F..FJ4#,55 L=22,OD=10,L=22,OD=10 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90913-01003 |
F,2F..FJ4#,55 |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-60012 |
F..FJ4#,55 |
1 | ||
| 13411A - BEARING(FOR INPUT SHAFT FRONT) | ||||
| 97110-06202 |
F..FJ4#,55 6202ZC3 |
1 | ||
| 97120-06202 |
2F..FJ4#,55 6202ZZ |
1 | ||
| 97120-06202 |
2F..FJ4#,55 6202ZZ |
1 | ||
| 90363-15004 |
2F..FJ4#,55 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-60010 |
F,2F..FJ4#,55 N=136 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-60120 |
2F..FJ4#,55 FOR POWER STEERING |
1 | ||
| 13470-61010 |
2F..FJ4#,55..ARL,GEN W/PS & COOLER |
1 | ||
| 13470-60030 |
F..FJ4#,55 |
1 | ||
| 13470-61020 |
2F..FJ4#,55..ARL,GEN W/COOLER |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-07012 |
F..FJ4#,55 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-60010 |
F,2F..FJ4#,55 N=27 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05010 |
F,2F..FJ4#,55 |
1 | ||

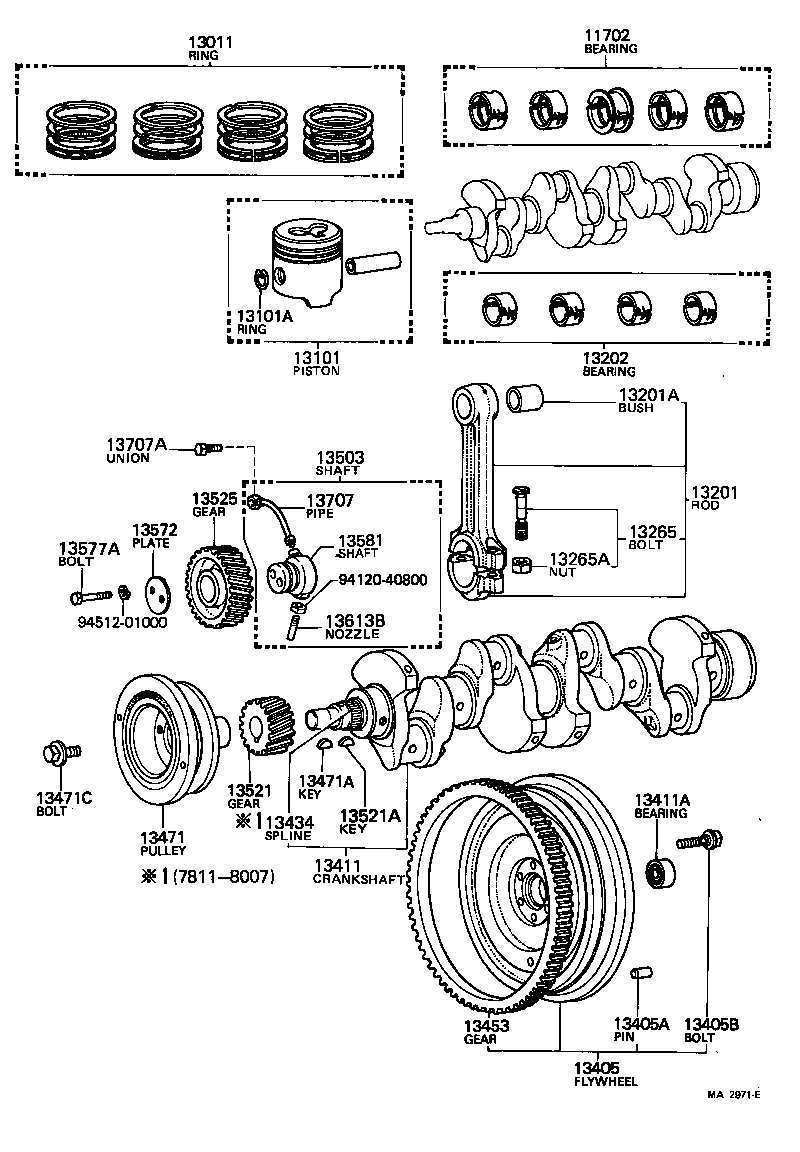

(7709-8007)B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-60012 |
F..FJ4#,55 U/S 0.25 |
1 | ||
| 11702-60012 |
F..FJ4#,55 STD |
1 | ||
| 11706-60012 |
F..FJ4#,55 U/S 0.75 |
1 | ||
| 11705-60012 |
F..FJ4#,55 U/S 0.50 |
1 | ||
| 11703-60012 |
F..FJ4#,55 U/S 0.05 |
1 | ||
| 11707-60012 |
F..FJ4#,55 U/S 1.00 |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13015-69021 |
F..FJ4#,55 O/S 0.50 3PCS. |
1 | ||
| 13013-60011 |
F..FJ4#,55 O/S 0.25 |
1 | ||
| 13011-69021 |
F..FJ4#,55 STD 3PCS. |
1 | ||
| 13013-69021 |
F..FJ4#,55 O/S 0.25 3PCS. |
1 | ||
| 13017-69021 |
F..FJ4#,55 O/S 1.00 3PCS. |
1 | ||
| 13017-60011 |
F..FJ4#,55 O/S 1.00 |
1 | ||
| 13016-60011 |
F..FJ4#,55 O/S 0.75 |
1 | ||
| 13015-60011 |
F..FJ4#,55 O/S 0.50 |
1 | ||
| 13011-60011 |
F..FJ4#,55 STD |
1 | ||
| 13016-69021 |
F..FJ4#,55 O/S 0.75 3PCS. |
1 | ||
| 13018-60011 |
F..FJ4#,55 O/S 1.25 |
1 | ||
| 13019-60011 |
F..FJ4#,55 O/S 1.50 |
1 | ||
| 13013-61010 |
2F..FJ4#,55 O/S 0.50,O/S 0.50 |
1 | ||
| 13011-61010 |
2F..FJ4#,55 STD,STD |
1 | ||
| 13017-61010 |
2F..FJ4#,55 O/S 1.50,O/S 1.50 |
1 | ||
| 13015-61010 |
2F..FJ4#,55 O/S 1.00,O/S 1.00 |
1 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-60011 |
F..FJ4#,55 STD |
6 | ||
| 13104-60011 |
F..FJ4#,55 O/S 0.50 |
6 | ||
| 13106-60011 |
F..FJ4#,55 O/S 0.75 |
6 | ||
| 13107-60011 |
F..FJ4#,55 O/S 1.00 |
6 | ||
| 13108-60011 |
F..FJ4#,55 O/S 1.25 |
6 | ||
| 13109-60011 |
F..FJ4#,55 O/S 1.50 |
6 | ||
| 13102-60011 |
F..FJ4#,55 O/S 0.25 |
6 | ||
| 13105-61010 |
2F..FJ4#,55 O/S 1.00 |
6 | ||
| 13101-61010 |
2F..FJ4#,55 STD |
6 | ||
| 13103-61010 |
2F..FJ4#,55 O/S 0.50 |
6 | ||
| 13103-61010 |
2F..FJ4#,55..ARL,GEN O/S 0.50 |
6 | ||
| 13101-61010 |
2F..FJ4#,55..ARL,GEN STD |
6 | ||
| 13107-61010 |
2F..FJ4#,55..ARL,GEN O/S 1.50 |
6 | ||
| 13107-61010 |
2F..FJ4#,55 O/S 1.50 |
6 | ||
| 13105-61010 |
2F..FJ4#,55..ARL,GEN O/S 1.00 |
6 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-60010 |
F..FJ4#,55 |
6 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13202-60011 |
F,2F..FJ4#,55 STD,STD |
1 | ||
| 13203-60011 |
F,2F..FJ4#,55 U/S 0.05,U/S 0.05 |
1 | ||
| 13205-60011 |
F,2F..FJ4#,55 U/S 0.50,U/S 0.50 |
1 | ||
| 13207-60011 |
F..FJ4#,55 U/S 1.00 |
1 | ||
| 13204-60011 |
F,2F..FJ4#,55 U/S 0.25,U/S 0.25 |
1 | ||
| 13206-60011 |
F..FJ4#,55 U/S 0.75 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-60010 |
F..FJ4#,55 |
12 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90171-10009 |
F..FJ4#,55 |
12 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-60011 |
F..FJ4#,55 N=136 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-10192 |
2F..FJ4#,55 L=22,OD=10,L=22,OD=10 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90913-01003 |
F,2F..FJ4#,55 |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-60012 |
F..FJ4#,55 |
1 | ||
| 13411A - BEARING(FOR INPUT SHAFT FRONT) | ||||
| 97110-06202 |
F..FJ4#,55 6202ZC3 |
1 | ||
| 97120-06202 |
2F..FJ4#,55 6202ZZ |
1 | ||
| 97120-06202 |
2F..FJ4#,55 6202ZZ |
1 | ||
| 90363-15004 |
2F..FJ4#,55 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-60010 |
F,2F..FJ4#,55 N=136 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-60120 |
2F..FJ4#,55 FOR POWER STEERING |
1 | ||
| 13470-61010 |
2F..FJ4#,55..ARL,GEN W/PS & COOLER |
1 | ||
| 13470-60030 |
F..FJ4#,55 |
1 | ||
| 13470-61020 |
2F..FJ4#,55..ARL,GEN W/COOLER |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-07012 |
F..FJ4#,55 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-60010 |
F,2F..FJ4#,55 N=27 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05010 |
F,2F..FJ4#,55 |
1 | ||
| Common parts | ||||
| 94120-40800 | ||||
| 94512-01000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
