FJ40L-UCJ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8410)B,3B

Click highlighted areas on diagram

diagram 11101 11101A 11115 11116A 11116B 11116C 11116D 11116E 11117A 11122 11126 11201 11201A 11201B 11213 12108 12108A 1302 1701 1701 1709 1709
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-61011

2F..FJ4#..GEN

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02050

2F..FJ4#

*13-1.75PX120.5-27

 15
11115 - GASKET, CYLINDER HEAD
11115-61010

2F..FJ4#

 1
11116A - PLUG, TIGHT, NO.1
96411-45000

2F..FJ4#

OD=50

 1
11116B - PLUG, TIGHT, NO.2
96411-42500

2F..FJ4#

OD=25

 6
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-54004

2F..FJ4#..3F,4F

 3
11122 - BUSH, INTAKE VALVE GUIDE
11123-61011

2F..FJ4#

O/S 0.05,O/S 0.05

 6
11122-61011

2F..FJ4#

STD,STD

 6
11126 - BUSH, EXHAUST VALVE GUIDE
11126-61011

2F..FJ4#

STD,STD

 6
11127-61011

2F..FJ4#

O/S 0.05,O/S 0.05

 6
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-69045

2F..FJ4#

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08014

2F..FJ4#

 4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-13001

2F..FJ4#

 4
11213 - GASKET, CYLINDER HEAD COVER
11213-61011

2F..FJ4#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-13010

2F..FJ4#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

2F..FJ4#

 1
Linked diagrams
1302
1701
1709

(8008- )2F

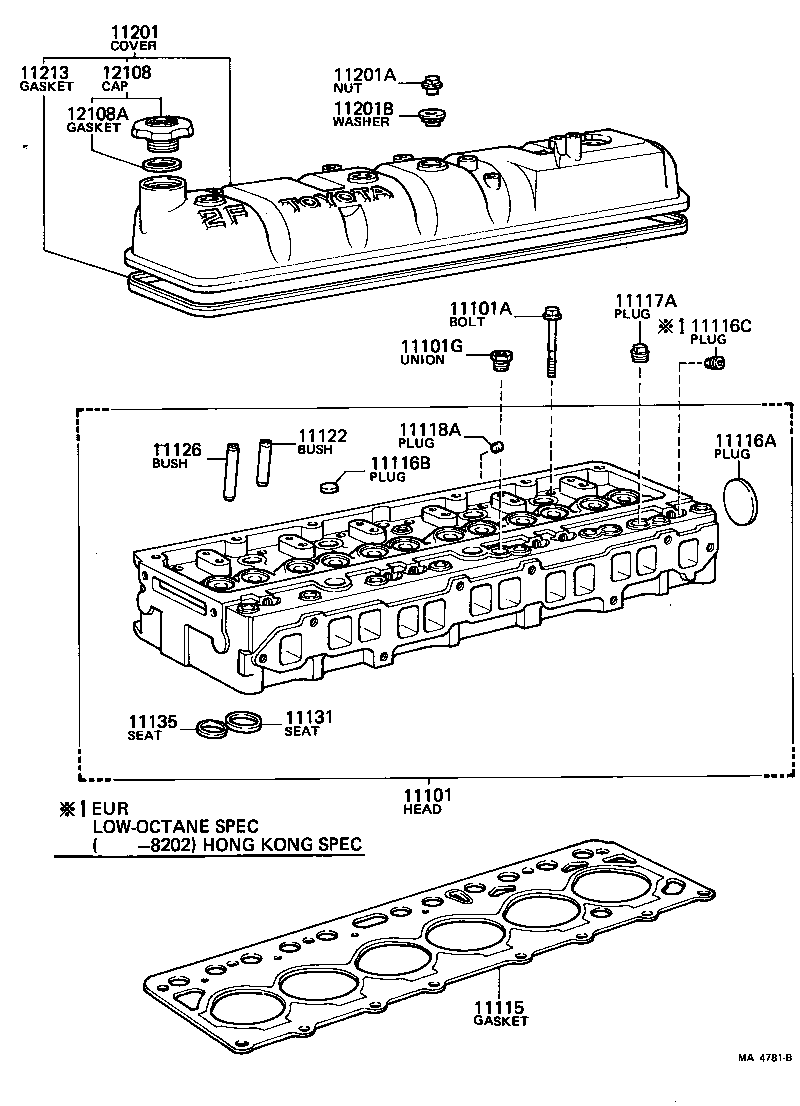

Click highlighted areas on diagram

diagram 11101 11101A 11101G 11115 11116A 11116B 11116C 11117A 11118A 11122 11126 11131 11135 11201 11201A 11201B 11213 12108 12108A
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-61011

2F..FJ4#..GEN

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02050

2F..FJ4#

*13-1.75PX120.5-27

 15
11101G - UNION(FOR CYLINDER HEAD)
90404-16160

2F..FJ4#

 1
11115 - GASKET, CYLINDER HEAD
11115-61010

2F..FJ4#

 1
11116A - PLUG, TIGHT, NO.1
96411-45000

2F..FJ4#

OD=50

 1
11116B - PLUG, TIGHT, NO.2
96411-42500

2F..FJ4#

OD=25

 6
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-54004

2F..FJ4#..3F,4F

 3
11118A - PLUG, STRAIGHT, NO.1
90334-07004

2F..FJ4#

 1
11122 - BUSH, INTAKE VALVE GUIDE
11123-61011

2F..FJ4#

O/S 0.05,O/S 0.05

 6
11122-61011

2F..FJ4#

STD,STD

 6
11126 - BUSH, EXHAUST VALVE GUIDE
11126-61011

2F..FJ4#

STD,STD

 6
11127-61011

2F..FJ4#

O/S 0.05,O/S 0.05

 6
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-69045

2F..FJ4#

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08014

2F..FJ4#

 4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-13001

2F..FJ4#

 4
11213 - GASKET, CYLINDER HEAD COVER
11213-61011

2F..FJ4#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-13010

2F..FJ4#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

2F..FJ4#

 1
