Toyota Land cruiser FJ40 AIR CLEANER

FJ40L-UC (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980

Engine 2F

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8008-8410)B,3B

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
91651-40616
91651-40818

(8008-8410)B,3B

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
91651-40616
91651-40818

(8008-8410)B,3B..EUR,GEN

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
91651-40616
91651-40818

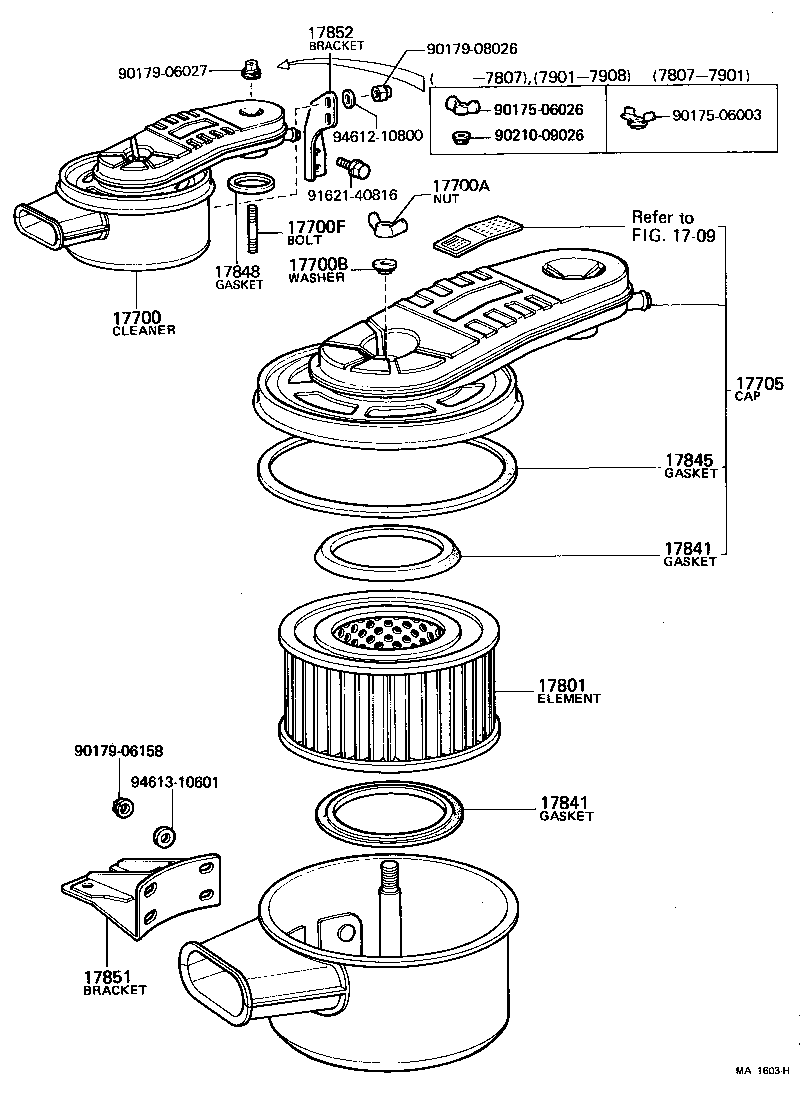

(7501-8007)2F..ARL,GEN ; (7501-8007)2F..FJ45..EUR..IV

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-60310	F..FJ4#,55 OIL BATH	03/1969 - 09/1969	1
17700-61050	2F..FJ4#,55..EUR,GEN OIL BATH	01/1975 - 08/1976	1
17700-60290	F..FJ4#,55 PAPER ELEMENT	03/1969 - 09/1969	1
17700-61010	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 04/1978	1
17700-61050	2F..FJ4#,55..GEN OIL BATH	08/1976 - 09/1979	1
17700-61010	2F..FJ4#,55..GEN PAPER ELEMENT	04/1978 - 01/1979	1
17700-61080	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1979 - 07/1980	1
17700-61130	2F..FJ4#,55..GEN OIL BATH	09/1979 - 07/1980	1
17700A - NUT, WING(FOR AIR CLEANER)
94270-00800	F..FJ4#,55	03/1969 - 03/1973	1
94271-00800	2F..FJ4#,55..ARL,GEN	08/1976 - 08/1979	1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-08003	F..FJ4#,55	03/1969 - 03/1973	1
90210-08003	2F..FJ4#,55..ARL,GEN	01/1975 - 07/1980	1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06222	2F..FJ4#,55..ARL,GEN L=80,S=12&28	01/1975 - 07/1980	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-60140	F..FJ4#,55 PAPER ELEMENT	03/1969 - 09/1969	1
17705-60170	F..FJ4#,55 OIL BATH	03/1969 - 09/1969	1
17705-61050	2F..FJ4#,55..EUR,GEN OIL BATH	01/1975 - 08/1976	1
17705-61050	2F..FJ4#,55..GEN OIL BATH	08/1976 - 07/1980	1
17705-61010	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 07/1980	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-60050	F..FJ4#,55 OIL BATH	03/1969 - 01/1975	1
17801-60040	F..FJ4#,55 PAPER ELEMENT	03/1969 - 01/1975	1
17801-60050	2F..FJ4#,55..EUR,GEN OIL BATH	01/1975 - 08/1976	1
17801-60040	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 07/1980	1
17801-60050	2F..FJ4#,55..GEN OIL BATH	08/1976 - 07/1980	1
17841 - GASKET, FILTER ELEMENT
17841-60020	F..FJ4#,55 OIL BATH,UPP	03/1969 - 01/1975	1
17841-60011	F..FJ4#,55 PAPER ELEMENT	03/1969 - 01/1975	2
17841-60020	2F..FJ4#,55..EUR,GEN OIL BATH,UPP	01/1975 - 08/1976	1
90430-10164	F..FJ4#,55 OIL BATH,LWR	03/1969 - 01/1975	1
17841-60020	2F..FJ4#,55..GEN OIL BATH,UPP	08/1976 - 07/1980	1
90430-10164	2F..FJ4#,55..EUR,GEN OIL BATH,LWR	01/1975 - 08/1976	1
17841-60011	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 01/1979	2
17841-60011	2F..FJ4#,55 PAPER ELEMENT	01/1979 - 07/1980	2
90430-10164	2F..FJ4#,55..GEN OIL BATH,LWR	08/1976 - 07/1980	1
17841 - GASKET, FILTER ELEMENT
17841-60020	F..FJ4#,55 OIL BATH,UPP	03/1969 - 01/1975	1
17841-60011	F..FJ4#,55 PAPER ELEMENT	03/1969 - 01/1975	2
17841-60020	2F..FJ4#,55..EUR,GEN OIL BATH,UPP	01/1975 - 08/1976	1
90430-10164	F..FJ4#,55 OIL BATH,LWR	03/1969 - 01/1975	1
17841-60020	2F..FJ4#,55..GEN OIL BATH,UPP	08/1976 - 07/1980	1
90430-10164	2F..FJ4#,55..EUR,GEN OIL BATH,LWR	01/1975 - 08/1976	1
17841-60011	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 01/1979	2
17841-60011	2F..FJ4#,55 PAPER ELEMENT	01/1979 - 07/1980	2
90430-10164	2F..FJ4#,55..GEN OIL BATH,LWR	08/1976 - 07/1980	1
17845 - GASKET, AIR CLEANER CAP
17845-60040	F..FJ4#,55	03/1969 - 01/1975	1
17845-60040	2F..FJ4#,55..ARL,GEN	01/1975 - 07/1980	1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-60030	F..FJ4#,55	03/1969 - 09/1969	1
17848-61011	2F..FJ4#,55	07/1975 - 01/1979	1
17848-61010	2F..FJ4#,55	01/1975 - 07/1975	1
17848-61011	2F..FJ4#,55..ARL,GEN	01/1979 - 07/1980	1
17851 - BRACKET, AIR CLEANER SUPPORT
17851-60100	F,2F..FJ4#,55	03/1969 - 02/1975	1
17851-61010	2F..FJ4#,55..ARL,GEN	08/1976 - 07/1980	1
17851-61010	2F..FJ4#,55	02/1975 - 08/1976	1
17852 - BRACKET, AIR CREANER SUPPORT, NO.2
17852-61010	2F..FJ4#,55..ARL,GEN	07/1979 - 07/1980	1
Common parts
90175-06003
90175-06026
90179-06027
90179-06158
90179-08026
90210-09026
91621-40816
94612-10800
94613-10601
Linked diagrams
1709

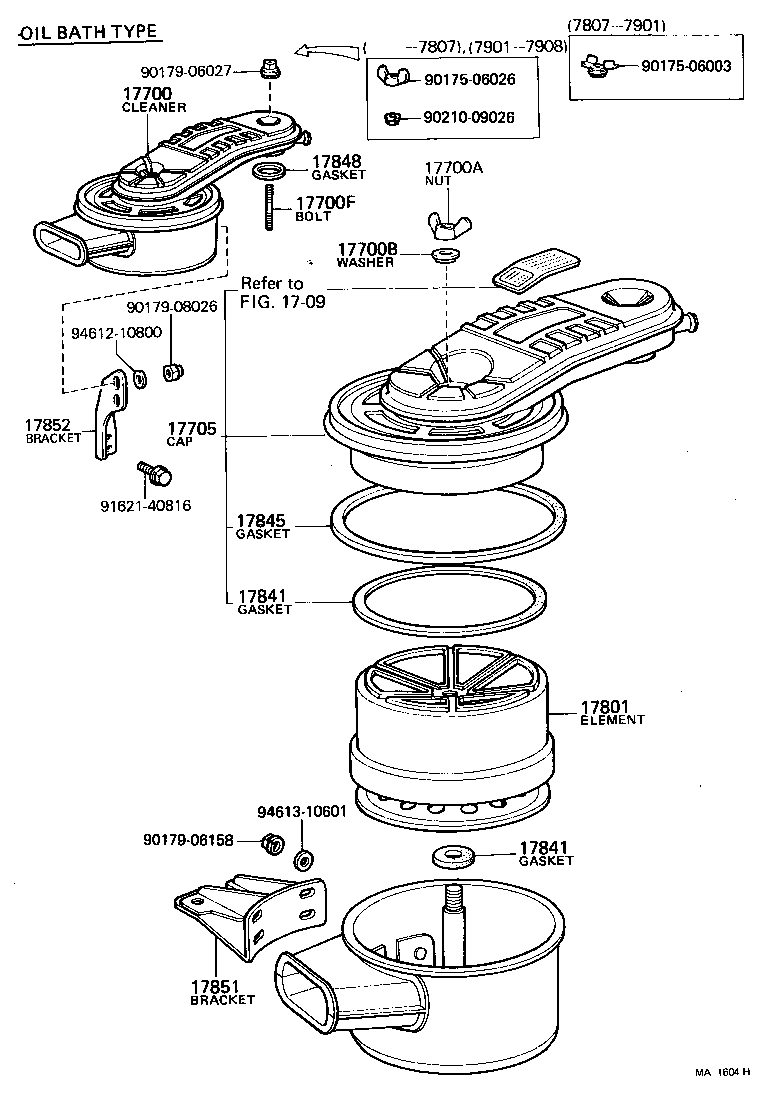

(7501-8007)2F..EUR,GEN ; (7608-8007)2F..ARL,GEN; (7608-8007)2F..FJ45..EUR..IV

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-60310	F..FJ4#,55 OIL BATH	03/1969 - 09/1969	1
17700-61050	2F..FJ4#,55..EUR,GEN OIL BATH	01/1975 - 08/1976	1
17700-60290	F..FJ4#,55 PAPER ELEMENT	03/1969 - 09/1969	1
17700-61010	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 04/1978	1
17700-61050	2F..FJ4#,55..GEN OIL BATH	08/1976 - 09/1979	1
17700-61010	2F..FJ4#,55..GEN PAPER ELEMENT	04/1978 - 01/1979	1
17700-61080	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1979 - 07/1980	1
17700-61130	2F..FJ4#,55..GEN OIL BATH	09/1979 - 07/1980	1
17700A - NUT, WING(FOR AIR CLEANER)
94270-00800	F..FJ4#,55	03/1969 - 03/1973	1
94271-00800	2F..FJ4#,55..ARL,GEN	08/1976 - 08/1979	1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-08003	F..FJ4#,55	03/1969 - 03/1973	1
90210-08003	2F..FJ4#,55..ARL,GEN	01/1975 - 07/1980	1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06222	2F..FJ4#,55..ARL,GEN L=80,S=12&28	01/1975 - 07/1980	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-60140	F..FJ4#,55 PAPER ELEMENT	03/1969 - 09/1969	1
17705-60170	F..FJ4#,55 OIL BATH	03/1969 - 09/1969	1
17705-61050	2F..FJ4#,55..EUR,GEN OIL BATH	01/1975 - 08/1976	1
17705-61050	2F..FJ4#,55..GEN OIL BATH	08/1976 - 07/1980	1
17705-61010	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 07/1980	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-60050	F..FJ4#,55 OIL BATH	03/1969 - 01/1975	1
17801-60040	F..FJ4#,55 PAPER ELEMENT	03/1969 - 01/1975	1
17801-60050	2F..FJ4#,55..EUR,GEN OIL BATH	01/1975 - 08/1976	1
17801-60040	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 07/1980	1
17801-60050	2F..FJ4#,55..GEN OIL BATH	08/1976 - 07/1980	1
17841 - GASKET, FILTER ELEMENT
17841-60020	F..FJ4#,55 OIL BATH,UPP	03/1969 - 01/1975	1
17841-60011	F..FJ4#,55 PAPER ELEMENT	03/1969 - 01/1975	2
17841-60020	2F..FJ4#,55..EUR,GEN OIL BATH,UPP	01/1975 - 08/1976	1
90430-10164	F..FJ4#,55 OIL BATH,LWR	03/1969 - 01/1975	1
17841-60020	2F..FJ4#,55..GEN OIL BATH,UPP	08/1976 - 07/1980	1
90430-10164	2F..FJ4#,55..EUR,GEN OIL BATH,LWR	01/1975 - 08/1976	1
17841-60011	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 01/1979	2
17841-60011	2F..FJ4#,55 PAPER ELEMENT	01/1979 - 07/1980	2
90430-10164	2F..FJ4#,55..GEN OIL BATH,LWR	08/1976 - 07/1980	1
17841 - GASKET, FILTER ELEMENT
17841-60020	F..FJ4#,55 OIL BATH,UPP	03/1969 - 01/1975	1
17841-60011	F..FJ4#,55 PAPER ELEMENT	03/1969 - 01/1975	2
17841-60020	2F..FJ4#,55..EUR,GEN OIL BATH,UPP	01/1975 - 08/1976	1
90430-10164	F..FJ4#,55 OIL BATH,LWR	03/1969 - 01/1975	1
17841-60020	2F..FJ4#,55..GEN OIL BATH,UPP	08/1976 - 07/1980	1
90430-10164	2F..FJ4#,55..EUR,GEN OIL BATH,LWR	01/1975 - 08/1976	1
17841-60011	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 01/1979	2
17841-60011	2F..FJ4#,55 PAPER ELEMENT	01/1979 - 07/1980	2
90430-10164	2F..FJ4#,55..GEN OIL BATH,LWR	08/1976 - 07/1980	1
17845 - GASKET, AIR CLEANER CAP
17845-60040	F..FJ4#,55	03/1969 - 01/1975	1
17845-60040	2F..FJ4#,55..ARL,GEN	01/1975 - 07/1980	1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-60030	F..FJ4#,55	03/1969 - 09/1969	1
17848-61011	2F..FJ4#,55	07/1975 - 01/1979	1
17848-61010	2F..FJ4#,55	01/1975 - 07/1975	1
17848-61011	2F..FJ4#,55..ARL,GEN	01/1979 - 07/1980	1
17851 - BRACKET, AIR CLEANER SUPPORT
17851-60100	F,2F..FJ4#,55	03/1969 - 02/1975	1
17851-61010	2F..FJ4#,55..ARL,GEN	08/1976 - 07/1980	1
17851-61010	2F..FJ4#,55	02/1975 - 08/1976	1
17852 - BRACKET, AIR CREANER SUPPORT, NO.2
17852-61010	2F..FJ4#,55..ARL,GEN	07/1979 - 07/1980	1
Common parts
90175-06003
90175-06026
90179-06027
90179-06158
90179-08026
90210-09026
91621-40816
94612-10800
94613-10601
Linked diagrams
1709

(7609-8007)B

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-60310	F..FJ4#,55 OIL BATH	03/1969 - 09/1969	1
17700-61050	2F..FJ4#,55..EUR,GEN OIL BATH	01/1975 - 08/1976	1
17700-60290	F..FJ4#,55 PAPER ELEMENT	03/1969 - 09/1969	1
17700-61010	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 04/1978	1
17700-61050	2F..FJ4#,55..GEN OIL BATH	08/1976 - 09/1979	1
17700-61010	2F..FJ4#,55..GEN PAPER ELEMENT	04/1978 - 01/1979	1
17700-61080	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1979 - 07/1980	1
17700-61130	2F..FJ4#,55..GEN OIL BATH	09/1979 - 07/1980	1
17700A - NUT, WING(FOR AIR CLEANER)
94270-00800	F..FJ4#,55	03/1969 - 03/1973	1
94271-00800	2F..FJ4#,55..ARL,GEN	08/1976 - 08/1979	1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-08003	F..FJ4#,55	03/1969 - 03/1973	1
90210-08003	2F..FJ4#,55..ARL,GEN	01/1975 - 07/1980	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-60140	F..FJ4#,55 PAPER ELEMENT	03/1969 - 09/1969	1
17705-60170	F..FJ4#,55 OIL BATH	03/1969 - 09/1969	1
17705-61050	2F..FJ4#,55..EUR,GEN OIL BATH	01/1975 - 08/1976	1
17705-61050	2F..FJ4#,55..GEN OIL BATH	08/1976 - 07/1980	1
17705-61010	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 07/1980	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-60050	F..FJ4#,55 OIL BATH	03/1969 - 01/1975	1
17801-60040	F..FJ4#,55 PAPER ELEMENT	03/1969 - 01/1975	1
17801-60050	2F..FJ4#,55..EUR,GEN OIL BATH	01/1975 - 08/1976	1
17801-60040	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 07/1980	1
17801-60050	2F..FJ4#,55..GEN OIL BATH	08/1976 - 07/1980	1
17841 - GASKET, FILTER ELEMENT
17841-60020	F..FJ4#,55 OIL BATH,UPP	03/1969 - 01/1975	1
17841-60011	F..FJ4#,55 PAPER ELEMENT	03/1969 - 01/1975	2
17841-60020	2F..FJ4#,55..EUR,GEN OIL BATH,UPP	01/1975 - 08/1976	1
90430-10164	F..FJ4#,55 OIL BATH,LWR	03/1969 - 01/1975	1
17841-60020	2F..FJ4#,55..GEN OIL BATH,UPP	08/1976 - 07/1980	1
90430-10164	2F..FJ4#,55..EUR,GEN OIL BATH,LWR	01/1975 - 08/1976	1
17841-60011	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 01/1979	2
17841-60011	2F..FJ4#,55 PAPER ELEMENT	01/1979 - 07/1980	2
90430-10164	2F..FJ4#,55..GEN OIL BATH,LWR	08/1976 - 07/1980	1
17841 - GASKET, FILTER ELEMENT
17841-60020	F..FJ4#,55 OIL BATH,UPP	03/1969 - 01/1975	1
17841-60011	F..FJ4#,55 PAPER ELEMENT	03/1969 - 01/1975	2
17841-60020	2F..FJ4#,55..EUR,GEN OIL BATH,UPP	01/1975 - 08/1976	1
90430-10164	F..FJ4#,55 OIL BATH,LWR	03/1969 - 01/1975	1
17841-60020	2F..FJ4#,55..GEN OIL BATH,UPP	08/1976 - 07/1980	1
90430-10164	2F..FJ4#,55..EUR,GEN OIL BATH,LWR	01/1975 - 08/1976	1
17841-60011	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 01/1979	2
17841-60011	2F..FJ4#,55 PAPER ELEMENT	01/1979 - 07/1980	2
90430-10164	2F..FJ4#,55..GEN OIL BATH,LWR	08/1976 - 07/1980	1
17845 - GASKET, AIR CLEANER CAP
17845-60040	F..FJ4#,55	03/1969 - 01/1975	1
17845-60040	2F..FJ4#,55..ARL,GEN	01/1975 - 07/1980	1
Common parts
91611-40820
91651-40616
94611-10800
Linked diagrams
1709

(7609-8007)B

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-60310	F..FJ4#,55 OIL BATH	03/1969 - 09/1969	1
17700-61050	2F..FJ4#,55..EUR,GEN OIL BATH	01/1975 - 08/1976	1
17700-60290	F..FJ4#,55 PAPER ELEMENT	03/1969 - 09/1969	1
17700-61010	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 04/1978	1
17700-61050	2F..FJ4#,55..GEN OIL BATH	08/1976 - 09/1979	1
17700-61010	2F..FJ4#,55..GEN PAPER ELEMENT	04/1978 - 01/1979	1
17700-61080	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1979 - 07/1980	1
17700-61130	2F..FJ4#,55..GEN OIL BATH	09/1979 - 07/1980	1
17700A - NUT, WING(FOR AIR CLEANER)
94270-00800	F..FJ4#,55	03/1969 - 03/1973	1
94271-00800	2F..FJ4#,55..ARL,GEN	08/1976 - 08/1979	1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-08003	F..FJ4#,55	03/1969 - 03/1973	1
90210-08003	2F..FJ4#,55..ARL,GEN	01/1975 - 07/1980	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-60140	F..FJ4#,55 PAPER ELEMENT	03/1969 - 09/1969	1
17705-60170	F..FJ4#,55 OIL BATH	03/1969 - 09/1969	1
17705-61050	2F..FJ4#,55..EUR,GEN OIL BATH	01/1975 - 08/1976	1
17705-61050	2F..FJ4#,55..GEN OIL BATH	08/1976 - 07/1980	1
17705-61010	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 07/1980	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-60050	F..FJ4#,55 OIL BATH	03/1969 - 01/1975	1
17801-60040	F..FJ4#,55 PAPER ELEMENT	03/1969 - 01/1975	1
17801-60050	2F..FJ4#,55..EUR,GEN OIL BATH	01/1975 - 08/1976	1
17801-60040	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 07/1980	1
17801-60050	2F..FJ4#,55..GEN OIL BATH	08/1976 - 07/1980	1
17841 - GASKET, FILTER ELEMENT
17841-60020	F..FJ4#,55 OIL BATH,UPP	03/1969 - 01/1975	1
17841-60011	F..FJ4#,55 PAPER ELEMENT	03/1969 - 01/1975	2
17841-60020	2F..FJ4#,55..EUR,GEN OIL BATH,UPP	01/1975 - 08/1976	1
90430-10164	F..FJ4#,55 OIL BATH,LWR	03/1969 - 01/1975	1
17841-60020	2F..FJ4#,55..GEN OIL BATH,UPP	08/1976 - 07/1980	1
90430-10164	2F..FJ4#,55..EUR,GEN OIL BATH,LWR	01/1975 - 08/1976	1
17841-60011	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 01/1979	2
17841-60011	2F..FJ4#,55 PAPER ELEMENT	01/1979 - 07/1980	2
90430-10164	2F..FJ4#,55..GEN OIL BATH,LWR	08/1976 - 07/1980	1
17841 - GASKET, FILTER ELEMENT
17841-60020	F..FJ4#,55 OIL BATH,UPP	03/1969 - 01/1975	1
17841-60011	F..FJ4#,55 PAPER ELEMENT	03/1969 - 01/1975	2
17841-60020	2F..FJ4#,55..EUR,GEN OIL BATH,UPP	01/1975 - 08/1976	1
90430-10164	F..FJ4#,55 OIL BATH,LWR	03/1969 - 01/1975	1
17841-60020	2F..FJ4#,55..GEN OIL BATH,UPP	08/1976 - 07/1980	1
90430-10164	2F..FJ4#,55..EUR,GEN OIL BATH,LWR	01/1975 - 08/1976	1
17841-60011	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 01/1979	2
17841-60011	2F..FJ4#,55 PAPER ELEMENT	01/1979 - 07/1980	2
90430-10164	2F..FJ4#,55..GEN OIL BATH,LWR	08/1976 - 07/1980	1
17845 - GASKET, AIR CLEANER CAP
17845-60040	F..FJ4#,55	03/1969 - 01/1975	1
17845-60040	2F..FJ4#,55..ARL,GEN	01/1975 - 07/1980	1
Common parts
91611-40820
91651-40616
94611-10800
Linked diagrams
1709

(7709-8007)H

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-60310	F..FJ4#,55 OIL BATH	03/1969 - 09/1969	1
17700-61050	2F..FJ4#,55..EUR,GEN OIL BATH	01/1975 - 08/1976	1
17700-60290	F..FJ4#,55 PAPER ELEMENT	03/1969 - 09/1969	1
17700-61010	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 04/1978	1
17700-61050	2F..FJ4#,55..GEN OIL BATH	08/1976 - 09/1979	1
17700-61010	2F..FJ4#,55..GEN PAPER ELEMENT	04/1978 - 01/1979	1
17700-61080	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1979 - 07/1980	1
17700-61130	2F..FJ4#,55..GEN OIL BATH	09/1979 - 07/1980	1
17700A - NUT, WING(FOR AIR CLEANER)
94270-00800	F..FJ4#,55	03/1969 - 03/1973	1
94271-00800	2F..FJ4#,55..ARL,GEN	08/1976 - 08/1979	1
17700A - NUT, WING(FOR AIR CLEANER)
94270-00800	F..FJ4#,55	03/1969 - 03/1973	1
94271-00800	2F..FJ4#,55..ARL,GEN	08/1976 - 08/1979	1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-08003	F..FJ4#,55	03/1969 - 03/1973	1
90210-08003	2F..FJ4#,55..ARL,GEN	01/1975 - 07/1980	1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-08003	F..FJ4#,55	03/1969 - 03/1973	1
90210-08003	2F..FJ4#,55..ARL,GEN	01/1975 - 07/1980	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-60140	F..FJ4#,55 PAPER ELEMENT	03/1969 - 09/1969	1
17705-60170	F..FJ4#,55 OIL BATH	03/1969 - 09/1969	1
17705-61050	2F..FJ4#,55..EUR,GEN OIL BATH	01/1975 - 08/1976	1
17705-61050	2F..FJ4#,55..GEN OIL BATH	08/1976 - 07/1980	1
17705-61010	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 07/1980	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-60140	F..FJ4#,55 PAPER ELEMENT	03/1969 - 09/1969	1
17705-60170	F..FJ4#,55 OIL BATH	03/1969 - 09/1969	1
17705-61050	2F..FJ4#,55..EUR,GEN OIL BATH	01/1975 - 08/1976	1
17705-61050	2F..FJ4#,55..GEN OIL BATH	08/1976 - 07/1980	1
17705-61010	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 07/1980	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-60050	F..FJ4#,55 OIL BATH	03/1969 - 01/1975	1
17801-60040	F..FJ4#,55 PAPER ELEMENT	03/1969 - 01/1975	1
17801-60050	2F..FJ4#,55..EUR,GEN OIL BATH	01/1975 - 08/1976	1
17801-60040	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 07/1980	1
17801-60050	2F..FJ4#,55..GEN OIL BATH	08/1976 - 07/1980	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-60050	F..FJ4#,55 OIL BATH	03/1969 - 01/1975	1
17801-60040	F..FJ4#,55 PAPER ELEMENT	03/1969 - 01/1975	1
17801-60050	2F..FJ4#,55..EUR,GEN OIL BATH	01/1975 - 08/1976	1
17801-60040	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 07/1980	1
17801-60050	2F..FJ4#,55..GEN OIL BATH	08/1976 - 07/1980	1
17841 - GASKET, FILTER ELEMENT
17841-60020	F..FJ4#,55 OIL BATH,UPP	03/1969 - 01/1975	1
17841-60011	F..FJ4#,55 PAPER ELEMENT	03/1969 - 01/1975	2
17841-60020	2F..FJ4#,55..EUR,GEN OIL BATH,UPP	01/1975 - 08/1976	1
90430-10164	F..FJ4#,55 OIL BATH,LWR	03/1969 - 01/1975	1
17841-60020	2F..FJ4#,55..GEN OIL BATH,UPP	08/1976 - 07/1980	1
90430-10164	2F..FJ4#,55..EUR,GEN OIL BATH,LWR	01/1975 - 08/1976	1
17841-60011	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 01/1979	2
17841-60011	2F..FJ4#,55 PAPER ELEMENT	01/1979 - 07/1980	2
90430-10164	2F..FJ4#,55..GEN OIL BATH,LWR	08/1976 - 07/1980	1
17841 - GASKET, FILTER ELEMENT
17841-60020	F..FJ4#,55 OIL BATH,UPP	03/1969 - 01/1975	1
17841-60011	F..FJ4#,55 PAPER ELEMENT	03/1969 - 01/1975	2
17841-60020	2F..FJ4#,55..EUR,GEN OIL BATH,UPP	01/1975 - 08/1976	1
90430-10164	F..FJ4#,55 OIL BATH,LWR	03/1969 - 01/1975	1
17841-60020	2F..FJ4#,55..GEN OIL BATH,UPP	08/1976 - 07/1980	1
90430-10164	2F..FJ4#,55..EUR,GEN OIL BATH,LWR	01/1975 - 08/1976	1
17841-60011	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 01/1979	2
17841-60011	2F..FJ4#,55 PAPER ELEMENT	01/1979 - 07/1980	2
90430-10164	2F..FJ4#,55..GEN OIL BATH,LWR	08/1976 - 07/1980	1
17841 - GASKET, FILTER ELEMENT
17841-60020	F..FJ4#,55 OIL BATH,UPP	03/1969 - 01/1975	1
17841-60011	F..FJ4#,55 PAPER ELEMENT	03/1969 - 01/1975	2
17841-60020	2F..FJ4#,55..EUR,GEN OIL BATH,UPP	01/1975 - 08/1976	1
90430-10164	F..FJ4#,55 OIL BATH,LWR	03/1969 - 01/1975	1
17841-60020	2F..FJ4#,55..GEN OIL BATH,UPP	08/1976 - 07/1980	1
90430-10164	2F..FJ4#,55..EUR,GEN OIL BATH,LWR	01/1975 - 08/1976	1
17841-60011	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 01/1979	2
17841-60011	2F..FJ4#,55 PAPER ELEMENT	01/1979 - 07/1980	2
90430-10164	2F..FJ4#,55..GEN OIL BATH,LWR	08/1976 - 07/1980	1
17845 - GASKET, AIR CLEANER CAP
17845-60040	F..FJ4#,55	03/1969 - 01/1975	1
17845-60040	2F..FJ4#,55..ARL,GEN	01/1975 - 07/1980	1
17845 - GASKET, AIR CLEANER CAP
17845-60040	F..FJ4#,55	03/1969 - 01/1975	1
17845-60040	2F..FJ4#,55..ARL,GEN	01/1975 - 07/1980	1
Common parts
90461-10028
91651-60816
96111-10800
Linked diagrams
1709

(7709-8007)B

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-60310	F..FJ4#,55 OIL BATH	03/1969 - 09/1969	1
17700-61050	2F..FJ4#,55..EUR,GEN OIL BATH	01/1975 - 08/1976	1
17700-60290	F..FJ4#,55 PAPER ELEMENT	03/1969 - 09/1969	1
17700-61010	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 04/1978	1
17700-61050	2F..FJ4#,55..GEN OIL BATH	08/1976 - 09/1979	1
17700-61010	2F..FJ4#,55..GEN PAPER ELEMENT	04/1978 - 01/1979	1
17700-61080	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1979 - 07/1980	1
17700-61130	2F..FJ4#,55..GEN OIL BATH	09/1979 - 07/1980	1
17700A - NUT, WING(FOR AIR CLEANER)
94270-00800	F..FJ4#,55	03/1969 - 03/1973	1
94271-00800	2F..FJ4#,55..ARL,GEN	08/1976 - 08/1979	1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-08003	F..FJ4#,55	03/1969 - 03/1973	1
90210-08003	2F..FJ4#,55..ARL,GEN	01/1975 - 07/1980	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-60050	F..FJ4#,55 OIL BATH	03/1969 - 01/1975	1
17801-60040	F..FJ4#,55 PAPER ELEMENT	03/1969 - 01/1975	1
17801-60050	2F..FJ4#,55..EUR,GEN OIL BATH	01/1975 - 08/1976	1
17801-60040	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 07/1980	1
17801-60050	2F..FJ4#,55..GEN OIL BATH	08/1976 - 07/1980	1
17841 - GASKET, FILTER ELEMENT
17841-60020	F..FJ4#,55 OIL BATH,UPP	03/1969 - 01/1975	1
17841-60011	F..FJ4#,55 PAPER ELEMENT	03/1969 - 01/1975	2
17841-60020	2F..FJ4#,55..EUR,GEN OIL BATH,UPP	01/1975 - 08/1976	1
90430-10164	F..FJ4#,55 OIL BATH,LWR	03/1969 - 01/1975	1
17841-60020	2F..FJ4#,55..GEN OIL BATH,UPP	08/1976 - 07/1980	1
90430-10164	2F..FJ4#,55..EUR,GEN OIL BATH,LWR	01/1975 - 08/1976	1
17841-60011	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 01/1979	2
17841-60011	2F..FJ4#,55 PAPER ELEMENT	01/1979 - 07/1980	2
90430-10164	2F..FJ4#,55..GEN OIL BATH,LWR	08/1976 - 07/1980	1
17841 - GASKET, FILTER ELEMENT
17841-60020	F..FJ4#,55 OIL BATH,UPP	03/1969 - 01/1975	1
17841-60011	F..FJ4#,55 PAPER ELEMENT	03/1969 - 01/1975	2
17841-60020	2F..FJ4#,55..EUR,GEN OIL BATH,UPP	01/1975 - 08/1976	1
90430-10164	F..FJ4#,55 OIL BATH,LWR	03/1969 - 01/1975	1
17841-60020	2F..FJ4#,55..GEN OIL BATH,UPP	08/1976 - 07/1980	1
90430-10164	2F..FJ4#,55..EUR,GEN OIL BATH,LWR	01/1975 - 08/1976	1
17841-60011	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 01/1979	2
17841-60011	2F..FJ4#,55 PAPER ELEMENT	01/1979 - 07/1980	2
90430-10164	2F..FJ4#,55..GEN OIL BATH,LWR	08/1976 - 07/1980	1
17845 - GASKET, AIR CLEANER CAP
17845-60040	F..FJ4#,55	03/1969 - 01/1975	1
17845-60040	2F..FJ4#,55..ARL,GEN	01/1975 - 07/1980	1
Common parts
91611-40820
91651-40616
94611-10800
Linked diagrams
1709

(7709-8007)H

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-60310	F..FJ4#,55 OIL BATH	03/1969 - 09/1969	1
17700-61050	2F..FJ4#,55..EUR,GEN OIL BATH	01/1975 - 08/1976	1
17700-60290	F..FJ4#,55 PAPER ELEMENT	03/1969 - 09/1969	1
17700-61010	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 04/1978	1
17700-61050	2F..FJ4#,55..GEN OIL BATH	08/1976 - 09/1979	1
17700-61010	2F..FJ4#,55..GEN PAPER ELEMENT	04/1978 - 01/1979	1
17700-61080	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1979 - 07/1980	1
17700-61130	2F..FJ4#,55..GEN OIL BATH	09/1979 - 07/1980	1
17700A - NUT, WING(FOR AIR CLEANER)
94270-00800	F..FJ4#,55	03/1969 - 03/1973	1
94271-00800	2F..FJ4#,55..ARL,GEN	08/1976 - 08/1979	1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-08003	F..FJ4#,55	03/1969 - 03/1973	1
90210-08003	2F..FJ4#,55..ARL,GEN	01/1975 - 07/1980	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-60140	F..FJ4#,55 PAPER ELEMENT	03/1969 - 09/1969	1
17705-60170	F..FJ4#,55 OIL BATH	03/1969 - 09/1969	1
17705-61050	2F..FJ4#,55..EUR,GEN OIL BATH	01/1975 - 08/1976	1
17705-61050	2F..FJ4#,55..GEN OIL BATH	08/1976 - 07/1980	1
17705-61010	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 07/1980	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-60050	F..FJ4#,55 OIL BATH	03/1969 - 01/1975	1
17801-60040	F..FJ4#,55 PAPER ELEMENT	03/1969 - 01/1975	1
17801-60050	2F..FJ4#,55..EUR,GEN OIL BATH	01/1975 - 08/1976	1
17801-60040	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 07/1980	1
17801-60050	2F..FJ4#,55..GEN OIL BATH	08/1976 - 07/1980	1
17841 - GASKET, FILTER ELEMENT
17841-60020	F..FJ4#,55 OIL BATH,UPP	03/1969 - 01/1975	1
17841-60011	F..FJ4#,55 PAPER ELEMENT	03/1969 - 01/1975	2
17841-60020	2F..FJ4#,55..EUR,GEN OIL BATH,UPP	01/1975 - 08/1976	1
90430-10164	F..FJ4#,55 OIL BATH,LWR	03/1969 - 01/1975	1
17841-60020	2F..FJ4#,55..GEN OIL BATH,UPP	08/1976 - 07/1980	1
90430-10164	2F..FJ4#,55..EUR,GEN OIL BATH,LWR	01/1975 - 08/1976	1
17841-60011	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 01/1979	2
17841-60011	2F..FJ4#,55 PAPER ELEMENT	01/1979 - 07/1980	2
90430-10164	2F..FJ4#,55..GEN OIL BATH,LWR	08/1976 - 07/1980	1
17841 - GASKET, FILTER ELEMENT
17841-60020	F..FJ4#,55 OIL BATH,UPP	03/1969 - 01/1975	1
17841-60011	F..FJ4#,55 PAPER ELEMENT	03/1969 - 01/1975	2
17841-60020	2F..FJ4#,55..EUR,GEN OIL BATH,UPP	01/1975 - 08/1976	1
90430-10164	F..FJ4#,55 OIL BATH,LWR	03/1969 - 01/1975	1
17841-60020	2F..FJ4#,55..GEN OIL BATH,UPP	08/1976 - 07/1980	1
90430-10164	2F..FJ4#,55..EUR,GEN OIL BATH,LWR	01/1975 - 08/1976	1
17841-60011	2F..FJ4#,55..ARL,GEN PAPER ELEMENT	01/1975 - 01/1979	2
17841-60011	2F..FJ4#,55 PAPER ELEMENT	01/1979 - 07/1980	2
90430-10164	2F..FJ4#,55..GEN OIL BATH,LWR	08/1976 - 07/1980	1
17845 - GASKET, AIR CLEANER CAP
17845-60040	F..FJ4#,55	03/1969 - 01/1975	1
17845-60040	2F..FJ4#,55..ARL,GEN	01/1975 - 07/1980	1
Common parts
90461-10028
91651-60816
96111-10800
Linked diagrams
1709

FJ40L-UC (1975)

(8008-8410)B,3B

(8008-8410)B,3B

(8008-8410)B,3B..EUR,GEN

(7501-8007)2F..ARL,GEN ; (7501-8007)2F..FJ45..EUR..IV

(7501-8007)2F..EUR,GEN ; (7608-8007)2F..ARL,GEN; (7608-8007)2F..FJ45..EUR..IV

(7609-8007)B

(7609-8007)B

(7709-8007)H

(7709-8007)B

(7709-8007)H

Part Price Details
