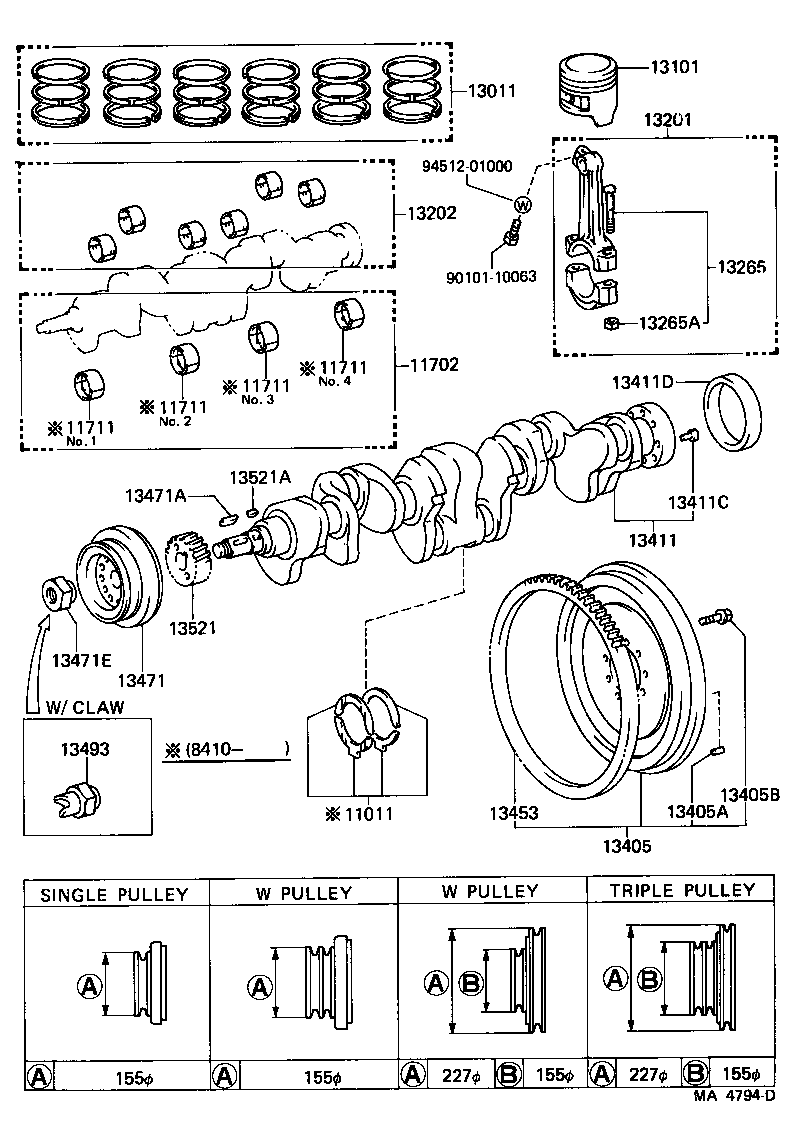

FJ40L-UC (1980)
Toyota Land Cruiser
(8008-8410)B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11703-60013 |
2F..FJ4# U/S 0.05 |
1 | ||
| 11702-60013 |
2F..FJ4# STD |
1 | ||
| 11704-60013 |
2F..FJ4# U/S 0.25 |
1 | ||
| 11705-60013 |
2F..FJ4# U/S 0.50 |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13015-61010 |
2F..FJ4# O/S 1.00,O/S 1.00 |
1 | ||
| 13017-61010 |
2F..FJ4# O/S 1.50,O/S 1.50 |
1 | ||
| 13013-61010 |
2F..FJ4# O/S 0.50,O/S 0.50 |
1 | ||
| 13011-61010 |
2F..FJ4# STD,STD |
1 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13103-61011 |
2F..FJ4#..ARL,GEN O/S 0.50,O/S 0.50 |
6 | ||
| 13107-61011 |
2F..FJ4#..ARL,GEN O/S 1.50,O/S 1.50 |
6 | ||
| 13101-61011 |
2F..FJ4#..ARL,GEN STD,STD |
6 | ||
| 13105-61011 |
2F..FJ4#..ARL,GEN O/S 1.00,O/S 1.00 |
6 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-60011 |
2F..FJ4# |
6 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13202-60011 |
2F..FJ4# STD,STD |
1 | ||
| 13203-60011 |
2F..FJ4# U/S 0.05,U/S 0.05 |
1 | ||
| 13204-60011 |
2F..FJ4# U/S 0.25,U/S 0.25 |
1 | ||
| 13205-60011 |
2F..FJ4# U/S 0.50,U/S 0.50 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-69015 |
2F..FJ4# |
12 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-10198 |
2F..FJ4# |
12 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-69015 |
2F..FJ4# |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-10192 |
2F..FJ4# L=22,OD=10 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90913-01003 |
2F..FJ4# |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-60015 |
2F..FJ4# |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-60010 |
2F..FJ4# |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-61010 |
2F..FJ4#..LHD..TP..GEN;2F..FJ40,45..(PIC,V)..(ARL,GEN) TRIPLE,OD=155&227,W/PS&COOLER |
1 | ||
| 13470-60031 |
2F..FJ4# OD=155 |
1 | ||
| 13470-61020 |
2F..FJ4#..LHD..TP..GEN;2F..FJ40,45..(PIC,V)..(ARL,GEN) W PULLEY,OD=155&227,W/COOLER |
1 | ||
| 13470-60120 |
2F..FJ4# W PULLEY,OD=155,W/PS |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-61010 |
2F..FJ4#..LHD..TP..GEN;2F..FJ40,45..(PIC,V)..(ARL,GEN) TRIPLE,OD=155&227,W/PS&COOLER |
1 | ||
| 13470-60031 |
2F..FJ4# OD=155 |
1 | ||
| 13470-61020 |
2F..FJ4#..LHD..TP..GEN;2F..FJ40,45..(PIC,V)..(ARL,GEN) W PULLEY,OD=155&227,W/COOLER |
1 | ||
| 13470-60120 |
2F..FJ4# W PULLEY,OD=155,W/PS |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90281-07004 |
2F..FJ4# |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-60010 |
2F..FJ4# |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05010 |
2F..FJ4# |
1 | ||
| Common parts | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| Linked diagrams | ||||
| 3101 | ||||
(8008- )2F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11703-60013 |
2F..FJ4# U/S 0.05 |
1 | ||
| 11702-60013 |
2F..FJ4# STD |
1 | ||
| 11704-60013 |
2F..FJ4# U/S 0.25 |
1 | ||
| 11705-60013 |
2F..FJ4# U/S 0.50 |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13015-61010 |
2F..FJ4# O/S 1.00,O/S 1.00 |
1 | ||
| 13017-61010 |
2F..FJ4# O/S 1.50,O/S 1.50 |
1 | ||
| 13013-61010 |
2F..FJ4# O/S 0.50,O/S 0.50 |
1 | ||
| 13011-61010 |
2F..FJ4# STD,STD |
1 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13103-61011 |
2F..FJ4#..ARL,GEN O/S 0.50,O/S 0.50 |
6 | ||
| 13107-61011 |
2F..FJ4#..ARL,GEN O/S 1.50,O/S 1.50 |
6 | ||
| 13101-61011 |
2F..FJ4#..ARL,GEN STD,STD |
6 | ||
| 13105-61011 |
2F..FJ4#..ARL,GEN O/S 1.00,O/S 1.00 |
6 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-60011 |
2F..FJ4# |
6 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13202-60011 |
2F..FJ4# STD,STD |
1 | ||
| 13203-60011 |
2F..FJ4# U/S 0.05,U/S 0.05 |
1 | ||
| 13204-60011 |
2F..FJ4# U/S 0.25,U/S 0.25 |
1 | ||
| 13205-60011 |
2F..FJ4# U/S 0.50,U/S 0.50 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-69015 |
2F..FJ4# |
12 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-10198 |
2F..FJ4# |
12 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-69015 |
2F..FJ4# |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-10192 |
2F..FJ4# L=22,OD=10 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90913-01003 |
2F..FJ4# |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-60015 |
2F..FJ4# |
1 | ||
| 13411C - PIN, STRAIGHT(FOR CRANKSHAFT) | ||||
| 90241-10017 |
2F..FJ4# |
1 | ||
| 13411D - SEAL, OIL(FOR CRANKSHAFT) | ||||
| 90311-99065 |
2F..FJ4#..EUR,GEN |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-60010 |
2F..FJ4# |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-61010 |
2F..FJ4#..LHD..TP..GEN;2F..FJ40,45..(PIC,V)..(ARL,GEN) TRIPLE,OD=155&227,W/PS&COOLER |
1 | ||
| 13470-60031 |
2F..FJ4# OD=155 |
1 | ||
| 13470-61020 |
2F..FJ4#..LHD..TP..GEN;2F..FJ40,45..(PIC,V)..(ARL,GEN) W PULLEY,OD=155&227,W/COOLER |
1 | ||
| 13470-60120 |
2F..FJ4# W PULLEY,OD=155,W/PS |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90281-07004 |
2F..FJ4# |
1 | ||
| 13493 - CLAW, CRANKSHAFT | ||||
| 90913-04003 |
2F..FJ4#..(3F,4F)..(ARL,GEN) |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-60010 |
2F..FJ4# |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05010 |
2F..FJ4# |
1 | ||
| Common parts | ||||
| 90101-10063 | ||||
| 94512-01000 | ||||
