Toyota Land cruiser FJ40 WINDSHIELD WIPER

FJ40L-KJ (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980

Engine 2F

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(7501-8007)BJ4#,FJ4#,HJ45

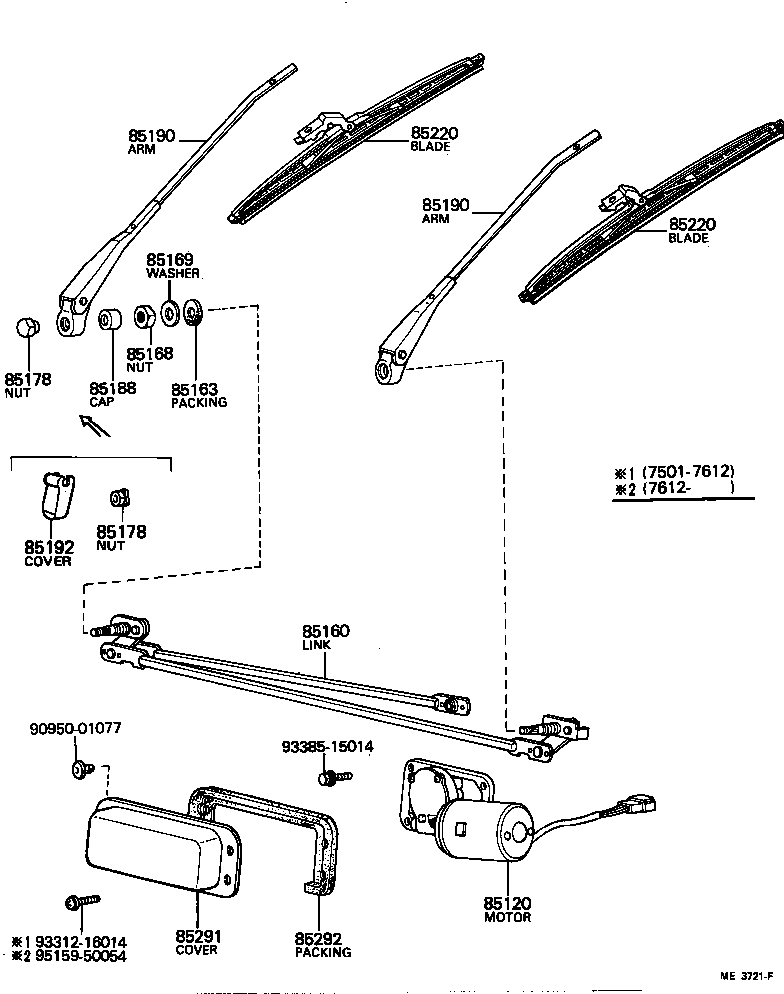

Click highlighted areas on diagram

Part #	Description	Period	Qty
85120 - MOTOR AND BRACKET ASSY, WINDSHIELD WIPER
85120-90303	BJ4#,FJ4#,HJ45..LHD FOR 12V	07/1975 - 09/1977	1
85120-90303	FJ4#,HJ45..LHD	01/1975 - 07/1975	1
85120-90308	FJ4#,HJ45..LHD FOR 12V	09/1977 - 07/1980	1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-90300	BJ4#,FJ4#,HJ45	01/1976 - 07/1980	1
85160-90301	BJ4#,FJ4#,HJ45..LHD	01/1975 - 01/1976	1
85163 - PACKING, WINDSHIELD WIPER PIVOT
85185-25040	BJ4#,FJ4#,HJ45	03/1969 - 07/1980	2
85168 - NUT, WINDSHIELD WIPER LINK PIVOT
85168-55010	BJ4#,FJ4#,HJ45..ARL,GEN	09/1977 - 05/1978	2
85168-55010	BJ4#,FJ4#,HJ45	01/1975 - 09/1977	2
85168-60040	BJ4#,FJ4#,HJ45	03/1969 - 01/1975	2
85168-55010	BJ4#,FJ4#,HJ45	05/1978 - 07/1980	2
85169 - WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1
85169-55010	BJ4#,FJ4#,HJ45	01/1975 - 07/1976	2
90209-12002	BJ4#,FJ4#,HJ45..ARL,GEN	09/1977 - 05/1978	2
85169-60040	BJ4#,FJ4#,HJ45	03/1969 - 01/1975	2
90209-12002	BJ4#,FJ4#,HJ45	05/1978 - 07/1980	2
90209-12002	BJ4#,FJ4#,HJ45	07/1976 - 09/1977	2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-06016	BJ4#,FJ4#,55,HJ45	01/1975 - 09/1977	2
85182-60040	BJ4#,FJ4#,HJ45	03/1969 - 01/1975	2
90176-06016	BJ4#,FJ4#,55,HJ45..ARL,GEN	09/1977 - 01/1979	2
90179-06158	BJ4#,FJ4#,55,HJ45 W/WAVE WASHER	01/1979 - 07/1980	2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-06016	BJ4#,FJ4#,55,HJ45	01/1975 - 09/1977	2
85182-60040	BJ4#,FJ4#,HJ45	03/1969 - 01/1975	2
90176-06016	BJ4#,FJ4#,55,HJ45..ARL,GEN	09/1977 - 01/1979	2
90179-06158	BJ4#,FJ4#,55,HJ45 W/WAVE WASHER	01/1979 - 07/1980	2
85188 - CAP, WINDSHIELD WIPER PIVOT, NO.1
85177-60040	BJ4#,FJ4#,HJ45	03/1969 - 01/1975	2
85135-90300	BJ4#,FJ4#,HJ45	01/1979 - 07/1980	2
85135-55010	BJ4#,FJ4#,HJ45..LHD..GEN	05/1978 - 01/1979	2
85135-55010	BJ4#,FJ4#,HJ45	01/1975 - 05/1978	2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-60061	FJ4#,HJ45..LHD	03/1969 - 09/1972	2
85190-90303	BJ4#,FJ4#,HJ45..LHD	01/1975 - 09/1977	2
85190-60010	FJ40,42,43..TP FOR HINGED WINDSHIELD	03/1969 - 01/1975	2
85190-60010	BJ4#,FJ4#..TP..GEN FOR HINGED WINDSHIELD	01/1975 - 09/1977	2
85190-90303	BJ4#,FJ4#,HJ45..LHD..GEN SILVER	09/1977 - 01/1979	2
85190-90305	BJ4#,FJ4#,HJ45..LHD BLACK	01/1979 - 07/1980	2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-60061	FJ4#,HJ45..LHD	03/1969 - 09/1972	2
85190-90303	BJ4#,FJ4#,HJ45..LHD	01/1975 - 09/1977	2
85190-60010	FJ40,42,43..TP FOR HINGED WINDSHIELD	03/1969 - 01/1975	2
85190-60010	BJ4#,FJ4#..TP..GEN FOR HINGED WINDSHIELD	01/1975 - 09/1977	2
85190-90303	BJ4#,FJ4#,HJ45..LHD..GEN SILVER	09/1977 - 01/1979	2
85190-90305	BJ4#,FJ4#,HJ45..LHD BLACK	01/1979 - 07/1980	2
85192 - COVER, WINDSHIELD WIPER ARM
85192-90300	BJ4#,FJ4#,55,HJ45	01/1979 - 07/1980	2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-60030	FJ4#,HJ45	03/1969 - 09/1972	2
85220-55010	FJ40,42,43..TP FOR HINGED WINDSHIELD	03/1969 - 01/1975	2
85220-95402	BJ4#,FJ4#,HJ45	01/1975 - 01/1979	2
85220-90304	BJ4#,FJ4#,HJ45	01/1979 - 07/1980	2
85220-55010	BJ4#,FJ4#..TP..GEN FOR HINGED WINDSHIELD	01/1975 - 09/1977	2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-60030	FJ4#,HJ45	03/1969 - 09/1972	2
85220-55010	FJ40,42,43..TP FOR HINGED WINDSHIELD	03/1969 - 01/1975	2
85220-95402	BJ4#,FJ4#,HJ45	01/1975 - 01/1979	2
85220-90304	BJ4#,FJ4#,HJ45	01/1979 - 07/1980	2
85220-55010	BJ4#,FJ4#..TP..GEN FOR HINGED WINDSHIELD	01/1975 - 09/1977	2
85291 - COVER, WINDSHIELD WIPER MOTOR
85291-90301	BJ4#,FJ4#,HJ45	09/1977 - 07/1980	1
85291-90300	BJ4#,FJ4#,HJ45	01/1975 - 09/1977	1
85292 - PACKING, WINDSHIELD WIPER MOTOR
85292-90300	BJ4#,FJ4#,HJ45	01/1975 - 09/1977	1
85292-90301	BJ4#,FJ4#,HJ45	09/1977 - 07/1980	1
Common parts
90950-01077
93312-16014
93385-15014
95159-50054

(6903-7709)TP..GEN

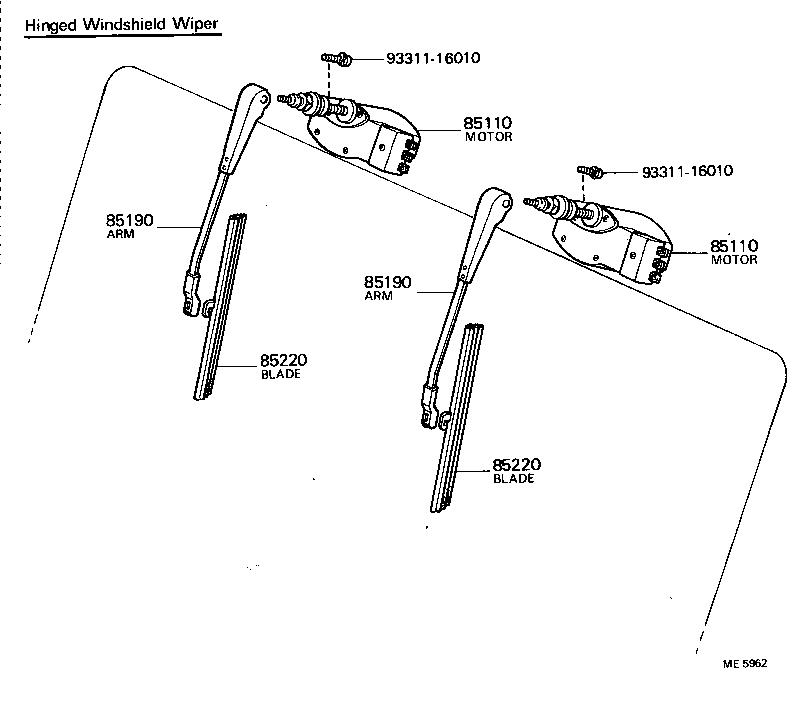

Click highlighted areas on diagram

Part #	Description	Period	Qty
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-60080	FJ4#,HJ45..LHD	03/1969 - 01/1975	1
85110-60030	FJ40,42,43..LHD..TP FOR HINGED WINDSHIELD	03/1969 - 01/1975	2
85110-60030	BJ4#,FJ4#..LHD..TP..GEN FOR HINGED WINDSHIELD,12V	01/1975 - 09/1977	2
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-60080	FJ4#,HJ45..LHD	03/1969 - 01/1975	1
85110-60030	FJ40,42,43..LHD..TP FOR HINGED WINDSHIELD	03/1969 - 01/1975	2
85110-60030	BJ4#,FJ4#..LHD..TP..GEN FOR HINGED WINDSHIELD,12V	01/1975 - 09/1977	2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-60061	FJ4#,HJ45..LHD	03/1969 - 09/1972	2
85190-90303	BJ4#,FJ4#,HJ45..LHD	01/1975 - 09/1977	2
85190-60010	FJ40,42,43..TP FOR HINGED WINDSHIELD	03/1969 - 01/1975	2
85190-60010	BJ4#,FJ4#..TP..GEN FOR HINGED WINDSHIELD	01/1975 - 09/1977	2
85190-90303	BJ4#,FJ4#,HJ45..LHD..GEN SILVER	09/1977 - 01/1979	2
85190-90305	BJ4#,FJ4#,HJ45..LHD BLACK	01/1979 - 07/1980	2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-60061	FJ4#,HJ45..LHD	03/1969 - 09/1972	2
85190-90303	BJ4#,FJ4#,HJ45..LHD	01/1975 - 09/1977	2
85190-60010	FJ40,42,43..TP FOR HINGED WINDSHIELD	03/1969 - 01/1975	2
85190-60010	BJ4#,FJ4#..TP..GEN FOR HINGED WINDSHIELD	01/1975 - 09/1977	2
85190-90303	BJ4#,FJ4#,HJ45..LHD..GEN SILVER	09/1977 - 01/1979	2
85190-90305	BJ4#,FJ4#,HJ45..LHD BLACK	01/1979 - 07/1980	2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-60030	FJ4#,HJ45	03/1969 - 09/1972	2
85220-55010	FJ40,42,43..TP FOR HINGED WINDSHIELD	03/1969 - 01/1975	2
85220-95402	BJ4#,FJ4#,HJ45	01/1975 - 01/1979	2
85220-90304	BJ4#,FJ4#,HJ45	01/1979 - 07/1980	2
85220-55010	BJ4#,FJ4#..TP..GEN FOR HINGED WINDSHIELD	01/1975 - 09/1977	2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-60030	FJ4#,HJ45	03/1969 - 09/1972	2
85220-55010	FJ40,42,43..TP FOR HINGED WINDSHIELD	03/1969 - 01/1975	2
85220-95402	BJ4#,FJ4#,HJ45	01/1975 - 01/1979	2
85220-90304	BJ4#,FJ4#,HJ45	01/1979 - 07/1980	2
85220-55010	BJ4#,FJ4#..TP..GEN FOR HINGED WINDSHIELD	01/1975 - 09/1977	2
Common parts
93311-16010
