FJ40L-KJ (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8411)2F

Click highlighted areas on diagram

diagram 12311 12311 12311B 12315 12361 12361 12371 12511 12511 9011912032 9011912032 9011912032 9011912068 9011912068 9011912068 9017012018 9017012018 9017012018 9017012018 9017012018 9020112021 9020112021 9020112021 9121241025 9161161030 9165961225 9451201000 9451201200 9451201200 9451201200 9451201200 9451201200
Part # Description Qty Price
Common parts
90119-12032
90119-12068
90170-12018
90201-12021
91212-41025
91611-61030
91659-61225
94512-01000
94512-01200

(8008-8410)B,3B

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12361 12371 12511 12511 9010512008 9010512091 9011910110 9011910110 9017012018 9020112021 9020112021 9020112021 9116151220 9116151220 9165961225 9411541200 9411541200 9451201200 9451201200 9451201200 9451201200 9451201200
Part # Description Qty Price
Common parts
90105-12008
90105-12091
90119-10110
90170-12018
90201-12021
91161-51220
91659-61225
94115-41200
94512-01200

(7501-8007)2F

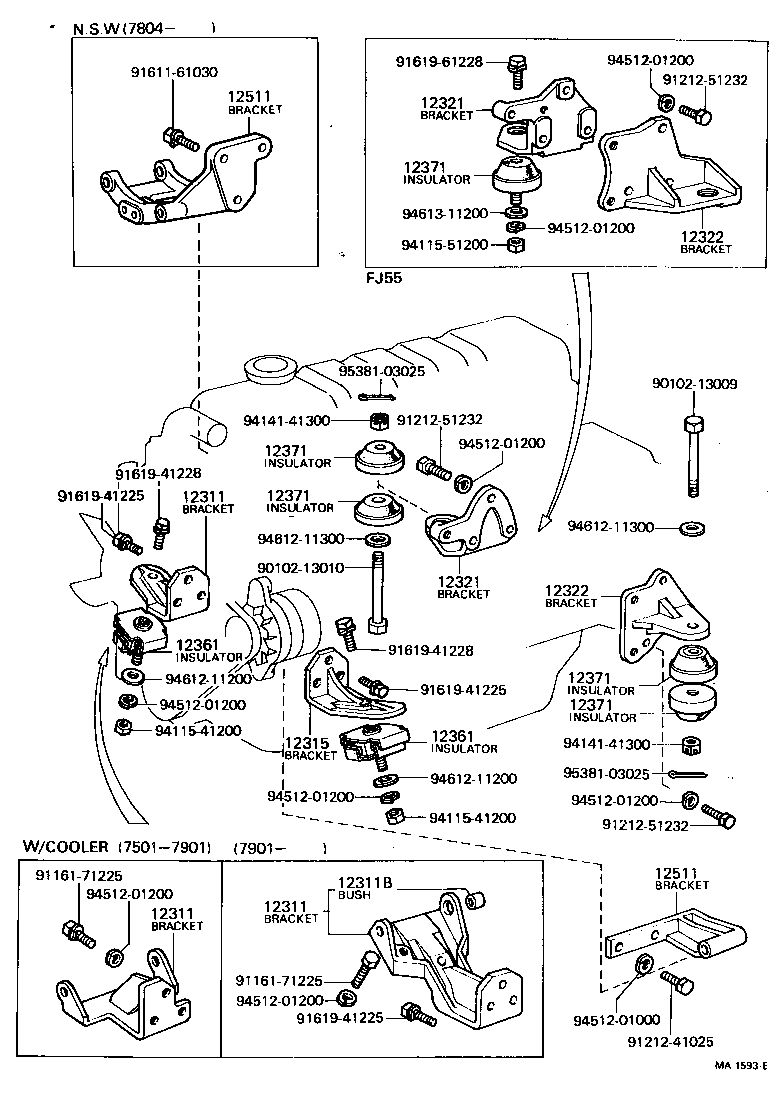

Click highlighted areas on diagram

diagram 12311 12311 12311 12311B 12315 12321 12321 12322 12322 12361 12361 12371 12371 12371 12371 12371 12511 12511 9010213009 9010213010 9116171225 9116171225 9121241025 9121251232 9121251232 9121251232 9161161030 9161941225 9161941225 9161941225 9161941228 9161941228 9161961228 9411541200 9411541200 9411551200 9414141300 9414141300 9451201000 9451201200 9451201200 9451201200 9451201200 9451201200 9451201200 9451201200 9451201200 9461211200 9461211200 9461211300 9461211300 9461311200 9538103025 9538103025
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-60030

F..FJ4#,55

 1
12301-61011

2F..FJ4#,55..ARL,GEN

W/COOLER

 1
12301-61010

2F..FJ4#,55..ARL,GEN

W/COOLER

 1
12311-61010

2F..FJ4#,55

 1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-60030

F..FJ4#,55

 1
12301-61011

2F..FJ4#,55..ARL,GEN

W/COOLER

 1
12301-61010

2F..FJ4#,55..ARL,GEN

W/COOLER

 1
12311-61010

2F..FJ4#,55

 1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-60030

F..FJ4#,55

 1
12301-61011

2F..FJ4#,55..ARL,GEN

W/COOLER

 1
12301-61010

2F..FJ4#,55..ARL,GEN

W/COOLER

 1
12311-61010

2F..FJ4#,55

 1
12311B - BUSH(FOR ENGINE MOUNTING BRACKET)
90387-10028

2F..FJ4#,55..ARL,GEN

W/COOLER

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-61010

2F..FJ4#,55

 1
12315-60020

F..FJ4#,55

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-60020

F,2F..FJ4#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-60020

F,2F..FJ4#

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-60030

F..FJ4#

 1
12322-61030

2F..FJ4#

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-60030

F..FJ4#

 1
12322-61030

2F..FJ4#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-60020

F..FJ4#,55

 2
12361-60022

2F..FJ4#,55

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-60020

F..FJ4#,55

 2
12361-60022

2F..FJ4#,55

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-60010

F,2F..FJ4#

 4
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-60010

F,2F..FJ4#

 4
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-60010

F,2F..FJ4#

 4
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-60010

F,2F..FJ4#

 4
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-60010

F,2F..FJ4#

 4
12511 - BRACKET, ALTERNATOR, NO.1
12511-60080

F,2F..FJ4#,55

 1
12511-60081

2F..FJ4#,55

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-60080

F,2F..FJ4#,55

 1
12511-60081

2F..FJ4#,55

 1
Common parts
90102-13009
90102-13010
91161-71225
91212-41025
91212-51232
91611-61030
91619-41225
91619-41228
91619-61228
94115-41200
94115-51200
94141-41300
94512-01000
94512-01200
94612-11200
94612-11300
94613-11200
95381-03025
