FJ40L-KCJ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )TP,V..EUR,GEN

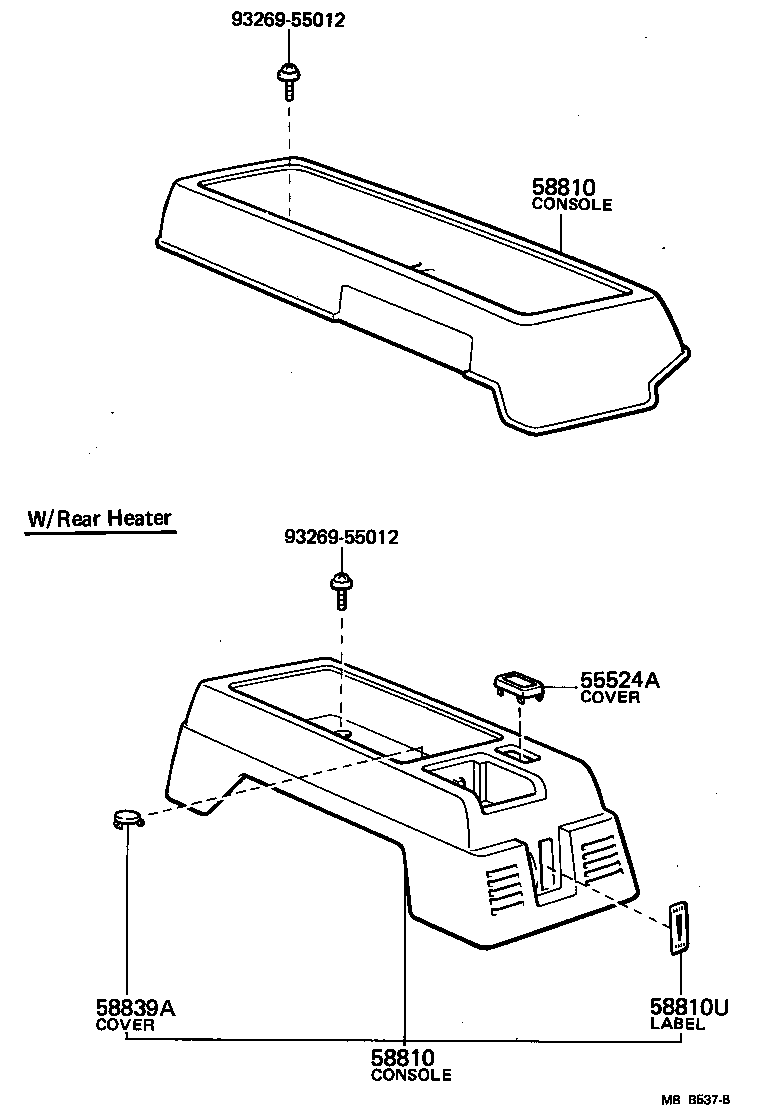

Click highlighted areas on diagram

diagram 55524A 58810 58810 58810U 58839A 9326955012 9326955012
Part # Description Qty Price
55524A - COVER, SWITCH BASE HOLE
55524-90A00

BJ4#,FJ4#,HJ47..(TP,V)..(EUR,GEN)

W/RR HEATER

 1
58810 - CONSOLE ASSY
58951-90300

BJ4#,FJ4#,HJ47..EUR,GEN

 1
58811-90800

BJ4#,FJ4#,HJ47..(TP,V)..(EUR,GEN)

W/RR HEATER

 1
58810 - CONSOLE ASSY
58951-90300

BJ4#,FJ4#,HJ47..EUR,GEN

 1
58811-90800

BJ4#,FJ4#,HJ47..(TP,V)..(EUR,GEN)

W/RR HEATER

 1
58810U - LABEL, HEATER WARM CONTROL INDICATOR
58829-90800

BJ4#,FJ4#,HJ47..(TP,V)..(EUR,GEN)

W/RR HEATER

 1
58839A - COVER, CONSOLE BOX HOLE
58839-90800

BJ4#,FJ4#,HJ47..(TP,V)..(EUR,GEN)

W/RR HEATER

 1
Common parts
93269-55012
