FJ40L-KCJ (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1982
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )FJ4#,HJ47

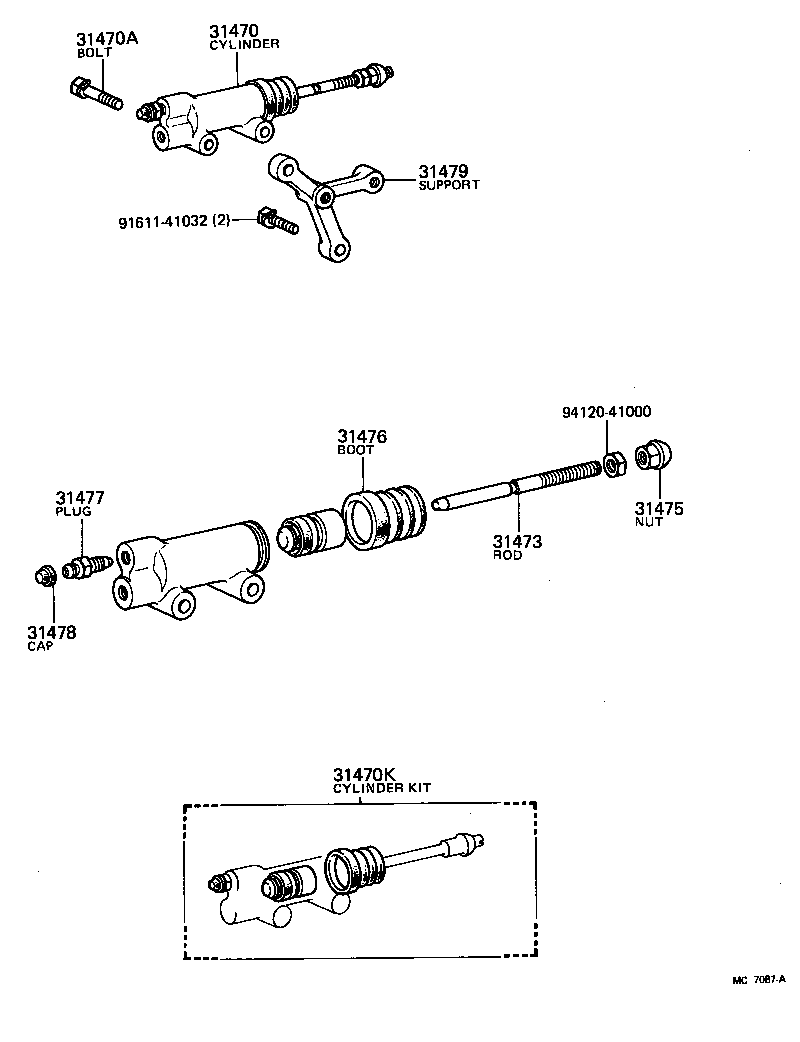

Click highlighted areas on diagram

diagram 31470 31470A 31470K 31473 31475 31476 31477 31478 31479 9161141032 9412041000
Part # Description Qty Price
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-60081

FJ4#

 1
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-41055

FJ4#,HJ47

 2
31470K - CYLINDER KIT, CLUTCH RELEASE
04313-60020

FJ4#,HJ47

 1
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-60061

FJ4#

 1
31475 - NUT, CLUTCH RELEASE CYLINDER PUSH ROD
31475-60020

FJ4#,HJ47

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-60031

FJ4#,HJ47

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-12010

BJ4#,FJ4#,HJ47

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

BJ4#,FJ4#,HJ47

 1
31479 - SUPPORT, CLUTCH RELEASE CYLINDER
31479-60030

FJ4#

 1
Common parts
91611-41032
94120-41000
