FJ40L-KCJ (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8210)BJ40,42,43,46,FJ40,43 ; (8210- )BJ40,42,43,46,FJ40,43 ; (8210- )BJ

Click highlighted areas on diagram

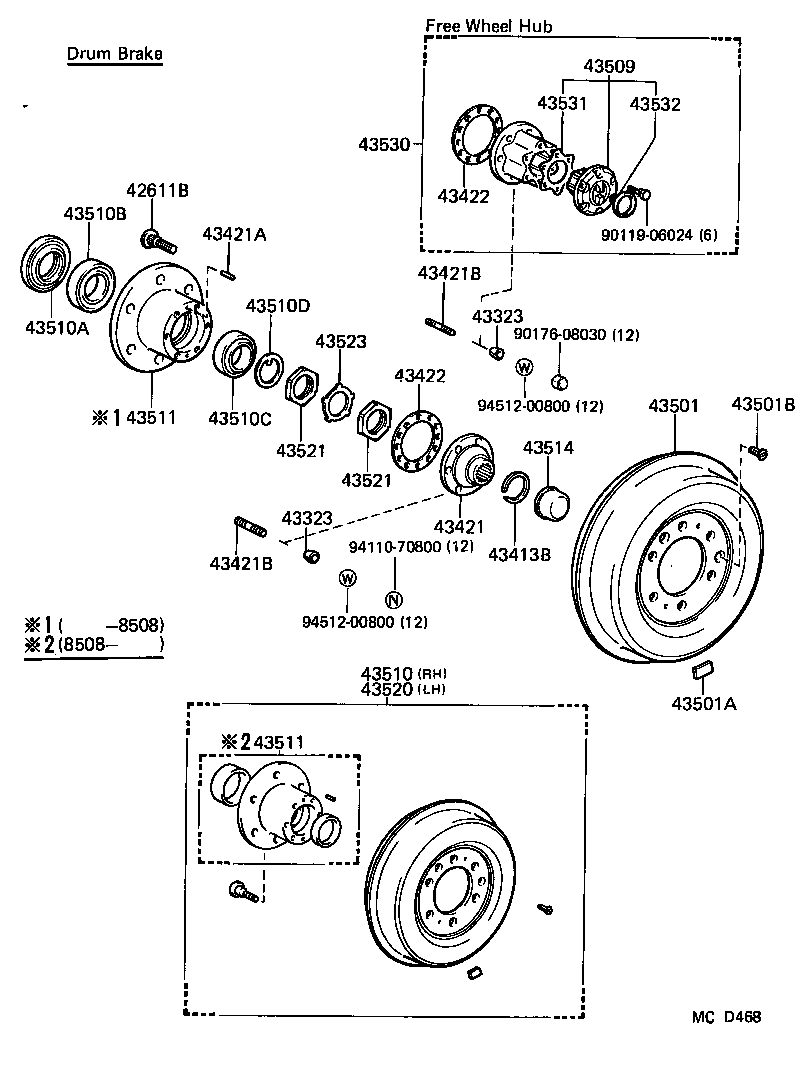

diagram 42611B 43323 43323 43413B 43421 43421A 43421B 43421B 43422 43422 43509 43510A 43510B 43510C 43510D 43511 43512 43514 43521 43521 43523 43530 43531 43532 9011906024 9017608030 9111271025 9411070800 9451200800 9451200800 9451201000
Part # Description Qty Price
Common parts
90119-06024
90176-08030
91112-71025
94110-70800
94512-00800
94512-01000

(8008-8210)BJ45,FJ45 ; (8008-8210)BJ40,42,43,46,FJ40,43,HJ47..ARL,GEN ; (8210- )

Click highlighted areas on diagram

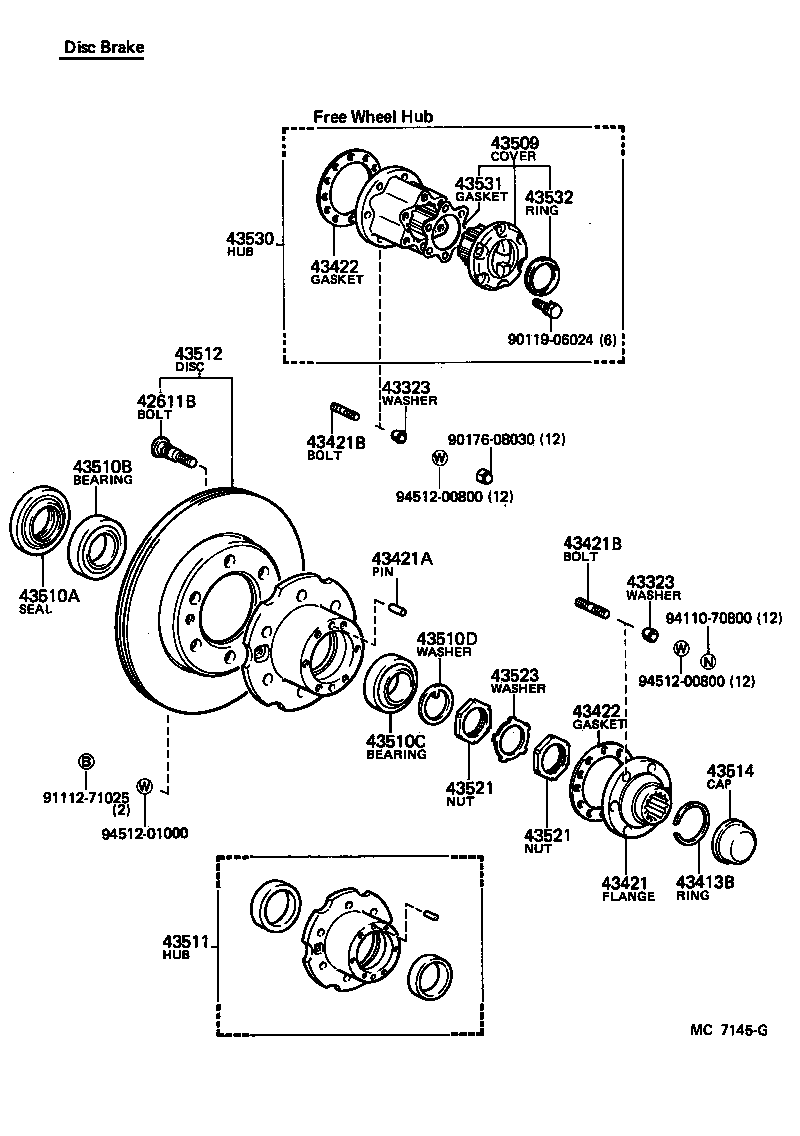

diagram 42611B 43323 43323 43413B 43421 43421A 43421B 43421B 43422 43422 43501 43501A 43501B 43509 43510 43510A 43510B 43510C 43510D 43511 43511 43514 43520 43521 43521 43523 43530 43531 43532 9011906024 9017608030 9411070800 9451200800 9451200800
Part # Description Qty Price
Common parts
90119-06024
90176-08030
94110-70800
94512-00800
