FJ40L-KCJ (1975)

Toyota Land Cruiser

Production Jan 1975 - Jul 1980
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8410)B,3B

Click highlighted areas on diagram

diagram 22100 22100A 22100A 22811 22811 22821 23701 23702 23703 23704 23741 23741 9004179064 9017906070 9017908060 9161161016 9161161016 9165160816 9212260625
Part # Description Qty Price
Common parts
90041-79064
90179-06070
90179-08060
91611-61016
91651-60816
92122-60625

(7709-8007)B

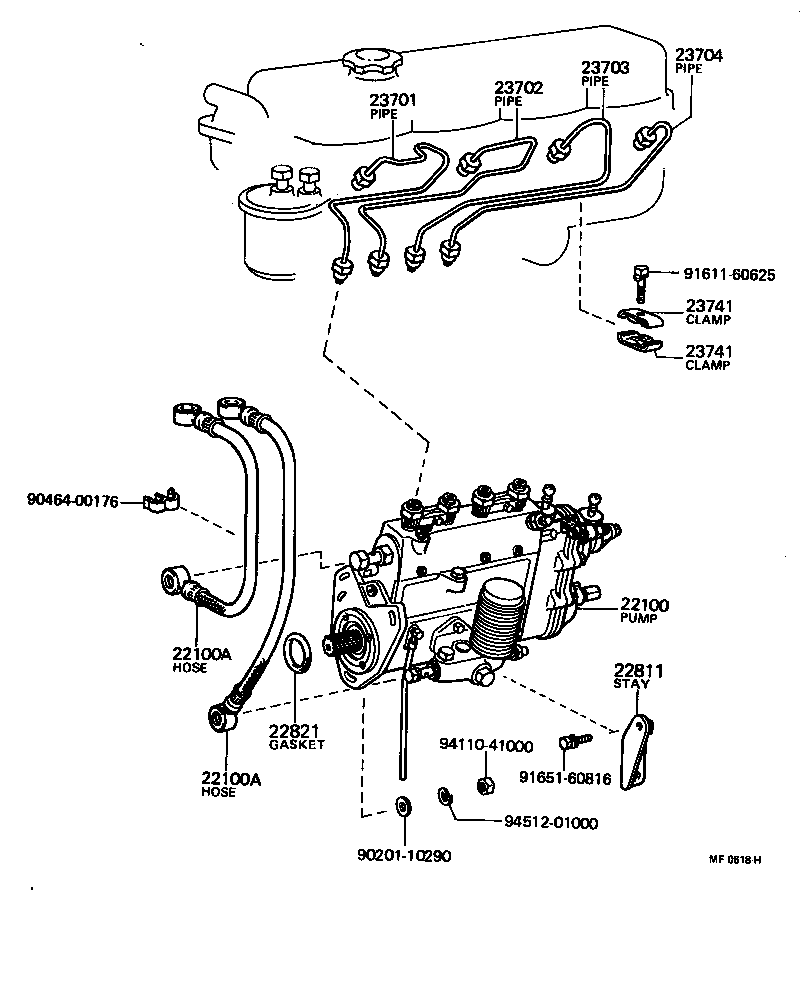

Click highlighted areas on diagram

diagram 22100 22100A 22100A 22811 22821 23701 23702 23703 23704 23741 23741 9020110290 9046400176 9161160625 9165160816 9411041000 9451201000
Part # Description Qty Price
Common parts
90201-10290
90464-00176
91611-60625
91651-60816
94110-41000
94512-01000

(7709-8007)H

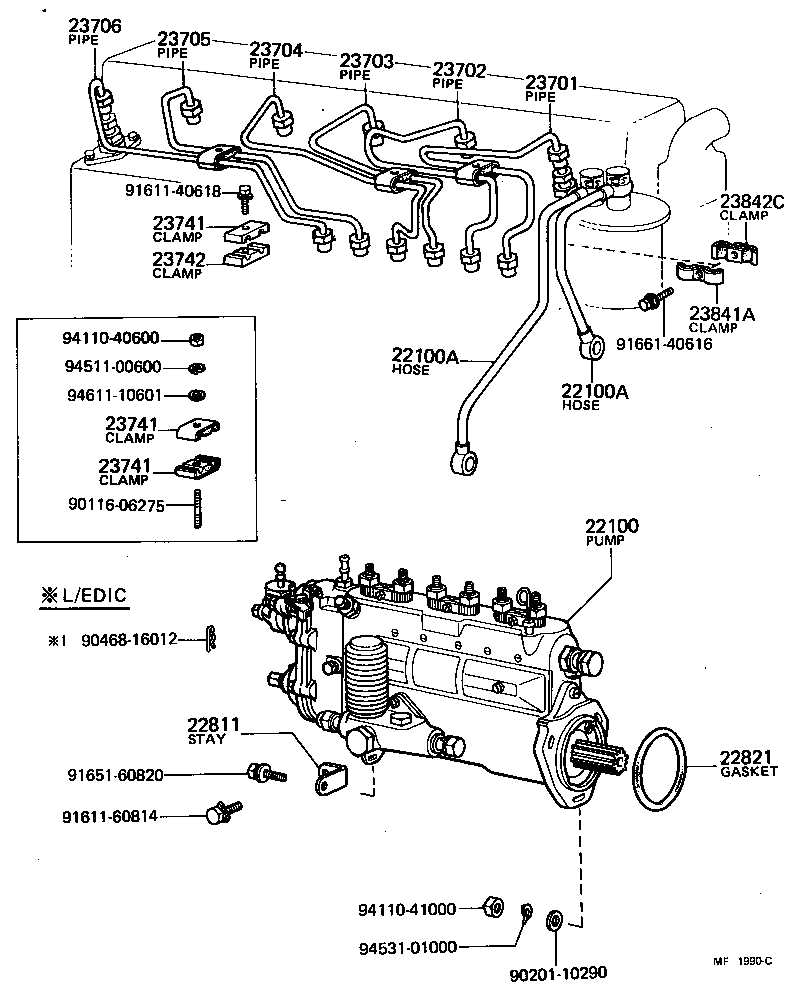

Click highlighted areas on diagram

diagram 22100 22100A 22100A 22811 22821 23701 23702 23703 23704 23705 23706 23741 23741 23741 23742 23841A 23842C 9011606275 9020110290 9046816012 9161140618 9161160814 9165160820 9166140616 9411040600 9411041000 9451100600 9453101000 9461110601
Part # Description Qty Price
Common parts
90116-06275
90201-10290
90468-16012
91611-40618
91611-60814
91651-60820
91661-40616
94110-40600
94110-41000
94511-00600
94531-01000
94611-10601
