FJ40L-KC (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1985
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )2F

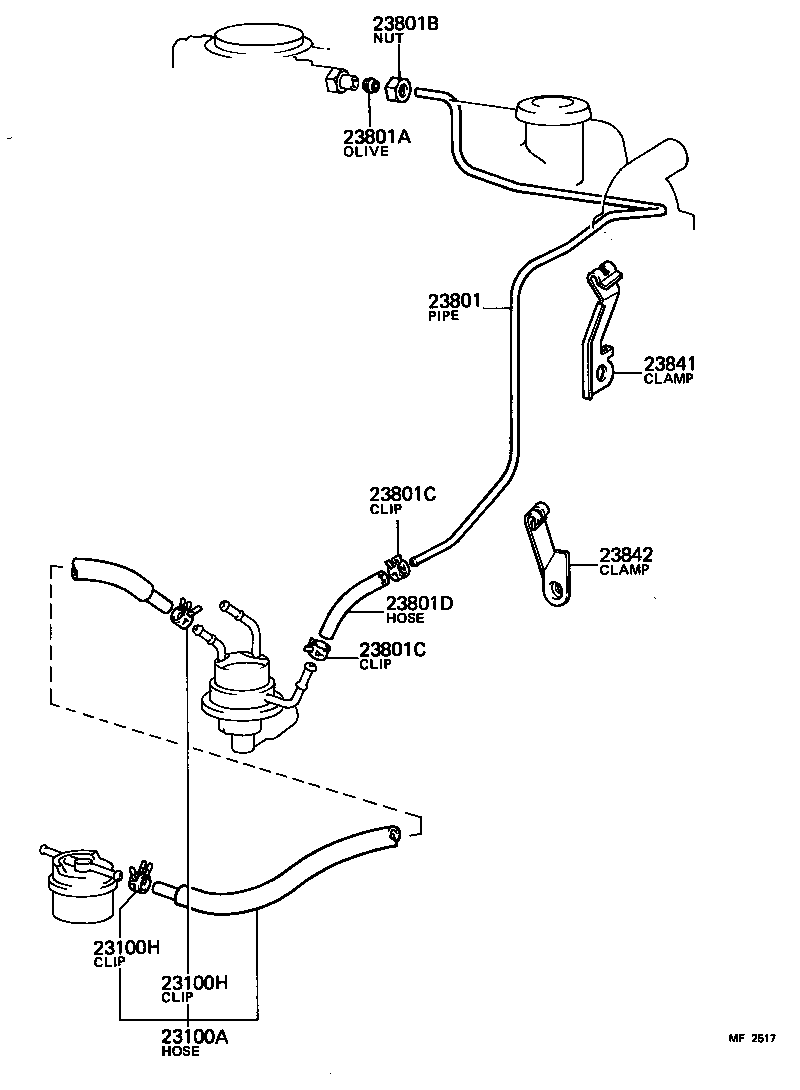

Click highlighted areas on diagram

diagram 23100A 23100H 23100H 23801 23801A 23801B 23801C 23801C 23801D 23841 23842
Part # Description Qty Price
23100A - HOSE, FUEL
23820-61070

2F..FJ4#

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30800

2F..FJ4#

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30800

2F..FJ4#

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23811-61032

2F..FJ4#

 1
23801A - OLIVE(FOR FUEL PIPE)
96395-71400

2F..FJ4#

 1
23801B - NUT, UNION(FOR FUEL PIPE)
90402-13041

2F..FJ4#

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30800

2F..FJ4#

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30800

2F..FJ4#

 2
23801D - HOSE, FUEL PIPE, NO.1
95332-08020

2F..FJ4#

*H,L=130,ID=7.6

 1
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
23841-61021

2F..FJ4#

 1
23842 - CLAMP, FUEL PIPE(HOSE), NO.2
23842-61031

2F..FJ4#

 1
