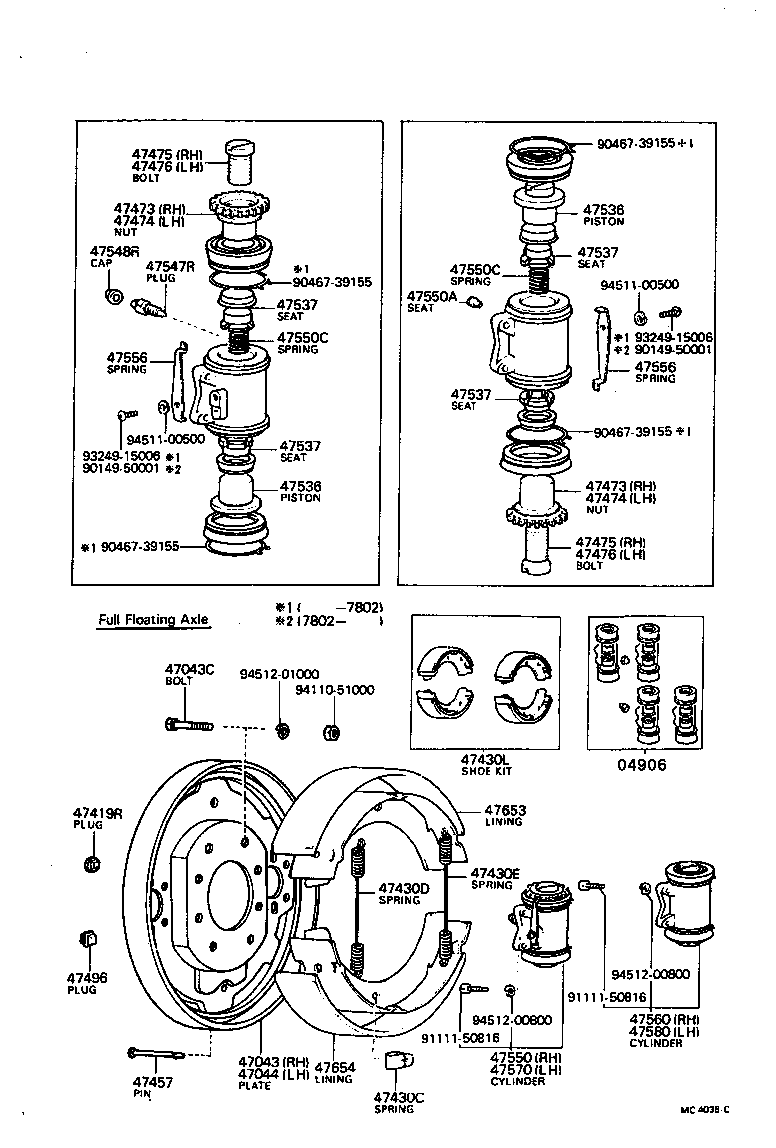

FJ40L-KC (1975)
Toyota Land Cruiser
(8008- )BJ40,42,43,46,FJ40,43 ; (8210-8506)FJ45,HJ47..RHD..GEN..IV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06084 | ||||
| 90201-12452 | ||||
| 90206-08024 | ||||
| 91611-40814 | ||||
| 93280-16022 | ||||
| 94110-40600 | ||||
| 96160-00600 | ||||
(7509-8007)BJ4#,FJ40,43,55
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-60011 |
FJ40,42 FOR SINGLE MASTER CYLINDER |
1 | ||
| 04906-60024 |
BJ40,FJ40 |
1 | ||
| 04906-60024 |
BJ40,FJ40..ARL,GEN |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-60010 |
BJ4#,FJ40,43,55 |
1 | ||
| 47043-60010 |
BJ4#,FJ40,43,55..EUR,GEN FOR SEMI FLOATING AXLE |
1 | ||
| 47043-35010 |
FJ4#,55 |
1 | ||
| 47043-60021 |
BJ4#,FJ40,43,55 FOR FULL FLOATING AXLE |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 42184-35010 |
BJ4#,FJ4#,55,HJ45 FOR SEMI FLOATING AXLE |
12 | ||
| 90101-10061 |
BJ4#,FJ4#,55,HJ45 FOR FULL FLOATING AXLE |
16 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47043-35010 |
FJ4#,55 |
1 | ||
| 47043-60010 |
BJ4#,FJ40,43,55 |
1 | ||
| 47043-60021 |
BJ4#,FJ40,43,55 FOR FULL FLOATING AXLE |
1 | ||
| 47043-60010 |
BJ4#,FJ40,43,55..EUR,GEN FOR SEMI FLOATING AXLE |
1 | ||
| 47419R - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47419-35011 |
BJ4#,FJ4#,55,HJ45 |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26071 |
FJ4#,55 |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26071 |
FJ4#,55 |
2 | ||
| 47430L - SHOE KIT, REAR BRAKE | ||||
| 04494-60010 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 04494-60010 |
BJ4#,FJ40,43,55 |
1 | ||
| 47457 - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-30010 |
BJ4#,FJ40,43,55 FOR FULL FLOATING AXLE |
4 | ||
| 47447-35020 |
BJ4#,FJ4#,55,HJ45..EUR,GEN FOR SEMI FLOATING AXLE |
4 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47552-60010 |
FJ40,42 FOR SINGLE MASTER CYLINDER |
2 | ||
| 47552-60021 |
BJ40,FJ40..ARL,GEN |
2 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47552-60010 |
FJ40,42 FOR SINGLE MASTER CYLINDER |
2 | ||
| 47552-60021 |
BJ40,FJ40..ARL,GEN |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47551-60010 |
FJ40,42 FOR SINGLE MASTER CYLINDER |
2 | ||
| 47551-60021 |
BJ40,FJ40..ARL,GEN |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47551-60010 |
FJ40,42 FOR SINGLE MASTER CYLINDER |
2 | ||
| 47551-60021 |
BJ40,FJ40..ARL,GEN |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47554-35010 |
FJ4#,55,HJ45 FOR SINGLE MASTER CYLINDER |
2 | ||
| 47553-60040 |
BJ4#,FJ40,43,55 |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47554-35010 |
FJ4#,55,HJ45 FOR SINGLE MASTER CYLINDER |
2 | ||
| 47553-60040 |
BJ4#,FJ40,43,55 |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47553-35010 |
FJ4#,55,HJ45 FOR SINGLE MASTER CYLINDER |
2 | ||
| 47554-60040 |
BJ4#,FJ40,43,55 |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47553-35010 |
FJ4#,55,HJ45 FOR SINGLE MASTER CYLINDER |
2 | ||
| 47554-60040 |
BJ4#,FJ40,43,55 |
2 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
BJ4#,FJ4#,55,HJ45 |
4 | ||
| 47491-35021 |
BJ4#,FJ4#,55,HJ45 |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47531-60020 |
BJ40,FJ40..ARL,GEN |
4 | ||
| 47531-35020 |
FJ40,42 FOR SINGLE MASTER CYLINDER |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47531-60020 |
BJ40,FJ40..ARL,GEN |
4 | ||
| 47531-35020 |
FJ40,42 FOR SINGLE MASTER CYLINDER |
4 | ||
| 47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-35020 |
FJ40,42 FOR SINGLE MASTER CYLINDER |
8 | ||
| 47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-35020 |
FJ40,42 FOR SINGLE MASTER CYLINDER |
8 | ||
| 47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-35020 |
FJ40,42 FOR SINGLE MASTER CYLINDER |
8 | ||
| 47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-35020 |
FJ40,42 FOR SINGLE MASTER CYLINDER |
8 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-35010 |
FJ4#,55 |
4 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
BJ4#,FJ4#,55 |
4 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-60010 |
FJ40,42 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47550-69045 |
BJ40,FJ40..ARL,GEN |
1 | ||
| 47550-69075 |
BJ40,FJ40..ARL,GEN |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-08122 |
FJ4#,55,HJ45 FOR SINGLE MASTER CYLINDER |
4 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-08122 |
FJ4#,55,HJ45 FOR SINGLE MASTER CYLINDER |
4 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47555-36020 |
BJ4#,FJ4#,55,HJ45 |
4 | ||
| 47555-35010 |
BJ4#,FJ4#,55,HJ45 |
4 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47555-36020 |
BJ4#,FJ4#,55,HJ45 |
4 | ||
| 47555-35010 |
BJ4#,FJ4#,55,HJ45 |
4 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-60010 |
FJ40,42 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47560-69035 |
BJ40,FJ40..ARL,GEN |
1 | ||
| 47560-69055 |
BJ40,FJ40..ARL,GEN |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-60010 |
FJ40,42 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47570-69035 |
BJ40,FJ40..ARL,GEN |
1 | ||
| 47570-69065 |
BJ40,FJ40..ARL,GEN |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-60010 |
FJ40,42 FOR SINGLE MASTER CYLINDER |
1 | ||
| 47580-69035 |
BJ40,FJ40..ARL,GEN |
1 | ||
| 47580-69055 |
BJ40,FJ40..ARL,GEN |
1 | ||
| 47653 - LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER) | ||||
| 47651-35010 |
FJ4#,55 |
2 | ||
| 47651-60010 |
BJ4#,FJ40,43,55 |
2 | ||
| 47654 - LINING, REAR BRAKE SHOE(FOR REAR OR LOWER) | ||||
| 47651-60010 |
BJ4#,FJ40,43,55 |
2 | ||
| 47651-35010 |
FJ4#,55 |
2 | ||
| Common parts | ||||
| 90149-50001 | ||||
| 90467-39155 | ||||
| 91111-50816 | ||||
| 93249-15006 | ||||
| 94110-51000 | ||||
| 94511-00500 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
