FJ40L-C (1969)

Toyota Land Cruiser

Production Mar 1969 - Jan 1975
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-8007)BJ4#,FJ40,42,43

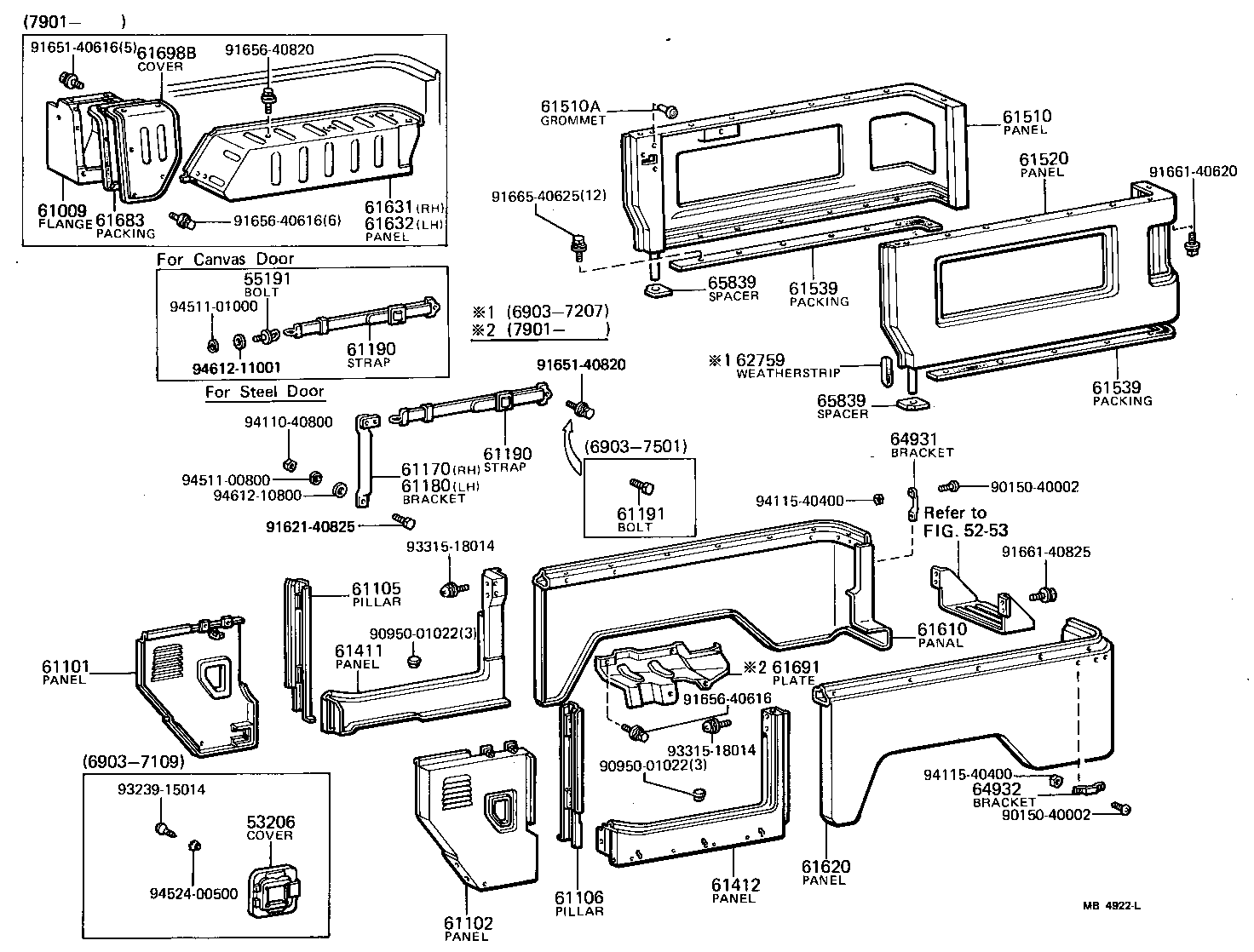

Click highlighted areas on diagram

diagram 5253 53206 55191 61009 61101 61102 61105 61106 61170 61180 61190 61190 61191 61411 61412 61510 61510A 61520 61539 61539 61610 61620 61631 61632 61683 61691 61698B 62759 64931 64932 65839 65839 9015040002 9015040002 9095001022 9095001022 9162140825 9165140616 9165140820 9165640616 9165640616 9165640820 9166140620 9166140825 9166540625 9323915014 9331518014 9331518014 9411040800 9411540400 9411540400 9451100800 9451101000 9452400500 9461210800 9461211001
Part # Description Qty Price
53206 - COVER SUB-ASSY, COWL SIDE AIR GUIDE
53206-60010

FJ4#..LHD

 1
55191 - BOLT, SAFETY STRAP RING
55191-60010

BJ4#,FJ40,42,43..TP

 2
61105 - PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, RH
61106-90300

BJ4#,FJ4#,HJ45

 1
61106 - PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, LH
61107-90302

BJ4#,FJ4#,HJ45

 1
61107-90300

FJ4#,HJ45

 1
61170 - BRACKET ASSY, SAFETY STRAP, RH
61018-60010

BJ4#,FJ4#,HJ45

FOR STEEL DOOR

 1
61180 - BRACKET ASSY, SAFETY STRAP, LH
61019-60010

BJ4#,FJ4#,HJ45

FOR STEEL DOOR

 1
61190 - STRAP ASSY, SAFETY
61190-60011

BJ4#,FJ4#,HJ45

 2
61190 - STRAP ASSY, SAFETY
61190-60011

BJ4#,FJ4#,HJ45

 2
61191 - BOLT, SAFETY STRAP RING
61191-60010

BJ4#,FJ4#,HJ45

FOR STEEL DOOR

 2
61411 - PANEL, ROCKER, OUTER RH
61310-90300

FJ40,42,43

 1
61310-90302

BJ4#,FJ40,43

 1
61310-60010

FJ40,42,43

 1
61412 - PANEL, ROCKER, OUTER LH
61320-90300

BJ4#,FJ40,42,43

 1
61320-60010

FJ40,42,43

 1
61610 - PANEL ASSY, REAR BODY SIDE, RH
61601-90315

FJ40..LHD..TPC

 1
61601-90329

FJ40..LHD..TPC

 1
61601-90072

FJ40..LHD..TPC

 1
61601-90279

FJ40..LHD..TPC

 1
61601-90417

FJ40..LHD..TPC

FOR W/SAFETY BAR

 1
61620 - PANEL ASSY, REAR BODY SIDE, LH
61602-90304

FJ40..LHD..TPC

 1
61602-90329

FJ40..LHD..TPC

 1
61602-90070

BJ40,FJ40..LHD..TPC

 1
61602-90085

BJ40,FJ40..LHD..TPC

FOR W/SAFETY BAR

 1
64931 - BRACKET, BAND, NO.1
64921-60010

BJ4#,FJ4#..TPB,TPC,TPS,VLS

 6
64932 - BRACKET, BAND, NO.2
64921-90310

BJ4#,FJ4#..TPB,TPC,TPS,VLS

 2
Common parts
90150-40002
90950-01022
91621-40825
91651-40616
91651-40820
91656-40616
91656-40820
91661-40620
91661-40825
91665-40625
93239-15014
93315-18014
94110-40800
94115-40400
94511-00800
94511-01000
94524-00500
94612-10800
94612-11001
Linked diagrams
5253
