FJ40L-C (1969)

Toyota Land Cruiser

Production Mar 1969 - Jan 1975
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

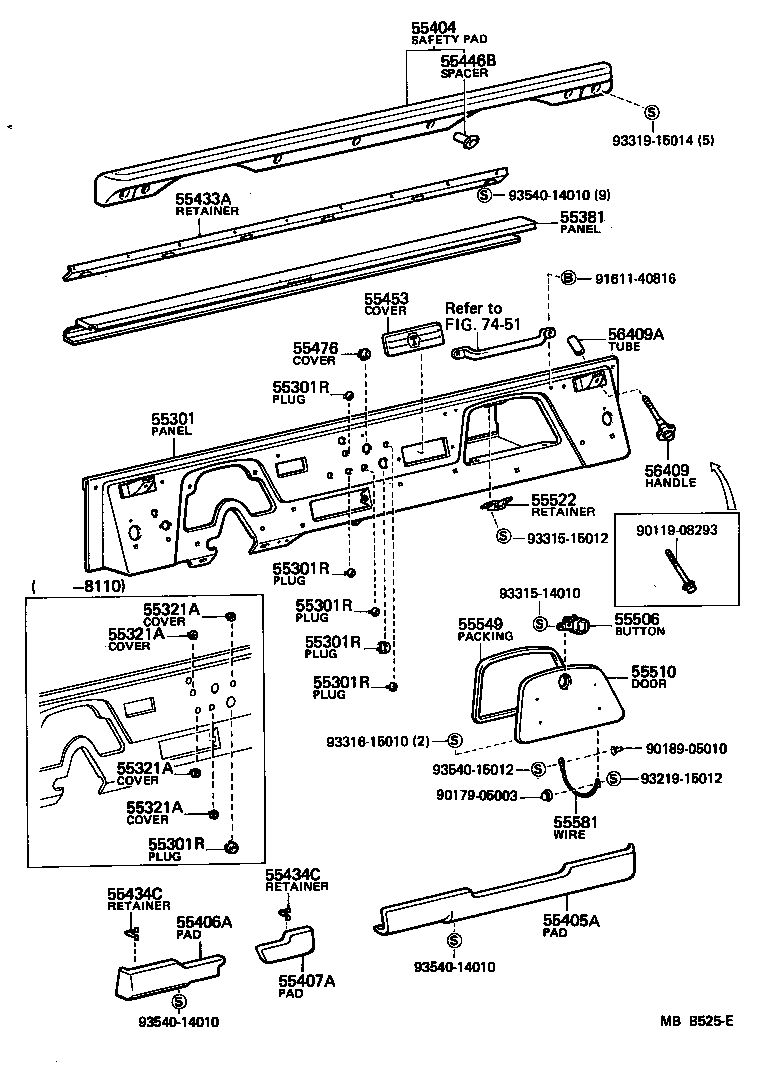

(8008-8210)LHD

Click highlighted areas on diagram

diagram 55301 55301R 55301R 55301R 55301R 55301R 55301R 55321A 55321A 55321A 55321A 55381 55404 55405A 55406A 55407A 55433A 55434C 55434C 55446B 55453 55476 55506 55510 55522 55549 55581 56409 56409A 7451 9011908293 9017905003 9018905010 9161140816 9321915012 9331514010 9331515012 9331615010 9331915014 9354014010 9354014010 9354014010 9354015012
Part # Description Qty Price
Common parts
90119-08293
90179-05003
90189-05010
91611-40816
93219-15012
93315-14010
93315-15012
93316-15010
93319-15014
93540-14010
93540-15012
Linked diagrams
7451

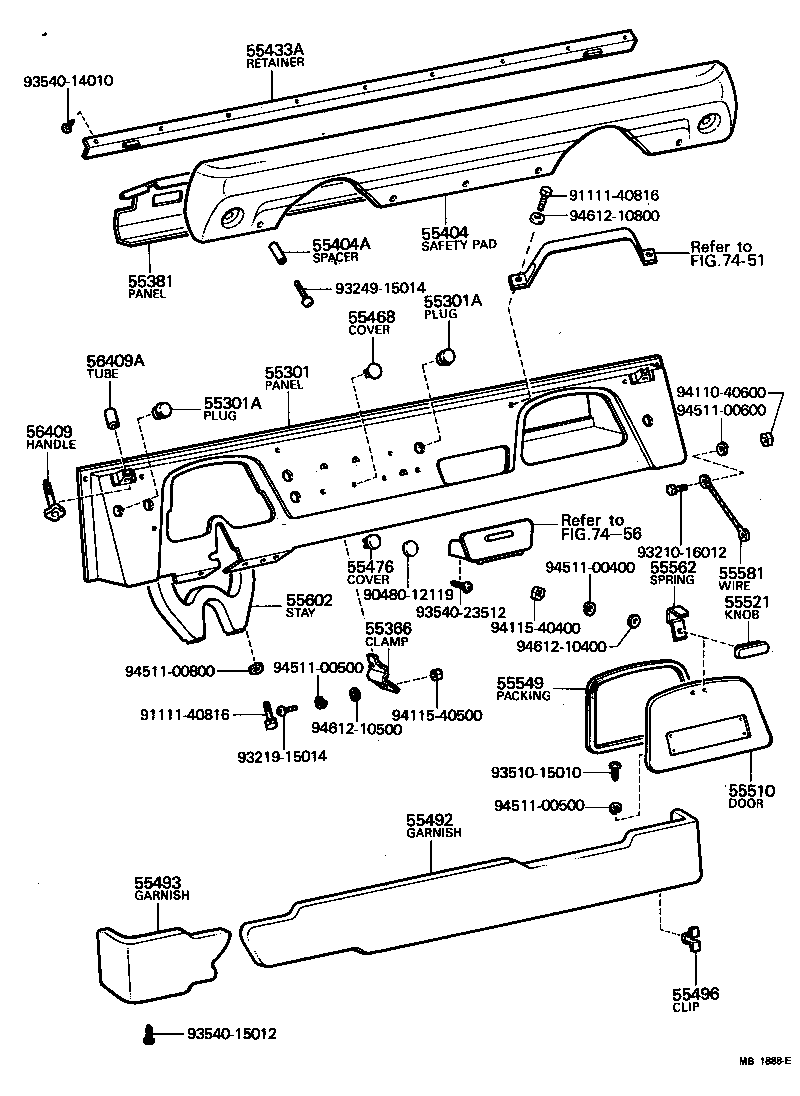

(6903-7209)FJ4#,HJ45..LHD

Click highlighted areas on diagram

diagram 55301 55301A 55301A 55366 55381 55404 55404A 55433A 55468 55476 55492 55493 55496 55510 55521 55549 55562 55581 55602 56409 56409A 7451 7456 9048012119 9111140816 9111140816 9321016012 9321915014 9324915014 9351015010 9354014010 9354015012 9354023512 9411040600 9411540400 9411540500 9451100400 9451100500 9451100500 9451100600 9451100800 9461210400 9461210500 9461210800
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55301-60092

FJ40,43,45..LHD

FOR COLUMN SHIFT,W/PAD

 1
55301-60041

FJ40,43,45..LHD

FOR COLUMN SHIFT

 1
55301-60051

FJ4#..LHD

FOR FLOOR SHIFT

 1
55301-60043

FJ40,43,45..LHD

FOR COLUMN SHIFT

 1
55301-60042

FJ40,43,45..LHD

FOR COLUMN SHIFT

 1
55301-60053

FJ4#..LHD

FOR FLOOR SHIFT

 1
55301-60093

FJ40,43,45..LHD

FOR COLUMN SHIFT,W/PAD

 1
55301-60052

FJ4#..LHD

FOR FLOOR SHIFT

 1
55301-60130

FJ40,43..LHD

COLUMN SHIFT,L/PAD,TANDEM M/C

 1
55301-60120

FJ4#..LHD

FOR COLUMN SHIFT,W/PAD

 1
55301-90314

FJ4#..LHD

FOR W/PAD

 1
55301-90315

FJ4#..LHD

FOR L/PAD

 1
55301-90300

FJ40,43..LHD

FLOOR SHIFT,L/PAD,TANDEM M/C

 1
55301A - PLUG, HOLE(FOR INSTRUMENT LOWER PANEL)
90950-01038

FJ4#

 4
55301A - PLUG, HOLE(FOR INSTRUMENT LOWER PANEL)
90950-01038

FJ4#

 4
55366 - CLAMP, TRANSFER CHANGE VALVE SHIFT WIRE
55366-60010

FJ40,43,45..LHD

 1
55381 - PANEL, INSTRUMENT IMPACT
55381-60010

BJ4#,FJ42;FJ40,43,45..LHD

FOR W/PAD

 1
55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER
55404-90300

BJ4#;FJ4#..LHD

 1
55404-60010

FJ4#..LHD

 1
55404A - SPACER, INSTRUMENT PANEL SAFETY PAD SET
55446-60010

FJ4#..LHD

 5
55433A - RETAINER, SAFETY PAD SET PLATE
55449-60010

BJ4#,FJ42;FJ40,43,45..LHD

 1
55468 - COVER, HEATER SWITCH HOLE
55405-20020

FJ4#,HJ45

 1
55476 - COVER, CIGARETTE LIGHTER HOLE
55476-20021

FJ4#,55,HJ45

OD=27

 2
55492 - GARNISH OR SAFETY PAD, LOWER, RH
55405-60010

FJ4#..LHD

 1
55493 - GARNISH OR SAFETY PAD, LOWER, LH
55406-60010

BJ4#,FJ4#..LHD

 1
55496 - CLIP, LOWER SAFETY PAD
55434-30020

BJ4#,FJ4#..LHD

 11
55510 - DOOR ASSY, GLOVE COMPARTMENT
55501-60041

BJ4#,FJ4#,HJ45

 1
55521 - KNOB, GLOVE COMPARTMENT DOOR
55521-60011

BJ4#,FJ4#,HJ45

 1
55549 - PACKING, GLOVE COMPARTMENT DOOR
55549-60011

BJ4#,FJ4#,HJ45

 1
55562 - SPRING, GLOVE COMPARTMENT DOOR STOP
55544-55010

FJ4#

 1
55581 - WIRE, GLOVE COMPARTMENT DOOR OPEN
55581-60010

FJ4#

 1
55602 - STAY SUB-ASSY, STEERING COLUMN, UPPER
55672-60020

BJ4#,FJ4#,HJ45..LHD

 1
56409 - HANDLE SUB-ASSY, WINDSHIELD CATCH
56409-60010

BJ4#,FJ4#,HJ45

 2
56409A - TUBE, WINDSHIELD CATCH HANDLE
90440-17057

BJ4#,FJ4#,HJ45

 2
Common parts
90480-12119
91111-40816
93210-16012
93219-15014
93249-15014
93510-15010
93540-14010
93540-15012
93540-23512
94110-40600
94115-40400
94115-40500
94511-00400
94511-00500
94511-00600
94511-00800
94612-10400
94612-10500
94612-10800
Linked diagrams
7451
7456
