Toyota Land cruiser FJ40 BRAKE TUBE & CLAMP

Manufacturers Home
Toyota
EU
LAND CRUISER
FJ40L-C (1969)
4708 - BRAKE TUBE & CLAMP

FJ40L-C (1969)

Toyota Land Cruiser

Production Mar 1969 - Jan 1975

Engine F

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

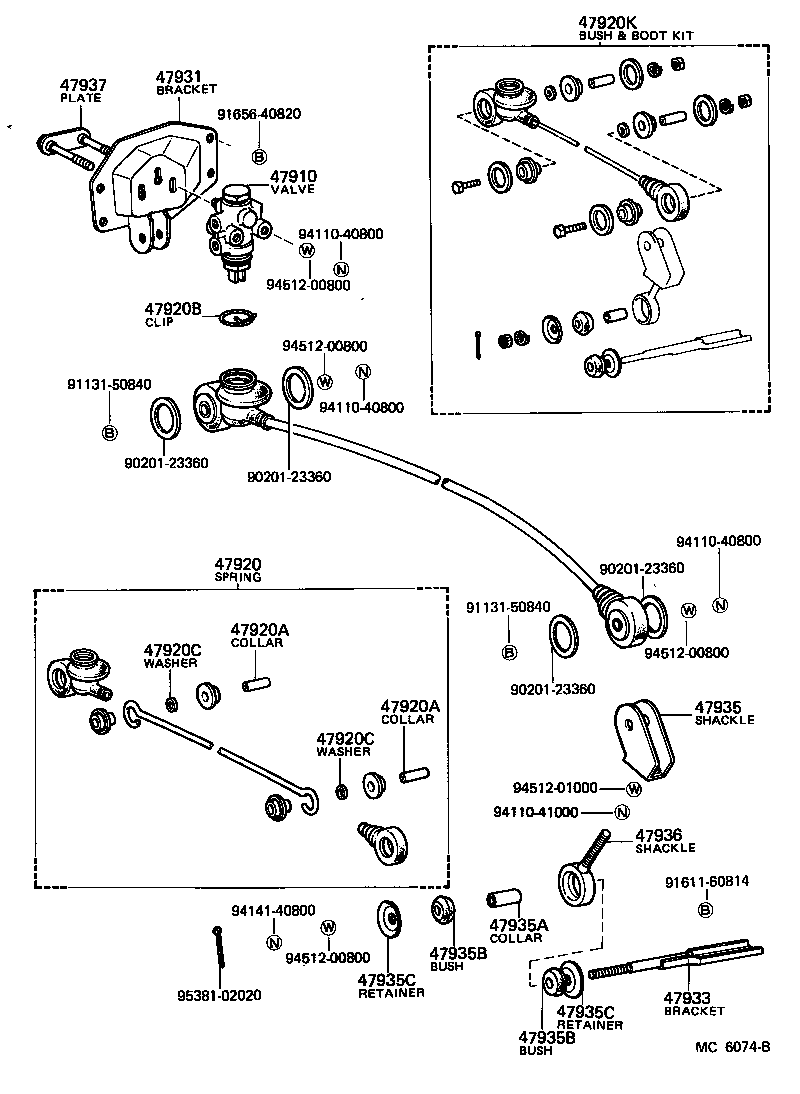

(8008-8102)BJ45,FJ45..EUR ; (8102-8410)EUR ; (8210-8410)FJ45,HJ47..ARL ; (8301-8506

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90201-23360
91131-50840
91611-60814
91656-40820
94110-40800
94110-41000
94141-40800
94512-00800
94512-01000
95381-02020

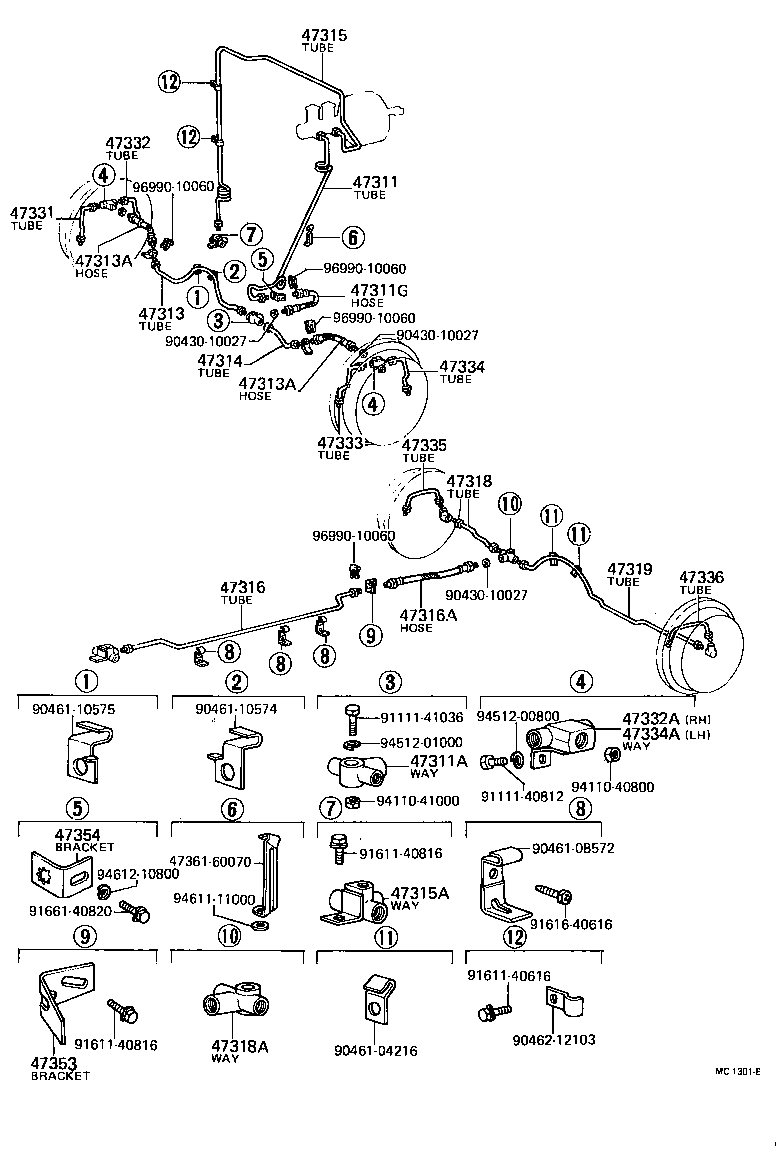

(7101-7109)FJ40..LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-60030	FJ4#..LHD FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47311-60031	FJ4#,HJ45..LHD FOR SINGLE MASTER CYLINDER	09/1971 - 09/1972	1
47312-60050	FJ40,43..LHD FOR TANDEM MASTER CYLINDER	01/1973 - 01/1975	1
47312-60050	FJ40..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 01/1973	1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-09015	FJ4# FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02078	FJ40..LHD	01/1971 - 09/1971	1
90947-02078	FJ4#,HJ45	09/1971 - 09/1974	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-60021	FJ4# FOR SINGLE MASTER CYLINDER	05/1970 - 09/1971	1
47313-60020	FJ4#	03/1969 - 05/1970	1
47313-60060	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96920-31221	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	2
90947-02138	FJ4# FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	2
96920-31221	BJ4#,FJ4#,55,HJ45	09/1971 - 09/1974	2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96920-31221	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	2
90947-02138	FJ4# FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	2
96920-31221	BJ4#,FJ4#,55,HJ45	09/1971 - 09/1974	2
47314 - TUBE, FRONT BRAKE, NO.4
47314-60030	FJ4#..LHD	03/1969 - 05/1970	1
47314-60031	FJ4#..LHD FOR SINGLE MASTER CYLINDER	05/1970 - 09/1971	1
47314-60090	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47315 - TUBE, FRONT BRAKE, NO.5
47312-60010	FJ4# FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47311-60081	FJ40..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47315-60060	FJ40..LHD FOR TANDEM MASTER CYLINDER	09/1971 - 09/1972	1
47315-60061	FJ40..LHD FOR TANDEM MASTER CYLINDER	09/1972 - 01/1973	1
47315-60070	FJ4#,HJ45 FOR SINGLE MASTER CYLINDER	09/1971 - 01/1975	1
47315-60061	FJ40,43..LHD FOR TANDEM MASTER CYLINDER	01/1973 - 01/1975	1
47315A - WAY OR UNION(FOR REAR BRAKE TUBE)
90412-09004	FJ4#..LHD	03/1969 - 09/1971	1
90412-10015	FJ40,55..LHD	01/1971 - 09/1971	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-60020	FJ40,42	03/1969 - 03/1970	1
47316-60021	FJ40,42 FOR SINGLE MASTER CYLINDER	03/1970 - 09/1971	1
47316-60071	FJ40..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02027	FJ4#	03/1969 - 10/1969	1
90947-02133	FJ40..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
90947-02133	BJ4#,FJ4#,HJ45	09/1971 - 09/1974	1
90947-02135	FJ4# FOR SINGLE MASTER CYLINDER	10/1969 - 09/1971	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-60050	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47318-60020	FJ40,42 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47318A - WAY(FOR REAR RH BRAKE TUBE)
90413-09007	FJ4# FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
90413-10028	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47319 - TUBE, FRONT BRAKE, NO.9
47319-60020	FJ40,42 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47319-60050	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47331 - TUBE, REAR BRAKE, NO.10
47331-60011	FJ4# FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47331-60030	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47332 - TUBE, REAR BRAKE, NO.11
47332-60030	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47332-60011	FJ4# FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47332A - WAY(FOR BRAKE WHEEL CYLINDER FRONT RH TUBE)
90413-10099	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
90413-09085	FJ4# FOR SINGLE MASTER CYLINDER	12/1969 - 09/1971	1
90413-09003	FJ4#	03/1969 - 12/1969	1
47333 - TUBE, REAR BRAKE, NO.12
47331-60011	FJ4# FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47331-60030	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47334 - TUBE, REAR BRAKE, NO.13
47332-60011	FJ4# FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47332-60030	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47334A - WAY(FOR BRAKE WHEEL CYLINDER FRONT LH TUBE)
90413-09003	FJ4#	03/1969 - 12/1969	1
90413-10099	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
90413-09085	FJ4# FOR SINGLE MASTER CYLINDER	12/1969 - 09/1971	1
47335 - TUBE, REAR BRAKE, NO.14
47333-35010	FJ4# FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47335-60010	FJ40..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47336 - TUBE, REAR BRAKE, NO.15
47333-35010	FJ4# FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47335-60010	FJ40..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47355-60010	FJ40	07/1970 - 09/1971	1
47353-60020	FJ40	03/1970 - 07/1970	1
47353-60010	FJ4#	03/1969 - 03/1970	1
47354 - BRACKET, FRONT FLEXIBLE HOSE
47354-60010	FJ40,55..LHD	01/1971 - 09/1971	1
Common parts
47361-60070
90430-10027
90461-04216
90461-08572
90461-10574
90461-10575
90462-12103
91111-40812
91111-41036
91611-40616
91611-40816
91616-40616
91661-40820
94110-40800
94110-41000
94512-00800
94512-01000
94611-11000
94612-10800
96990-10060

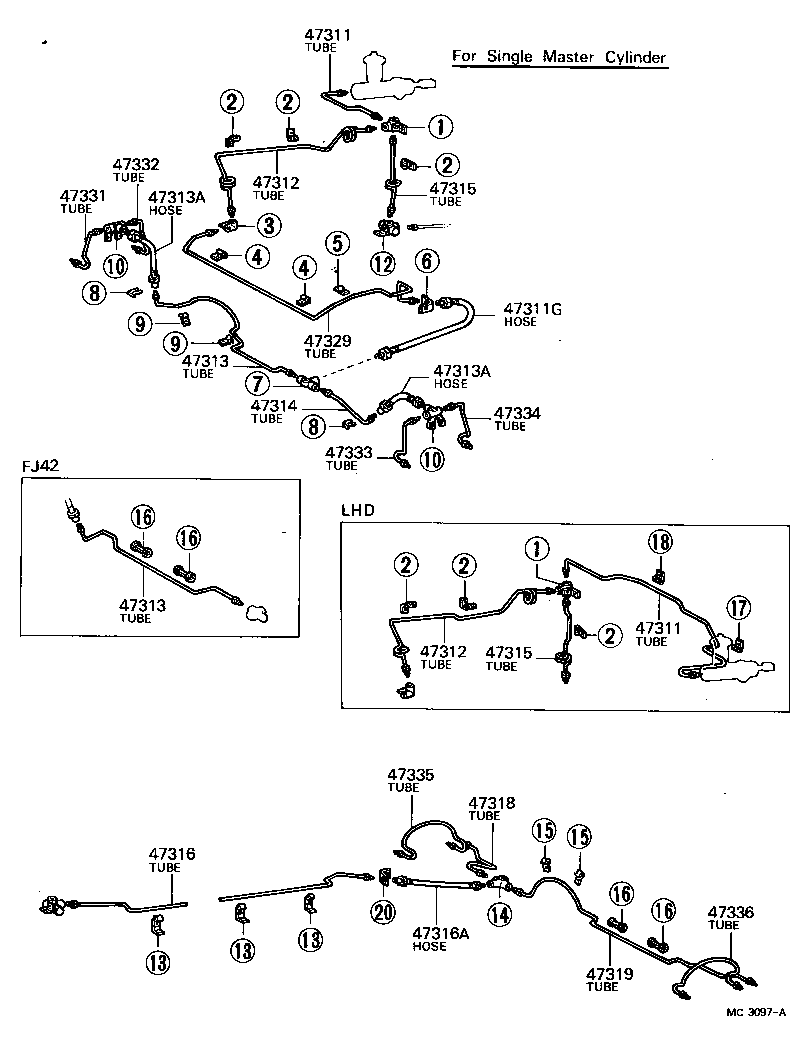

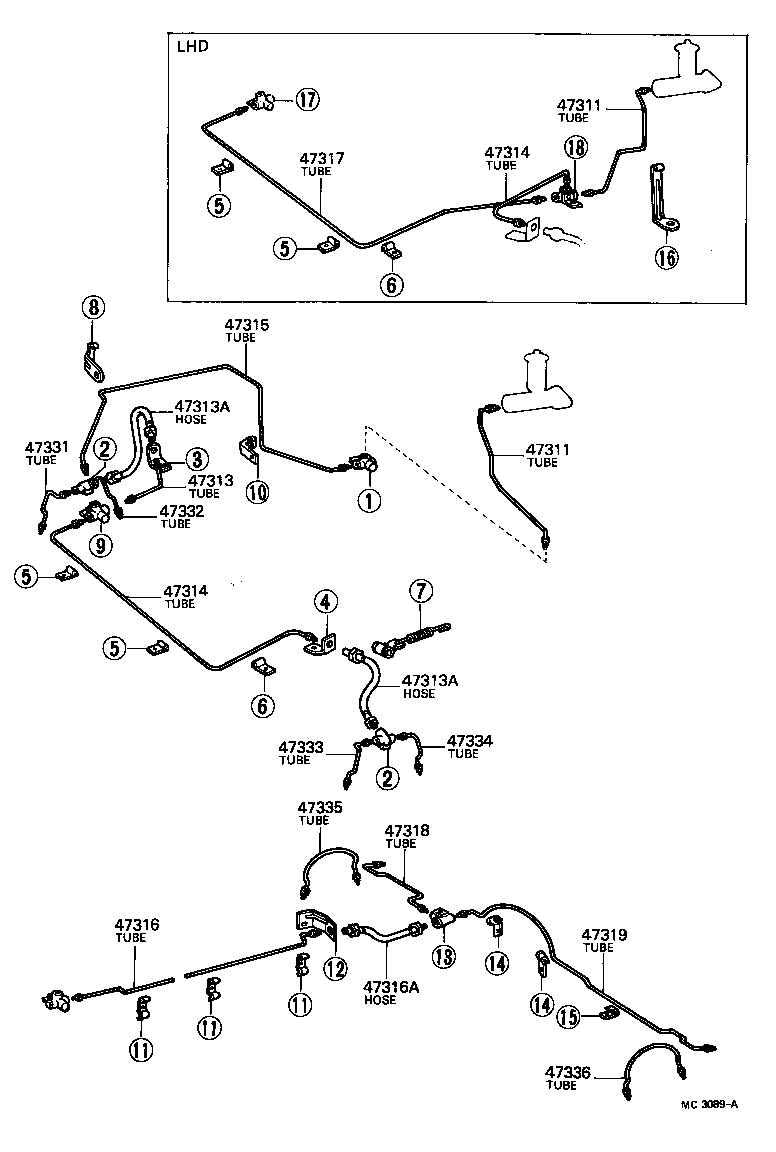

(6903-7109)FJ4#

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-60030	FJ4#..LHD FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47311-60031	FJ4#,HJ45..LHD FOR SINGLE MASTER CYLINDER	09/1971 - 09/1972	1
47312-60050	FJ40,43..LHD FOR TANDEM MASTER CYLINDER	01/1973 - 01/1975	1
47312-60050	FJ40..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 01/1973	1
47311 - TUBE, FRONT BRAKE, NO.1
47311-60030	FJ4#..LHD FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47311-60031	FJ4#,HJ45..LHD FOR SINGLE MASTER CYLINDER	09/1971 - 09/1972	1
47312-60050	FJ40,43..LHD FOR TANDEM MASTER CYLINDER	01/1973 - 01/1975	1
47312-60050	FJ40..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 01/1973	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-60021	FJ4# FOR SINGLE MASTER CYLINDER	05/1970 - 09/1971	1
47313-60020	FJ4#	03/1969 - 05/1970	1
47313-60060	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96920-31221	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	2
90947-02138	FJ4# FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	2
96920-31221	BJ4#,FJ4#,55,HJ45	09/1971 - 09/1974	2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96920-31221	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	2
90947-02138	FJ4# FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	2
96920-31221	BJ4#,FJ4#,55,HJ45	09/1971 - 09/1974	2
47314 - TUBE, FRONT BRAKE, NO.4
47314-60030	FJ4#..LHD	03/1969 - 05/1970	1
47314-60031	FJ4#..LHD FOR SINGLE MASTER CYLINDER	05/1970 - 09/1971	1
47314-60090	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47314 - TUBE, FRONT BRAKE, NO.4
47314-60030	FJ4#..LHD	03/1969 - 05/1970	1
47314-60031	FJ4#..LHD FOR SINGLE MASTER CYLINDER	05/1970 - 09/1971	1
47314-60090	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47315 - TUBE, FRONT BRAKE, NO.5
47312-60010	FJ4# FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47311-60081	FJ40..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47315-60060	FJ40..LHD FOR TANDEM MASTER CYLINDER	09/1971 - 09/1972	1
47315-60061	FJ40..LHD FOR TANDEM MASTER CYLINDER	09/1972 - 01/1973	1
47315-60070	FJ4#,HJ45 FOR SINGLE MASTER CYLINDER	09/1971 - 01/1975	1
47315-60061	FJ40,43..LHD FOR TANDEM MASTER CYLINDER	01/1973 - 01/1975	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-60020	FJ40,42	03/1969 - 03/1970	1
47316-60021	FJ40,42 FOR SINGLE MASTER CYLINDER	03/1970 - 09/1971	1
47316-60071	FJ40..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02027	FJ4#	03/1969 - 10/1969	1
90947-02133	FJ40..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
90947-02133	BJ4#,FJ4#,HJ45	09/1971 - 09/1974	1
90947-02135	FJ4# FOR SINGLE MASTER CYLINDER	10/1969 - 09/1971	1
47317 - TUBE, FRONT BRAKE, NO.7
47312-60020	FJ4#..LHD	03/1969 - 05/1970	1
47312-60021	FJ4#..LHD	05/1970 - 09/1971	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-60050	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47318-60020	FJ40,42 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47319 - TUBE, FRONT BRAKE, NO.9
47319-60020	FJ40,42 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47319-60050	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47331 - TUBE, REAR BRAKE, NO.10
47331-60011	FJ4# FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47331-60030	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47332 - TUBE, REAR BRAKE, NO.11
47332-60030	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47332-60011	FJ4# FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47333 - TUBE, REAR BRAKE, NO.12
47331-60011	FJ4# FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47331-60030	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47334 - TUBE, REAR BRAKE, NO.13
47332-60011	FJ4# FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47332-60030	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47335 - TUBE, REAR BRAKE, NO.14
47333-35010	FJ4# FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47335-60010	FJ40..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47336 - TUBE, REAR BRAKE, NO.15
47333-35010	FJ4# FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47335-60010	FJ40..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1

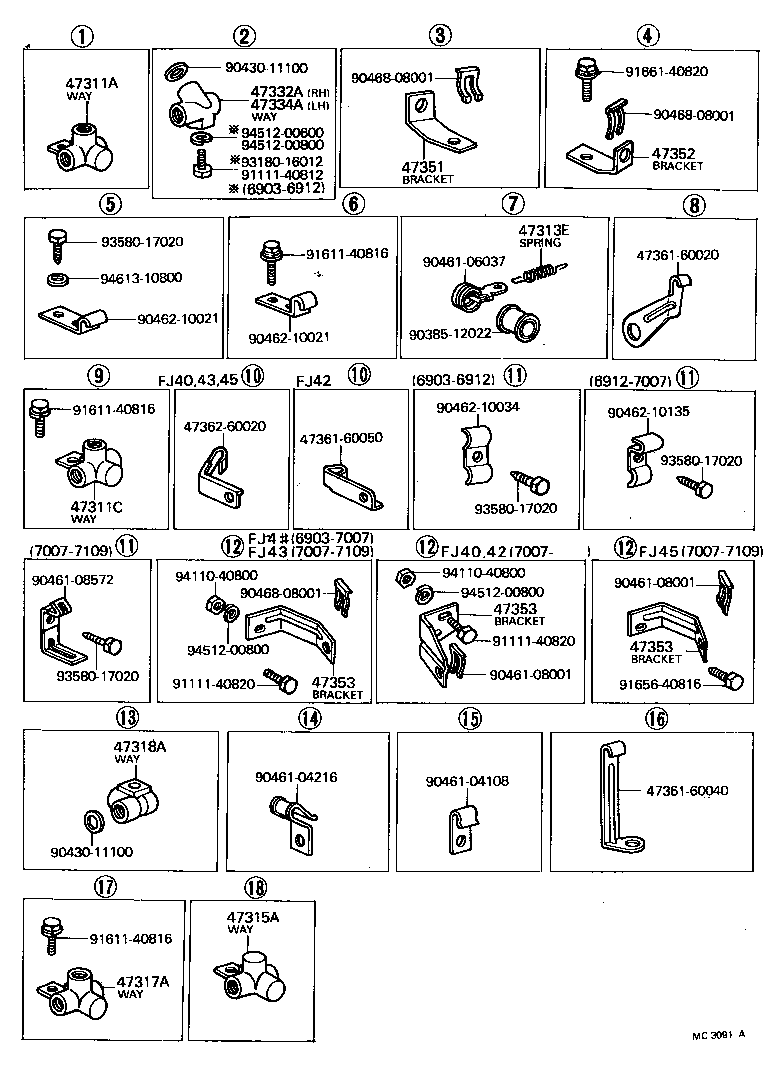

(6903-7109)FJ4#

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-09015	FJ4# FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47311C - UNION(FOR FRONT BRAKE TUBE)
90413-10028	FJ40,55..LHD	01/1971 - 09/1971	1
47313E - SPRING, TENSION(FOR FRONT FLEXIBLE HOSE)
90506-09043	FJ4#	03/1969 - 05/1970	2
47315A - WAY OR UNION(FOR REAR BRAKE TUBE)
90412-09004	FJ4#..LHD	03/1969 - 09/1971	1
90412-10015	FJ40,55..LHD	01/1971 - 09/1971	1
47317A - WAY(FOR BRAKE TUBE)
90413-09015	FJ4#..LHD	03/1969 - 09/1971	1
47318A - WAY(FOR REAR RH BRAKE TUBE)
90413-09007	FJ4# FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
90413-10028	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47332A - WAY(FOR BRAKE WHEEL CYLINDER FRONT RH TUBE)
90413-10099	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
90413-09085	FJ4# FOR SINGLE MASTER CYLINDER	12/1969 - 09/1971	1
90413-09003	FJ4#	03/1969 - 12/1969	1
47334A - WAY(FOR BRAKE WHEEL CYLINDER FRONT LH TUBE)
90413-09003	FJ4#	03/1969 - 12/1969	1
90413-10099	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
90413-09085	FJ4# FOR SINGLE MASTER CYLINDER	12/1969 - 09/1971	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-60020	FJ4#	03/1969 - 05/1970	1
47351-60021	FJ4#	05/1970 - 09/1971	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-60021	FJ4#	05/1970 - 09/1971	1
47352-60020	FJ4#	03/1969 - 05/1970	1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47355-60010	FJ40	07/1970 - 09/1971	1
47353-60020	FJ40	03/1970 - 07/1970	1
47353-60010	FJ4#	03/1969 - 03/1970	1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47355-60010	FJ40	07/1970 - 09/1971	1
47353-60020	FJ40	03/1970 - 07/1970	1
47353-60010	FJ4#	03/1969 - 03/1970	1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47355-60010	FJ40	07/1970 - 09/1971	1
47353-60020	FJ40	03/1970 - 07/1970	1
47353-60010	FJ4#	03/1969 - 03/1970	1
Common parts
47361-60020
47361-60040
47361-60050
47362-60020
90385-12022
90430-11100
90461-04108
90461-04216
90461-06037
90461-08001
90461-08572
90462-10021
90462-10034
90462-10135
90468-08001
91111-40812
91111-40820
91611-40816
91656-40816
91661-40820
93180-16012
93580-17020
94110-40800
94512-00600
94512-00800
94613-10800

(7109-7501)FJ4#,HJ45 ; (7501-7509)HJ45..ARL..IV; (7501-7509)FJ4#,HJ45..EUR,GEN

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-60030	FJ4#..LHD FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47311-60031	FJ4#,HJ45..LHD FOR SINGLE MASTER CYLINDER	09/1971 - 09/1972	1
47312-60050	FJ40,43..LHD FOR TANDEM MASTER CYLINDER	01/1973 - 01/1975	1
47312-60050	FJ40..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 01/1973	1
47311 - TUBE, FRONT BRAKE, NO.1
47311-60030	FJ4#..LHD FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47311-60031	FJ4#,HJ45..LHD FOR SINGLE MASTER CYLINDER	09/1971 - 09/1972	1
47312-60050	FJ40,43..LHD FOR TANDEM MASTER CYLINDER	01/1973 - 01/1975	1
47312-60050	FJ40..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 01/1973	1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02078	FJ40..LHD	01/1971 - 09/1971	1
90947-02078	FJ4#,HJ45	09/1971 - 09/1974	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-60021	FJ4# FOR SINGLE MASTER CYLINDER	05/1970 - 09/1971	1
47313-60020	FJ4#	03/1969 - 05/1970	1
47313-60060	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-60021	FJ4# FOR SINGLE MASTER CYLINDER	05/1970 - 09/1971	1
47313-60020	FJ4#	03/1969 - 05/1970	1
47313-60060	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96920-31221	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	2
90947-02138	FJ4# FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	2
96920-31221	BJ4#,FJ4#,55,HJ45	09/1971 - 09/1974	2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96920-31221	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	2
90947-02138	FJ4# FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	2
96920-31221	BJ4#,FJ4#,55,HJ45	09/1971 - 09/1974	2
47314 - TUBE, FRONT BRAKE, NO.4
47314-60030	FJ4#..LHD	03/1969 - 05/1970	1
47314-60031	FJ4#..LHD FOR SINGLE MASTER CYLINDER	05/1970 - 09/1971	1
47314-60090	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47315 - TUBE, FRONT BRAKE, NO.5
47312-60010	FJ4# FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47311-60081	FJ40..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47315-60060	FJ40..LHD FOR TANDEM MASTER CYLINDER	09/1971 - 09/1972	1
47315-60061	FJ40..LHD FOR TANDEM MASTER CYLINDER	09/1972 - 01/1973	1
47315-60070	FJ4#,HJ45 FOR SINGLE MASTER CYLINDER	09/1971 - 01/1975	1
47315-60061	FJ40,43..LHD FOR TANDEM MASTER CYLINDER	01/1973 - 01/1975	1
47315 - TUBE, FRONT BRAKE, NO.5
47312-60010	FJ4# FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47311-60081	FJ40..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47315-60060	FJ40..LHD FOR TANDEM MASTER CYLINDER	09/1971 - 09/1972	1
47315-60061	FJ40..LHD FOR TANDEM MASTER CYLINDER	09/1972 - 01/1973	1
47315-60070	FJ4#,HJ45 FOR SINGLE MASTER CYLINDER	09/1971 - 01/1975	1
47315-60061	FJ40,43..LHD FOR TANDEM MASTER CYLINDER	01/1973 - 01/1975	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-60020	FJ40,42	03/1969 - 03/1970	1
47316-60021	FJ40,42 FOR SINGLE MASTER CYLINDER	03/1970 - 09/1971	1
47316-60071	FJ40..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02027	FJ4#	03/1969 - 10/1969	1
90947-02133	FJ40..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
90947-02133	BJ4#,FJ4#,HJ45	09/1971 - 09/1974	1
90947-02135	FJ4# FOR SINGLE MASTER CYLINDER	10/1969 - 09/1971	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-60050	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47318-60020	FJ40,42 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47319 - TUBE, FRONT BRAKE, NO.9
47319-60020	FJ40,42 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47319-60050	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47331 - TUBE, REAR BRAKE, NO.10
47331-60011	FJ4# FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47331-60030	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47332 - TUBE, REAR BRAKE, NO.11
47332-60030	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47332-60011	FJ4# FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47333 - TUBE, REAR BRAKE, NO.12
47331-60011	FJ4# FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47331-60030	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47334 - TUBE, REAR BRAKE, NO.13
47332-60011	FJ4# FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47332-60030	FJ40,55..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47335 - TUBE, REAR BRAKE, NO.14
47333-35010	FJ4# FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47335-60010	FJ40..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1
47336 - TUBE, REAR BRAKE, NO.15
47333-35010	FJ4# FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47335-60010	FJ40..LHD FOR TANDEM MASTER CYLINDER	01/1971 - 09/1971	1

FJ40L-C (1969)

(8008-8102)BJ45,FJ45..EUR ; (8102-8410)EUR ; (8210-8410)FJ45,HJ47..ARL ; (8301-8506

(7101-7109)FJ40..LHD

(6903-7109)FJ4#

(6903-7109)FJ4#

(7109-7501)FJ4#,HJ45 ; (7501-7509)HJ45..ARL..IV; (7501-7509)FJ4#,HJ45..EUR,GEN

Part Price Details
