FJ40L-C (1969)

Toyota Land Cruiser

Production Mar 1969 - Jan 1975
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-8007)BJ4#,FJ4#,HJ45

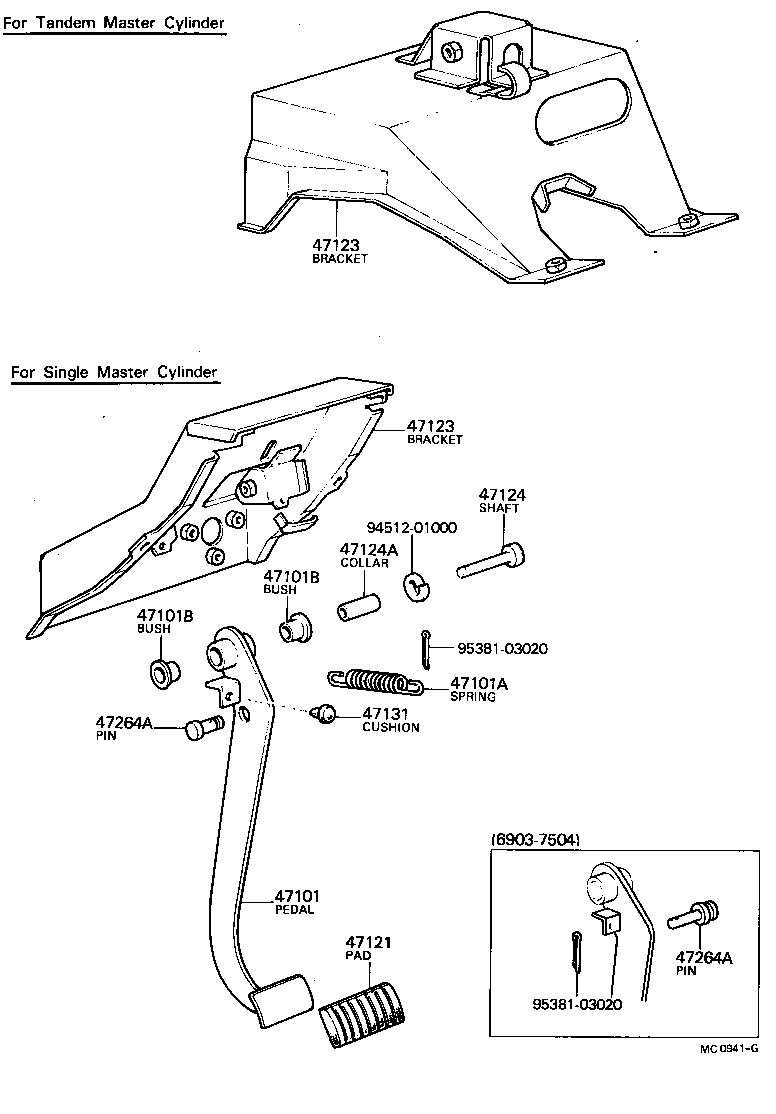

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47123 47123 47124 47124A 47131 47264A 47264A 9451201000 9538103020 9538103020
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-60060

FJ4#,55..LHD

FOR TANDEM MASTER CYLINDER

 1
47101-60060

FJ40,43,55..LHD

FOR TANDEM MASTER CYLINDER

 1
47101-60060

FJ40,55..LHD

FOR TANDEM MASTER CYLINDER

 1
47101-60030

BJ4#,FJ4#,HJ45..LHD

FOR SINGLE MASTER CYLINDER

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90506-18189

FJ40,43

FOR TANDEM MASTER CYLINDER

 1
90506-18189

FJ40..LHD

FOR TANDEM MASTER CYLINDER

 1
90506-18189

FJ40

FOR TANDEM MASTER CYLINDER

 1
90506-12450

FJ4#

FOR TANDEM MASTER CYLINDER

 1
90506-12023

BJ4#,FJ4#,HJ45

FOR SINGLE MASTER CYLINDER

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

BJ4#,FJ4#,55,HJ45

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

BJ4#,FJ4#,55,HJ45

 2
47121 - PAD, BRAKE PEDAL
31321-61010

BJ4#,FJ4#,55,HJ45

 1
47123 - BRACKET, BRAKE PEDAL
55106-60010

FJ4#,HJ45

FOR SINGLE MASTER CYLINDER

 1
55106-60020

FJ4#..LHD

FOR TANDEM MASTER CYLINDER

 1
55106-60020

FJ40..LHD

FOR TANDEM MASTER CYLINDER

 1
55106-60020

FJ40,43..LHD

FOR TANDEM MASTER CYLINDER

 1
47123 - BRACKET, BRAKE PEDAL
55106-60010

FJ4#,HJ45

FOR SINGLE MASTER CYLINDER

 1
55106-60020

FJ4#..LHD

FOR TANDEM MASTER CYLINDER

 1
55106-60020

FJ40..LHD

FOR TANDEM MASTER CYLINDER

 1
55106-60020

FJ40,43..LHD

FOR TANDEM MASTER CYLINDER

 1
47124 - SHAFT, BRAKE PEDAL
91121-51071

FJ4#,55,HJ45

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10004

BJ4#,FJ4#,55,HJ45

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06008

FJ40,55

 1
90541-06008

FJ55;FJ40..LHD

 1
90541-06008

FJ4#,55

 1
90541-06008

FJ40,43,55

 1
47264A - PIN(FOR PUSH ROD)
90249-10002

BJ4#,FJ4#,55,HJ45

 1
47264A - PIN(FOR PUSH ROD)
90249-10002

BJ4#,FJ4#,55,HJ45

 1
Common parts
94512-01000
95381-03020
