FJ40L-C (1969)
Toyota Land Cruiser
Production
Mar 1969
-
Jan 1975
Engine
F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

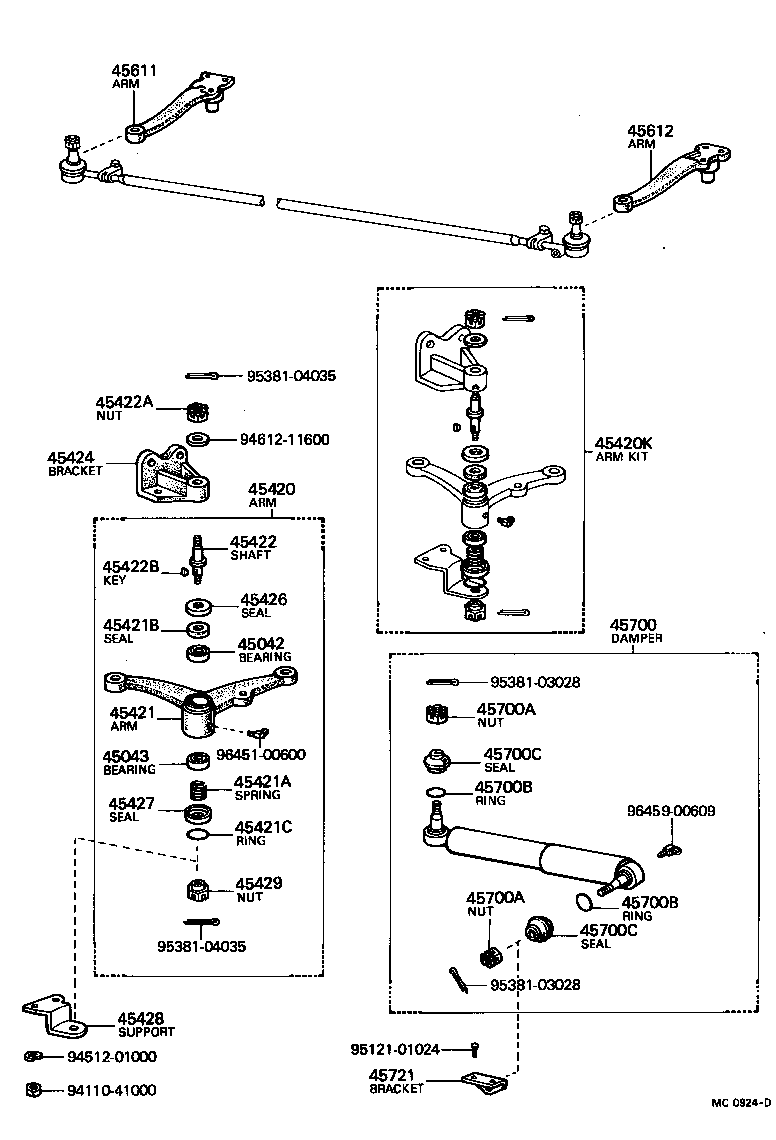

(6903-6906)FJ4#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45042 - BEARING SUB-ASSY, CENTER ARM, UPPER | ||||
| 45042-60011 |
FJ4# |
1 | ||
| 45043 - BEARING SUB-ASSY, CENTER ARM, LOWER | ||||
| 45043-60011 |
FJ4# |
1 | ||
| 45420 - ARM ASSY, STEERING CENTER | ||||
| 45420-60020 |
FJ4#..LHD |
1 | ||
| 45420K - ARM KIT, STEERING CENTER | ||||
| 04453-60011 |
FJ4# |
1 | ||
| 45421 - ARM, STEERING CENTER | ||||
| 45421-60020 |
FJ4#..LHD |
1 | ||
| 45421A - SPRING, COMPRESSION(FOR STEERING CENTER ARM) | ||||
| 90501-45123 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 45421B - SEAL, DUST(FOR STEERING CENTER ARM) | ||||
| 90303-30025 |
FJ4# |
1 | ||
| 45421C - RING, O (FOR STEERING CENTER ARM) | ||||
| 90301-40088 |
FJ4# |
1 | ||
| 45422 - SHAFT, CENTER ARM | ||||
| 45422-60010 |
FJ4# |
1 | ||
| 45422A - NUT, CASTLE(FOR CENTER ARM SHAFT) | ||||
| 90171-16014 |
FJ4# |
1 | ||
| 45422B - KEY, WOODRUFF(FOR CENTER ARM SHAFT) | ||||
| 90280-05006 |
FJ4# |
2 | ||
| 45424 - BRACKET, CENTER ARM | ||||
| 45424-60020 |
FJ4#..LHD |
1 | ||
| 45426 - SEAL, CENTER ARM DUST, UPPER | ||||
| 45426-60010 |
FJ4# |
1 | ||
| 45427 - SEAL, CENTER ARM DUST, LOWER | ||||
| 45427-60010 |
FJ4# |
1 | ||
| 45428 - SUPPORT, CENTER ARM SHAFT | ||||
| 45428-60020 |
FJ4#..LHD |
1 | ||
| 45429 - NUT, CENTER ARM SHAFT | ||||
| 45429-60011 |
FJ4# |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-60020 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-60020 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 45700 - DAMPER ASSY, STEERING | ||||
| 45700-60011 |
FJ4#,55,HJ45 |
1 | ||
| 45700-60010 |
FJ4#,55 |
1 | ||
| 45700A - NUT(FOR STEERING DAMPER) | ||||
| 90171-12005 |
FJ4#,55 |
2 | ||
| 45700A - NUT(FOR STEERING DAMPER) | ||||
| 90171-12005 |
FJ4#,55 |
2 | ||
| 45700B - RING, SET(FOR STEERING DAMPER DUST SEAL) | ||||
| 90522-32011 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 45700B - RING, SET(FOR STEERING DAMPER DUST SEAL) | ||||
| 90522-32011 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 45700C - SEAL, DUST(FOR STEERING DAMPER) | ||||
| 45479-30030 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 45700C - SEAL, DUST(FOR STEERING DAMPER) | ||||
| 45479-30030 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 45721 - BRACKET, STEERING DAMPER | ||||
| 45721-60010 |
BJ4#,FJ4#,HJ45 |
1 | ||
| Common parts | ||||
| 94110-41000 | ||||
| 94512-01000 | ||||
| 94612-11600 | ||||
| 95121-01024 | ||||
| 95381-03028 | ||||
| 95381-04035 | ||||
| 96451-00600 | ||||
| 96459-00609 | ||||
(6903-8007)BJ4#,FJ4#,HJ45
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45044 - END SUB-ASSY, STEERING RELAY ROD, RH | ||||
| 45045-60013 |
FJ4#,55..LHD |
1 | ||
| 45044A - NUT, CASTLE(FOR RELAY ROD) | ||||
| 90171-12005 |
FJ4#,55 |
2 | ||
| 45044B - RING, SET(FOR RELAY ROD) | ||||
| 90522-32011 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 45044C - SEAL, DUST(FOR RELAY ROD) | ||||
| 45479-30030 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 45045 - END SUB-ASSY, STEERING RELAY ROD, LH | ||||
| 45046-60033 |
FJ4#,55..LHD |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-60081 |
FJ4#,55..LHD |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12005 |
FJ4#,55 |
2 | ||
| 45046B - RING, SET(FOR TIE ROD END DUST SEAL) | ||||
| 90522-32011 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 45046C - SEAL, DUST(FOR TIE ROD END) | ||||
| 45479-30030 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-60042 |
FJ4#,55..LHD |
1 | ||
| 45430 - END ASSY, STEERING DRAG LINK(FOR PITMAN ARM) | ||||
| 45430-60010 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 45431 - END SUB-ASSY, STEERING DRAG(FOR CENTER ARM) | ||||
| 45047-60013 |
FJ4# |
1 | ||
| 45440A - CLAMP, STEERING DRAG | ||||
| 45466-30010 |
BJ4#,FJ4#,HJ45 |
2 | ||
| 45440A - CLAMP, STEERING DRAG | ||||
| 45466-30010 |
BJ4#,FJ4#,HJ45 |
2 | ||
| 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) | ||||
| 90171-12005 |
FJ4#,55 |
2 | ||
| 45440D - RING, SET(FOR STEERING DRAG LINK) | ||||
| 90522-32011 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 45441 - LINK, STEERING DRAG | ||||
| 45441-60010 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 45442 - END, STEERING DRAG LINK | ||||
| 45442-60010 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 45447 - SEAL, DRAG LINK DUST | ||||
| 45447-60010 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 45450 - ROD ASSY, STEERING RELAY | ||||
| 45450-60012 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 45450D - CLAMP, STEERING RELAY ROD END | ||||
| 45466-30010 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 45450D - CLAMP, STEERING RELAY ROD END | ||||
| 45466-30010 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 45451 - ROD, STEERING RELAY | ||||
| 45451-60020 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-69035 |
BJ4#,FJ4#,55,HJ45..LHD |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45461-60021 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-55010 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-55010 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 45473 - SEAT, BALL STUD | ||||
| 45473-35010 |
BJ4#,FJ4#,HJ45 |
2 | ||
| 45475 - SEAT, STEERING LINK JOINT SPRING | ||||
| 45475-35010 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 45475A - SPRING, COMPRESSION(FOR STEERING LINK JOINT) | ||||
| 90501-45114 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 45475B - PLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT) | ||||
| 90340-25011 |
BJ4#,FJ4#,HJ45 |
1 | ||
| 45479 - SEAL, STEERING LINK JOINT DUST | ||||
| 45479-30030 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| Common parts | ||||
| 91111-41040 | ||||
| 94110-41000 | ||||
| 94512-01000 | ||||
| 95381-03025 | ||||
| 95381-03040 | ||||
| 96459-00609 | ||||

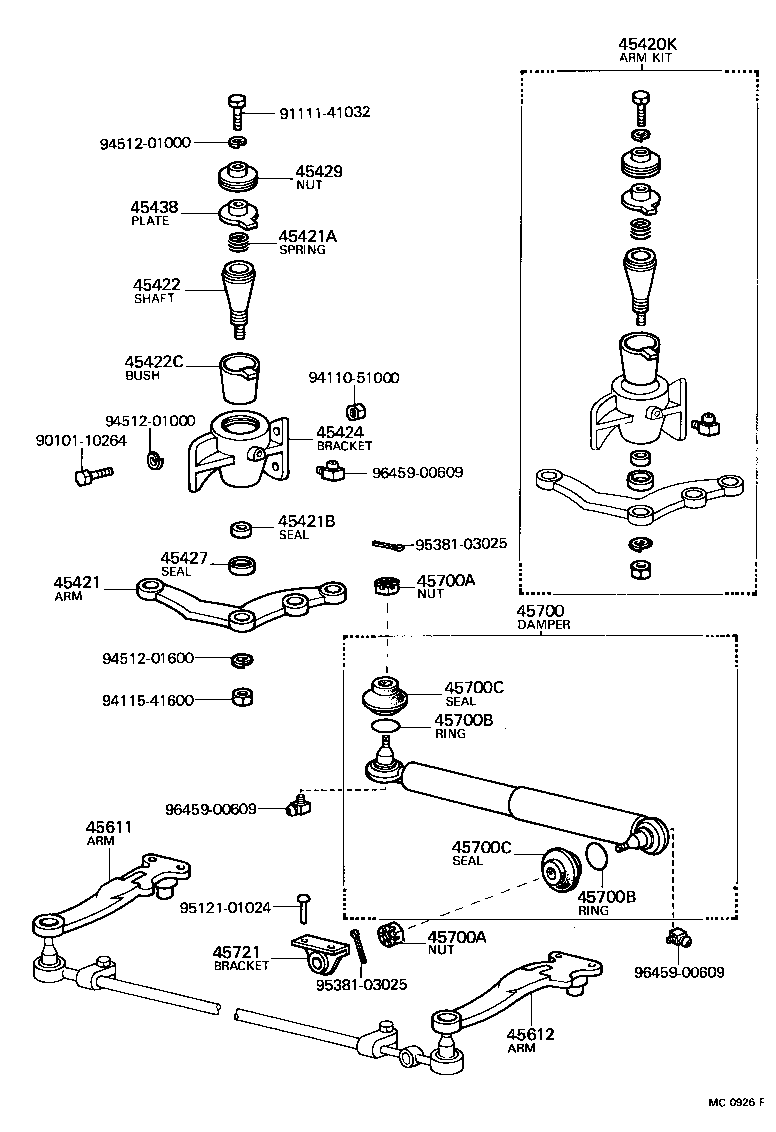

(6903-8007)FJ55 ; (6906-8007)BJ4#,FJ4#,HJ45
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45420K - ARM KIT, STEERING CENTER | ||||
| 04453-60011 |
FJ4# |
1 | ||
| 45421 - ARM, STEERING CENTER | ||||
| 45421-60020 |
FJ4#..LHD |
1 | ||
| 45421A - SPRING, COMPRESSION(FOR STEERING CENTER ARM) | ||||
| 90501-45123 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 45421B - SEAL, DUST(FOR STEERING CENTER ARM) | ||||
| 90303-30025 |
FJ4# |
1 | ||
| 45422 - SHAFT, CENTER ARM | ||||
| 45422-60010 |
FJ4# |
1 | ||
| 45424 - BRACKET, CENTER ARM | ||||
| 45424-60020 |
FJ4#..LHD |
1 | ||
| 45427 - SEAL, CENTER ARM DUST, LOWER | ||||
| 45427-60010 |
FJ4# |
1 | ||
| 45429 - NUT, CENTER ARM SHAFT | ||||
| 45429-60011 |
FJ4# |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-60020 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-60020 |
BJ4#,FJ4#,55,HJ45 |
1 | ||
| 45700 - DAMPER ASSY, STEERING | ||||
| 45700-60011 |
FJ4#,55,HJ45 |
1 | ||
| 45700-60010 |
FJ4#,55 |
1 | ||
| 45700A - NUT(FOR STEERING DAMPER) | ||||
| 90171-12005 |
FJ4#,55 |
2 | ||
| 45700A - NUT(FOR STEERING DAMPER) | ||||
| 90171-12005 |
FJ4#,55 |
2 | ||
| 45700B - RING, SET(FOR STEERING DAMPER DUST SEAL) | ||||
| 90522-32011 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 45700B - RING, SET(FOR STEERING DAMPER DUST SEAL) | ||||
| 90522-32011 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 45700C - SEAL, DUST(FOR STEERING DAMPER) | ||||
| 45479-30030 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 45700C - SEAL, DUST(FOR STEERING DAMPER) | ||||
| 45479-30030 |
BJ4#,FJ4#,55,HJ45 |
2 | ||
| 45721 - BRACKET, STEERING DAMPER | ||||
| 45721-60010 |
BJ4#,FJ4#,HJ45 |
1 | ||
| Common parts | ||||
| 90101-10264 | ||||
| 91111-41032 | ||||
| 94110-51000 | ||||
| 94115-41600 | ||||
| 94512-01000 | ||||
| 94512-01600 | ||||
| 95121-01024 | ||||
| 95381-03025 | ||||
| 96459-00609 | ||||
