FJ40L-B (1969)
Toyota Land Cruiser
Production
Mar 1969
-
Aug 1974
Engine
F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(6903-7408)TPB

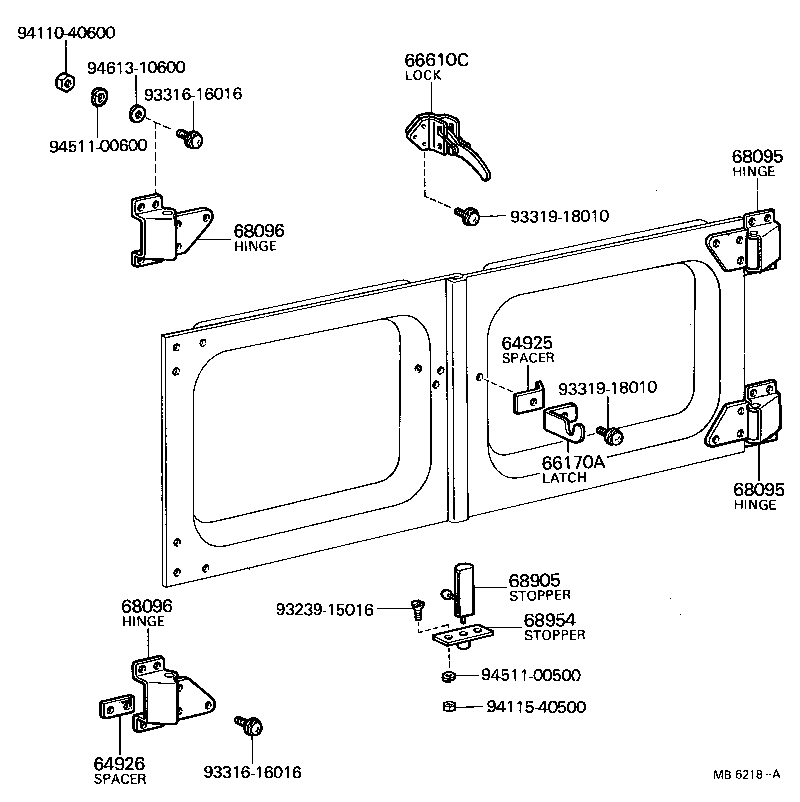

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64925 - SPACER, REAR DROP GATE, LOCK LATCH | ||||
| 64925-60020 |
FJ40,43..TPB,VLS |
1 | ||
| 64926 - SPACER, REAR DROP GATE, HINGE MALE | ||||
| 64961-60010 |
FJ40,43..TPB,VLS |
8 | ||
| 66170A - LATCH ASSY, REAR DROP GATE | ||||
| 69363-60020 |
BJ40,FJ40,43..LHD..(TPB,VLS) |
1 | ||
| 66610C - LOCK ASSY, REAR DROP GATE | ||||
| 69350-60010 |
BJ4#,FJ40,42,43..TPS;BJ40,FJ40,43..LHD..(TPB,VLS) RH. |
1 | ||
| 68095 - HINGE ASSY, REAR GATE, RH | ||||
| 68905-60020 |
FJ40,43..TPB,VLS UPPER |
1 | ||
| 68095-60010 |
FJ40,43..TPB,VLS LOWER |
1 | ||
| 68095 - HINGE ASSY, REAR GATE, RH | ||||
| 68905-60020 |
FJ40,43..TPB,VLS UPPER |
1 | ||
| 68095-60010 |
FJ40,43..TPB,VLS LOWER |
1 | ||
| 68096 - HINGE ASSY, REAR GATE, LH | ||||
| 68096-60010 |
FJ40,43..TPB,VLS LOWER |
1 | ||
| 68906-60010 |
FJ40,43..TPB,VLS UPPER |
1 | ||
| 68096 - HINGE ASSY, REAR GATE, LH | ||||
| 68096-60010 |
FJ40,43..TPB,VLS LOWER |
1 | ||
| 68906-60010 |
FJ40,43..TPB,VLS UPPER |
1 | ||
| 68905 - STOPPER SUB-ASSY, BACK DOOR OPEN | ||||
| 68950-90300 |
BJ4#,FJ40,43..TPB,TPC,VLS |
1 | ||
| 68954 - STOPPER, REAR SWING GATE OPEN FEMALE | ||||
| 68955-60010 |
FJ40,43..TPB,TPC,VLS |
1 | ||
| Common parts | ||||
| 93239-15016 | ||||
| 93316-16016 | ||||
| 93319-18010 | ||||
| 94110-40600 | ||||
| 94115-40500 | ||||
| 94511-00500 | ||||
| 94511-00600 | ||||
| 94613-10600 | ||||
