FJ40L-B (1969)

Toyota Land Cruiser

Production Mar 1969 - Aug 1974
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-7408)TPB

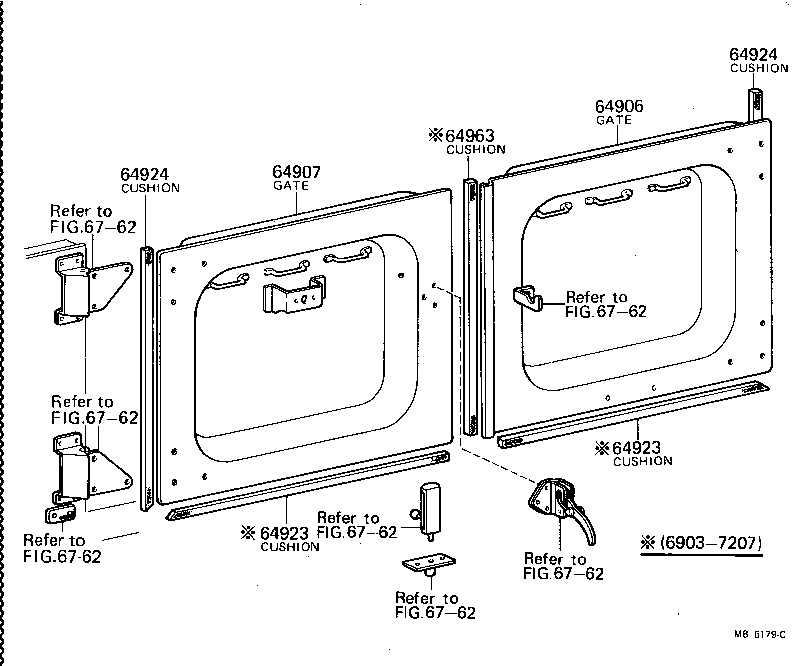

Click highlighted areas on diagram

diagram 64906 64907 64923 64923 64924 64924 64963 6762 6762 6762 6762 6762 6762 6762
Part # Description Qty Price
64906 - GATE SUB-ASSY, REAR SWING, RH
64905-60030

BJ40,FJ40,43..LHD..(TPB,VLS)

 1
64907 - GATE SUB-ASSY, REAR SWING, LH
64906-60040

FJ40,43..LHD..(TPB,VLS)

 1
64923 - CUSHION, REAR DROP GATE, LOWER
64964-60010

FJ40,43..TPB,VLS

 2
64923 - CUSHION, REAR DROP GATE, LOWER
64964-60010

FJ40,43..TPB,VLS

 2
64924 - CUSHION, REAR DROP GATE, SIDE
64963-60010

FJ40,43..LHD..(TPB,VLS)

RH.

 1
64922-60010

FJ40,43..LHD..(TPB,VLS)

LH.

 1
64924 - CUSHION, REAR DROP GATE, SIDE
64963-60010

FJ40,43..LHD..(TPB,VLS)

RH.

 1
64922-60010

FJ40,43..LHD..(TPB,VLS)

LH.

 1
64963 - CUSHION, REAR SWING GATE, LOWER
64962-60010

FJ40,43..TPB,VLS

 1
Linked diagrams
6762
