FJ40L-B (1969)

Toyota Land Cruiser

Production Mar 1969 - Aug 1974
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8110)B,3B

Click highlighted areas on diagram

diagram 16261 16261A 16261A 16331 16331A 16333 16341 16343 16361 16361A 16365 16381 16400 16400B 16400C 16401 16470 16470A 16470B 16470B 16470C 16471 16472 16571 16571A 16571A 16572 16572 16572A 16572A 16572C 16572C 16577 16701 9011908162 9017906158 9046110857 9046315003 9046315067 9111140850 9161160822 9161160825 9161160825 9161161020 9165140816 9165160816 9165160816 9165161025 9451100800
Part # Description Qty Price
Common parts
90119-08162
90179-06158
90461-10857
90463-15003
90463-15067
91111-40850
91611-60822
91611-60825
91611-61020
91651-40816
91651-60816
91651-61025
94511-00800

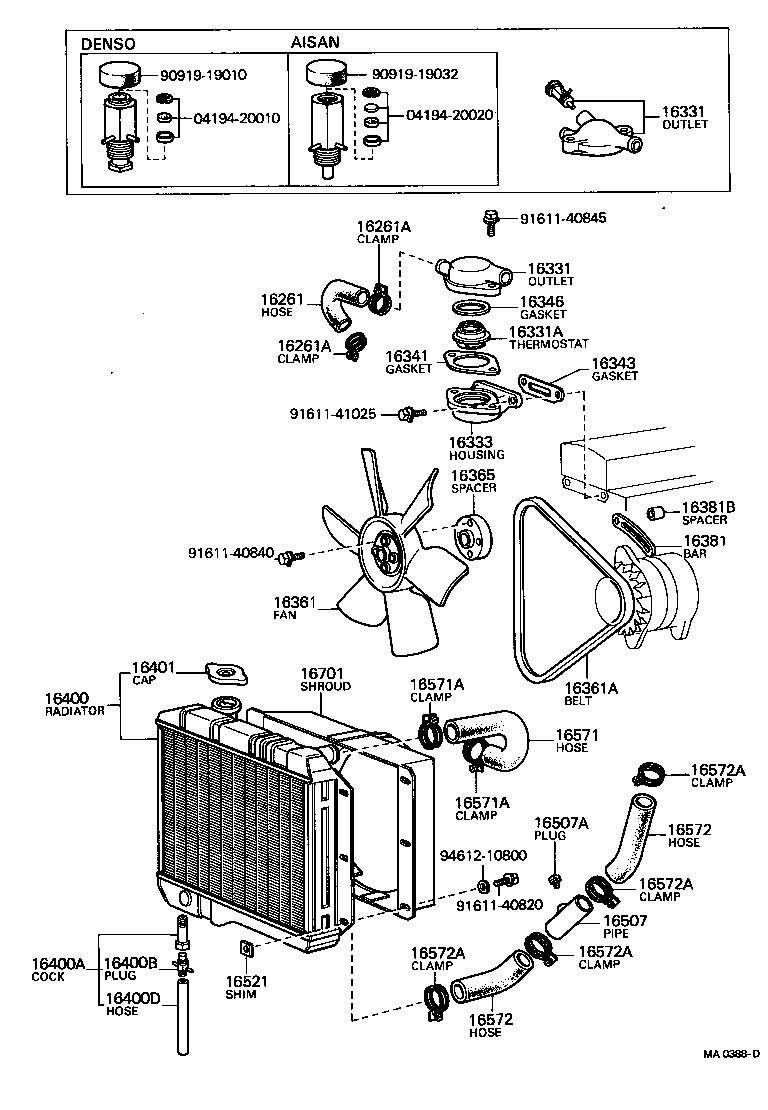

(6903-7501)F..FJ4#

Click highlighted areas on diagram

diagram 0419420010 0419420020 16261 16261A 16261A 16331 16331 16331A 16333 16341 16343 16346 16361 16361A 16365 16381 16381B 16400 16400A 16400B 16400D 16401 16507 16507A 16521 16571 16571A 16571A 16572 16572 16572A 16572A 16572A 16572A 16701 9091919010 9091919032 9161140820 9161140840 9161140845 9161141025 9461210800
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-60011

F,2F..FJ4#,55

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90460-33020

F..FJ4#,55

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90460-33020

F..FJ4#,55

 2
16331 - OUTLET, WATER
16333-60080

F..FJ4#,55

FOR TROPICAL

 1
16333-60070

F,2F..FJ4#,55

 1
16331 - OUTLET, WATER
16333-60080

F..FJ4#,55

FOR TROPICAL

 1
16333-60070

F,2F..FJ4#,55

 1
16331A - THERMOSTAT
90916-03014

F..FJ4#,55

WAX 82-95 FUJI-THOMSON ARCTIC

 1
90916-03012

F..FJ4#,55

WAX 76.5-90 FUJI-THOMSON

 1
16333 - HOUSING, WATER OUTLET
16331-60040

F,2F..FJ4#,55

 1
16341 - GASKET, WATER OUTLET
16341-60020

F,2F..FJ4#,55

 1
16343 - GASKET, WATER OUTLET HOUSING
16343-60010

F,2F..FJ4#,55

 1
16346 - GASKET, THERMOSTAT
90430-40058

F,2F..FJ4#,55

 1
16361 - FAN
16361-60060

F..FJ4#,55

5 BLADES

 1
16361-60050

F..FJ4#,55

4 BLADES

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99523-11046

F..FJ4#,55

L=1046

 1
16365 - SPACER, FAN
16365-60030

F..FJ4#,55

 1
16381 - BAR, FAN BELT ADJUSTING
16381-60081

F,2F..FJ4#,55

 1
16381B - SPACER, FAN BELT ADJUSTING BAR
90560-12263

F,2F..FJ4#,55

 1
16400 - RADIATOR ASSY
16400-60011

F..FJ4#

 1
16400A - COCK SUB-ASSY, RADIATOR DRAIN
90910-09022

F..FJ4#

 1
16400B - PLUG, RADIATOR DRAIN COCK
90910-09016

F..FJ4#

 1
16400D - HOSE(FOR RADIATOR DRAIN COCK)
90446-12092

F..FJ4#,55

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-60040

F..FJ4#

 1
16407-60010

F..FJ4#,55

 1
16507 - PIPE SUB-ASSY, RADIATOR
16577-60100

F..FJ4#,55

 1
16507A - PLUG(FOR RADIATOR PIPE)
90345-54006

F..FJ4#,55

 1
16521 - SHIM, RADIATOR CLAMP
90910-10001

F..FJ4#

 6
16571 - HOSE, RADIATOR, INLET
16571-60060

F,2F..FJ4#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90460-50016

F..FJ4#,55

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90460-50016

F..FJ4#,55

 2
16572 - HOSE, RADIATOR, OUTLET
90916-01058

F,2F..FJ4#

RADIATOR SIDE

 1
90916-01056

F,2F..FJ4#

PUMP SIDE

 1
16572 - HOSE, RADIATOR, OUTLET
90916-01058

F,2F..FJ4#

RADIATOR SIDE

 1
90916-01056

F,2F..FJ4#

PUMP SIDE

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-58013

F,2F..FJ4#,55

ID=58

 3
90460-50016

F..FJ4#,55

ID=50

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-58013

F,2F..FJ4#,55

ID=58

 3
90460-50016

F..FJ4#,55

ID=50

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-58013

F,2F..FJ4#,55

ID=58

 3
90460-50016

F..FJ4#,55

ID=50

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-58013

F,2F..FJ4#,55

ID=58

 3
90460-50016

F..FJ4#,55

ID=50

 1
16701 - SHROUD SUB-ASSY, FAN
16711-60051

F..FJ4#

W/ O/S FAN

 1
16711-60011

F..FJ4#

 1
Common parts
04194-20010
04194-20020
90919-19010
90919-19032
91611-40820
91611-40840
91611-40845
91611-41025
94612-10800
