Toyota Land cruiser FJ40 METER - JDM Part Detective

FJ40-C (1969)

Toyota Land Cruiser

Production Mar 1969 - Jan 1975

Engine F

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

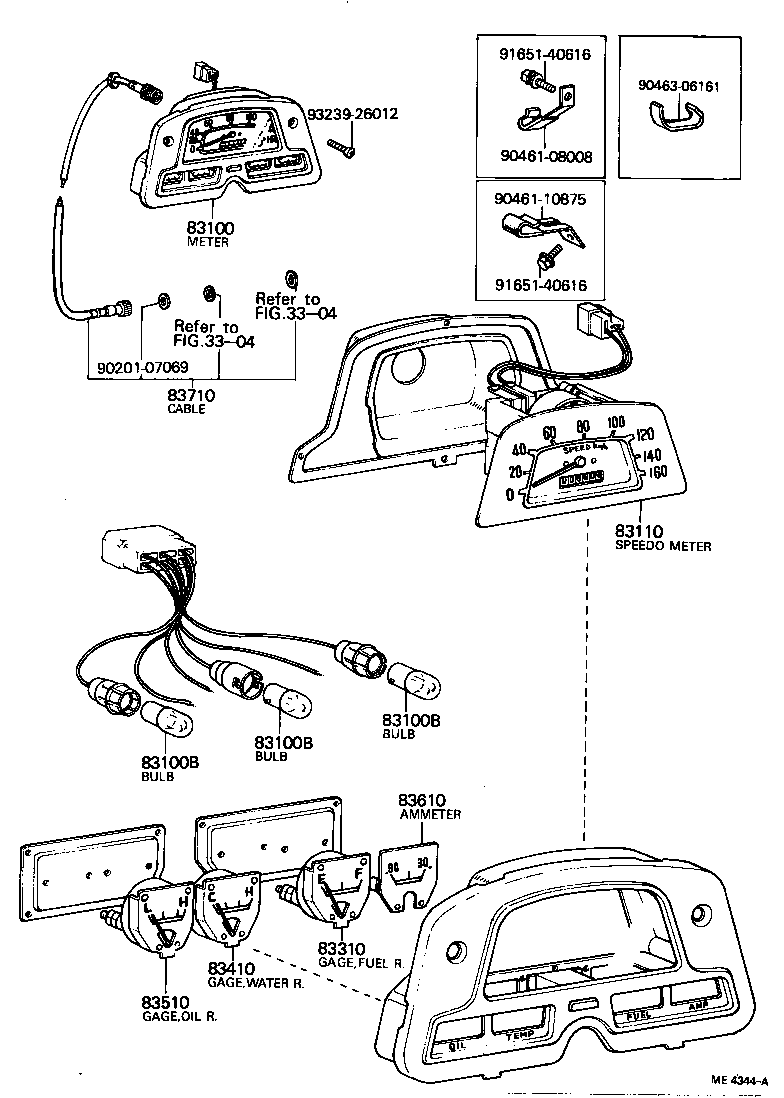

(6903-7209)FJ4#,HJ45

Click highlighted areas on diagram

Part #	Description	Period	Qty
83100 - METER ASSY, COMBINATION
83100-60022	FJ4# MILE	10/1970 - 09/1971	1
83100-60012	FJ4#,HJ45 KM.	09/1971 - 09/1972	1
83100-60014	FJ4#,HJ45 KM	09/1973 - 01/1975	1
83100-60024	FJ4#,HJ45 MILE	09/1972 - 09/1973	1
83100-60011	FJ4# KM.	03/1969 - 09/1971	1
83100-60072	FJ4#,HJ45 MILE EUR. SPEC.	09/1973 - 01/1975	1
83100-60023	FJ4#,HJ45 MILE	09/1971 - 09/1972	1
83100-60025	FJ4#,HJ45 MILE	09/1973 - 01/1975	1
83100-60013	FJ4#,HJ45 KM.	09/1972 - 09/1973	1
83100-60021	FJ4# MILE	03/1969 - 10/1970	1
83100-60120	FJ4#,HJ45 KM. EUR. SPEC.	09/1973 - 01/1975	1
83100B - BULB, COMBINATION METER, NO.1
99132-13030	FJ4# 12V 3W	03/1969 - 09/1972	3
99132-12034	FJ4# 12V 3.4W,12V 3.4W	09/1972 - 09/1973	5
83100B - BULB, COMBINATION METER, NO.1
99132-13030	FJ4# 12V 3W	03/1969 - 09/1972	3
99132-12034	FJ4# 12V 3.4W,12V 3.4W	09/1972 - 09/1973	5
83100B - BULB, COMBINATION METER, NO.1
99132-13030	FJ4# 12V 3W	03/1969 - 09/1972	3
99132-12034	FJ4# 12V 3.4W,12V 3.4W	09/1972 - 09/1973	5
83110 - SPEEDOMETER ASSY
83110-60011	FJ4# KM.	03/1969 - 09/1971	1
83110-60021	FJ4# MILE	03/1969 - 10/1970	1
83110-60023	BJ4#,FJ4#,HJ45 MILE	09/1972 - 01/1975	1
83110-60012	BJ4#,FJ4#,HJ45 KM.	09/1972 - 01/1975	1
83110-60022	FJ4#,HJ45 MILE	10/1970 - 09/1972	1
83110-60011	FJ4#,HJ45 KM.	09/1971 - 09/1972	1
83110-60061	FJ4#,HJ45 MILE EUR. SPEC.	09/1973 - 01/1975	1
83110-60110	FJ4#,HJ45 KM. EUR. SPEC.	09/1973 - 01/1975	1
83310 - GAGE ASSY, FUEL RECEIVER
83310-60011	FJ4#,HJ45	03/1969 - 09/1972	1
83310-60012	FJ4#,HJ45	09/1972 - 09/1973	1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83410-60012	FJ4#,HJ45	09/1972 - 09/1973	1
83410-60011	FJ4#,HJ45	03/1969 - 09/1972	1
83510 - GAGE ASSY, OIL PRESSURE RECEIVER
83510-60011	FJ4#,HJ45	03/1969 - 09/1973	1
83610 - AMMETER ASSY
83610-60021	FJ4#,HJ45	03/1969 - 09/1973	1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-69036	FJ4#,55,HJ45..RHD L=2450	09/1972 - 09/1973	1
83710-69035	FJ40,43,45,55,HJ45..RHD L=2450	10/1971 - 09/1972	1
83710-60020	FJ40,43,45,55..RHD L=2300	03/1969 - 10/1971	1
Common parts
90201-07069
90461-08008
90461-10875
90463-06161
91651-40616
93239-26012
Linked diagrams
3304

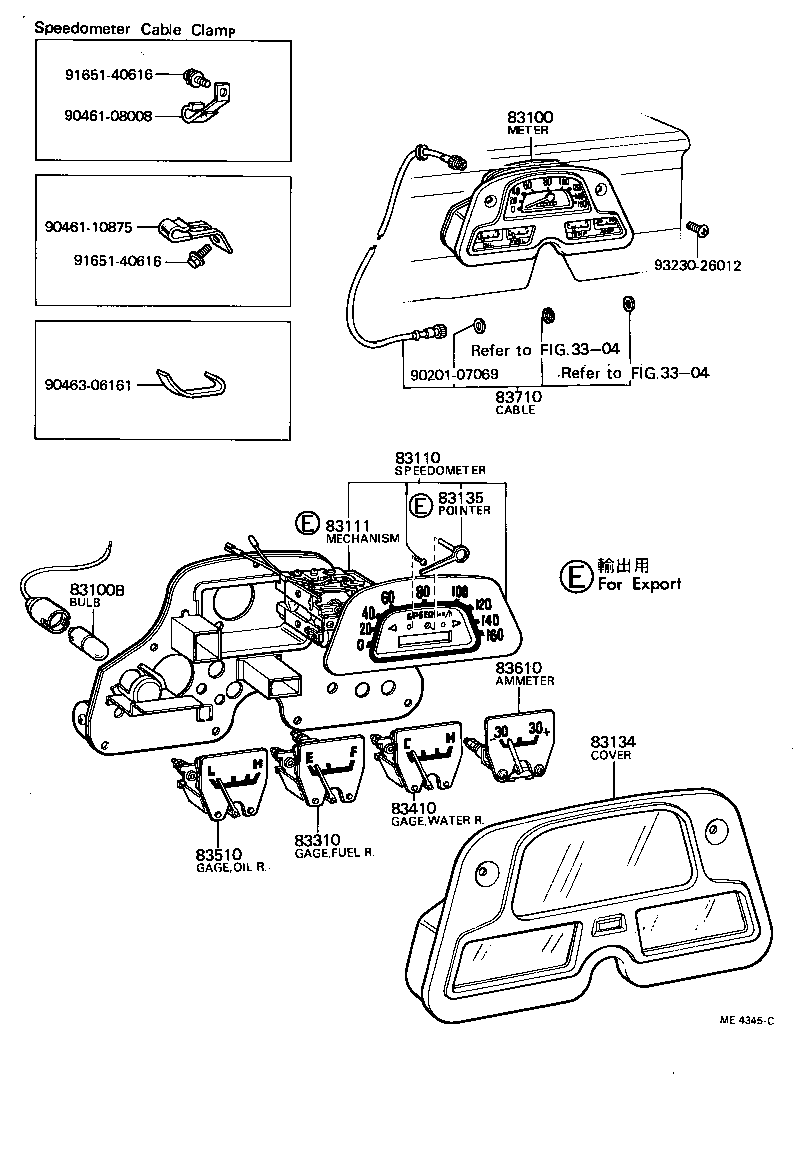

(7209-7309)FJ4#,HJ45

Click highlighted areas on diagram

Part #	Description	Period	Qty
83100 - METER ASSY, COMBINATION
83100-60022	FJ4# MILE	10/1970 - 09/1971	1
83100-60012	FJ4#,HJ45 KM.	09/1971 - 09/1972	1
83100-60014	FJ4#,HJ45 KM	09/1973 - 01/1975	1
83100-60024	FJ4#,HJ45 MILE	09/1972 - 09/1973	1
83100-60011	FJ4# KM.	03/1969 - 09/1971	1
83100-60072	FJ4#,HJ45 MILE EUR. SPEC.	09/1973 - 01/1975	1
83100-60023	FJ4#,HJ45 MILE	09/1971 - 09/1972	1
83100-60025	FJ4#,HJ45 MILE	09/1973 - 01/1975	1
83100-60013	FJ4#,HJ45 KM.	09/1972 - 09/1973	1
83100-60021	FJ4# MILE	03/1969 - 10/1970	1
83100-60120	FJ4#,HJ45 KM. EUR. SPEC.	09/1973 - 01/1975	1
83100B - BULB, COMBINATION METER, NO.1
99132-13030	FJ4# 12V 3W	03/1969 - 09/1972	3
99132-12034	FJ4# 12V 3.4W,12V 3.4W	09/1972 - 09/1973	5
83110 - SPEEDOMETER ASSY
83110-60011	FJ4# KM.	03/1969 - 09/1971	1
83110-60021	FJ4# MILE	03/1969 - 10/1970	1
83110-60023	BJ4#,FJ4#,HJ45 MILE	09/1972 - 01/1975	1
83110-60012	BJ4#,FJ4#,HJ45 KM.	09/1972 - 01/1975	1
83110-60022	FJ4#,HJ45 MILE	10/1970 - 09/1972	1
83110-60011	FJ4#,HJ45 KM.	09/1971 - 09/1972	1
83110-60061	FJ4#,HJ45 MILE EUR. SPEC.	09/1973 - 01/1975	1
83110-60110	FJ4#,HJ45 KM. EUR. SPEC.	09/1973 - 01/1975	1
83111 - MECHANISM, SPEEDOMETER
83112-60012	BJ4#,FJ4#,HJ45 KM.	09/1972 - 01/1975	1
83112-60072	FJ4#,HJ45 KM.EUR.SPEC.	09/1973 - 01/1975	1
83112-60023	BJ4#,FJ4#,HJ45 MILE	09/1972 - 01/1975	1
83112-60061	FJ4#,HJ45 MILE,EUR.SPEC.	09/1973 - 01/1975	1
83310 - GAGE ASSY, FUEL RECEIVER
83310-60011	FJ4#,HJ45	03/1969 - 09/1972	1
83310-60012	FJ4#,HJ45	09/1972 - 09/1973	1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83410-60012	FJ4#,HJ45	09/1972 - 09/1973	1
83410-60011	FJ4#,HJ45	03/1969 - 09/1972	1
83510 - GAGE ASSY, OIL PRESSURE RECEIVER
83510-60011	FJ4#,HJ45	03/1969 - 09/1973	1
83610 - AMMETER ASSY
83610-60021	FJ4#,HJ45	03/1969 - 09/1973	1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-69036	FJ4#,55,HJ45..RHD L=2450	09/1972 - 09/1973	1
83710-69035	FJ40,43,45,55,HJ45..RHD L=2450	10/1971 - 09/1972	1
83710-60020	FJ40,43,45,55..RHD L=2300	03/1969 - 10/1971	1
Common parts
90201-07069
90461-08008
90461-10875
90463-06161
91651-40616
93230-26012
Linked diagrams
3304

FJ40-C (1969)

(6903-7209)FJ4#,HJ45

(7209-7309)FJ4#,HJ45
