FJ40-C (1969)

Toyota Land Cruiser

Production Mar 1969 - Jan 1975
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-8007)

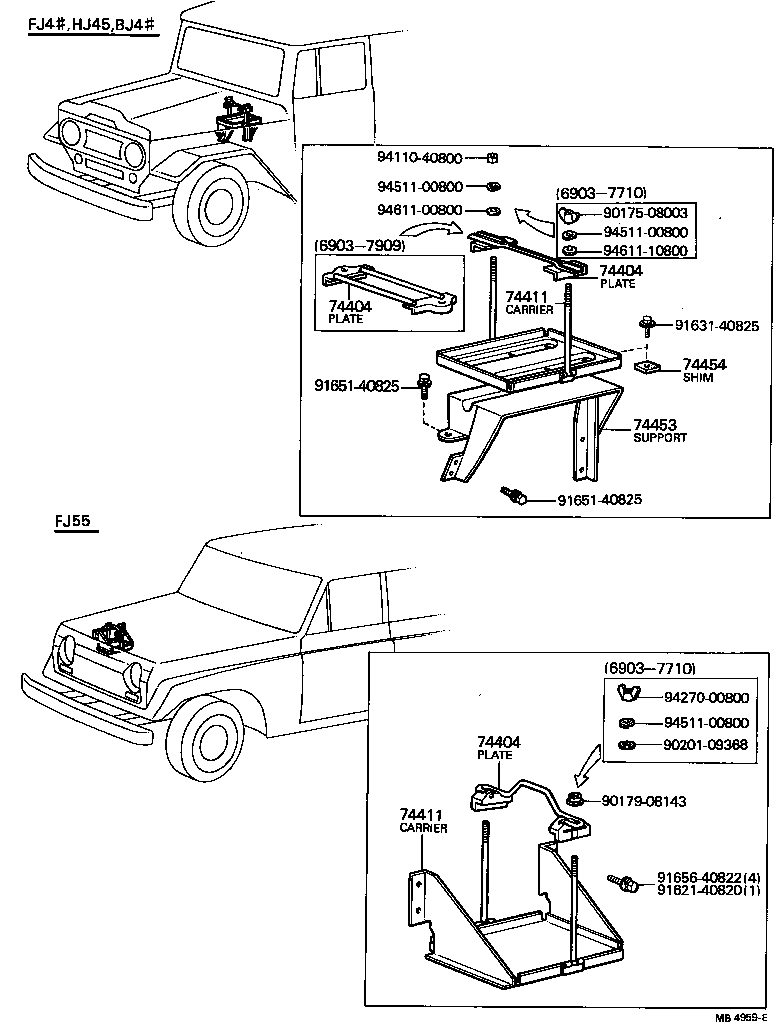

Click highlighted areas on diagram

diagram 74404 74404 74404 74411 74411 74453 74454 9017508003 9017908143 9020109368 9162140820 9163140825 9165140825 9165140825 9165640822 9411040800 9427000800 9451100800 9451100800 9451100800 9461100800 9461110800
Part # Description Qty Price
74404 - PLATE SUB-ASSY, BATTERY SET
74404-60030

FJ4#,55

FOR N50

 1
74404-60050

FJ4#,55,HJ45

FOR N70Z

 1
74404 - PLATE SUB-ASSY, BATTERY SET
74404-60030

FJ4#,55

FOR N50

 1
74404-60050

FJ4#,55,HJ45

FOR N70Z

 1
74404 - PLATE SUB-ASSY, BATTERY SET
74404-60030

FJ4#,55

FOR N50

 1
74404-60050

FJ4#,55,HJ45

FOR N70Z

 1
74411 - CARRIER, BATTERY
74403-60011

BJ4#,FJ4#

FOR N50,N50Z

 2
74403-60050

BJ4#,FJ4#,HJ45

FOR N70Z

 2
74411 - CARRIER, BATTERY
74403-60011

BJ4#,FJ4#

FOR N50,N50Z

 2
74403-60050

BJ4#,FJ4#,HJ45

FOR N70Z

 2
74453 - SUPPORT, BATTERY CARRIER
74401-60011

FJ4#

 1
74454 - SHIM (FOR BATTERY CARRIER SUPPORT)
52321-55010

BJ4#,FJ4#,HJ45

 8
Common parts
90175-08003
90179-08143
90201-09368
91621-40820
91631-40825
91651-40825
91656-40822
94110-40800
94270-00800
94511-00800
94611-00800
94611-10800
