FJ40-C (1969)
Toyota Land Cruiser
Production
Mar 1969
-
Jan 1975
Engine
F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

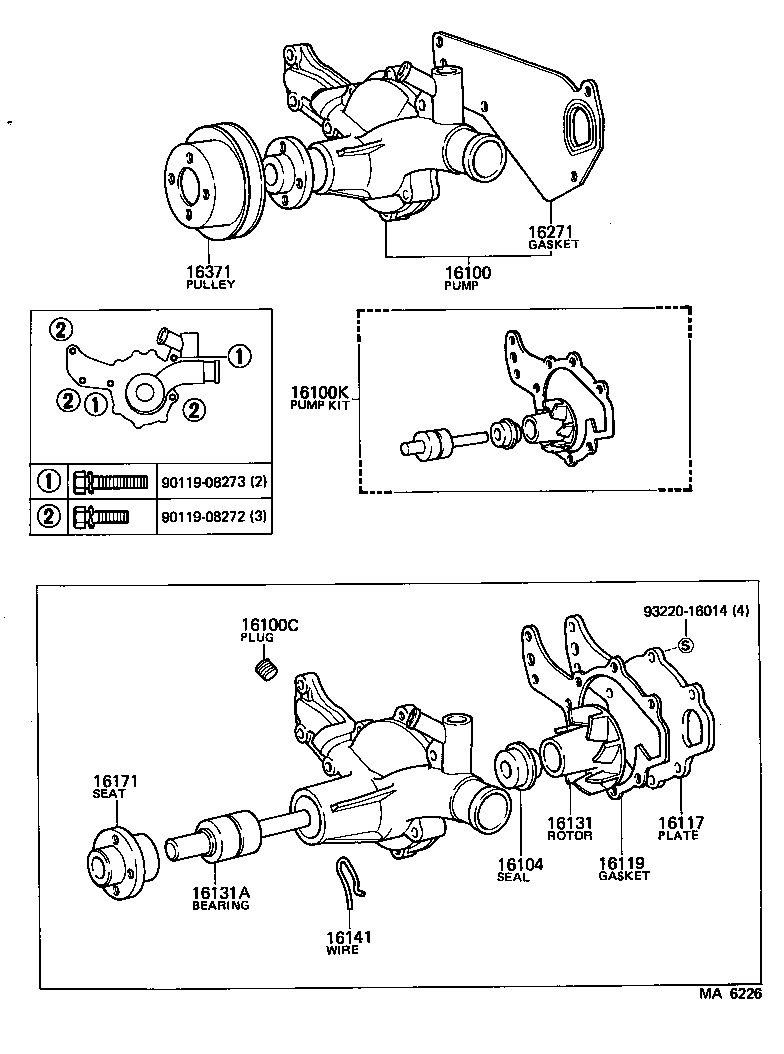

(8008-8410)B,3B..ARL,GEN
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08272 | ||||
| 90119-08273 | ||||
| 93220-16014 | ||||

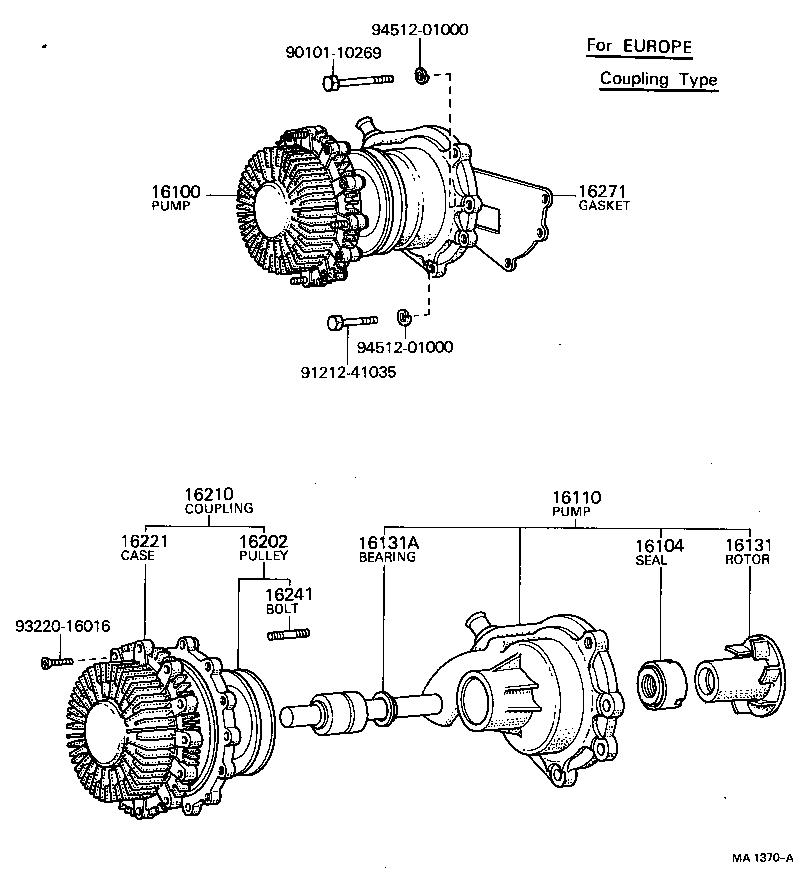

(7401-7501)F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-60080 |
F..FJ4#,55 |
1 | ||
| 16100-60090 |
F..FJ4#,55 FOR TROPICAL |
1 | ||
| 16100-60120 |
F..FJ4#,55 FOR EUROPE COUPLING TYPE |
1 | ||
| 16104 - SEAL SET, WATER PUMP | ||||
| 16104-60080 |
F..FJ4#,55 |
1 | ||
| 16110 - PUMP ASSY, WATER, W/O COUPLING | ||||
| 16110-60080 |
F..FJ4#,55 FOR EUROPE COUPLING TYPE |
1 | ||
| 16131 - ROTOR, WATER PUMP | ||||
| 16131-60080 |
F..FJ4#,55 |
1 | ||
| 16131A - BEARING, WATER PUMP | ||||
| 90369-30008 |
F..FJ4#,55 885141CF |
1 | ||
| 16202 - PULLEY & BEARING CASE SUB-ASSY, FLUID COUPLING | ||||
| 16202-60120 |
F..FJ4#,55 FOR EUROPE,COUPLING TYPE |
1 | ||
| 16210 - COUPLING ASSY, FLUID | ||||
| 16210-60120 |
F..FJ4#,55 FOR EUROPE,COUPLING TYPE |
1 | ||
| 16221 - CASE, FLUID COUPLING | ||||
| 16221-60120 |
F..FJ4#,55 FOR EUROPE W/COUPLING FLUID |
1 | ||
| 16241 - BOLT, STUD(FOR WATER PUMP COUPLING) | ||||
| 16241-40030 |
F..FJ4#,55 FOR EUROPE,COUPLING TYPE |
4 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-60010 |
F..FJ4#,55 |
1 | ||
| Common parts | ||||
| 90101-10269 | ||||
| 91212-41035 | ||||
| 93220-16016 | ||||
| 94512-01000 | ||||

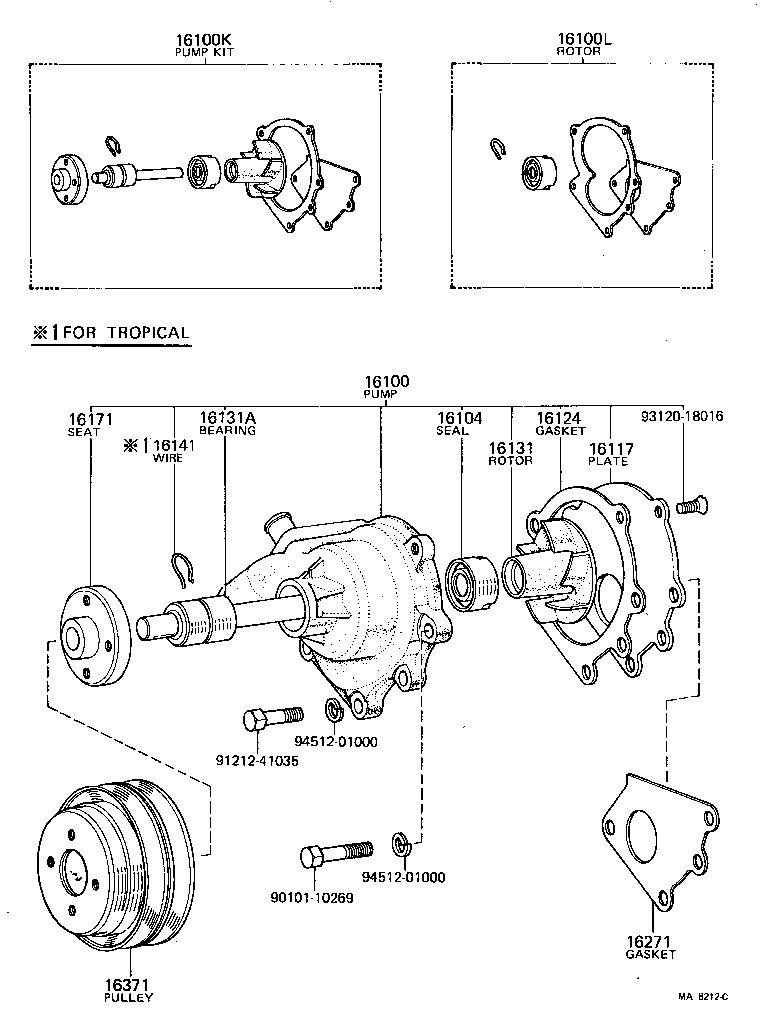

(6903-7501)F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-60080 |
F..FJ4#,55 |
1 | ||
| 16100-60090 |
F..FJ4#,55 FOR TROPICAL |
1 | ||
| 16100-60120 |
F..FJ4#,55 FOR EUROPE COUPLING TYPE |
1 | ||
| 16100K - PUMP KIT, WATER | ||||
| 04161-60090 |
F..FJ4#,55 |
1 | ||
| 16100L - ROTOR KIT, WATER PUMP | ||||
| 04162-60070 |
F..FJ4#,55 |
1 | ||
| 16104 - SEAL SET, WATER PUMP | ||||
| 16104-60080 |
F..FJ4#,55 |
1 | ||
| 16117 - PLATE, WATER PUMP | ||||
| 16117-60010 |
F..FJ4#,55 |
1 | ||
| 16124 - GASKET, WATER PUMP COVER | ||||
| 16124-60080 |
F..FJ4#,55 |
1 | ||
| 16131 - ROTOR, WATER PUMP | ||||
| 16131-60080 |
F..FJ4#,55 |
1 | ||
| 16131A - BEARING, WATER PUMP | ||||
| 90369-30008 |
F..FJ4#,55 885141CF |
1 | ||
| 16141 - WIRE, WATER PUMP BEARING RETAINING | ||||
| 16141-60010 |
F..FJ4#,55 FOR CAST IRON BODY |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-60080 |
F..FJ4#,55 |
1 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-60010 |
F..FJ4#,55 |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-60070 |
F..FJ4#,55 |
1 | ||
| Common parts | ||||
| 90101-10269 | ||||
| 91212-41035 | ||||
| 93120-18016 | ||||
| 94512-01000 | ||||
