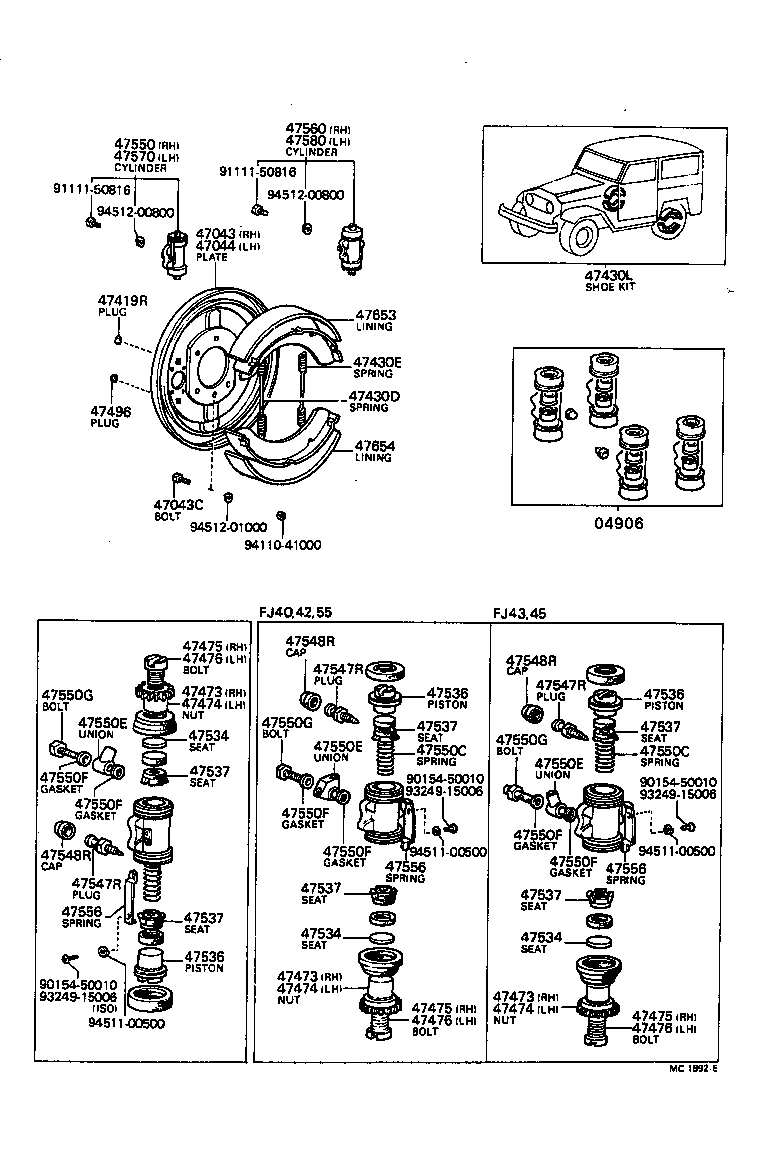

Toyota Land cruiser FJ40 REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

Part #	Description	Period	Qty
04906 - CUP KIT, REAR WHEEL CYLINDER
04906-60011	FJ40,42 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	1
04906-60040	FJ40 FOR TANDEM MASTER CYLINDER	09/1971 - 09/1973	1
47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043-35010	FJ4#,55	03/1969 - 09/1971	1
47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
42184-35010	BJ4#,FJ4#,55,HJ45 FOR SEMI FLOATING AXLE	03/1969 - 07/1980	12
47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47043-35010	FJ4#,55	03/1969 - 09/1971	1
47419R - PLUG, HOLE(FOR REAR BRAKE)
47419-35011	BJ4#,FJ4#,55,HJ45	03/1969 - 07/1980	4
47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
90506-26071	FJ4#,55	03/1969 - 09/1971	2
47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
90506-26071	FJ4#,55	03/1969 - 09/1971	2
47430L - SHOE KIT, REAR BRAKE
04494-60010	BJ4#,FJ4#,55,HJ45	03/1969 - 09/1975	1
47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)
47552-60020	FJ40 FOR TANDEM MASTER CYLINDER	09/1971 - 09/1973	2
47552-60010	FJ40,42 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	2
47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)
47552-60020	FJ40 FOR TANDEM MASTER CYLINDER	09/1971 - 09/1973	2
47552-60010	FJ40,42 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	2
47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)
47552-60020	FJ40 FOR TANDEM MASTER CYLINDER	09/1971 - 09/1973	2
47552-60010	FJ40,42 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	2
47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
47551-60020	FJ40 FOR TANDEM MASTER CYLINDER	09/1971 - 09/1973	2
47551-60010	FJ40,42 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	2
47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
47551-60020	FJ40 FOR TANDEM MASTER CYLINDER	09/1971 - 09/1973	2
47551-60010	FJ40,42 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	2
47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
47551-60020	FJ40 FOR TANDEM MASTER CYLINDER	09/1971 - 09/1973	2
47551-60010	FJ40,42 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	2
47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE
47554-60010	FJ40,43,55 FOR TANDEM MASTER CYLINDER	01/1973 - 09/1973	2
47554-35010	FJ4#,55,HJ45 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	2
47554-60010	FJ40,55 FOR TANDEM MASTER CYLINDER	09/1971 - 01/1973	2
47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE
47554-60010	FJ40,43,55 FOR TANDEM MASTER CYLINDER	01/1973 - 09/1973	2
47554-35010	FJ4#,55,HJ45 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	2
47554-60010	FJ40,55 FOR TANDEM MASTER CYLINDER	09/1971 - 01/1973	2
47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE
47554-60010	FJ40,43,55 FOR TANDEM MASTER CYLINDER	01/1973 - 09/1973	2
47554-35010	FJ4#,55,HJ45 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	2
47554-60010	FJ40,55 FOR TANDEM MASTER CYLINDER	09/1971 - 01/1973	2
47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
47553-35010	FJ4#,55,HJ45 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	2
47553-60010	FJ40,43,55 FOR TANDEM MASTER CYLINDER	01/1973 - 09/1973	2
47553-60010	FJ40,55 FOR TANDEM MASTER CYLINDER	09/1971 - 01/1973	2
47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
47553-35010	FJ4#,55,HJ45 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	2
47553-60010	FJ40,43,55 FOR TANDEM MASTER CYLINDER	01/1973 - 09/1973	2
47553-60010	FJ40,55 FOR TANDEM MASTER CYLINDER	09/1971 - 01/1973	2
47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
47553-35010	FJ4#,55,HJ45 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	2
47553-60010	FJ40,43,55 FOR TANDEM MASTER CYLINDER	01/1973 - 09/1973	2
47553-60010	FJ40,55 FOR TANDEM MASTER CYLINDER	09/1971 - 01/1973	2
47496 - PLUG, HOLE(FOR REAR BRAKE)
47491-35021	BJ4#,FJ4#,55,HJ45	03/1969 - 12/1974	4
47534 - SEAT, WHEEL CYLINDER PISTON CUP(FOR REAR BRAKE)
47534-60010	FJ40,42	03/1969 - 09/1971	4
47534 - SEAT, WHEEL CYLINDER PISTON CUP(FOR REAR BRAKE)
47534-60010	FJ40,42	03/1969 - 09/1971	4
47534 - SEAT, WHEEL CYLINDER PISTON CUP(FOR REAR BRAKE)
47534-60010	FJ40,42	03/1969 - 09/1971	4
47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47531-60020	FJ40 FOR TANDEM MASTER CYLINDER	09/1971 - 09/1973	4
47531-35020	FJ40,42 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	4
47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47531-60020	FJ40 FOR TANDEM MASTER CYLINDER	09/1971 - 09/1973	4
47531-35020	FJ40,42 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	4
47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)
47531-60020	FJ40 FOR TANDEM MASTER CYLINDER	09/1971 - 09/1973	4
47531-35020	FJ40,42 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	4
47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)
47533-35020	FJ40,42 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	8
47533-40020	BJ40,FJ40	09/1973 - 12/1974	8
47533-40020	FJ40 FOR TANDEM MASTER CYLINDER	09/1971 - 09/1973	8
47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)
47533-35020	FJ40,42 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	8
47533-40020	BJ40,FJ40	09/1973 - 12/1974	8
47533-40020	FJ40 FOR TANDEM MASTER CYLINDER	09/1971 - 09/1973	8
47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)
47533-35020	FJ40,42 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	8
47533-40020	BJ40,FJ40	09/1973 - 12/1974	8
47533-40020	FJ40 FOR TANDEM MASTER CYLINDER	09/1971 - 09/1973	8
47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)
47533-35020	FJ40,42 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	8
47533-40020	BJ40,FJ40	09/1973 - 12/1974	8
47533-40020	FJ40 FOR TANDEM MASTER CYLINDER	09/1971 - 09/1973	8
47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)
47533-35020	FJ40,42 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	8
47533-40020	BJ40,FJ40	09/1973 - 12/1974	8
47533-40020	FJ40 FOR TANDEM MASTER CYLINDER	09/1971 - 09/1973	8
47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)
47533-35020	FJ40,42 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	8
47533-40020	BJ40,FJ40	09/1973 - 12/1974	8
47533-40020	FJ40 FOR TANDEM MASTER CYLINDER	09/1971 - 09/1973	8
47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47547-35010	FJ4#,55	03/1969 - 11/1970	4
47547-35011	FJ4#,55	11/1970 - 09/1971	4
47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47547-35010	FJ4#,55	03/1969 - 11/1970	4
47547-35011	FJ4#,55	11/1970 - 09/1971	4
47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47547-35010	FJ4#,55	03/1969 - 11/1970	4
47547-35011	FJ4#,55	11/1970 - 09/1971	4
47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
31478-30010	BJ4#,FJ4#,55	03/1969 - 07/1980	4
47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
31478-30010	BJ4#,FJ4#,55	03/1969 - 07/1980	4
47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
31478-30010	BJ4#,FJ4#,55	03/1969 - 07/1980	4
47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550-60010	FJ40,42 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47550-69035	FJ40,42 FOR SINGLE MASTER CYLINDER	09/1971 - 09/1973	1
47550-69045	FJ40 FOR TANDEM MASTER CYLINDER	09/1971 - 09/1973	1
47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
90501-08529	FJ40,55 FOR TANDEM MASTER CYLINDER	09/1971 - 01/1973	4
90501-08529	BJ4#,FJ40,43,55	09/1973 - 12/1974	4
90501-08529	FJ40,43,55 FOR TANDEM MASTER CYLINDER	01/1973 - 09/1973	4
90501-08122	FJ4#,55,HJ45 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	4
47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
90501-08529	FJ40,55 FOR TANDEM MASTER CYLINDER	09/1971 - 01/1973	4
90501-08529	BJ4#,FJ40,43,55	09/1973 - 12/1974	4
90501-08529	FJ40,43,55 FOR TANDEM MASTER CYLINDER	01/1973 - 09/1973	4
90501-08122	FJ4#,55,HJ45 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1973	4
47550E - UNION(FOR REAR WHEEL BRAKE CYLINDER)
90405-09024	FJ4# FOR SINGLE M/C FRONT	03/1969 - 09/1971	2
90405-09042	FJ40,42 FOR SINGLE M/C REAR	03/1969 - 09/1971	2
47550E - UNION(FOR REAR WHEEL BRAKE CYLINDER)
90405-09024	FJ4# FOR SINGLE M/C FRONT	03/1969 - 09/1971	2
90405-09042	FJ40,42 FOR SINGLE M/C REAR	03/1969 - 09/1971	2
47550E - UNION(FOR REAR WHEEL BRAKE CYLINDER)
90405-09024	FJ4# FOR SINGLE M/C FRONT	03/1969 - 09/1971	2
90405-09042	FJ40,42 FOR SINGLE M/C REAR	03/1969 - 09/1971	2
47550F - GASKET(FOR REAR WHEEL BRAKE CYLINDER)
90430-11100	FJ4#,55	03/1969 - 09/1971	8
47550F - GASKET(FOR REAR WHEEL BRAKE CYLINDER)
90430-11100	FJ4#,55	03/1969 - 09/1971	8
47550F - GASKET(FOR REAR WHEEL BRAKE CYLINDER)
90430-11100	FJ4#,55	03/1969 - 09/1971	8
47550F - GASKET(FOR REAR WHEEL BRAKE CYLINDER)
90430-11100	FJ4#,55	03/1969 - 09/1971	8
47550F - GASKET(FOR REAR WHEEL BRAKE CYLINDER)
90430-11100	FJ4#,55	03/1969 - 09/1971	8
47550F - GASKET(FOR REAR WHEEL BRAKE CYLINDER)
90430-11100	FJ4#,55	03/1969 - 09/1971	8
47550G - BOLT, UNION(FOR REAR WHEEL BRAKE CYLINDER)
90401-11017	FJ4#,55 FOR FRONT	03/1969 - 09/1971	2
90401-11017	FJ40,42,55 FOR SINGLE M/C REAR	03/1969 - 09/1971	2
47550G - BOLT, UNION(FOR REAR WHEEL BRAKE CYLINDER)
90401-11017	FJ4#,55 FOR FRONT	03/1969 - 09/1971	2
90401-11017	FJ40,42,55 FOR SINGLE M/C REAR	03/1969 - 09/1971	2
47550G - BOLT, UNION(FOR REAR WHEEL BRAKE CYLINDER)
90401-11017	FJ4#,55 FOR FRONT	03/1969 - 09/1971	2
90401-11017	FJ40,42,55 FOR SINGLE M/C REAR	03/1969 - 09/1971	2
47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE)
47555-35010	BJ4#,FJ4#,55,HJ45	03/1969 - 02/1978	4
47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE)
47555-35010	BJ4#,FJ4#,55,HJ45	03/1969 - 02/1978	4
47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE)
47555-35010	BJ4#,FJ4#,55,HJ45	03/1969 - 02/1978	4
47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)
47560-69025	FJ40,42 FOR SINGLE MASTER CYLINDER	09/1971 - 09/1973	1
47560-60010	FJ40,42 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47560-69035	FJ40 FOR TANDEM MASTER CYLINDER	09/1971 - 09/1973	1
47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47570-69035	FJ40 FOR TANDEM MASTER CYLINDER	09/1971 - 09/1973	1
47570-69025	FJ40,42 FOR SINGLE MASTER CYLINDER	09/1971 - 09/1973	1
47570-60010	FJ40,42 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)
47580-60010	FJ40,42 FOR SINGLE MASTER CYLINDER	03/1969 - 09/1971	1
47580-69025	FJ40,42 FOR SINGLE MASTER CYLINDER	09/1971 - 09/1973	1
47580-69035	FJ40 FOR TANDEM MASTER CYLINDER	09/1971 - 09/1973	1
47653 - LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)
47651-35010	FJ4#,55	03/1969 - 07/1970	2
47654 - LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)
47651-35010	FJ4#,55	03/1969 - 07/1970	2
Common parts
90154-50010
91111-50816
93249-15006
94110-41000
94511-00500
94512-00800
94512-01000

Part #	Description	Period	Qty	Price
Common parts
90119-06084
90201-12452
90206-08024
91611-40814
93280-16022
94110-40600
96160-00600

FJ40- (1969)

(8008- )BJ40,42,43,46,FJ40,43 ; (8210-8506)FJ45,HJ47..RHD..GEN..IV

(6903-7109)
