FJ40- (1969)
Toyota Land Cruiser

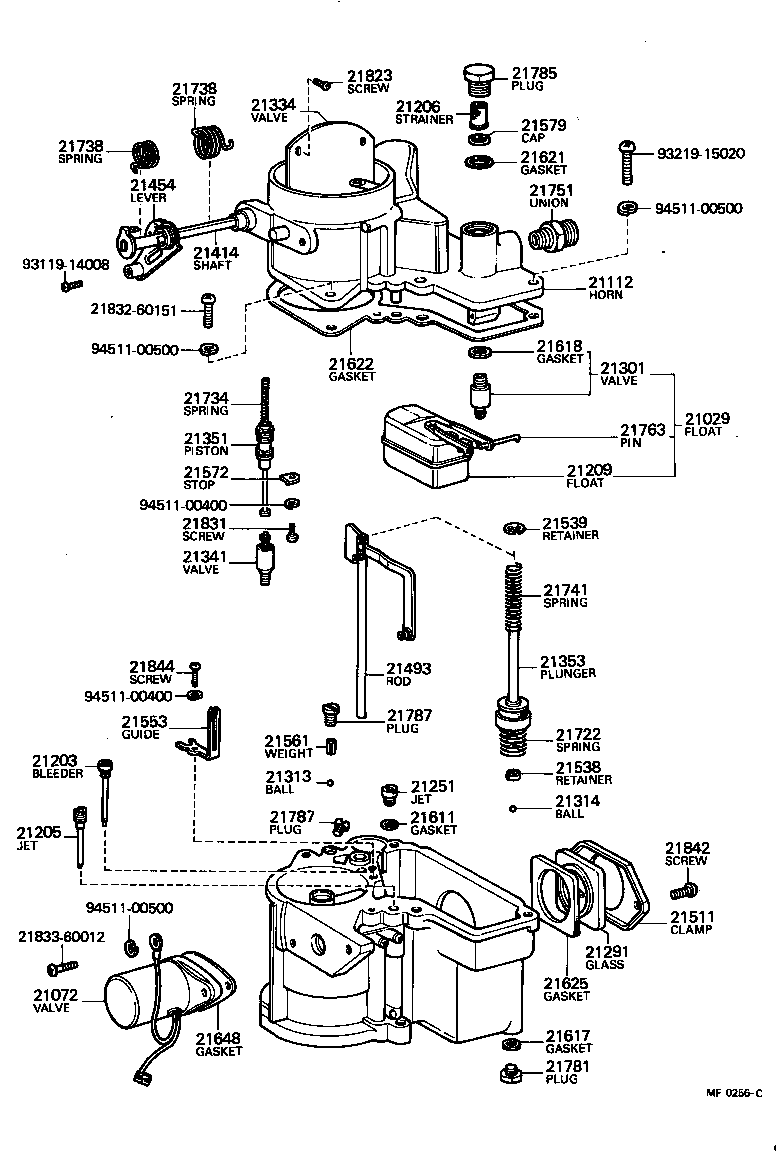

(6903-6909)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21029 - FLOAT & NEEDLE SUB-ASSY | ||||
| 21029-60010 |
F..FJ4#,55 |
1 | ||
| 21072 - VALVE SUB-ASSY, SLOW | ||||
| 21072-60151 |
F..FJ4#,55 |
1 | ||
| 21072-60200 |
F..FJ4#,55 |
1 | ||
| 21072-60201 |
F..FJ4#,55 |
1 | ||
| 21112 - HORN, AIR | ||||
| 21112-60152 |
F..FJ4#,55 ISO |
1 | ||
| 21112-60130 |
F..FJ4#,55 |
1 | ||
| 21203 - BLEEDER SUB-ASSY, 1ST MAIN AIR | ||||
| 21203-60150 |
F..FJ4#,55 |
1 | ||
| 21205 - JET SUB-ASSY, SLOW | ||||
| 21205-60150 |
F..FJ4#,55 ID=0.6 |
1 | ||
| 21205-60200 |
F..FJ4#,55 ID=0.5 |
2 | ||
| 21206 - STRAINER SUB-ASSY | ||||
| 21294-60010 |
F..FJ4#,55 |
1 | ||
| 21294-33080 |
F..FJ4#,55 |
1 | ||
| 21294-10010 |
F..FJ4#,55 |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-33010 |
F..FJ4#,55 |
1 | ||
| 21209-60010 |
F..FJ4#,55 |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 21251-60151 |
F..FJ4#,55 ID=1.5 |
1 | ||
| 21251-60200 |
F..FJ4#,55 ID=1.12 |
1 | ||
| 21251-60130 |
F..FJ4#,55 ID=1.16 |
1 | ||
| 21291 - GLASS, LEVEL GAGE | ||||
| 21291-50010 |
F..FJ4#,55 |
1 | ||
| 21291-33010 |
F..FJ4#,55 |
2 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-60200 |
F..FJ4#,55 |
1 | ||
| 21301-60060 |
F..FJ4#,55 |
1 | ||
| 21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT) | ||||
| 21313-30010 |
F..FJ4#,55 |
1 | ||
| 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) | ||||
| 21314-60010 |
F..FJ4#,55 |
1 | ||
| 21334 - VALVE, CHOKE | ||||
| 21334-60200 |
F..FJ4#,55 |
1 | ||
| 21334-60150 |
F..FJ4#,55 |
1 | ||
| 21341 - VALVE, POWER | ||||
| 21341-60151 |
F..FJ4#,55 |
1 | ||
| 21351 - PISTON, POWER | ||||
| 21351-60151 |
F..FJ4#,55 |
1 | ||
| 21353 - PLUNGER, PUMP | ||||
| 21353-60150 |
F..FJ4#,55 |
1 | ||
| 21353-60200 |
F..FJ4#,55 |
1 | ||
| 21414 - SHAFT, CHOKE | ||||
| 21414-60200 |
F..FJ4#,55 |
1 | ||
| 21403-60010 |
F..FJ4#,55 |
1 | ||
| 21454 - LEVER, CHOKE | ||||
| 21454-60200 |
F..FJ4#,55 |
1 | ||
| 21454-60280 |
F..FJ4#,55 |
1 | ||
| 21454-60151 |
F..FJ4#,55 ISO |
1 | ||
| 21493 - ROD, LIFTER | ||||
| 21493-60151 |
F..FJ4#,55 |
1 | ||
| 21511 - CLAMP, LEVEL GAGE | ||||
| 21511-33010 |
F..FJ4#,55 |
1 | ||
| 21511-50011 |
F..FJ4#,55 |
1 | ||
| 21538 - RETAINER, BALL CHECK | ||||
| 21538-31010 |
F,2F..FJ4#,55 |
1 | ||
| 21539 - RETAINER, PUMP SPRING | ||||
| 21539-60150 |
F..FJ4#,55 |
1 | ||
| 21553 - GUIDE | ||||
| 21553-60150 |
F..FJ4#,55 |
1 | ||
| 21561 - WEIGHT, PUMP DISCHARGE | ||||
| 21561-30010 |
F..FJ4#,55 |
1 | ||
| 21572 - STOP, POWER PISTON | ||||
| 21572-60060 |
F..FJ4#,55 |
1 | ||
| 21572-33080 |
F..FJ4#,55 |
1 | ||
| 21572-22010 |
F..FJ4#,55 |
1 | ||
| 21579 - CAP, STRAINER | ||||
| 21579-60010 |
F..FJ4#,55 |
1 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
F,2F..FJ4#,55 |
2 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21628-30010 |
F..FJ4#,55 |
2 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-60010 |
F..FJ4#,55 |
1 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21619-22010 |
F..FJ4#,55 |
2 | ||
| 21622 - GASKET, AIR HORN | ||||
| 21622-60200 |
F..FJ4#,55 |
1 | ||
| 21622-60150 |
F..FJ4#,55 |
1 | ||
| 21622-60201 |
F..FJ4#,55 |
1 | ||
| 21625 - GASKET, LEVEL GAGE | ||||
| 21625-50010 |
F..FJ4#,55 |
1 | ||
| 21641-33040 |
F..FJ4#,55 |
1 | ||
| 21648 - PACKING(FOR SLOW VALVE COVER) | ||||
| 21649-60150 |
F..FJ4#,55 |
1 | ||
| 21722 - SPRING, PUMP DAMPING | ||||
| 21722-60150 |
F..FJ4#,55 |
1 | ||
| 21722-60200 |
F..FJ4#,55 |
1 | ||
| 21734 - SPRING, POWER PISTON | ||||
| 21734-60151 |
F..FJ4#,55 |
1 | ||
| 21734-41010 |
F..FJ4#,55 |
1 | ||
| 21738 - SPRING, CHOKE VALVE RELIEF | ||||
| 21737-60010 |
F..FJ4#,55 OUTSIDE |
1 | ||
| 21738-60010 |
F..FJ4#,55 INSIDE |
1 | ||
| 21738 - SPRING, CHOKE VALVE RELIEF | ||||
| 21737-60010 |
F..FJ4#,55 OUTSIDE |
1 | ||
| 21738-60010 |
F..FJ4#,55 INSIDE |
1 | ||
| 21741 - SPRING, PUMP | ||||
| 21741-60150 |
F..FJ4#,55 |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 90404-13006 |
F..FJ4#,55 |
1 | ||
| 90404-13105 |
F..FJ4#,55 |
1 | ||
| 21763 - PIN, FLOAT LEVER | ||||
| 21763-29270 |
F..FJ4#,55 |
1 | ||
| 21763-60010 |
F..FJ4#,55 |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-60200 |
F..FJ4#,55 NO.1 JET |
1 | ||
| 21782-21060 |
F..FJ4#,55 |
1 | ||
| 21677-60200 |
F..FJ4#,55 NO.2 JET |
1 | ||
| 21785 - PLUG, CARBURETOR FUEL INLET STRAINER | ||||
| 21781-60010 |
F..FJ4#,55 |
2 | ||
| 21787 - PLUG, PUMP JET | ||||
| 21787-69210 |
F..FJ4#,55 FOR WEIGHT PLUG |
1 | ||
| 21787-41011 |
F..FJ4#,55 |
1 | ||
| 21787 - PLUG, PUMP JET | ||||
| 21787-69210 |
F..FJ4#,55 FOR WEIGHT PLUG |
1 | ||
| 21787-41011 |
F..FJ4#,55 |
1 | ||
| 21823 - SCREW, CHOKE, VALVE SET | ||||
| 21821-60010 |
F..FJ4#,55 |
2 | ||
| 21823-60010 |
F..FJ4#,55 |
2 | ||
| 21821-60011 |
F..FJ4#,55 |
2 | ||
| 21831 - SCREW, POWER PISTON STOP | ||||
| 21842-33010 |
F,2F..FJ4#,55 |
1 | ||
| 21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET) | ||||
| 21842-33010 |
F,2F..FJ4#,55 |
2 | ||
| 21844 - SCREW, CHOKE LEVER | ||||
| 21842-33010 |
F..FJ4#,55 |
1 | ||
| Common parts | ||||
| 21832-60151 | ||||
| 21833-60012 | ||||
| 93119-14008 | ||||
| 93219-15020 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||

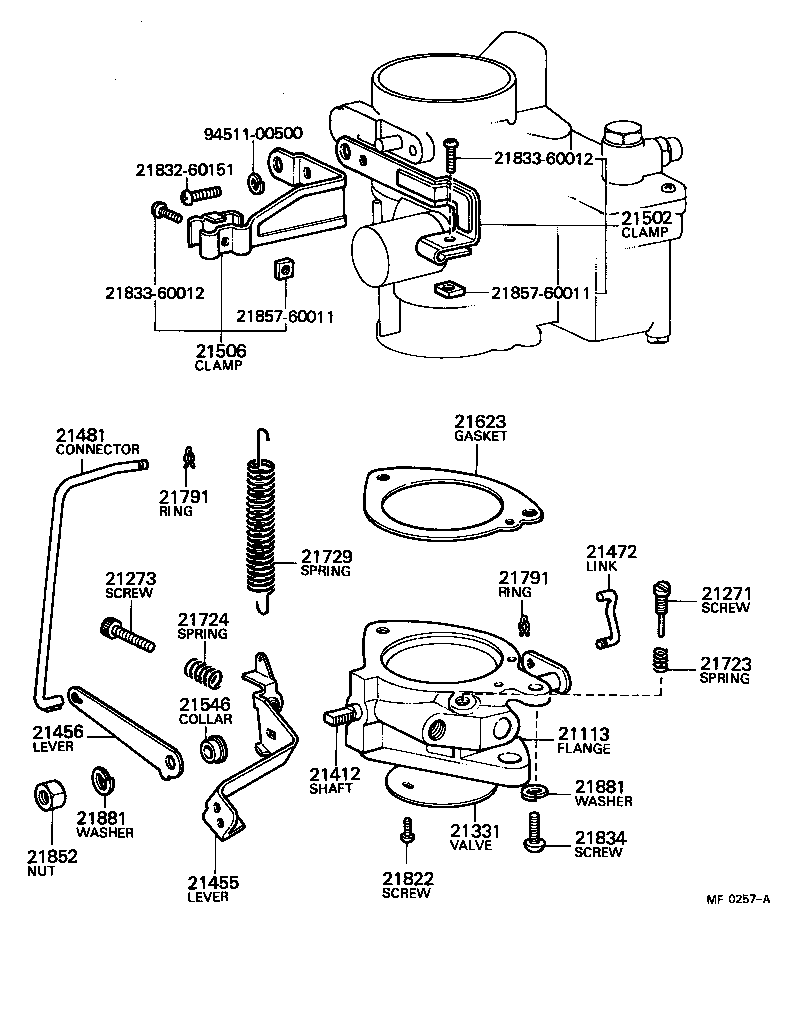

(6903-6909)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21113 - FLANGE, CARBURETOR | ||||
| 21113-60130 |
F..FJ4#,55 |
1 | ||
| 21113-60150 |
F..FJ4#,55 |
1 | ||
| 21113-60131 |
F..FJ4#,55 |
1 | ||
| 21271 - SCREW, IDLE ADJUSTING | ||||
| 21271-60200 |
F..FJ4#,55 |
1 | ||
| 21271-60150 |
F..FJ4#,55 |
1 | ||
| 21271-60130 |
F..FJ4#,55 |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21273-60151 |
F..FJ4#,55 ISO |
1 | ||
| 21331 - VALVE, 1ST THROTTLE | ||||
| 21331-60200 |
F..FJ4#,55 |
1 | ||
| 21331-60150 |
F..FJ4#,55 |
1 | ||
| 21412 - SHAFT, 1ST THROTTLE | ||||
| 21412-60202 |
F..FJ4#,55 |
1 | ||
| 21412-60201 |
F..FJ4#,55 |
1 | ||
| 21412-60150 |
F..FJ4#,55 |
1 | ||
| 21412-60200 |
F..FJ4#,55 |
1 | ||
| 21455 - LEVER, THROTTLE | ||||
| 21455-60200 |
F..FJ4#,55 |
1 | ||
| 21455-60201 |
F..FJ4#,55 |
1 | ||
| 21455-60151 |
F..FJ4#,55 ISO |
1 | ||
| 21456 - LEVER, 1ST THROTTLE IDLE ADJUSTING, NO.1 | ||||
| 21456-60150 |
F..FJ4#,55 |
1 | ||
| 21456-60200 |
F..FJ4#,55 |
1 | ||
| 21472 - LINK, PUMP CONNECTING, NO.2 | ||||
| 21472-60150 |
F..FJ4#,55 |
1 | ||
| 21481 - CONNECTOR, 1ST IDLE | ||||
| 21481-60200 |
F..FJ4#,55 |
1 | ||
| 21481-60150 |
F..FJ4#,55 |
1 | ||
| 21502 - CLAMP SUB-ASSY, CHOKE WIRE | ||||
| 21392-60150 |
F..FJ4#,55 |
1 | ||
| 21392-60201 |
F..FJ4#,55 |
1 | ||
| 21392-60200 |
F..FJ4#,55 |
1 | ||
| 21506 - CLAMP SUB-ASSY, THROTTLE WIRE | ||||
| 21393-60150 |
F..FJ4#,55 |
1 | ||
| 21546 - COLLAR, 1ST IDLE ADJUST | ||||
| 21546-10010 |
F..FJ4#,55 |
1 | ||
| 21623 - GASKET, BODY FLANGE | ||||
| 21623-60200 |
F..FJ4#,55 |
1 | ||
| 21623-60150 |
F..FJ4#,55 |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-60010 |
F..FJ4#,55 |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21723-60150 |
F..FJ4#,55 |
1 | ||
| 21729 - SPRING, 1ST THROTTLE BACK | ||||
| 21728-60150 |
F..FJ4#,55 |
1 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
F,2F..FJ4#,55 |
8 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
F,2F..FJ4#,55 |
8 | ||
| 21822 - SCREW, 1ST THROTTLE VALVE SET | ||||
| 21821-34031 |
F..FJ4#,55 |
2 | ||
| 21821-60010 |
F..FJ4#,55 |
2 | ||
| 21821-34030 |
F..FJ4#,55 |
2 | ||
| 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) | ||||
| 21834-31010 |
F..FJ4#,55 |
1 | ||
| 21834-60010 |
F..FJ4#,55 |
1 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
F..FJ4#,55 |
2 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
F..FJ4#,55 |
3 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
F..FJ4#,55 |
3 | ||
| Common parts | ||||
| 21832-60151 | ||||
| 21833-60012 | ||||
| 21857-60011 | ||||
| 94511-00500 | ||||

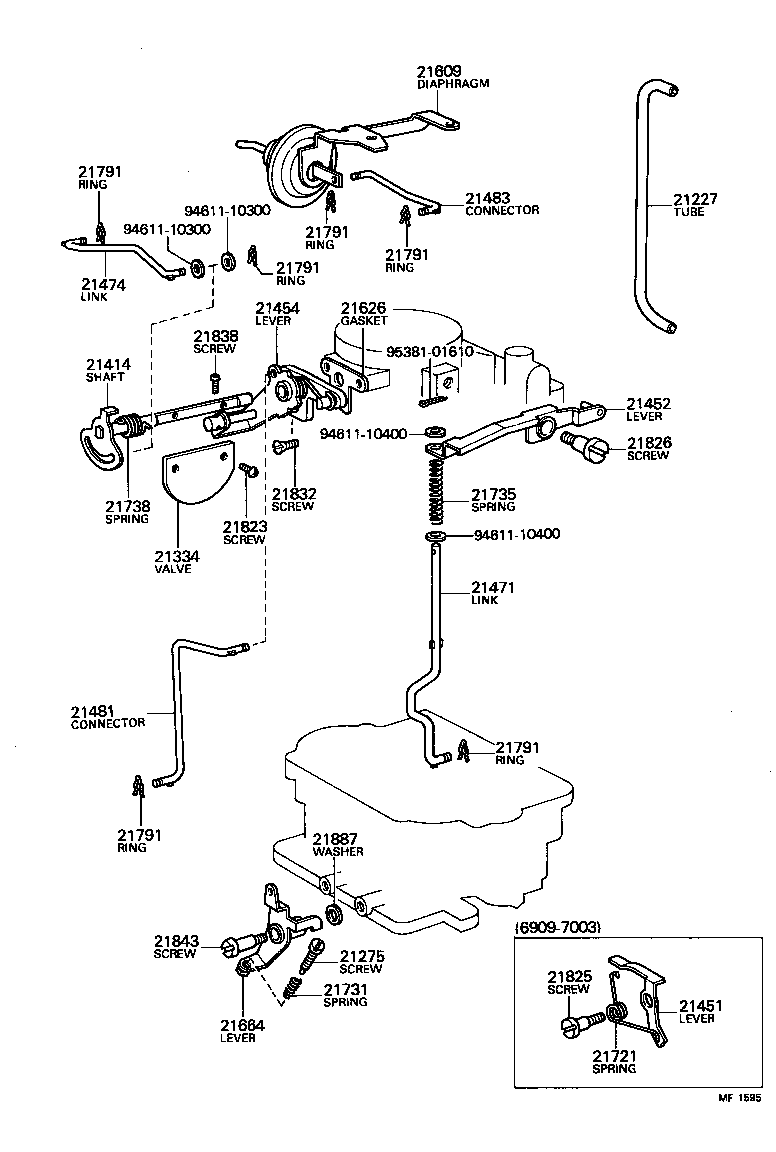

(6909-7501)F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21227 - TUBE, AIR VENT | ||||
| 21234-60130 |
F..FJ4#,55 |
1 | ||
| 21227-60180 |
F..FJ4#,55 |
1 | ||
| 21334 - VALVE, CHOKE | ||||
| 21334-60200 |
F..FJ4#,55 |
1 | ||
| 21334-60150 |
F..FJ4#,55 |
1 | ||
| 21414 - SHAFT, CHOKE | ||||
| 21414-60200 |
F..FJ4#,55 |
1 | ||
| 21403-60010 |
F..FJ4#,55 |
1 | ||
| 21451 - LEVER, HIGH SPEED VALVE STOP | ||||
| 21451-60200 |
F..FJ4#,55 |
1 | ||
| 21452 - LEVER, PUMP | ||||
| 21433-60201 |
F..FJ4#,55 |
1 | ||
| 21454 - LEVER, CHOKE | ||||
| 21454-60200 |
F..FJ4#,55 |
1 | ||
| 21454-60280 |
F..FJ4#,55 |
1 | ||
| 21454-60151 |
F..FJ4#,55 ISO |
1 | ||
| 21471 - LINK, PUMP CONNECTING | ||||
| 21471-60200 |
F..FJ4#,55 |
1 | ||
| 21474 - LINK, CONNECTING | ||||
| 21474-60130 |
F..FJ4#,55 |
1 | ||
| 21481 - CONNECTOR, 1ST IDLE | ||||
| 21481-60200 |
F..FJ4#,55 |
1 | ||
| 21481-60150 |
F..FJ4#,55 |
1 | ||
| 21609 - DIAPHRAGM SUB-ASSY | ||||
| 21609-60131 |
F..FJ4#,55 |
1 | ||
| 21609-60130 |
F..FJ4#,55 |
1 | ||
| 21626 - GASKET, CASE | ||||
| 21626-30010 |
F..FJ4#,55 |
1 | ||
| 21721 - SPRING, HIGH SPEED VALVE STOP LEVER | ||||
| 21721-60061 |
F..FJ4#,55 |
1 | ||
| 21738 - SPRING, CHOKE VALVE RELIEF | ||||
| 21737-60010 |
F..FJ4#,55 OUTSIDE |
1 | ||
| 21738-60010 |
F..FJ4#,55 INSIDE |
1 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
F,2F..FJ4#,55 |
8 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
F,2F..FJ4#,55 |
8 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
F,2F..FJ4#,55 |
8 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
F,2F..FJ4#,55 |
8 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
F,2F..FJ4#,55 |
8 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
F,2F..FJ4#,55 |
8 | ||
| 21823 - SCREW, CHOKE, VALVE SET | ||||
| 21821-60010 |
F..FJ4#,55 |
2 | ||
| 21823-60010 |
F..FJ4#,55 |
2 | ||
| 21821-60011 |
F..FJ4#,55 |
2 | ||
| 21825 - SCREW, STOP LEVER SET | ||||
| 21825-33010 |
F..FJ4#,55 |
1 | ||
| 21826 - SCREW, PUMP ARM SET | ||||
| 21826-31011 |
F..FJ4#,55 |
1 | ||
| 21838 - SCREW, CHOKE WIRE CLAMP | ||||
| 93119-14008 |
F..FJ4#,55 |
1 | ||
| Common parts | ||||
| 94611-10300 | ||||
| 94611-10400 | ||||
| 95381-01610 | ||||

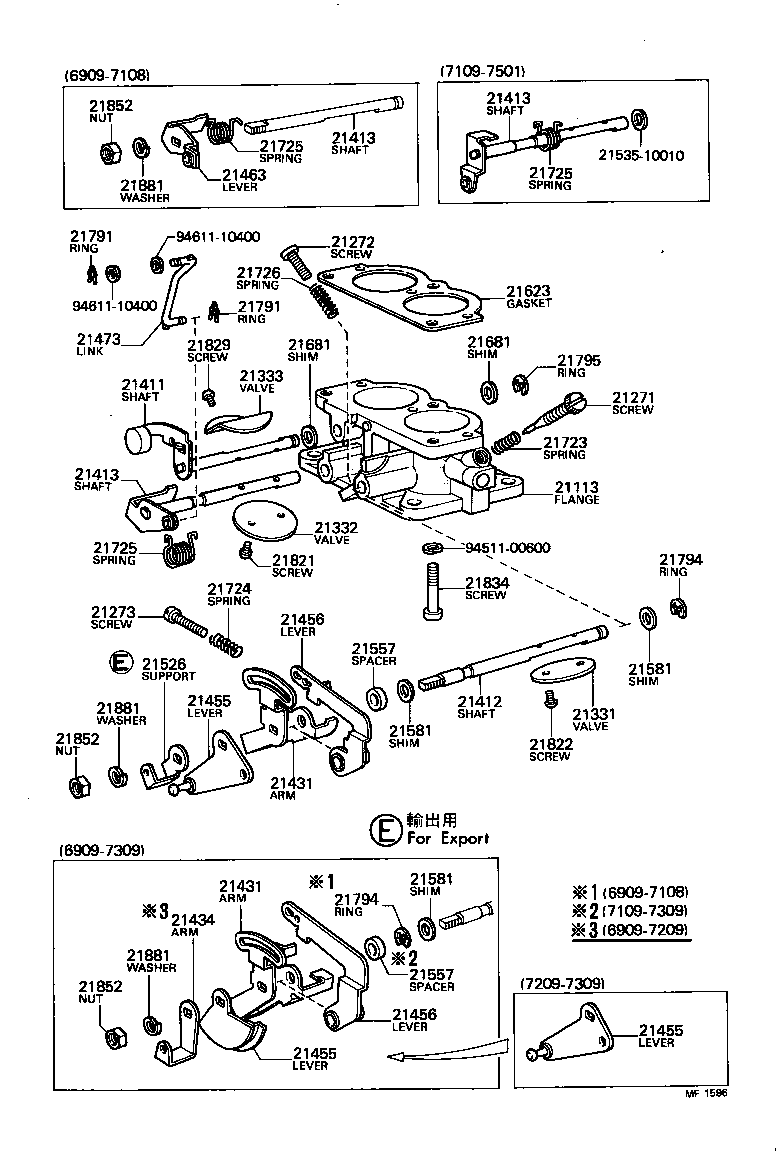

(6909-7501)F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21113 - FLANGE, CARBURETOR | ||||
| 21113-60130 |
F..FJ4#,55 |
1 | ||
| 21113-60150 |
F..FJ4#,55 |
1 | ||
| 21113-60131 |
F..FJ4#,55 |
1 | ||
| 21271 - SCREW, IDLE ADJUSTING | ||||
| 21271-60200 |
F..FJ4#,55 |
1 | ||
| 21271-60150 |
F..FJ4#,55 |
1 | ||
| 21271-60130 |
F..FJ4#,55 |
1 | ||
| 21272 - SCREW, 1ST IDLE ADJUSTING | ||||
| 21844-33010 |
F..FJ4#,55 |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21273-60151 |
F..FJ4#,55 ISO |
1 | ||
| 21331 - VALVE, 1ST THROTTLE | ||||
| 21331-60200 |
F..FJ4#,55 |
1 | ||
| 21331-60150 |
F..FJ4#,55 |
1 | ||
| 21332 - VALVE, 2ND THROTTLE | ||||
| 21332-60200 |
F..FJ4#,55 |
1 | ||
| 21333 - VALVE, HIGH SPEED | ||||
| 21333-60200 |
F..FJ4#,55 |
1 | ||
| 21411 - SHAFT, HIGH SPEED | ||||
| 21411-60200 |
F..FJ4#,55 |
1 | ||
| 21412 - SHAFT, 1ST THROTTLE | ||||
| 21412-60202 |
F..FJ4#,55 |
1 | ||
| 21412-60201 |
F..FJ4#,55 |
1 | ||
| 21412-60150 |
F..FJ4#,55 |
1 | ||
| 21412-60200 |
F..FJ4#,55 |
1 | ||
| 21413 - SHAFT, 2ND THROTTLE | ||||
| 21413-60200 |
F..FJ4#,55 |
1 | ||
| 21413-60201 |
F..FJ4#,55 |
1 | ||
| 21413 - SHAFT, 2ND THROTTLE | ||||
| 21413-60200 |
F..FJ4#,55 |
1 | ||
| 21413-60201 |
F..FJ4#,55 |
1 | ||
| 21413 - SHAFT, 2ND THROTTLE | ||||
| 21413-60200 |
F..FJ4#,55 |
1 | ||
| 21413-60201 |
F..FJ4#,55 |
1 | ||
| 21431 - ARM, 1ST THROTTLE SHAFT | ||||
| 21431-60131 |
F..FJ4#,55 |
1 | ||
| 21431-60130 |
F..FJ4#,55 |
1 | ||
| 21431 - ARM, 1ST THROTTLE SHAFT | ||||
| 21431-60131 |
F..FJ4#,55 |
1 | ||
| 21431-60130 |
F..FJ4#,55 |
1 | ||
| 21434 - ARM, BACK SPRING | ||||
| 21434-60200 |
F..FJ4#,55 |
1 | ||
| 21455 - LEVER, THROTTLE | ||||
| 21455-60200 |
F..FJ4#,55 |
1 | ||
| 21455-60201 |
F..FJ4#,55 |
1 | ||
| 21455-60151 |
F..FJ4#,55 ISO |
1 | ||
| 21455 - LEVER, THROTTLE | ||||
| 21455-60200 |
F..FJ4#,55 |
1 | ||
| 21455-60201 |
F..FJ4#,55 |
1 | ||
| 21455-60151 |
F..FJ4#,55 ISO |
1 | ||
| 21455 - LEVER, THROTTLE | ||||
| 21455-60200 |
F..FJ4#,55 |
1 | ||
| 21455-60201 |
F..FJ4#,55 |
1 | ||
| 21455-60151 |
F..FJ4#,55 ISO |
1 | ||
| 21456 - LEVER, 1ST THROTTLE IDLE ADJUSTING, NO.1 | ||||
| 21456-60150 |
F..FJ4#,55 |
1 | ||
| 21456-60200 |
F..FJ4#,55 |
1 | ||
| 21456 - LEVER, 1ST THROTTLE IDLE ADJUSTING, NO.1 | ||||
| 21456-60150 |
F..FJ4#,55 |
1 | ||
| 21456-60200 |
F..FJ4#,55 |
1 | ||
| 21463 - LEVER, 2ND THROTTLE | ||||
| 21463-60200 |
F..FJ4#,55 |
1 | ||
| 21473 - LINK, THROTTLE SHAFT | ||||
| 21473-60200 |
F..FJ4#,55 |
1 | ||
| 21557 - SPACER(FOR 1ST IDLE CAM) | ||||
| 21557-60200 |
F..FJ4#,55 |
1 | ||
| 21557 - SPACER(FOR 1ST IDLE CAM) | ||||
| 21557-60200 |
F..FJ4#,55 |
1 | ||
| 21581 - SHIM, 1ST THROTTLE SHAFT | ||||
| 21583-32010 |
F..FJ4#,55 T=0.6 |
1 | ||
| 21581-32010 |
F..FJ4#,55 T=0.2 |
1 | ||
| 21581-41010 |
F..FJ4#,55 T=0.1 |
1 | ||
| 21583-41010 |
F..FJ4#,55 T=0.3 |
1 | ||
| 21581 - SHIM, 1ST THROTTLE SHAFT | ||||
| 21583-32010 |
F..FJ4#,55 T=0.6 |
1 | ||
| 21581-32010 |
F..FJ4#,55 T=0.2 |
1 | ||
| 21581-41010 |
F..FJ4#,55 T=0.1 |
1 | ||
| 21583-41010 |
F..FJ4#,55 T=0.3 |
1 | ||
| 21581 - SHIM, 1ST THROTTLE SHAFT | ||||
| 21583-32010 |
F..FJ4#,55 T=0.6 |
1 | ||
| 21581-32010 |
F..FJ4#,55 T=0.2 |
1 | ||
| 21581-41010 |
F..FJ4#,55 T=0.1 |
1 | ||
| 21583-41010 |
F..FJ4#,55 T=0.3 |
1 | ||
| 21623 - GASKET, BODY FLANGE | ||||
| 21623-60200 |
F..FJ4#,55 |
1 | ||
| 21623-60150 |
F..FJ4#,55 |
1 | ||
| 21681 - SHIM(FOR HIGH SPEED SHAFT) | ||||
| 21681-21060 |
F..FJ4#,55 T=0.1 |
1 | ||
| 21535-10010 |
F..FJ4#,55 T=0.5 |
1 | ||
| 21682-21060 |
F..FJ4#,55 T=0.2 |
1 | ||
| 21681 - SHIM(FOR HIGH SPEED SHAFT) | ||||
| 21681-21060 |
F..FJ4#,55 T=0.1 |
1 | ||
| 21535-10010 |
F..FJ4#,55 T=0.5 |
1 | ||
| 21682-21060 |
F..FJ4#,55 T=0.2 |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-60010 |
F..FJ4#,55 |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21723-60150 |
F..FJ4#,55 |
1 | ||
| 21725 - SPRING, 2ND THROTTLE BACK | ||||
| 21725-60200 |
F..FJ4#,55 |
1 | ||
| 21725 - SPRING, 2ND THROTTLE BACK | ||||
| 21725-60200 |
F..FJ4#,55 |
1 | ||
| 21725 - SPRING, 2ND THROTTLE BACK | ||||
| 21725-60200 |
F..FJ4#,55 |
1 | ||
| 21726 - SPRING, 1ST IDLE ADJUSTING | ||||
| 21726-40010 |
F..FJ4#,55 |
1 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
F,2F..FJ4#,55 |
8 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
F,2F..FJ4#,55 |
8 | ||
| 21794 - RING, RETAINER, NO.1(FOR THROTTLE SHAFT) | ||||
| 21794-40010 |
F..FJ4#,55 |
2 | ||
| 21795-41010 |
F..FJ4#,55 |
2 | ||
| 21794 - RING, RETAINER, NO.1(FOR THROTTLE SHAFT) | ||||
| 21794-40010 |
F..FJ4#,55 |
2 | ||
| 21795-41010 |
F..FJ4#,55 |
2 | ||
| 21795 - RING, RETAINER, NO.2(FOR HIGH SPEED SHAFT) | ||||
| 21795-30010 |
F..FJ4#,55 |
2 | ||
| 21821 - SCREW, 2ND THROTTLE VALVE SET | ||||
| 21824-60201 |
F..FJ4#,55 |
2 | ||
| 21824-60200 |
F..FJ4#,55 |
2 | ||
| 21822 - SCREW, 1ST THROTTLE VALVE SET | ||||
| 21821-34031 |
F..FJ4#,55 |
2 | ||
| 21821-60010 |
F..FJ4#,55 |
2 | ||
| 21821-34030 |
F..FJ4#,55 |
2 | ||
| 21829 - SCREW, HIGH SPEED VALVE SET | ||||
| 21823-60011 |
F..FJ4#,55 |
2 | ||
| 21823-60010 |
F..FJ4#,55 |
2 | ||
| 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) | ||||
| 21834-31010 |
F..FJ4#,55 |
1 | ||
| 21834-60010 |
F..FJ4#,55 |
1 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
F..FJ4#,55 |
2 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
F..FJ4#,55 |
2 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
F..FJ4#,55 |
2 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
F..FJ4#,55 |
3 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
F..FJ4#,55 |
3 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
F..FJ4#,55 |
3 | ||
| Common parts | ||||
| 21535-10010 | ||||
| 94511-00600 | ||||
| 94611-10400 | ||||

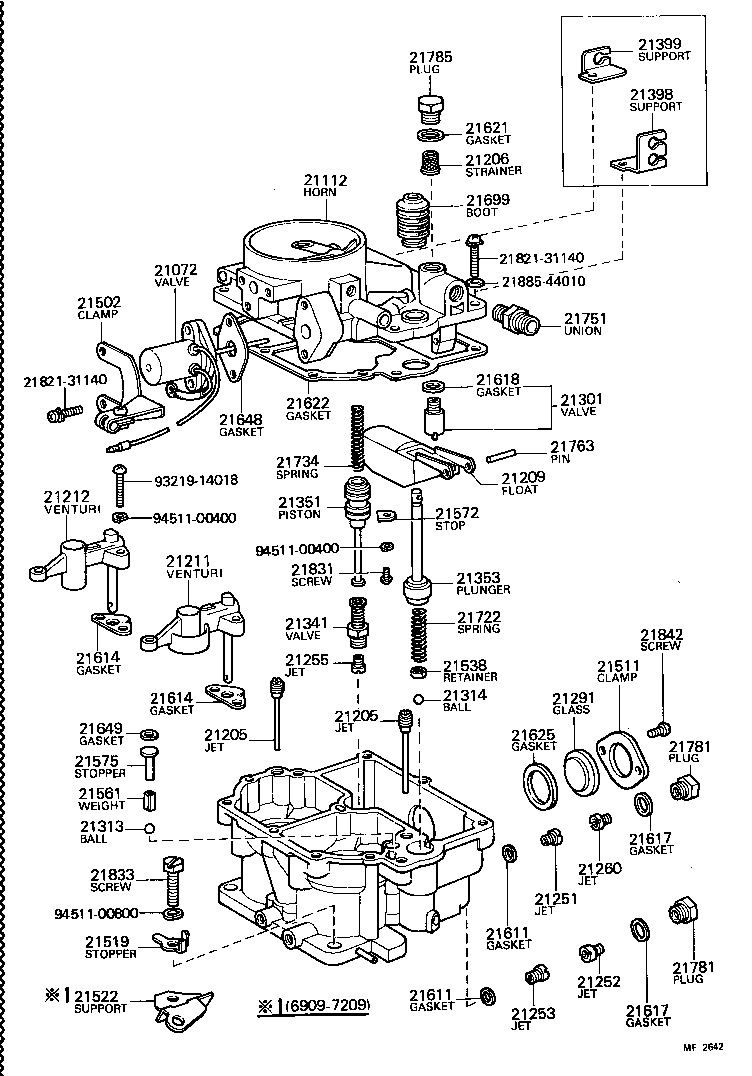

(6909-7501)F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21072 - VALVE SUB-ASSY, SLOW | ||||
| 21072-60151 |
F..FJ4#,55 |
1 | ||
| 21072-60200 |
F..FJ4#,55 |
1 | ||
| 21072-60201 |
F..FJ4#,55 |
1 | ||
| 21112 - HORN, AIR | ||||
| 21112-60152 |
F..FJ4#,55 ISO |
1 | ||
| 21112-60130 |
F..FJ4#,55 |
1 | ||
| 21205 - JET SUB-ASSY, SLOW | ||||
| 21205-60150 |
F..FJ4#,55 ID=0.6 |
1 | ||
| 21205-60200 |
F..FJ4#,55 ID=0.5 |
2 | ||
| 21205 - JET SUB-ASSY, SLOW | ||||
| 21205-60150 |
F..FJ4#,55 ID=0.6 |
1 | ||
| 21205-60200 |
F..FJ4#,55 ID=0.5 |
2 | ||
| 21206 - STRAINER SUB-ASSY | ||||
| 21294-60010 |
F..FJ4#,55 |
1 | ||
| 21294-33080 |
F..FJ4#,55 |
1 | ||
| 21294-10010 |
F..FJ4#,55 |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-33010 |
F..FJ4#,55 |
1 | ||
| 21209-60010 |
F..FJ4#,55 |
1 | ||
| 21211 - VENTURI, 1ST SMALL | ||||
| 21211-60200 |
F..FJ4#,55 |
1 | ||
| 21212 - VENTURI, 2ND SMALL | ||||
| 21212-60200 |
F..FJ4#,55 |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 21251-60151 |
F..FJ4#,55 ID=1.5 |
1 | ||
| 21251-60200 |
F..FJ4#,55 ID=1.12 |
1 | ||
| 21251-60130 |
F..FJ4#,55 ID=1.16 |
1 | ||
| 21252 - JET, 1ST MAIN SPARE | ||||
| 21251-31013 |
F..FJ4#,55 ID=1.08 |
1 | ||
| 21253 - JET, 2ND MAIN | ||||
| 21253-60200 |
F..FJ4#,55 ID=2.00 |
1 | ||
| 21255 - JET, POWER | ||||
| 21255-60200 |
F..FJ4#,55 ID=0.90 |
1 | ||
| 21260 - JET, POWER SPARE | ||||
| 21266-60200 |
F..FJ4#,55 ID=0.7 |
1 | ||
| 21291 - GLASS, LEVEL GAGE | ||||
| 21291-50010 |
F..FJ4#,55 |
1 | ||
| 21291-33010 |
F..FJ4#,55 |
2 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-60200 |
F..FJ4#,55 |
1 | ||
| 21301-60060 |
F..FJ4#,55 |
1 | ||
| 21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT) | ||||
| 21313-30010 |
F..FJ4#,55 |
1 | ||
| 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) | ||||
| 21314-60010 |
F..FJ4#,55 |
1 | ||
| 21341 - VALVE, POWER | ||||
| 21341-60151 |
F..FJ4#,55 |
1 | ||
| 21351 - PISTON, POWER | ||||
| 21351-60151 |
F..FJ4#,55 |
1 | ||
| 21353 - PLUNGER, PUMP | ||||
| 21353-60150 |
F..FJ4#,55 |
1 | ||
| 21353-60200 |
F..FJ4#,55 |
1 | ||
| 21502 - CLAMP SUB-ASSY, CHOKE WIRE | ||||
| 21392-60150 |
F..FJ4#,55 |
1 | ||
| 21392-60201 |
F..FJ4#,55 |
1 | ||
| 21392-60200 |
F..FJ4#,55 |
1 | ||
| 21511 - CLAMP, LEVEL GAGE | ||||
| 21511-33010 |
F..FJ4#,55 |
1 | ||
| 21511-50011 |
F..FJ4#,55 |
1 | ||
| 21519 - STOPPER, IDLE ADJUSTING SCREW CAP | ||||
| 21575-60131 |
F..FJ4#,55 |
1 | ||
| 21575-60130 |
F..FJ4#,55 |
1 | ||
| 21522 - SUPPORT, WIRE | ||||
| 21524-60200 |
F..FJ4#,55 |
1 | ||
| 21538 - RETAINER, BALL CHECK | ||||
| 21538-31010 |
F,2F..FJ4#,55 |
1 | ||
| 21561 - WEIGHT, PUMP DISCHARGE | ||||
| 21561-30010 |
F..FJ4#,55 |
1 | ||
| 21572 - STOP, POWER PISTON | ||||
| 21572-60060 |
F..FJ4#,55 |
1 | ||
| 21572-33080 |
F..FJ4#,55 |
1 | ||
| 21572-22010 |
F..FJ4#,55 |
1 | ||
| 21575 - STOPPER, B(FOR DISCHARGE WEIGHT) | ||||
| 21575-33011 |
F..FJ4#,55 |
1 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
F,2F..FJ4#,55 |
2 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
F,2F..FJ4#,55 |
2 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21628-30010 |
F..FJ4#,55 |
2 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21628-30010 |
F..FJ4#,55 |
2 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-60010 |
F..FJ4#,55 |
1 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21619-22010 |
F..FJ4#,55 |
2 | ||
| 21622 - GASKET, AIR HORN | ||||
| 21622-60200 |
F..FJ4#,55 |
1 | ||
| 21622-60150 |
F..FJ4#,55 |
1 | ||
| 21622-60201 |
F..FJ4#,55 |
1 | ||
| 21625 - GASKET, LEVEL GAGE | ||||
| 21625-50010 |
F..FJ4#,55 |
1 | ||
| 21641-33040 |
F..FJ4#,55 |
1 | ||
| 21648 - PACKING(FOR SLOW VALVE COVER) | ||||
| 21649-60150 |
F..FJ4#,55 |
1 | ||
| 21649 - GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER) | ||||
| 21641-33011 |
F..FJ4#,55 |
1 | ||
| 21722 - SPRING, PUMP DAMPING | ||||
| 21722-60150 |
F..FJ4#,55 |
1 | ||
| 21722-60200 |
F..FJ4#,55 |
1 | ||
| 21734 - SPRING, POWER PISTON | ||||
| 21734-60151 |
F..FJ4#,55 |
1 | ||
| 21734-41010 |
F..FJ4#,55 |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 90404-13006 |
F..FJ4#,55 |
1 | ||
| 90404-13105 |
F..FJ4#,55 |
1 | ||
| 21763 - PIN, FLOAT LEVER | ||||
| 21763-29270 |
F..FJ4#,55 |
1 | ||
| 21763-60010 |
F..FJ4#,55 |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-60200 |
F..FJ4#,55 NO.1 JET |
1 | ||
| 21782-21060 |
F..FJ4#,55 |
1 | ||
| 21677-60200 |
F..FJ4#,55 NO.2 JET |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-60200 |
F..FJ4#,55 NO.1 JET |
1 | ||
| 21782-21060 |
F..FJ4#,55 |
1 | ||
| 21677-60200 |
F..FJ4#,55 NO.2 JET |
1 | ||
| 21785 - PLUG, CARBURETOR FUEL INLET STRAINER | ||||
| 21781-60010 |
F..FJ4#,55 |
2 | ||
| 21831 - SCREW, POWER PISTON STOP | ||||
| 21842-33010 |
F,2F..FJ4#,55 |
1 | ||
| 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) | ||||
| 93180-18025 |
F..FJ4#,55 |
2 | ||
| 21812-60060 |
F..FJ4#,55 |
2 | ||
| 21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET) | ||||
| 21842-33010 |
F,2F..FJ4#,55 |
2 | ||
| Common parts | ||||
| 21821-31140 | ||||
| 21885-44010 | ||||
| 93219-14018 | ||||
| 94511-00400 | ||||
| 94511-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
