FJ40- (1969)

Toyota Land Cruiser

Production Mar 1969 - Jan 1975
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8410)B,3B

Click highlighted areas on diagram

diagram 11802 11802 13511 13511B 13523 13523A 13523B 13571 13711 13711A 13711A 13711B 13711B 13711C 13711C 13715 13741 13741 13741A 13741A 13751 13781 13801 13801 13801 13801 13801B 13801C 13801D 13801D 13801D 13801D 13802 13802 13802 13802 13901 13951 13951A 13951A 13951B 13951C 13951D 13952 13952 13952 13953 9020114015 9020114015 9161160818 9161161025 9161161030
Part # Description Qty Price
Common parts
90201-14015
91611-60818
91611-61025
91611-61030

(6903-7309)F

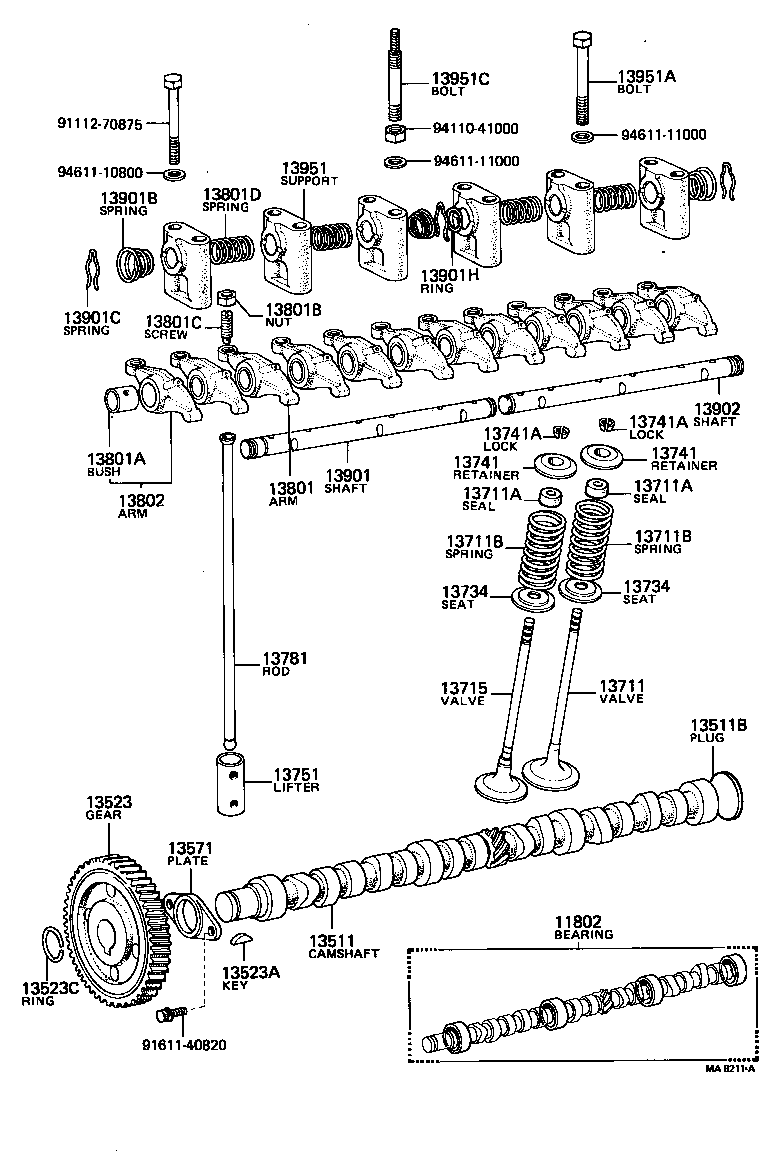

Click highlighted areas on diagram

diagram 11802 13511 13511B 13523 13523A 13523C 13571 13711 13711A 13711A 13711B 13711B 13715 13734 13734 13741 13741 13741A 13741A 13751 13781 13801 13801A 13801B 13801C 13801D 13802 13901 13901B 13901C 13901H 13902 13951 13951A 13951C 9111270875 9161140820 9411041000 9461110800 9461111000 9461111000
Part # Description Qty Price
11802 - BEARING SET, CAMSHAFT
11806-60020

F..FJ4#,55

U/S 0.75

 1
11807-60020

F..FJ4#,55

U/S 1.00

 1
11804-60020

F..FJ4#,55

U/S 0.25

 1
11803-60020

F..FJ4#,55

U/S 0.125

 1
11802-60010

F..FJ4#,55

STD

 1
11805-60020

F..FJ4#,55

U/S 0.50

 1
11807-60021

F..FJ4#,55

U/S 1.00

 1
11803-60021

F..FJ4#,55

U/S 0.125

 1
13511 - CAMSHAFT
13511-60040

F..FJ4#,55

 1
13511B - PLUG, EXPANSION(FOR CAMSHAFT)
90331-48010

F,2F..FJ4#,55

OD=48

 1
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13523-60030

F,2F..FJ4#,55

N=54

 1
13523A - KEY, WOODRUFF(FOR TIMING GEAR)
90280-05010

F,2F..FJ4#,55

 1
13523C - RING, SNAP CAMSHAFT(FOR TIMING GEAR)
90520-29051

F,2F..FJ4#,55

 1
13571 - PLATE, CAMSHAFT THRUST
13571-60010

F,2F..FJ4#,55

 1
13711 - VALVE, INTAKE
13711-60020

F..FJ4#,55

 6
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02002

F..FJ4#,55

 12
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02002

F..FJ4#,55

 12
13711B - SPRING, COMPRESSION(FOR INNER)
90501-45342

F,2F..FJ4#,55

WD=4.5,CW=6.5

 12
13711B - SPRING, COMPRESSION(FOR INNER)
90501-45342

F,2F..FJ4#,55

WD=4.5,CW=6.5

 12
13715 - VALVE, EXHAUST
13715-60031

F..FJ4#,55

 6
13734 - SEAT, VALVE SPRING
13734-60030

F,2F..FJ4#,55

 12
13734 - SEAT, VALVE SPRING
13734-60030

F,2F..FJ4#,55

 12
13741 - RETAINER, VALVE SPRING
13741-60030

F,2F..FJ4#,55

 12
13741 - RETAINER, VALVE SPRING
13741-60030

F,2F..FJ4#,55

 12
13741A - LOCK, VALVE SPRING RETAINER
90913-03005

F..FJ4#,55

 24
13741A - LOCK, VALVE SPRING RETAINER
90913-03005

F..FJ4#,55

 24
13751 - LIFTER, VALVE
13751-60021

F,2F..FJ4#,55

STD

 12
13755-60021

F,2F..FJ4#,55

O/S 0.05

 12
13781 - ROD, VALVE PUSH
13781-60020

F,2F..FJ4#,55

 12
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13801-60020

F..FJ4#,55

 6
13801A - BUSH, BIMETAL FORMED(FOR ROCKER ARM)
90999-73043

F,2F..FJ4#,55

 12
13801B - NUT, HEXAGON(FOR VALVE ADJUSTING)
90170-12041

F..FJ4#,55

 12
13801C - SCREW, VALVE ADJUSTING
90913-05001

F..FJ4#,55

 12
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-16163

F,2F..FJ4#,55

WD=1.6,CW=7.5

 5
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13802-60020

F..FJ4#,55

 6
13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13901-60021

F..FJ4#,55

 1
13901B - SPRING, CONICAL(FOR VALVE ROCKER SHAFT)
90502-16004

F,2F..FJ4#,55

 4
13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT)
90524-15008

F,2F..FJ4#,55

 4
13901H - RING, O, VALVE ROCKER OIL DELIVERY UNION
96710-02015

F..FJ4#,55

 4
90301-14085

F..FJ4#,55

 4
13902 - SHAFT SUB-ASSY, VALVE ROCKER, NO.2
13902-60020

F..FJ4#,55

 1
13951 - SUPPORT, VALVE ROCKER, NO.1
13951-60020

F..FJ4#,55

 6
13951A - BOLT(FOR ROCKER SUPPORT SET)
90910-01006

F,2F..FJ4#,55

 2
13951C - BOLT, STUD(FOR ROCKER SUPPORT)
13994-60010

F,2F..FJ4#,55

L=122,S=15&15&20

 4
Common parts
91112-70875
91611-40820
94110-41000
94611-10800
94611-11000
