BJ75LV-MRW (1984)

Toyota Land Cruiser

Production Nov 1984 - Jan 1990
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

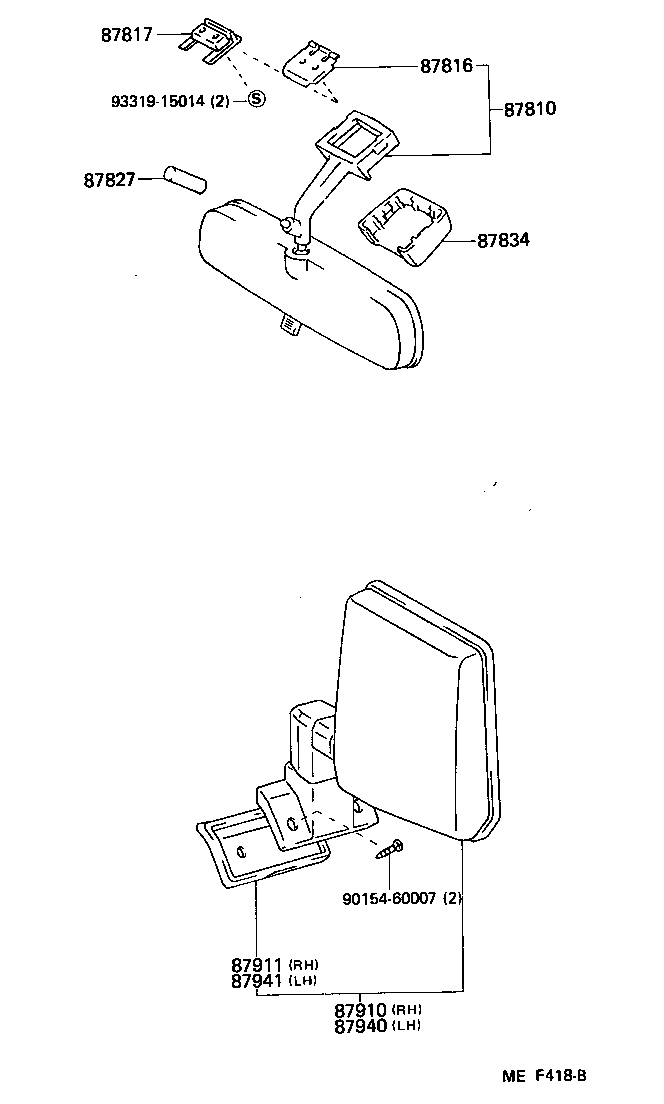

Click highlighted areas on diagram

diagram 87810 87816 87817 87827 87834 87910 87911 87940 87941 9015460007 9331915014
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-90K01

BJ7#,LJ70,RJ70

 1
87810-90K03

BJ7#,LJ7#,RJ7#

 1
87810-90K05

BJ7#,LJ7#,RJ7#

 1
87816 - SPRING, INNER REAR VIEW MIRROR
74372-30030

BJ7#,LJ7#,RJ7#

 1
74372-90A00

BJ7#,LJ70,RJ70

 1
87827 - ABSORBER, INNER REAR VIEW MIRROR
87828-87005

BJ7#,LJ7#,RJ7#

L=49

 1
87828-30010

BJ7#,LJ7#,RJ7#

L=44

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-2008018

BJ7#,LJ7#,RJ7#

IVORY

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-90K01

BJ7#,LJ7#,RJ7#

 1
87910-90K15

BJ7#,LJ7#,RJ7#

 1
87911 - GASKET, OUTER REAR VIEW MIRROR, RH
87911-90K01

BJ7#,LJ7#,RJ7#

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-90K01

BJ7#,LJ7#,RJ7#

 1
87940-90K15

BJ7#,LJ7#,RJ7#

 1
87941 - GASKET, OUTER REAR VIEW MIRROR, LH
87911-90K01

BJ7#,LJ7#,RJ7#

 1
Common parts
90154-60007
93319-15014
